Anchor bracket KK3 40x400x40x2.0 mm
Description

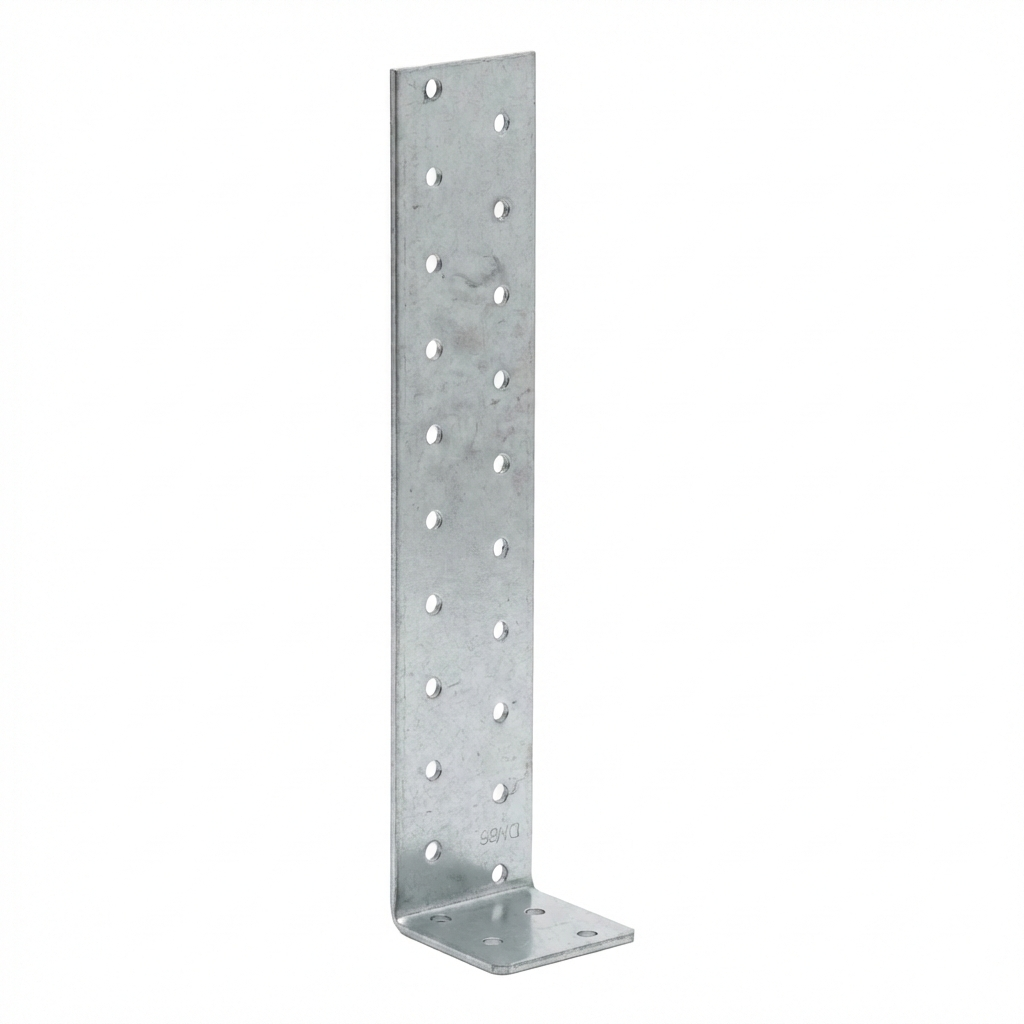

Anchor Bracket KK3 – 40×400×40×2.0 mm
Anchor bracket KK3 is a robust steel connector designed for anchoring timber elements into concrete. It is an indispensable solution for securing larger structural elements, such as tall posts, long sole plates, or heavy wall plates, providing a durable and stable connection to a concrete substrate.

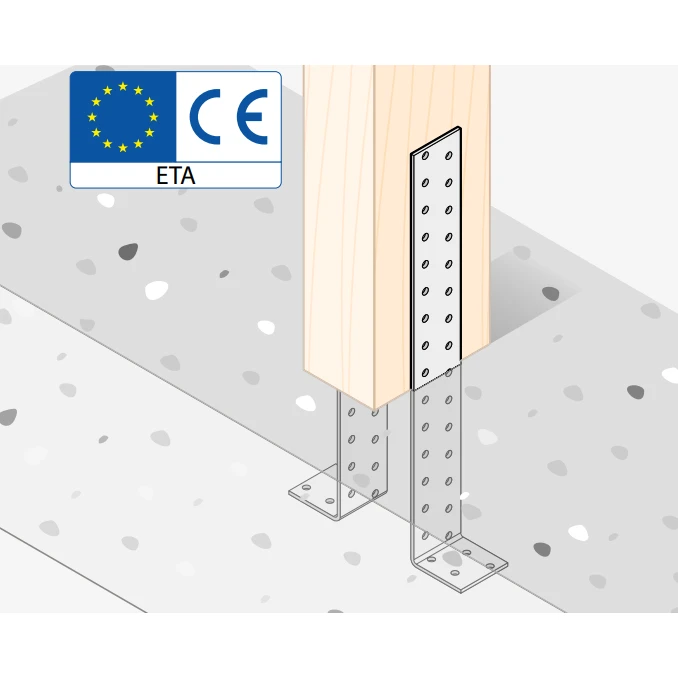

The design of the KK3 anchor bracket requires its lower section to be cast into concrete, while the upper arm is used to secure timber elements. This method of installation guarantees connection strength under significant loads. The product holds a European Technical Assessment, confirming its performance parameters.
Main Applications
- Anchoring timber elements into concrete substrates
- Securing tall structural posts
- Securing long sole plates
- Securing heavy wall plates
- Stabilising heavy timber structures
Technical Specification

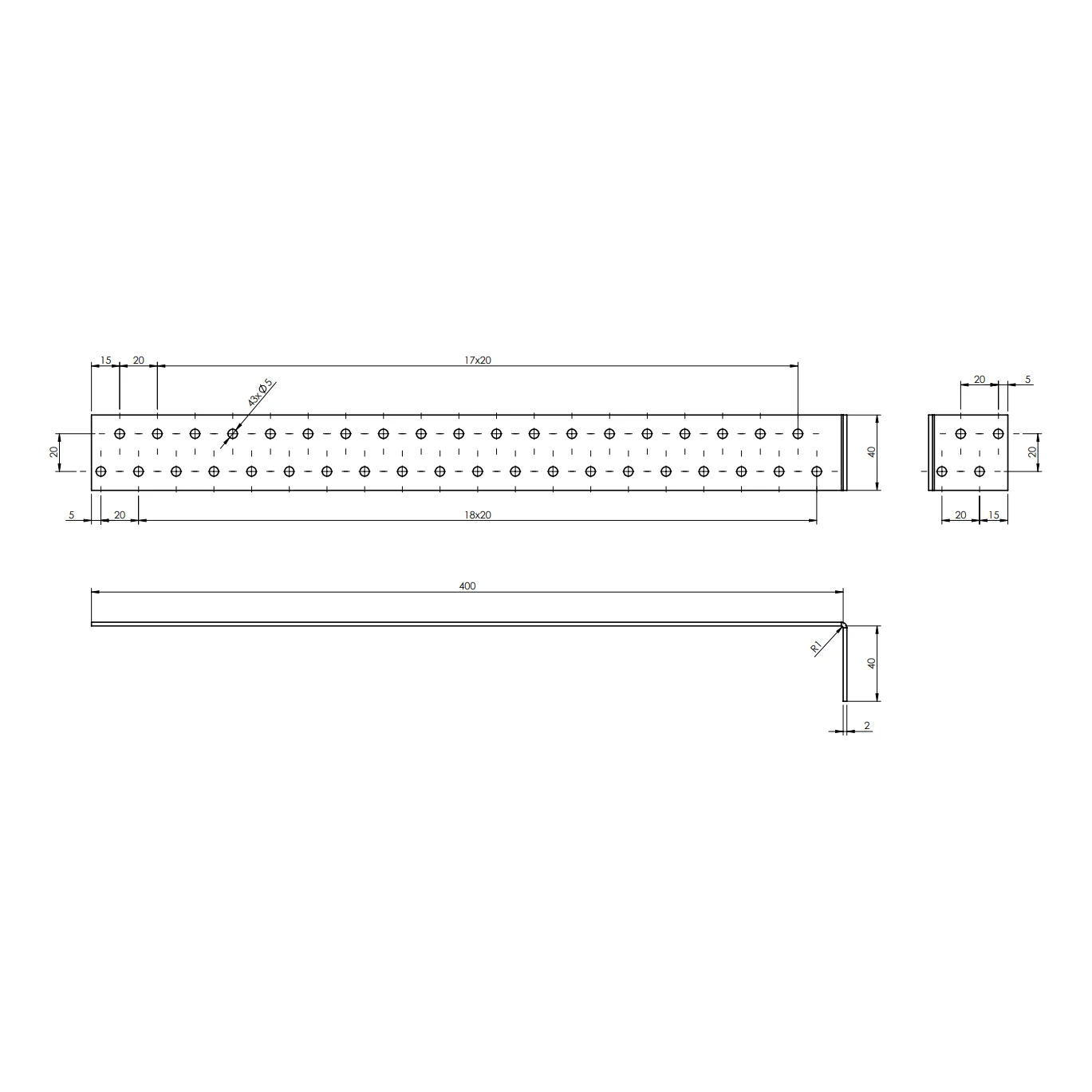

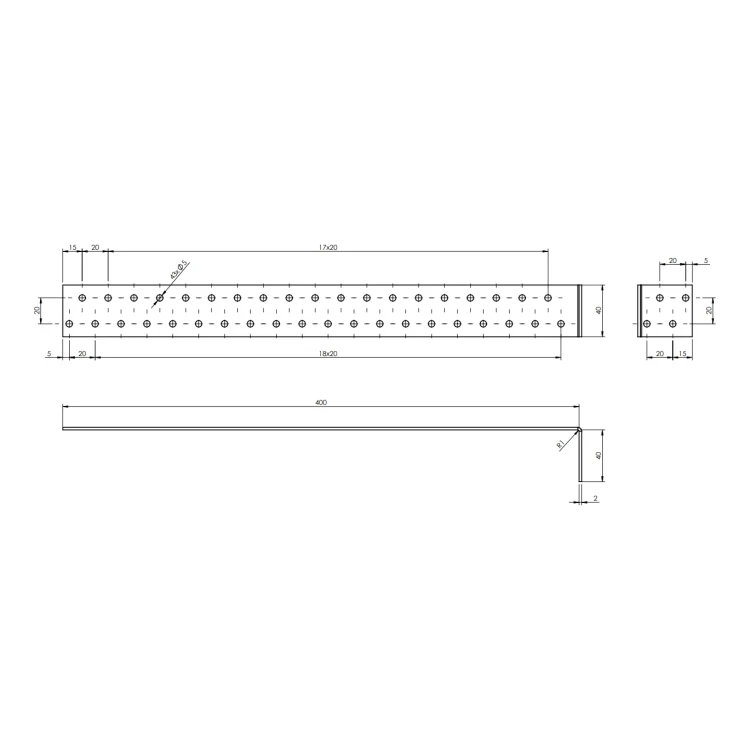

- Dimension A (length): 400 mm
- Dimension B (arm height): 40 mm
- Width: 40 mm
- Sheet thickness: 2.0 mm
- Holes: 44 pcs × ⌀5.0 mm
- Material: DX51D + Z275 sheet steel (hot-dip galvanised)

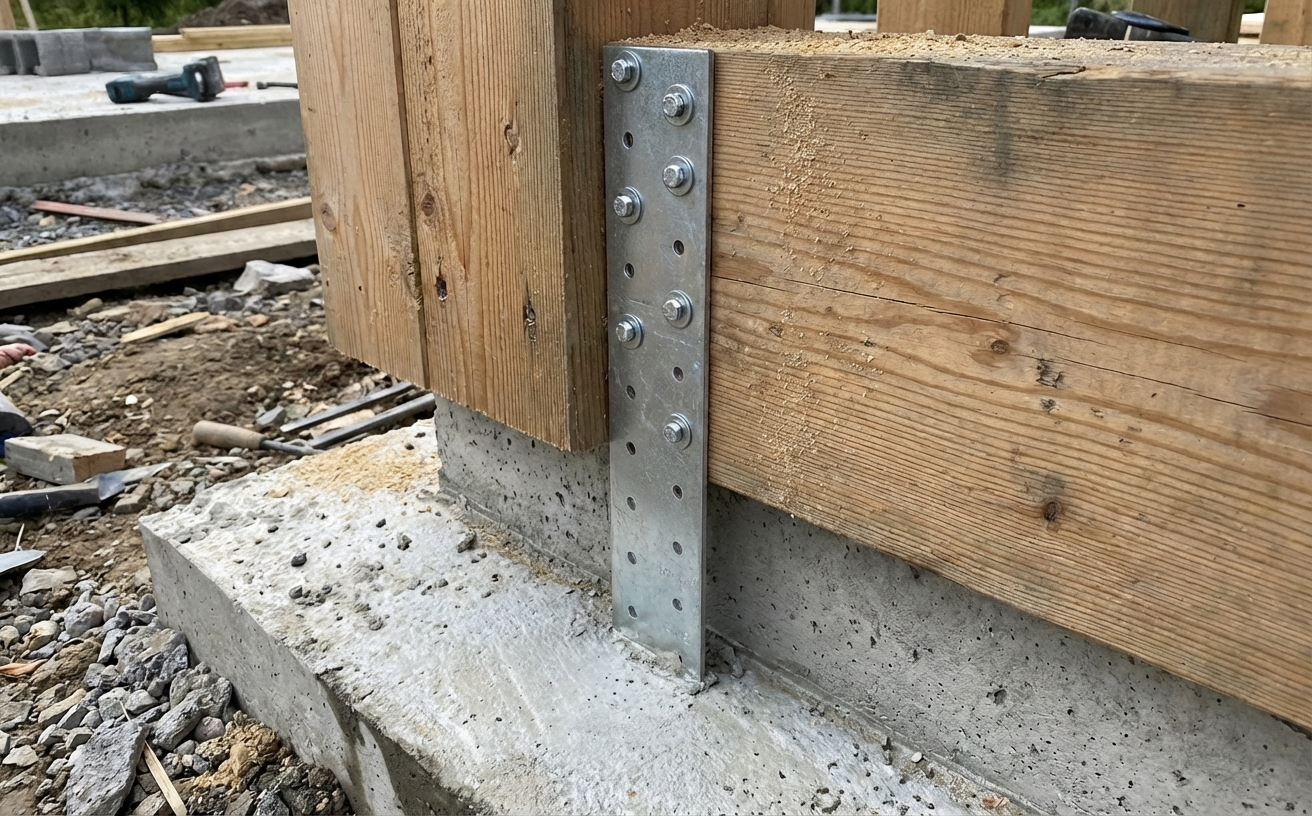

Installation of the KK3 anchor bracket in concrete is carried out by embedding it to the required depth before the concrete sets. Timber elements are then fixed to the protruding section of the bracket using ring shank nails ⌀4 mm or wood screws ⌀4 mm. The numerous fixing holes (44 pcs) provide flexibility in fastener placement and optimal load distribution.
Benefits of the KK3 The KK3 anchor bracket is a professional solution for demanding projects, valued for its exceptional load-bearing capacity, ease of installation, and versatility. Manufactured from heavy-gauge steel sheet with hot-dip galvanising (Z275), it offers excellent corrosion resistance, ensuring a long service life for the structure in any conditions.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Sheet metal thickness [mm] | 2 |
| Connector Type | Beam Angle Bracket |
| Material | A2 - stainless steel |
