Anchor bracket KK1 40x200x40x2.0 mm
Leave feedback on the product
Steel connector for anchoring timber elements to concrete, dimensions 40×200×40 mm, thickness 2.0 mm, material DX51D + Z275, mounting holes ⌀5.0 mm.
Product code: 000-123
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 2
- Connector Type Anchor Angle Bracket
- Material Steel
- Thread type M10
- Length [mm] 6
- Coating Black anodised
Description

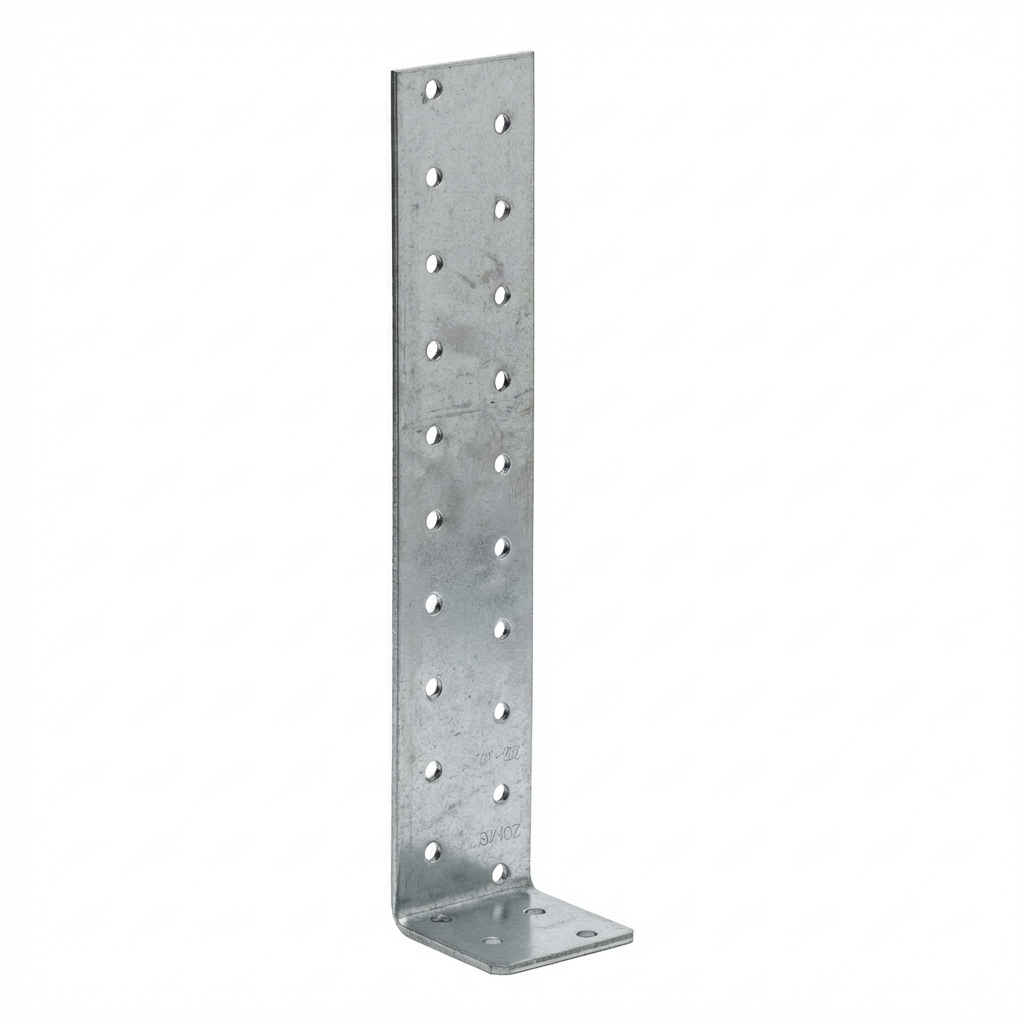

Anchor bracket KK 1 – 40×200×40×2.0 mm
Anchor bracket KK 1 is a proven steel connector designed for anchoring wooden elements in concrete. It performs excellently when securing posts, sill beams and wall plates – wherever a permanent and reliable connection between timber construction and concrete substrate is required.

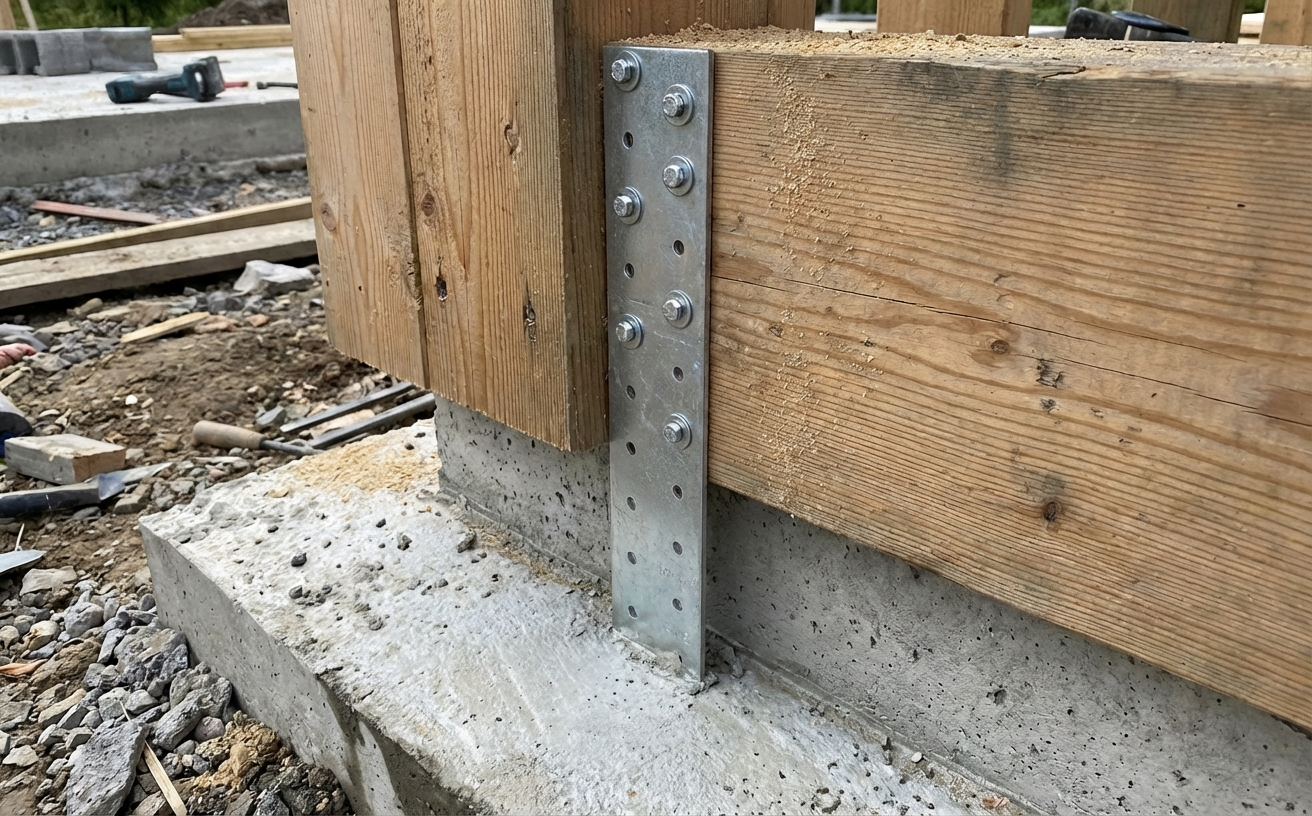

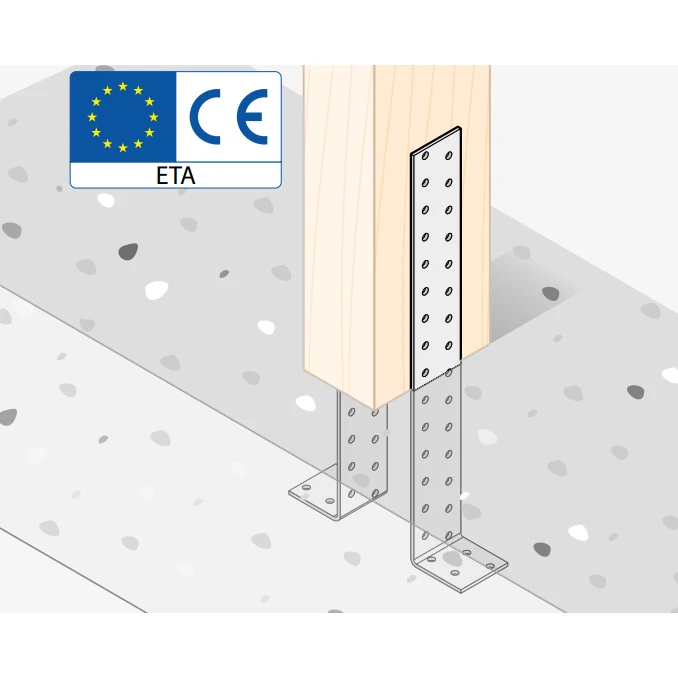

The lower part of the bracket is embedded in concrete, whilst wooden beams are fixed to the protruding section. This solution ensures a stable and durable connection, resistant to operational loads. Certified product – holds European Technical Assessment.
Applications
- Anchoring wooden elements in concrete
- Fixing structural posts
- Fixing sill beams
- Fixing wall plates
- Fixing timber walls

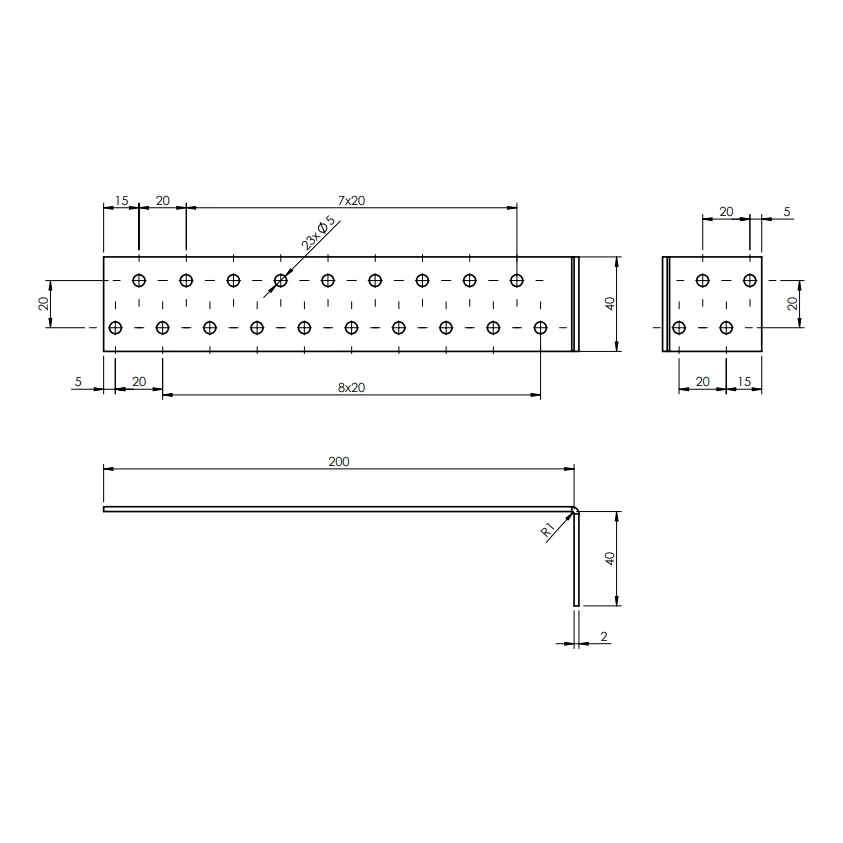

Technical parameters
- Dimension A (length): 200 mm
- Dimension B (arm height): 40 mm
- Width: 40 mm
- Sheet thickness: 2.0 mm
- Holes: 24 pcs × ⌀5.0 mm
- Material: DX51D + Z275 sheet (hot-dip galvanised steel)
Fixing of the KK 1 bracket is carried out using ⌀4 mm annular ring nails or ⌀4 mm wood screws. Thanks to 24 mounting holes evenly distributed on both arms, the connector ensures optimal force distribution and high connection load capacity.
Why choose it? The KK 1 bracket is a solution valued by installation companies for its ease of assembly, high load capacity and versatility of application. Made from hot-dip galvanised steel (Z275 coating) providing long-term corrosion protection, making it a reliable choice for both residential and industrial construction.
