Furniture angle bracket KW 30 30x30x14x1.5 hot-dip galvanised
Description

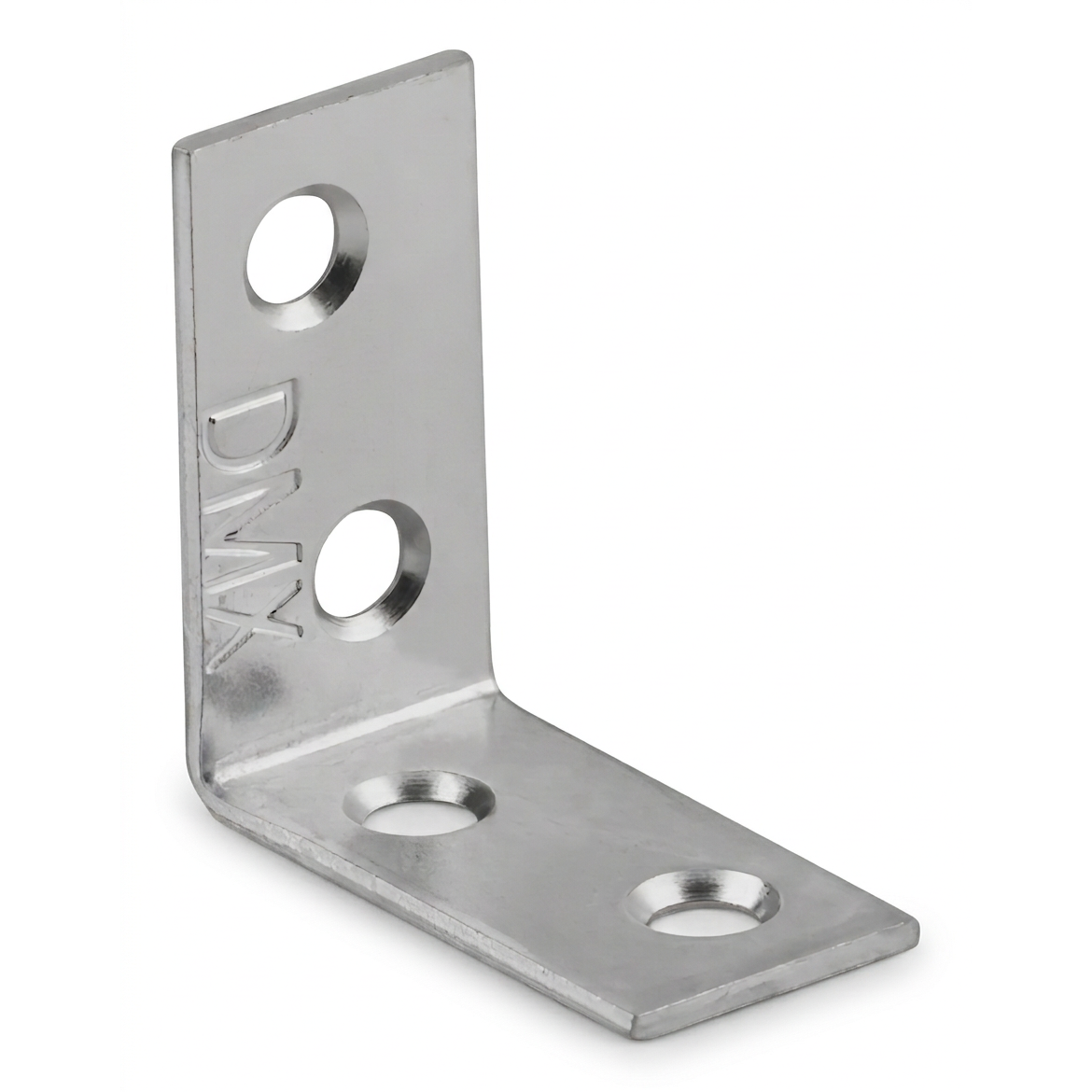

Steel Hot-Dip Galvanised Furniture Angle Bracket 30×30×14 mm
The furniture angle bracket 30×30×14 mm is a versatile angular connector designed for joinery, furniture assembly, and timber construction. Made from hot-dip galvanised sheet steel Z275, it offers excellent corrosion resistance and long-lasting durability — suitable for both indoor and outdoor applications. It holds a European Technical Assessment (ETA), a Declaration of Performance, and a Certificate of Conformity of Factory Production Control, confirming compliance with European construction standards.
The bracket features 6 fixing holes (3 on each flange), which greatly simplifies the installation of non-standard elements and eliminates expansion stresses. Various bracket widths are available, making them suitable for both narrow and wide board or panel edges. The compact dimensions of 30×30×14 mm with a sheet thickness of 1.5 mm ensure a solid connection at minimal weight.

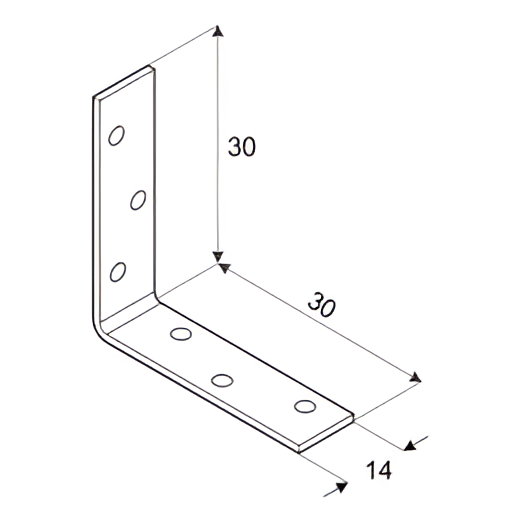

Dimensions and Technical Specifications
- Height (vertical flange): 30 mm
- Length (horizontal flange): 30 mm
- Width: 14 mm
- Sheet thickness: 1.5 mm
- Material: hot-dip galvanised steel sheet Z275
- Colour: silver
- Number of fixing holes: 6 (3 + 3)
Applications
- Timber structures

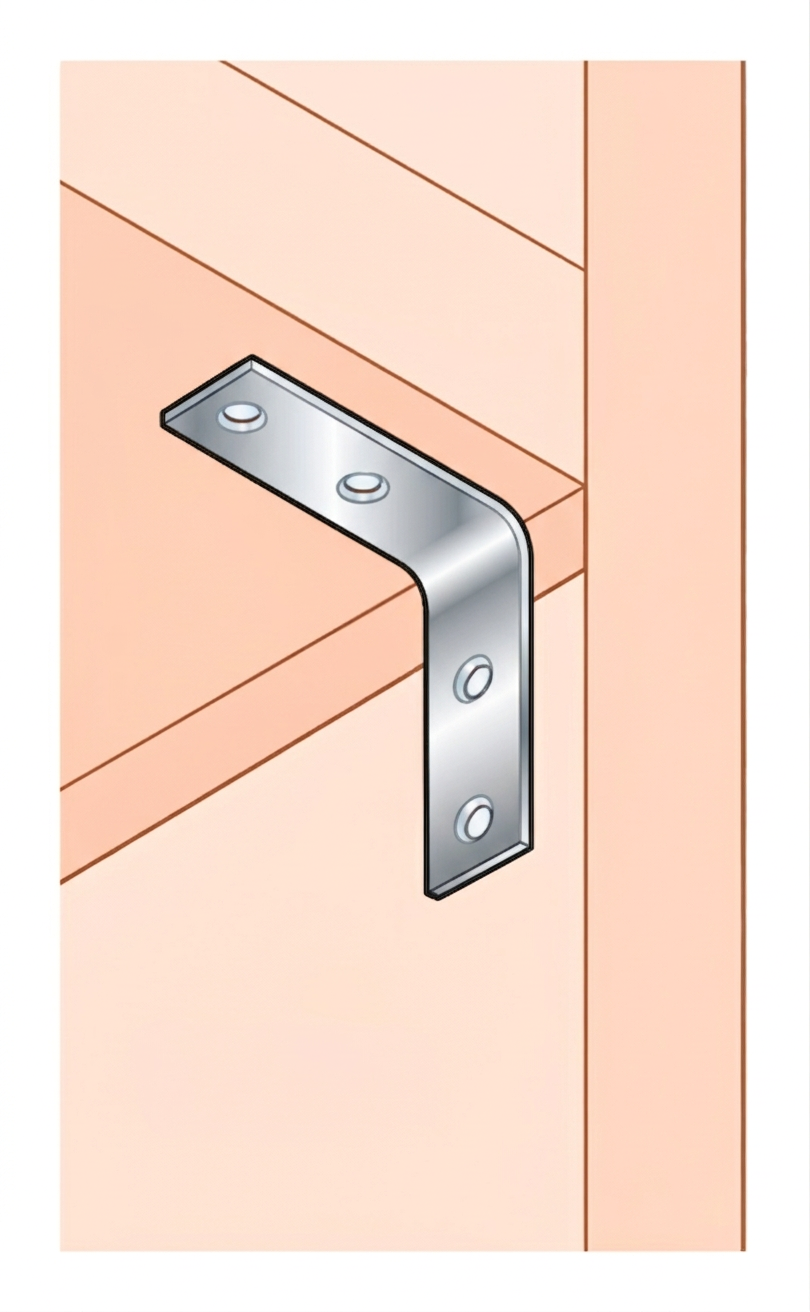

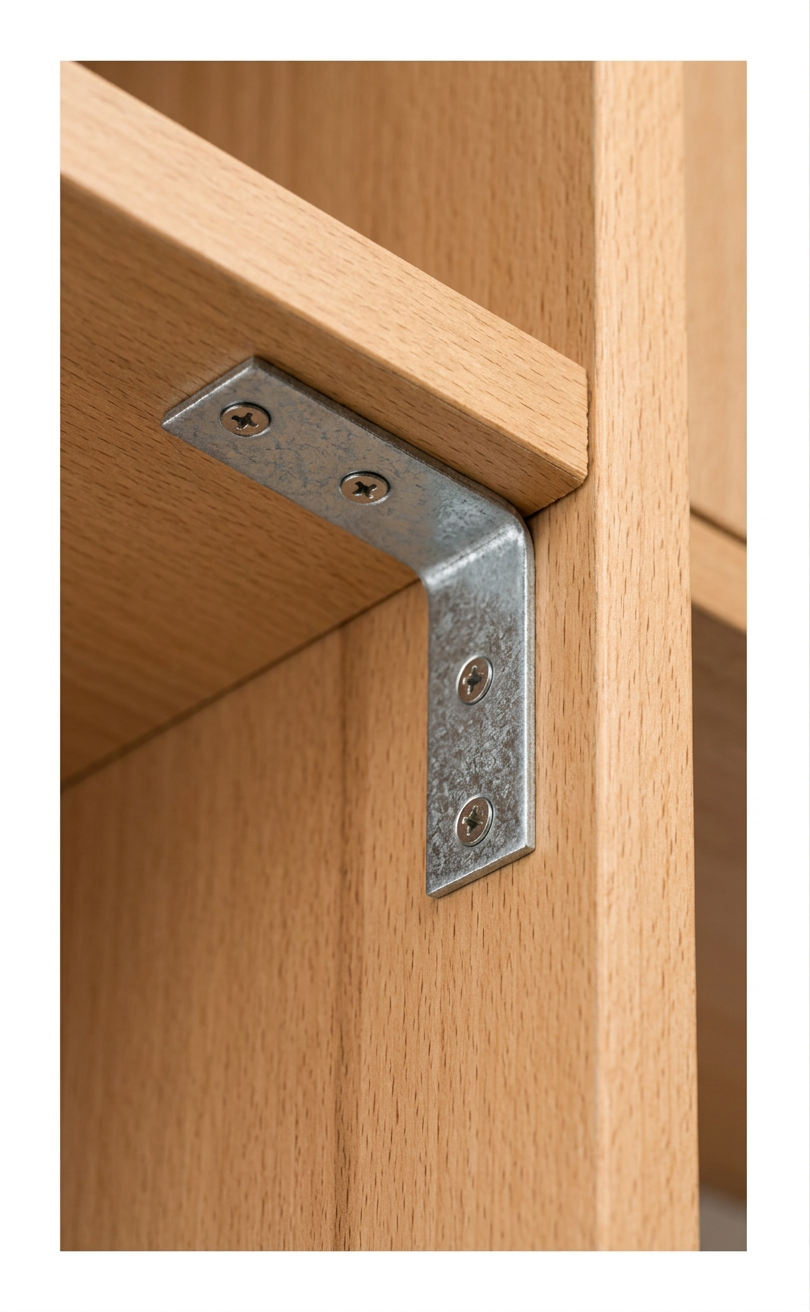

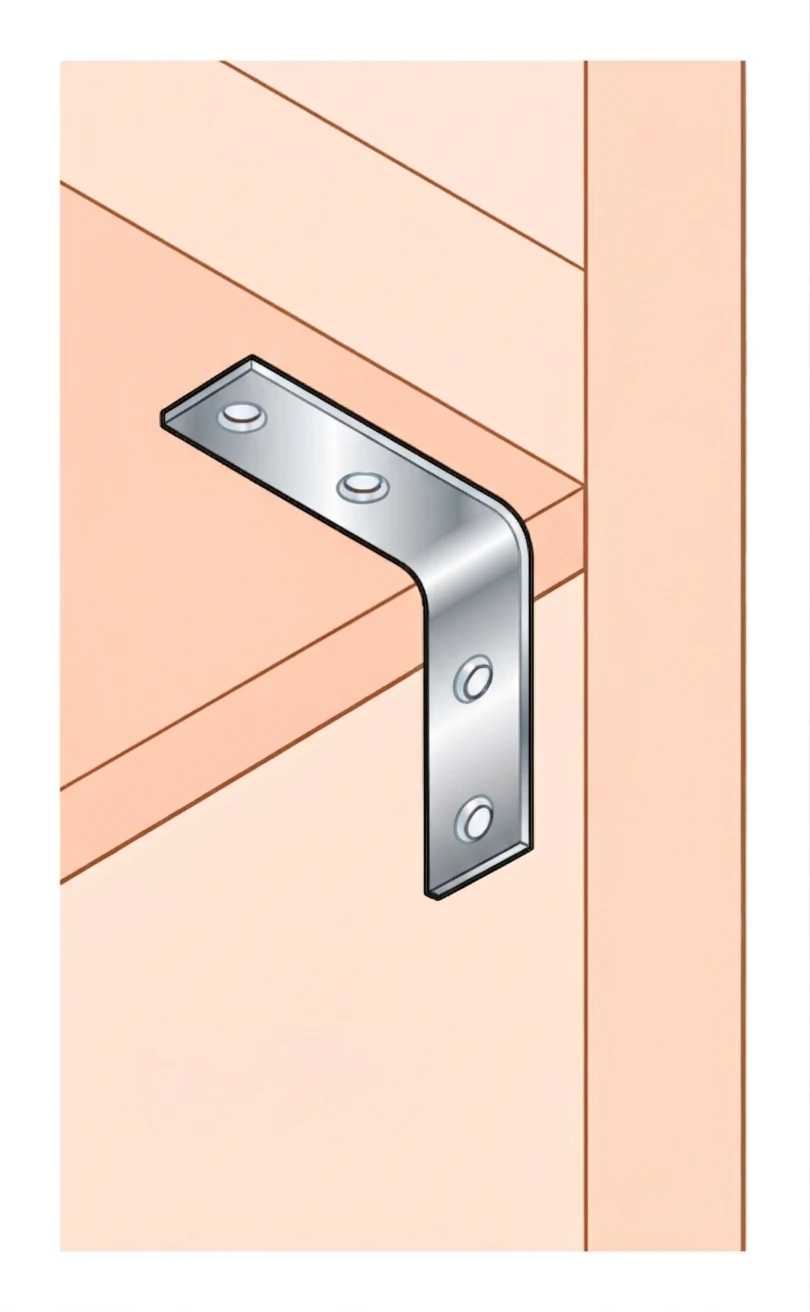

- Furniture and joinery connections
- Pergolas and garden shelters
- Timber roofs
- Timber posts
- Connecting elements in residential and industrial construction
Fixing and Certifications
For installation, ring shank nails ø4 mm or wood screws ø4 mm are recommended. The product comes with full quality documentation: a European Technical Assessment (ETA), CE marking, a Declaration of Performance (DoP), and a Certificate of Conformity of Factory Production Control — enabling the bracket to be used in professional construction projects in accordance with applicable regulations.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Sheet metal thickness [mm] | 1.5 |
| Connector Type | Mounting Angle Bracket |
| Material | Steel |
