Angle bracket mounting connector KW 1 25x25x17x1.5 mm galvanised
Leave feedback on the product
Steel angle bracket 25×25×17 mm made from DC01 sheet steel, 1.5 mm thick, gold galvanic zinc coating, load capacity 3.33 kN, fire class A1, 4 mounting holes.
Product code: 000-346
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 1.5
- Connector Type Mounting Angle Bracket
- Material Steel
- Thread type M10
- Length [mm] 6
- Coating Black anodised
Description

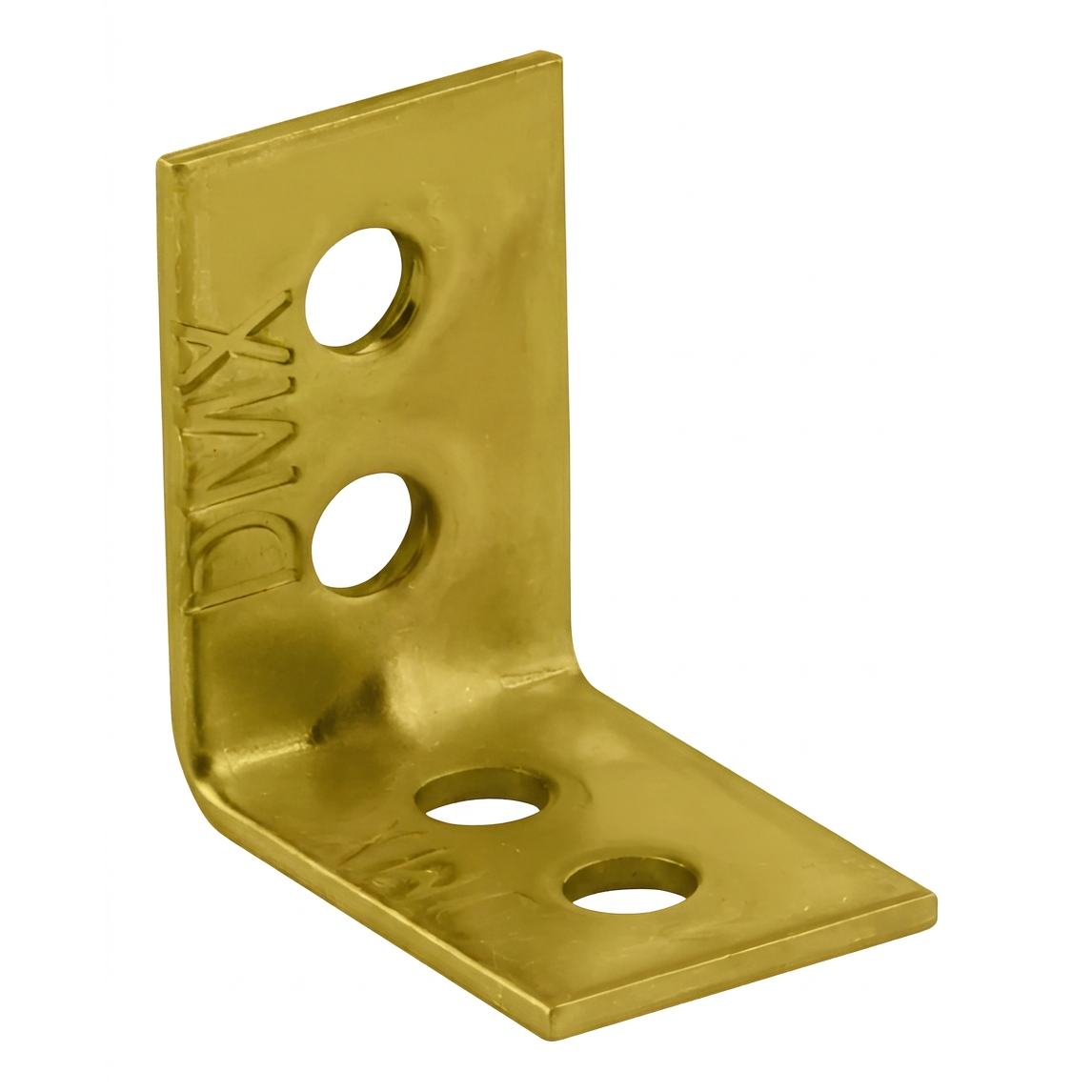

Narrow Steel Angle Bracket 25×25×17 mm Galvanised Gold
The narrow angle bracket 25×25×17 mm is a compact corner connector designed for fine joinery and furniture assembly work. Thanks to its narrow width (17 mm), it is ideally suited for fixing to the narrow edges of boards and wood-based panels — in situations where standard angle brackets do not fit along the edge of the material.
The bracket is manufactured from DC01 steel sheet with a thickness of 1.5 mm, coated with electrolytic zinc in a gold finish. The zinc coating provides effective corrosion protection, while the gold tone allows the connector to blend discreetly with natural wood elements. The product features a reinforcing embossment at the corner, which increases joint rigidity and resistance to deformation. Four countersunk mounting holes allow secure fixing using a variety of fasteners.

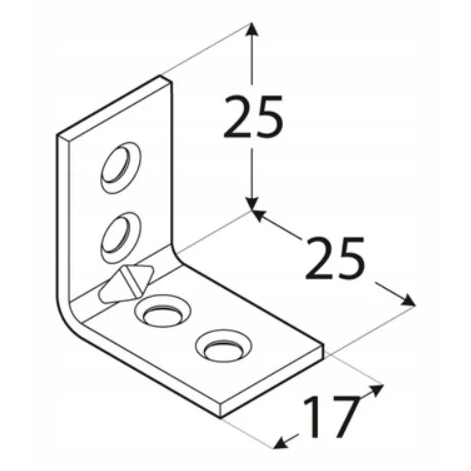

Technical Specifications
- Vertical leg dimension (a): 25 mm
- Horizontal leg dimension (b): 25 mm
- Bracket width (c): 17 mm
- Sheet thickness: 1.5 mm
- Material: DC01 steel sheet
- Coating: electrolytic zinc, gold finish
- Colour: gold (yellow)
- Reaction to fire: Class A1
- Load capacity (F↓): 3.33 kN
- Number of holes: 4 (2 per leg)
Application and Installation

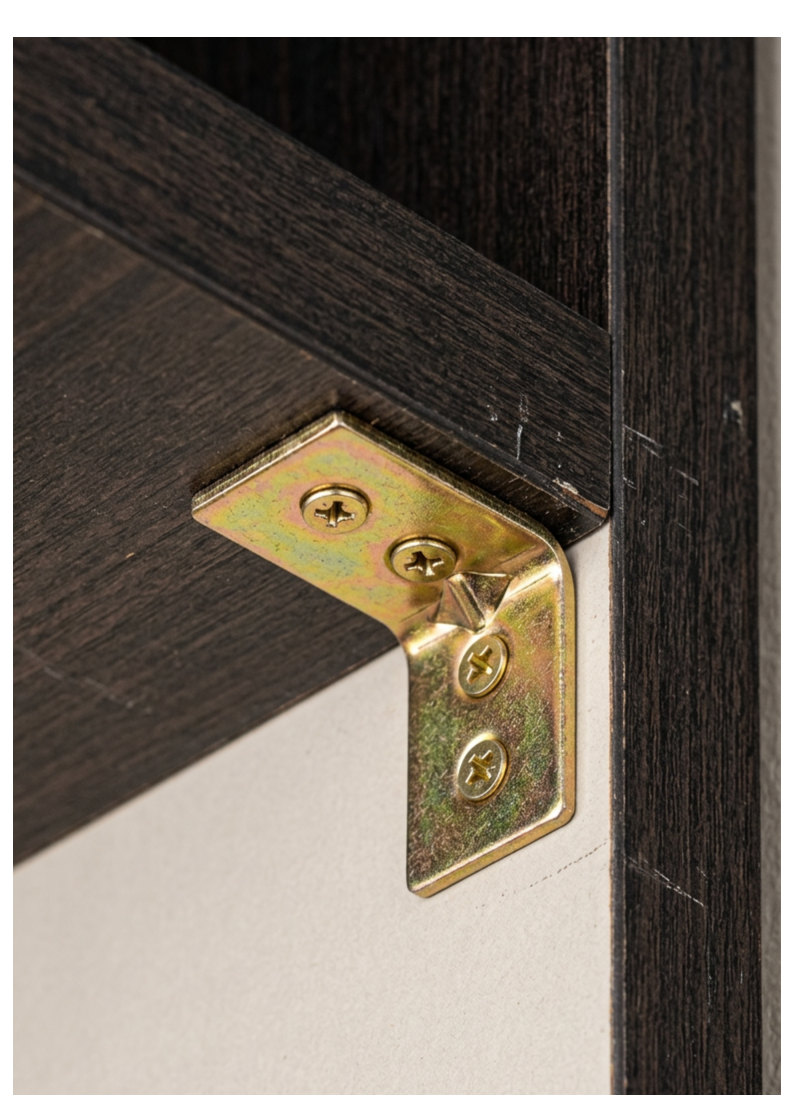

The bracket is intended for joining timber and wood-based components in the furniture and joinery industries. It is suitable wherever a durable right-angle connection is required on narrow surfaces — when fitting shelves, reinforcing cabinet corners, joining battens or frame members.
Recommended fasteners:
- Ring shank nails ø4 mm
- Wood screws ø4 mm or ø5 mm
- M5 bolts
- M5 concrete anchors
Thanks to the option of anchoring into concrete, the bracket can also serve as a connecting element between timber structures and concrete or masonry substrates — for example when setting posts, thresholds or timber frames.
