Flat timber connector LP 3 200x35x2.5
Description

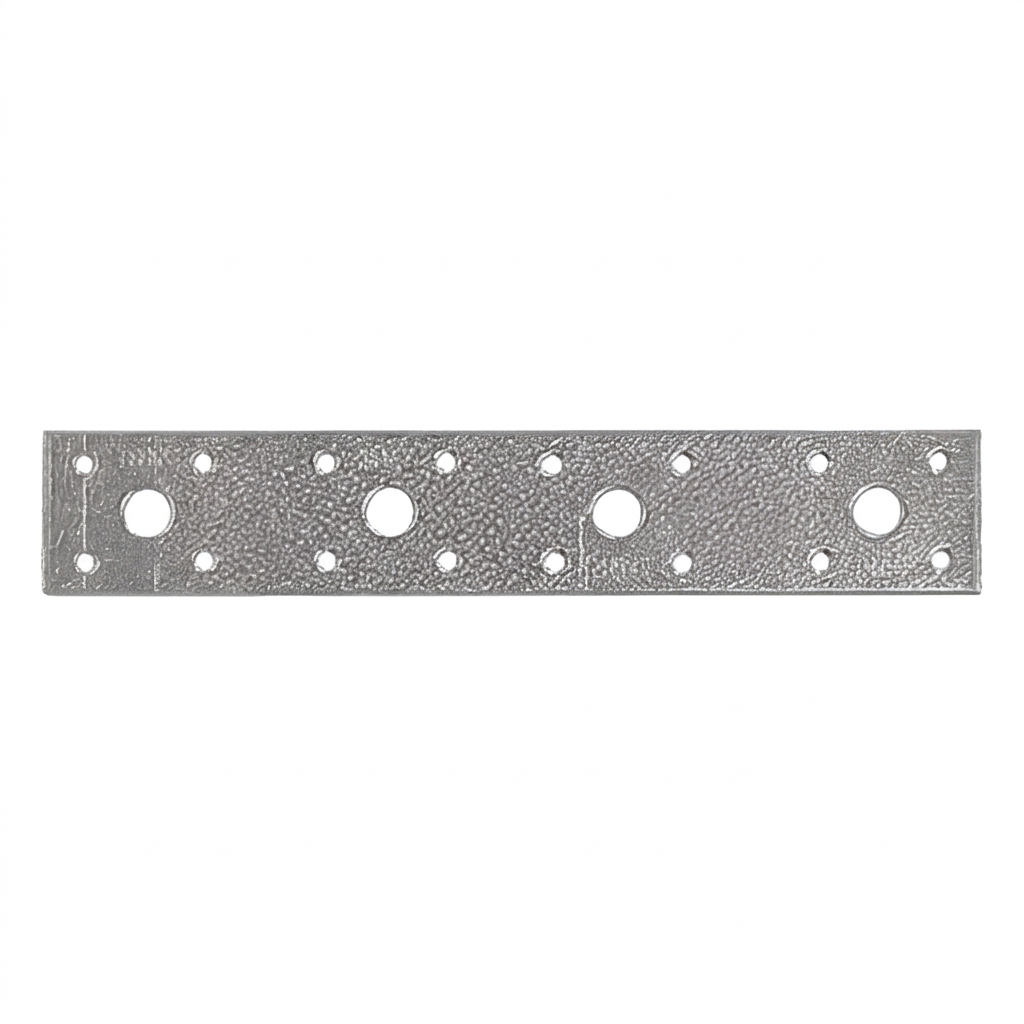

Flat Connector LP 200×35 mm – Galvanised Steel Timber Flat Strap
Flat connector LP 200×35 mm is a versatile joining element designed for timber connections where the side faces of the joined members lie in the same plane. Thanks to the well-considered arrangement of 20 holes in various diameters, it can be used in both standard carpentry joints and individually designed structures.
The narrow profile, just 35 mm wide, makes this connector ideal for fixing to the narrow edges of boards and panels. It is a practical solution for light joinery and furniture work, as well as for assembling timber structural elements. The 2.5 mm sheet thickness provides high rigidity and joint strength, while a load capacity of 3.60 kN ensures the safety of loaded connections.
The connector is manufactured from DX51D + Z275 steel with a zinc coating, providing effective corrosion protection and long-lasting joint durability even in demanding environmental conditions.

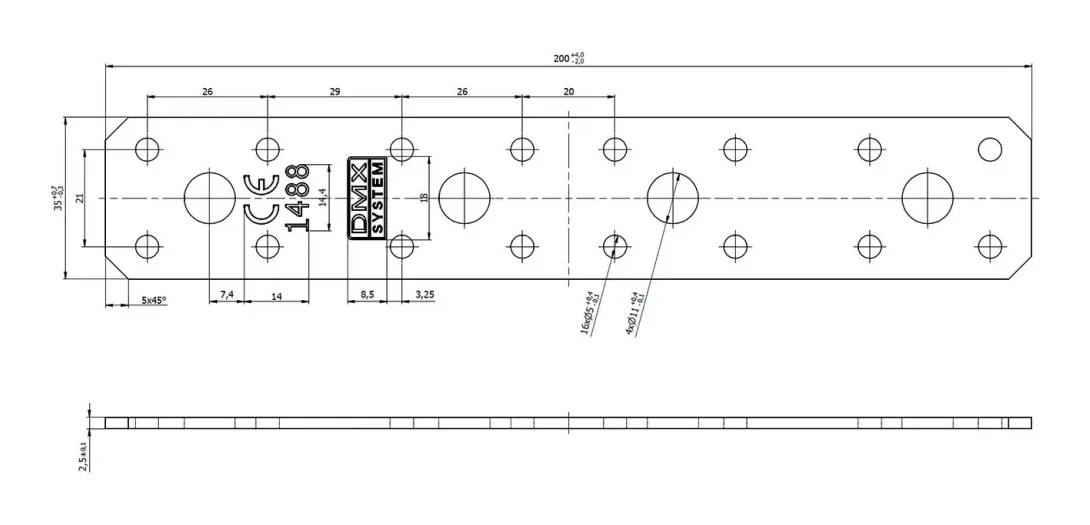

Technical Specifications
- Length: 200 mm
- Width: 35 mm
- Sheet thickness: 2.5 mm
- Material: DX51D + Z275
- Corrosion protection: zinc coating
- Holes: 16 holes ø5 mm + 4 holes ø11 mm (20 in total)
- Load capacity: 3.60 kN
Fixing and Compatibility
The varied hole pattern allows the use of many types of mechanical fasteners, enabling the most suitable fixing method to be selected for each project:
- ANCHOR ring shank nails ø4 mm
- Timber connector screws
- Wood screws ø6 mm and ø10 mm
- Bolts M10 and M12
- Concrete anchors M10 and M12
The ability to use nails, screws, and bolts with concrete anchors makes this connector a truly versatile element — suitable for timber-to-timber connections and, thanks to the ø11 mm holes, also for timber-to-concrete joints using mechanical anchors.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Material | Steel |
| Sheet metal thickness [mm] | 2.5 |
| Connector Type | Flat Timber Connector Plate |
