Adjustable bolt-down post base (with plate) 0–165 mm – galvanised

Go to Product feedback

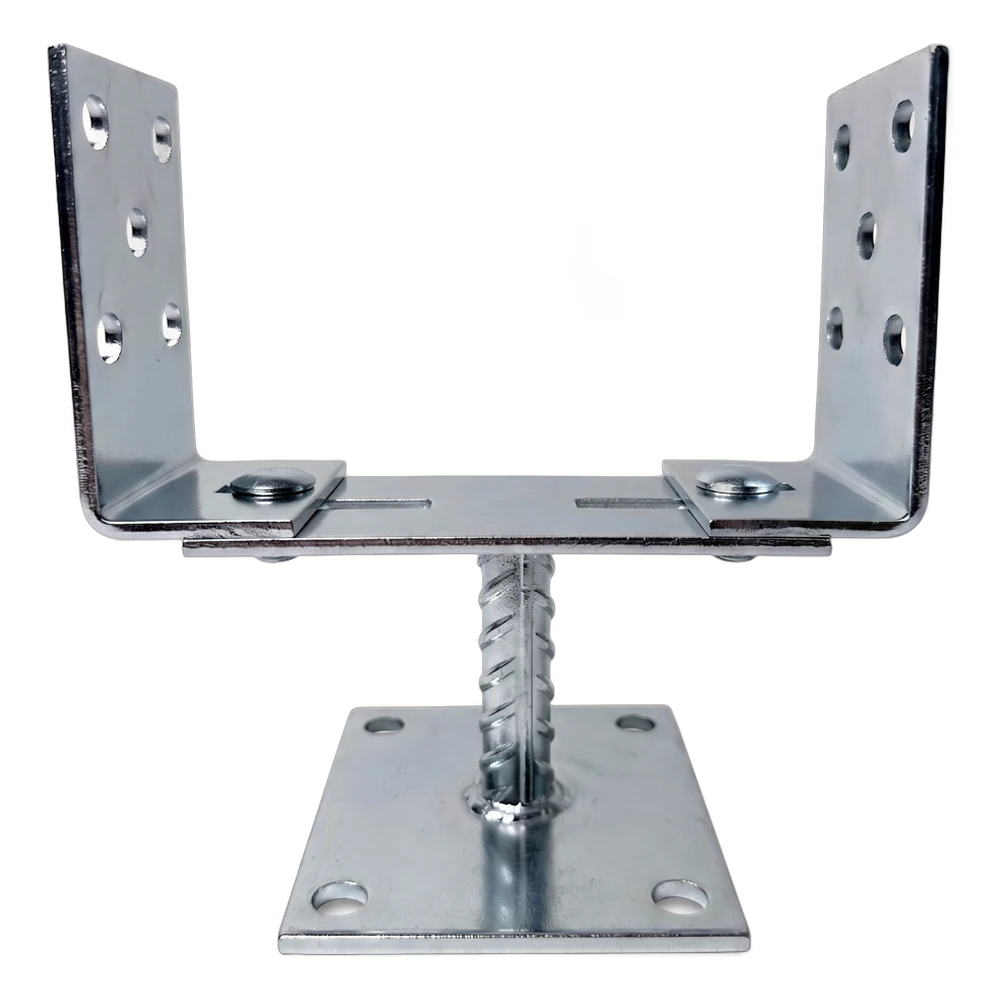

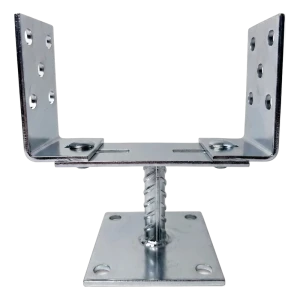

Adjustable post support with plate, electro-galvanised steel, silver. Width adjustment range 0-165 mm, base plate 100 x 100 mm, post standoff from the ground 85 mm, plate thickness 3 mm. Weight 1.25 kg. For timber posts on a concrete foundation.

Go to full description
with VAT without VAT
Price €5.20
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Description

Adjustable bolt-down post base (with plate) · 0–165 mm

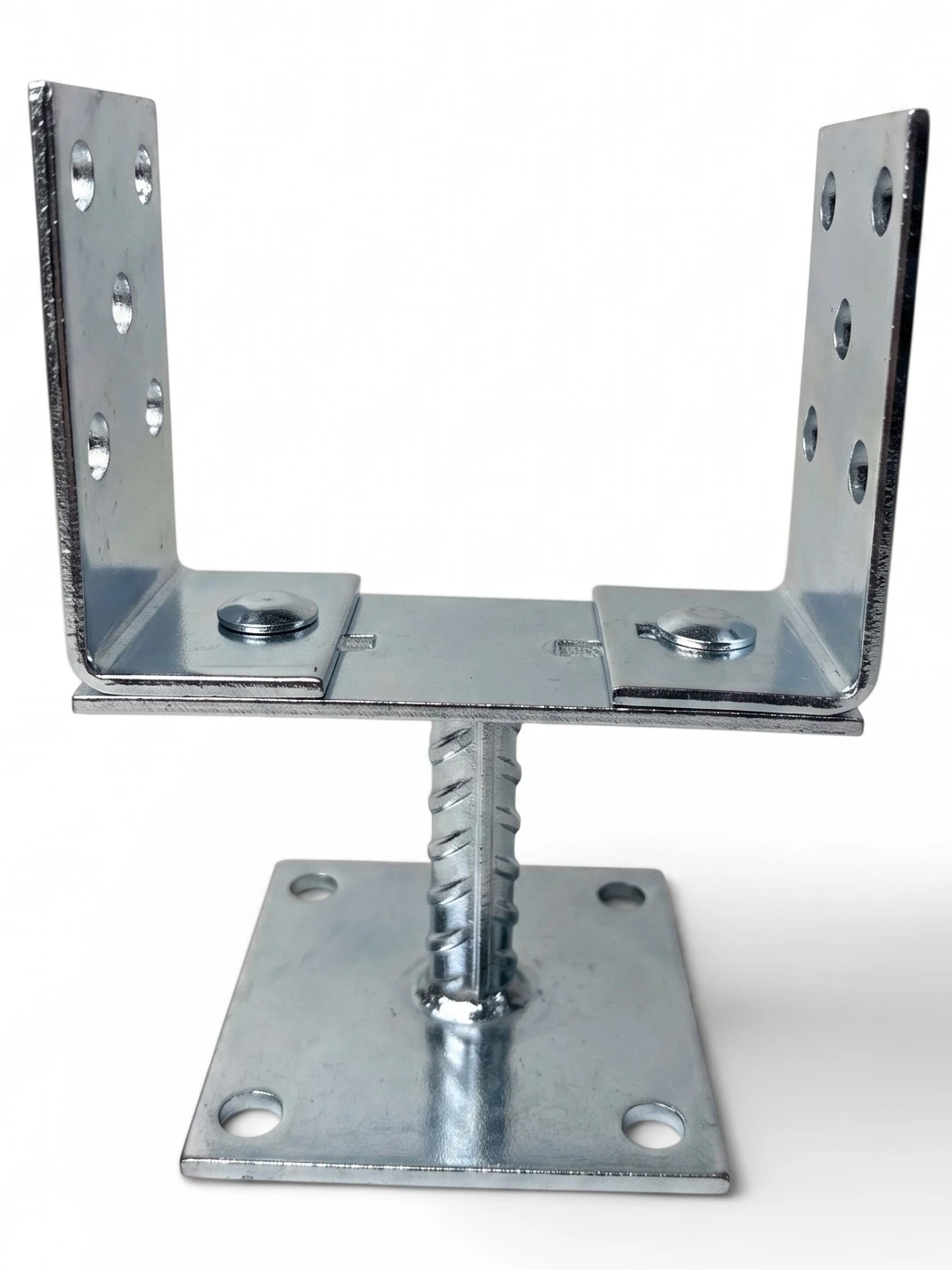

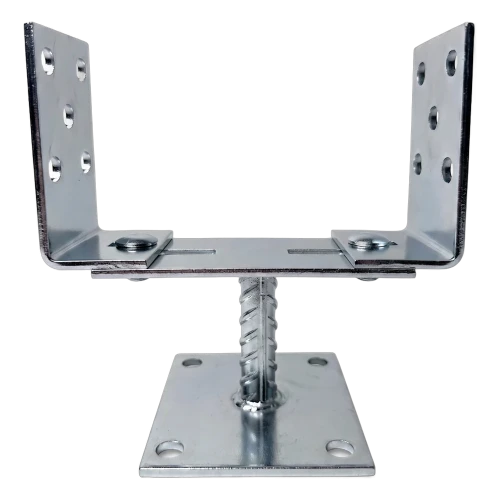

U-shaped bracket with 0–165 mm width adjustment, on a 100 × 100 mm base plate; post 85 mm above the substrate

0–165 mmwidth adjustment
85 mmpost clearance from substrate
100 × 100 mmbase plate
silver zinc-coatedcoating
Dimensioned drawing of the adjustable bolt-down post base (with plate): width adjustment range b = 0–165 mm, clearance from substrate h = 85 mm, base plate c = 100 mm
Open the dimension drawing in full size
Illustrative drawing – one of the width adjustment settings. Dimensions according to the manufacturer's data.

Quick choice

ApplicationSecuring a post to the substrate via a 100 × 100 mm base plate, with 85 mm clearance from the substrate
SelectionBracket width adjustable within the range 0–165 mm – adjust to suit the post width
ConditionsThe zinc coating protects the steel against corrosion under typical conditions; in the event of contact with salt, chemicals or constant moisture, choose a version suitable for the exposure conditions

About the product

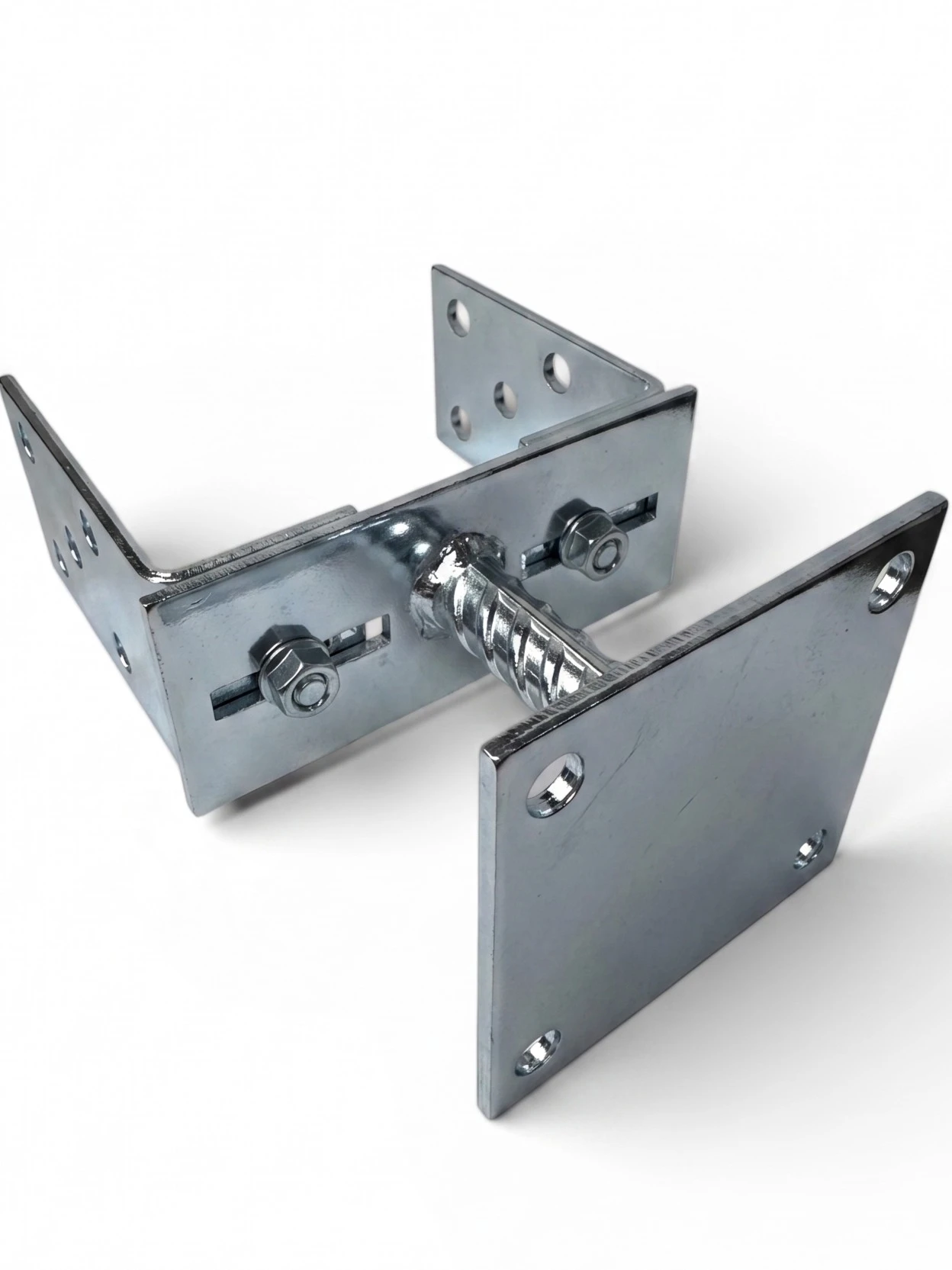

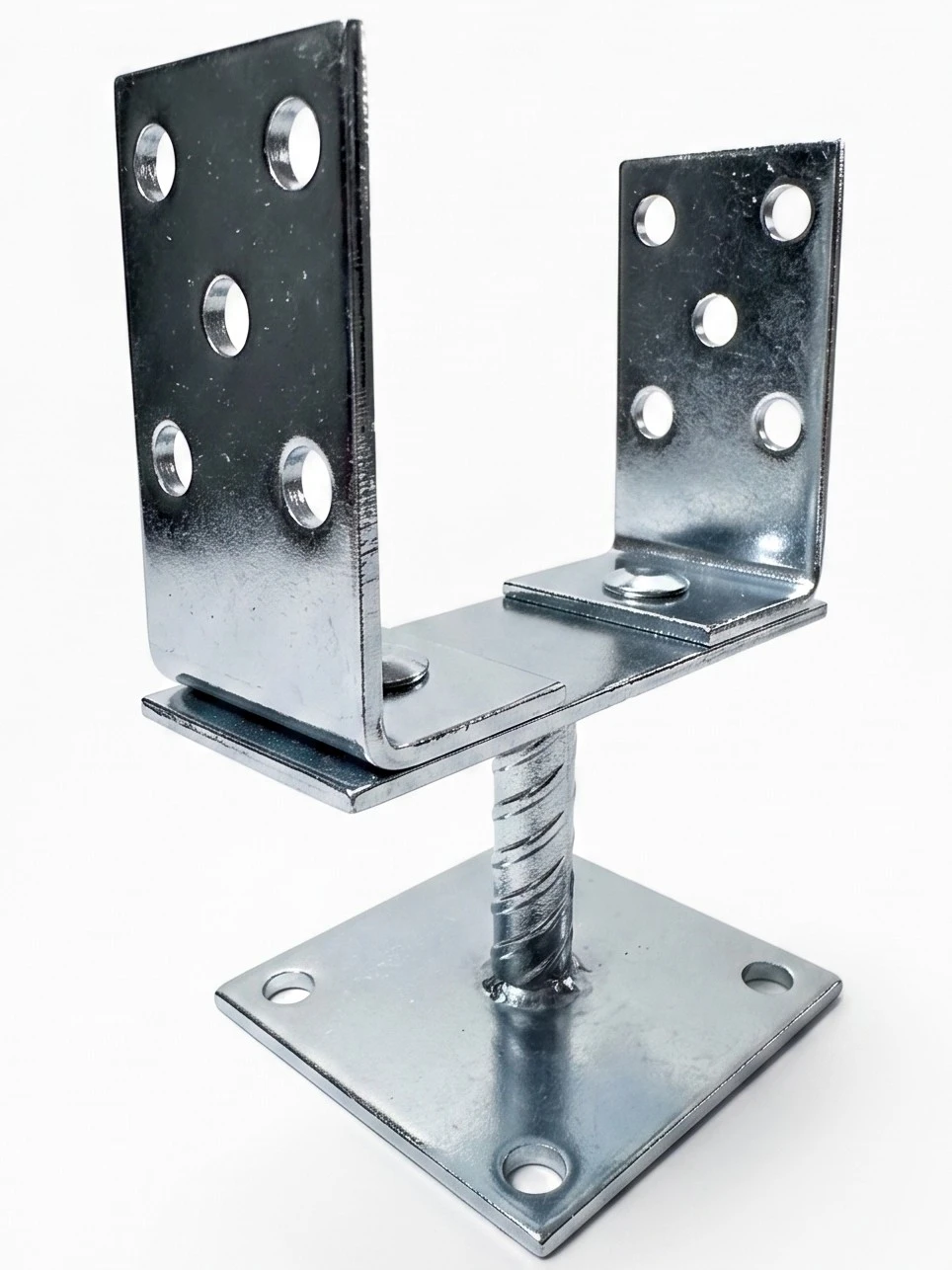

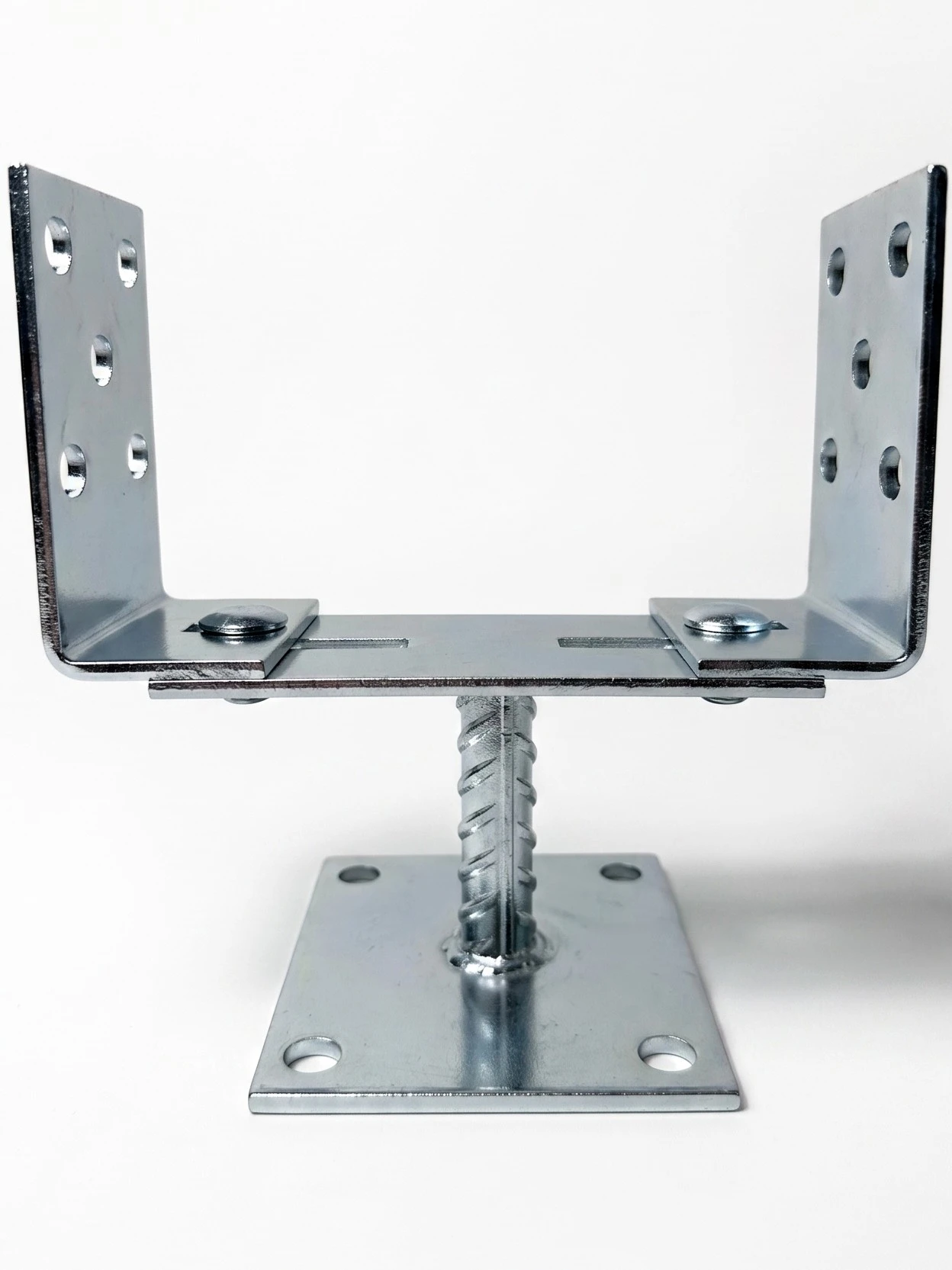

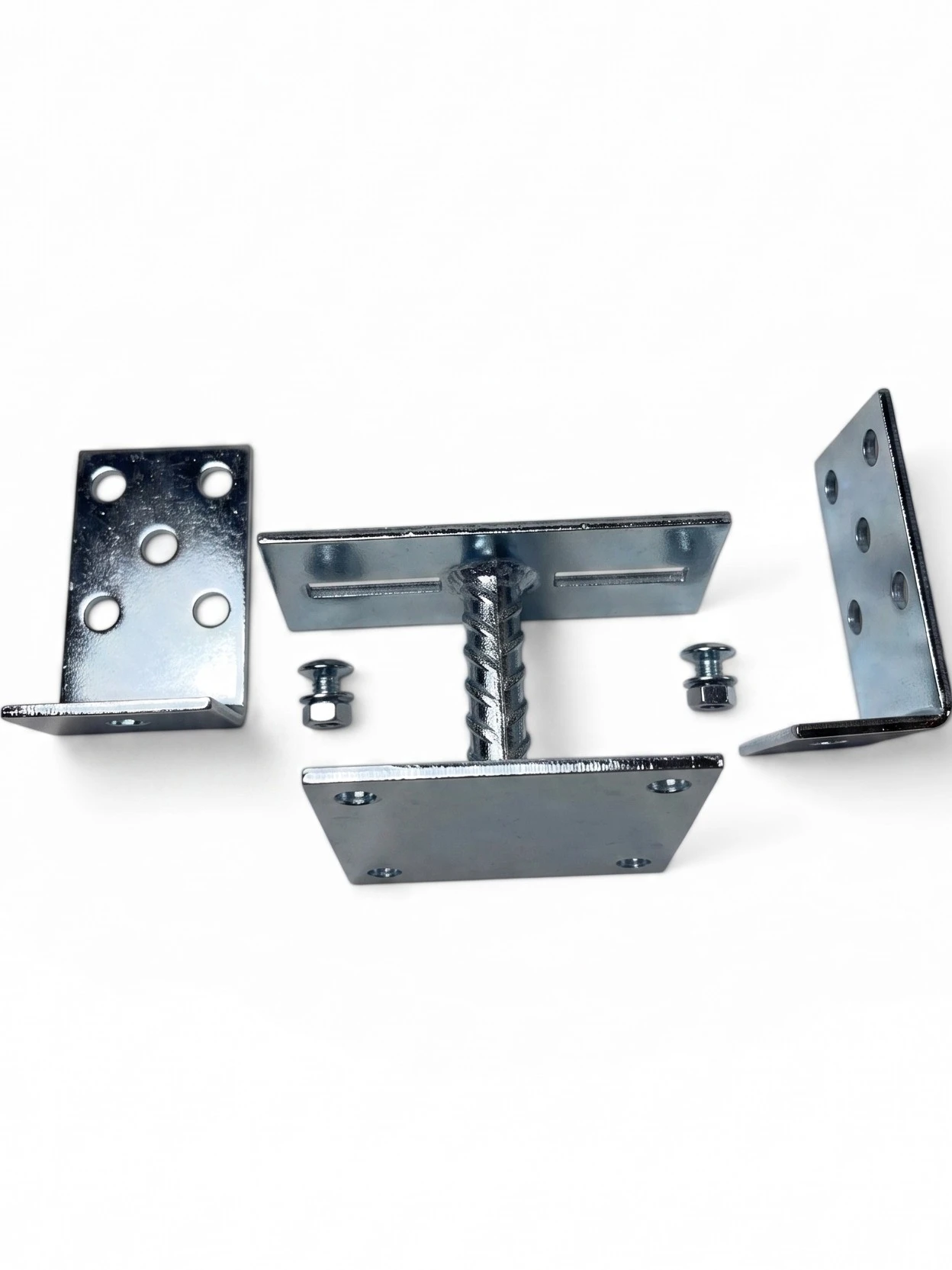

The support is used to secure a post to the substrate via the base plate. It features a U-shaped bracket with adjustable width, which holds the post at a clearance above the substrate.

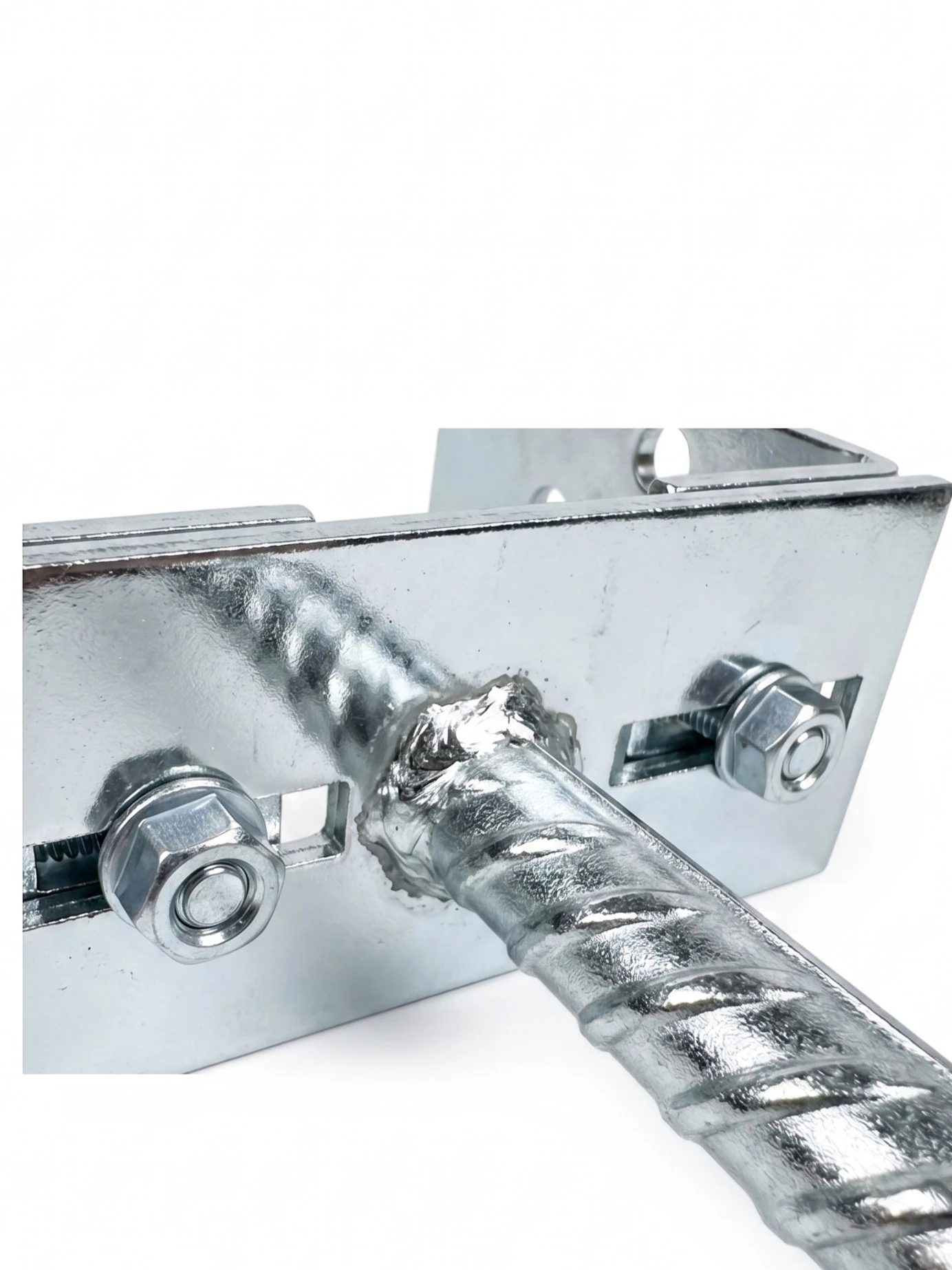

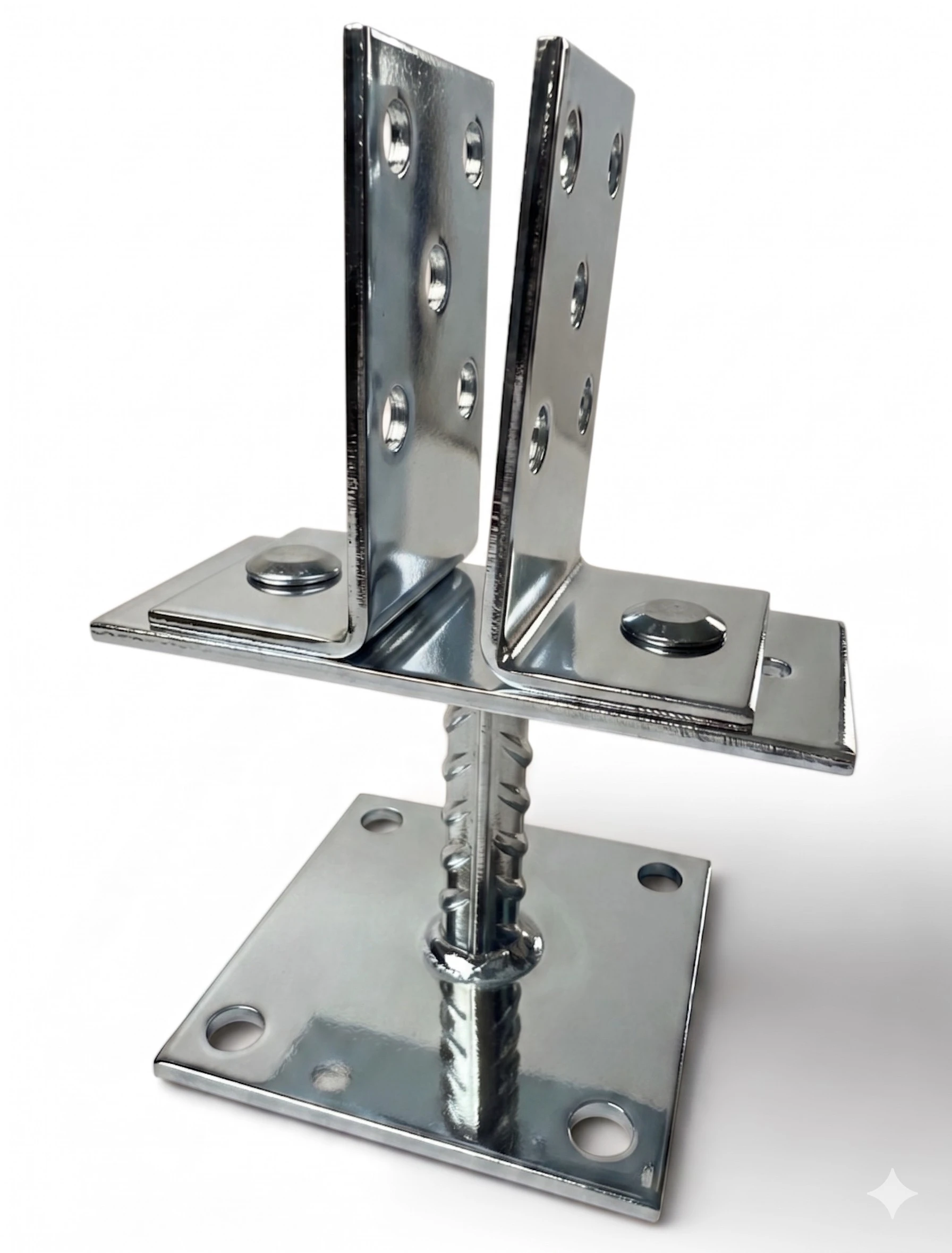

Adjust the bracket width (dimension b) to suit the post width — it can be adjusted within the range 0–165 mm. Dimension h is the clearance between the post and the substrate, which is 85 mm. The base plate dimensions c × c are 100 × 100 mm. The drawing shows one of the width adjustment settings. During installation, set the spacing between the bracket sides to the post width and tighten the adjustment bolts. Secure the base plate to a load-bearing substrate using fixings suitable for the substrate type, and fasten the post to the bracket sides through their holes.

The sheet metal thickness is 3 mm. The product is made of steel with the following coating: silver zinc-coated. This protects the steel against corrosion under typical conditions. Where exposed to salt, chemicals or persistent moisture, choose a version suitable for the exposure conditions. The manufacturer does not specify the post support's load capacity — selection for the structural loads is determined by the design.

Dimensions

Width adjustment range b0–165 mm
Post clearance from substrate h85 mm
Base plate c × c100 × 100 mm
Values according to the manufacturer's data; the drawing shows one of the adjustment settings.

Material and coating

Coatingsilver zinc-coated
Sheet metal thickness3 mm

Unit of sale

Sales unit1 pcs
Unit weight1.25 kg
Weight according to the supplier's data (approximate value).

Selection and installation

  • ✓Set the spacing between the bracket sides to the post width (range 0–165 mm) and tighten the adjustment bolts.

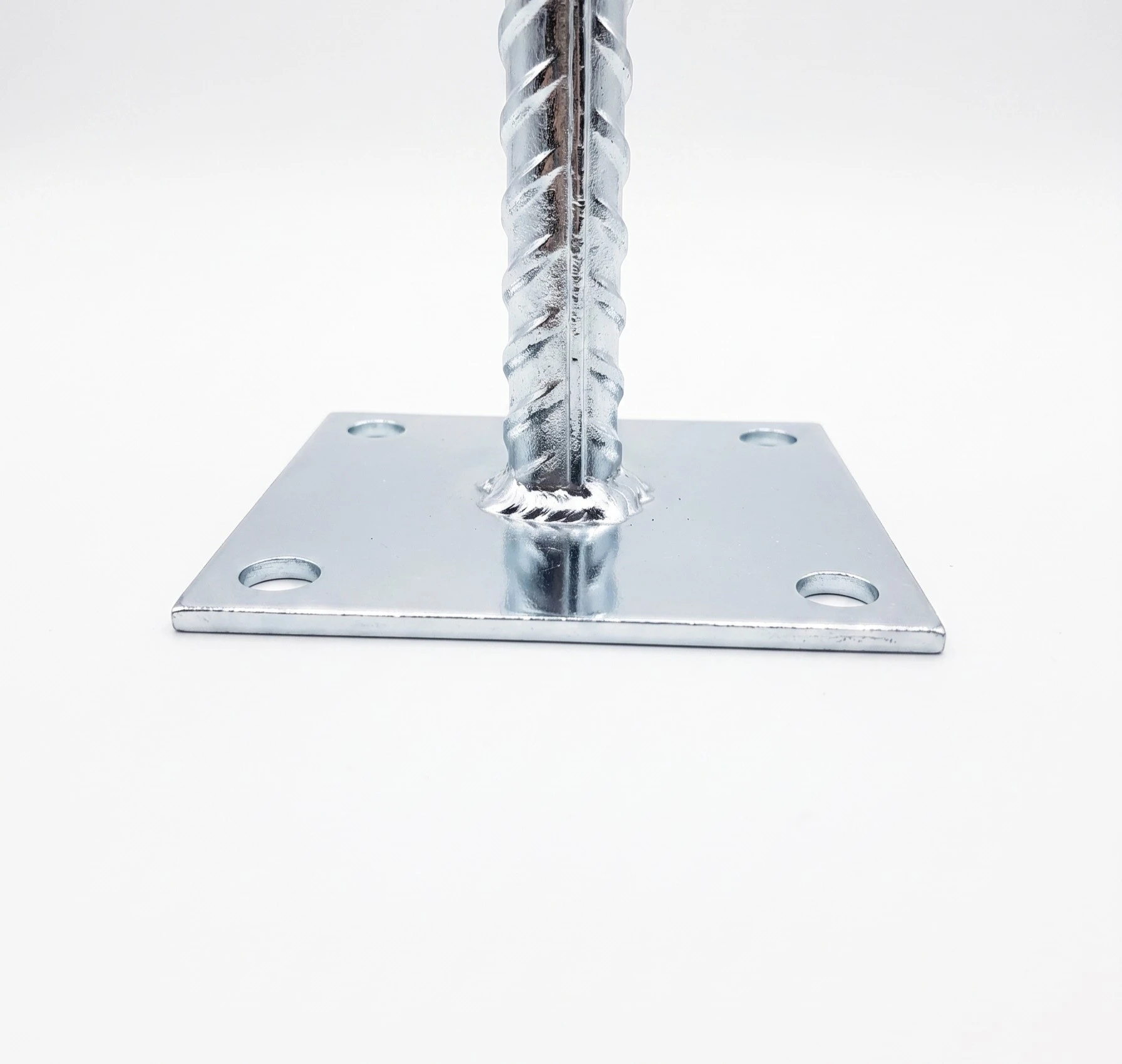

  • ✓Secure the 100 × 100 mm base plate to a load-bearing substrate using fixings suitable for the substrate type.
  • ✓Fasten the post to the bracket sides through their holes.

Important

The manufacturer does not specify the post support's load capacity. Selection for the structural loads is determined by the design.
