Adjustable gate hinge M20 steel L180 mm – for wicket gates and swing gates
Leave feedback on the product

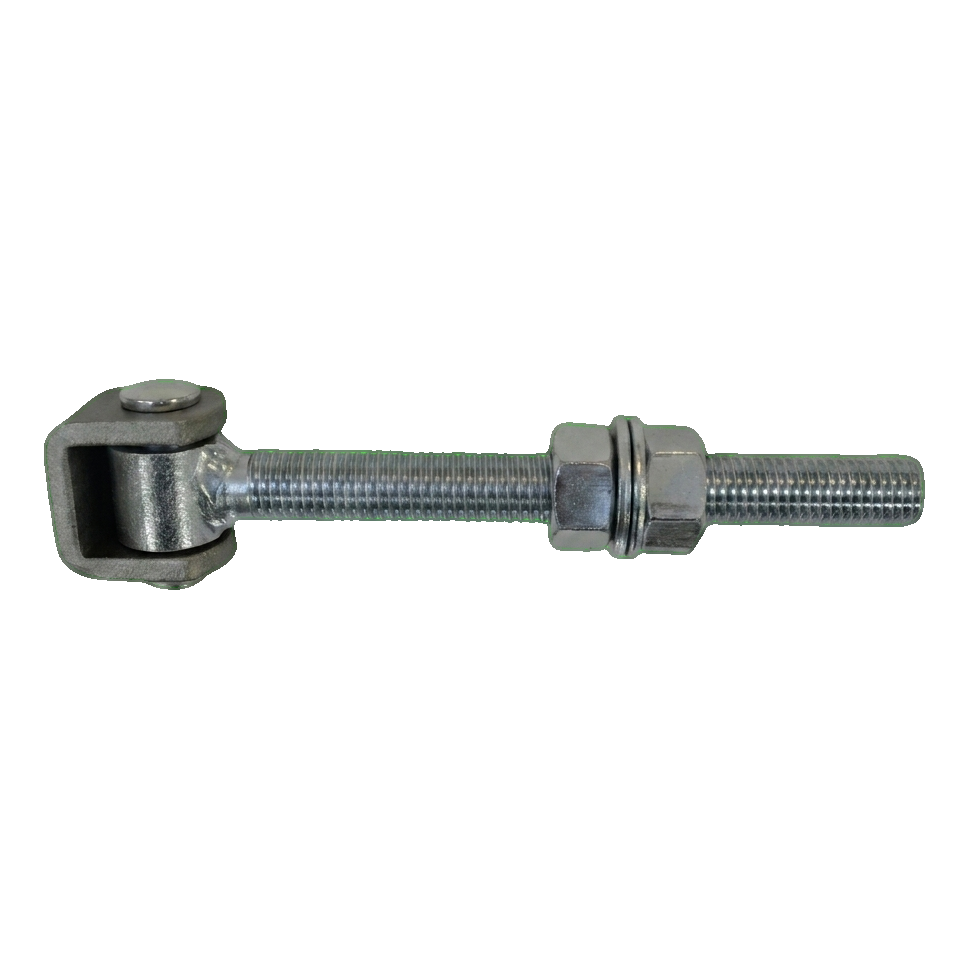

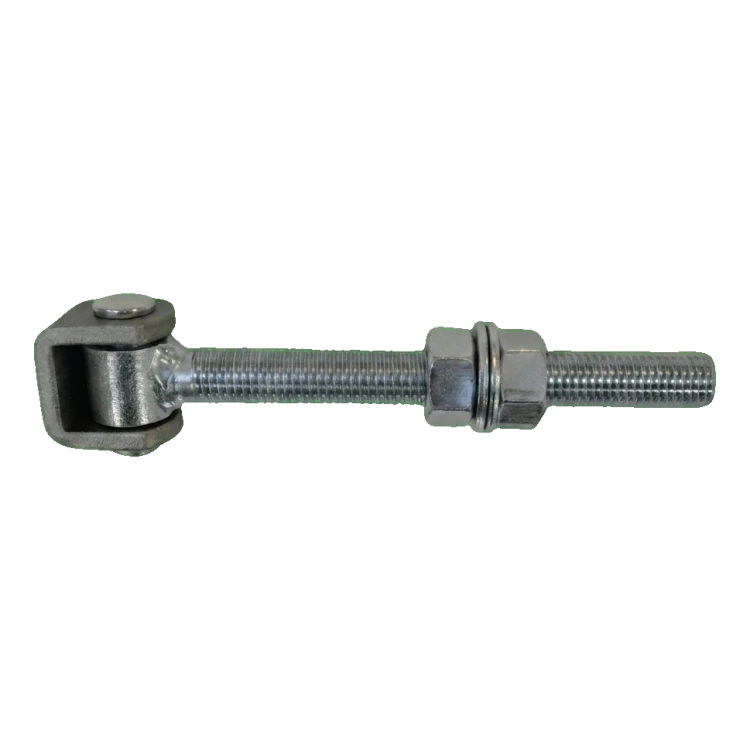

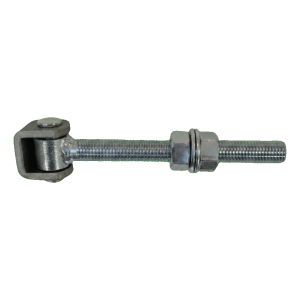

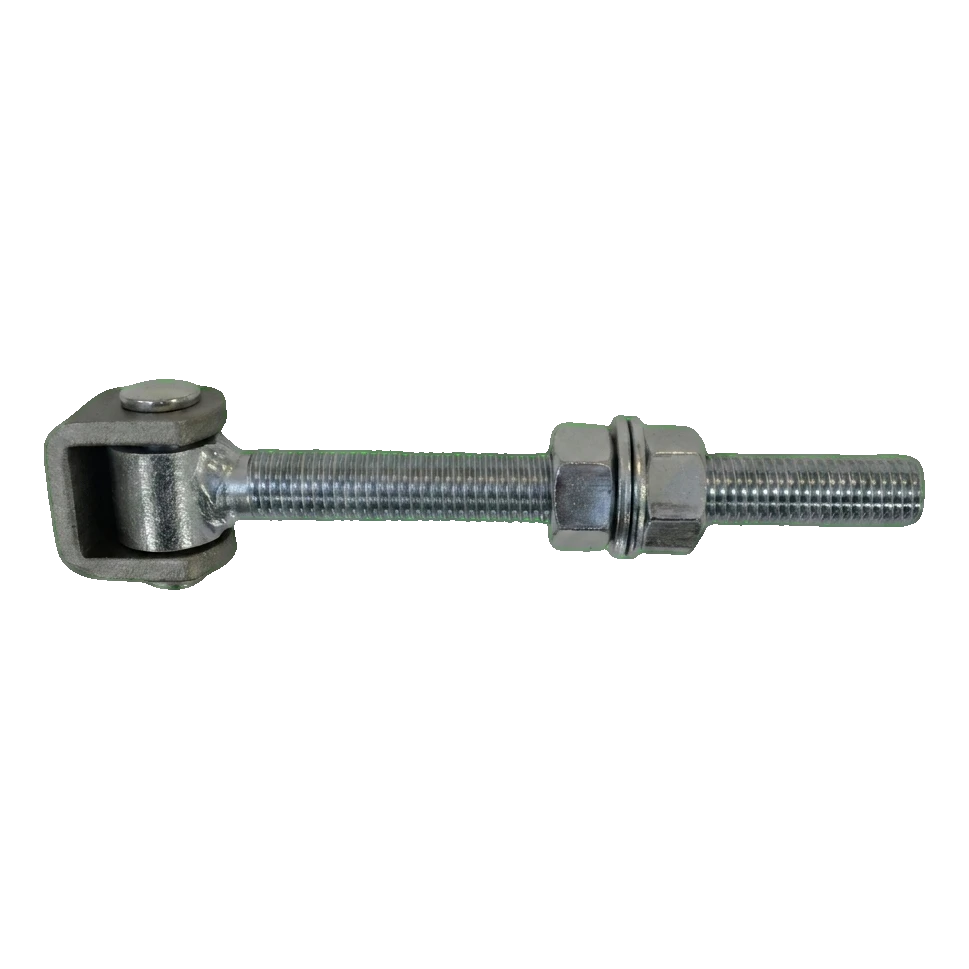

Adjustable gate hinge M20 steel, pin length 180 mm. Bracket 40x30 mm, thickness 6 mm, pin diameter Ø15 mm. Weight 0.74 kg. Threaded pin with adjustment nuts. For wicket gates and swing gates, external use.
Product code: 001-352
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable gate hinge M20 steel L180 mm – for wicket gates and swing gates
Adjustable hinge M20 L180 mm is a durable gate hardware element designed for hanging wicket gates and light swing gates. Thanks to the threaded pin with M20 screw and two adjustment nuts, it enables precise adjustment of gate leaf position at any time after installation completion — both during initial setup and during subsequent corrections resulting from construction sagging or thermal deformations.
The steel construction of the hinge ensures high mechanical strength and wear resistance, which is crucial for many years of operation in outdoor conditions. The product is designed for external use and will work well both in residential fence installations and industrial applications.
Benefits for the installer
- Post-installation adjustment — adjustment nuts allow quick correction of gate leaf position without hinge removal
- Thermal deformation compensation — possibility to loosen or tighten the hinge at extreme temperatures (e.g. sudden winter frosts)
- Simple sagging correction — when the weight of the gate leaf loads the structure over time, re-adjustment is sufficient
- High resistance to mechanical damage and wear
- Designed for external use

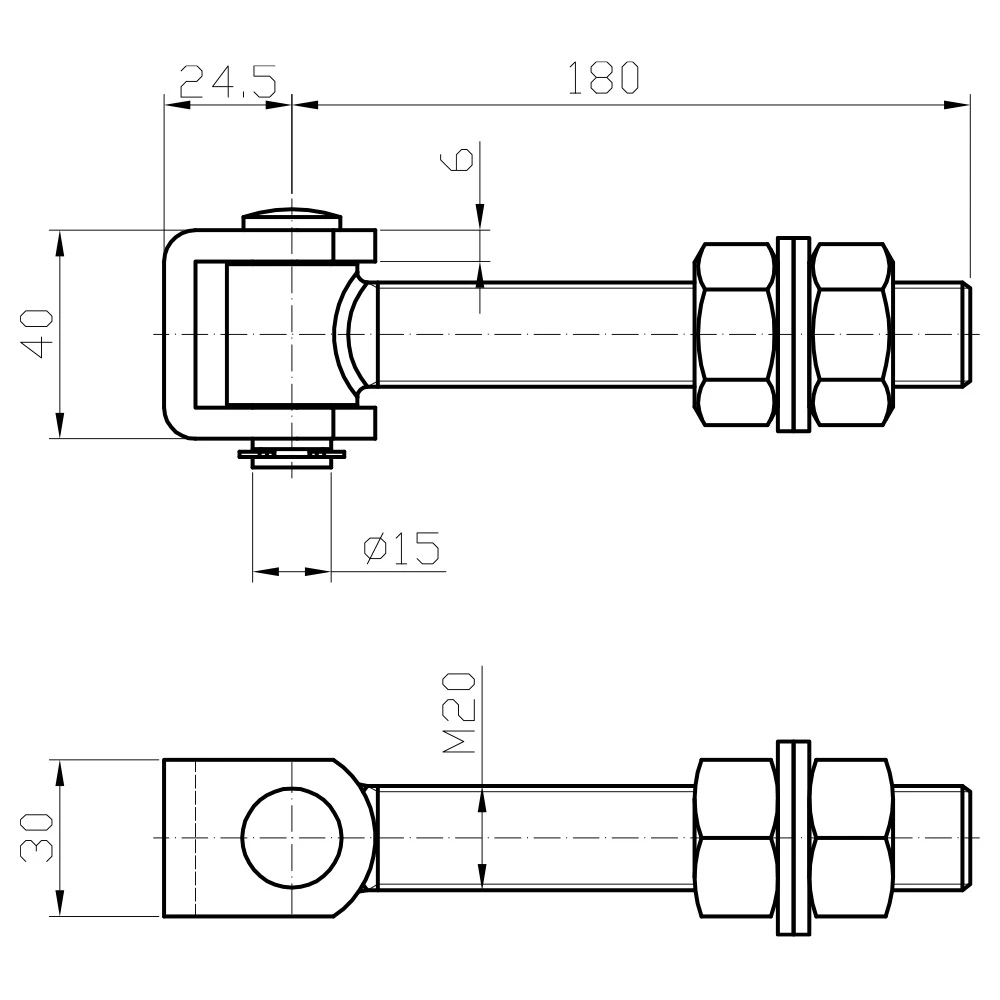

Dimensions and technical parameters
- Pin thread: M20
- Pin length (L): 180 mm
- Bracket height (H): 40 mm
- Bracket width: 30 mm
- Bracket depth: 24.5 mm
- Bracket material thickness: 6 mm
- Pin diameter: Ø15 mm
- Material: steel
- Weight: 0.74 kg
- EAN: 99917865
