Adjustable Hinge with Plate M20 100x100x4 mm for Gates and Wickets

Go to Product feedback

Steel adjustable hinge with M20 thread and backplate 100×100×4 mm for swing gates. Pair load capacity 105 kg, total length 88 mm, zinc-plated surface.

Go to full description

€4.55

Quantity

pcs.

Availability:

In stock (large quantity)

Shipping time: 24 hours

[PIM] zawiasy #113

Adjustment Yes
Thread type M20
Diameter 12
Mounting Method With Plate
Material Steel

Description

Adjustable Hinge with M20 Bolt Plate 100×100×4 mm

The adjustable hinge with M20 bolt plate is a robust hardware component designed for fitting swing gates and wicket gates. Thanks to the M20 bolt with an adjusting nut, it allows precise alignment of the gate leaf both during installation and throughout subsequent use.

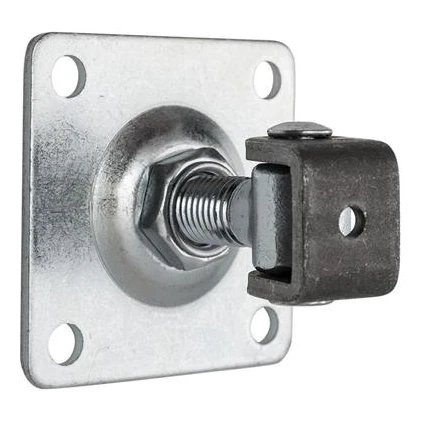

Adjustable hinge with M20 bolt plate – product view

Adjustment in any conditions — the hinge design allows the gate leaf to be realigned at any time. This is particularly important when the gate sags under its own weight or when metal components change dimensions due to extreme temperatures. Simply tighten or loosen the nut on the bolt to restore correct operation.

The steel construction with a zinc coating provides long-lasting protection against corrosion and ensures trouble-free performance in outdoor environments. The black hinge eye gives the assembly a neat, finished appearance.

Technical Specifications

Material: steel with anti-corrosion protection (zinc)
Thread: M20
Plate dimensions: 100 × 100 mm
Plate thickness: 4 mm
Eye width: 43 mm
Overall length: 88 mm
Bolt length: 40 mm
Weight: 0.72 kg

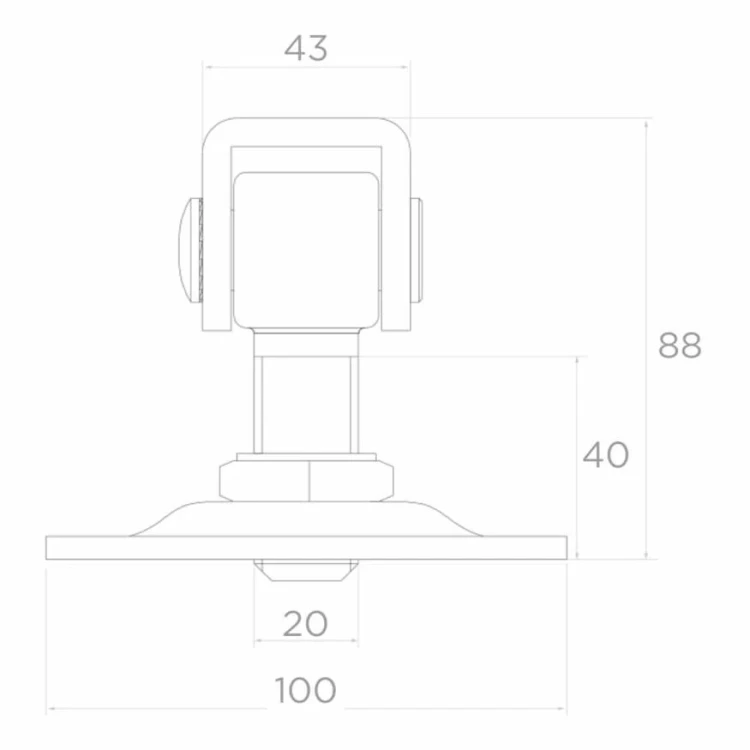

Adjustable hinge with M20 bolt plate – dimensional drawing

The permissible load for a pair of hinges on a gate leaf 2 m in length is 105 kg, making them suitable for standard gates and wicket gates used in both residential and industrial construction.

Key Benefits

Adjustability after installation — quick realignment of the gate leaf without dismantling
High corrosion resistance — zinc coating ensures durability in outdoor conditions
Mechanical strength — steel construction resistant to damage and wear
Aesthetic finish — black eye on a galvanised plate delivers a clean, tidy visual effect
Versatile application — suitable for swing gates, wicket gates and other external structures
