Adjustable long hinge M16 galvanised steel for gates and wickets
Leave feedback on the product

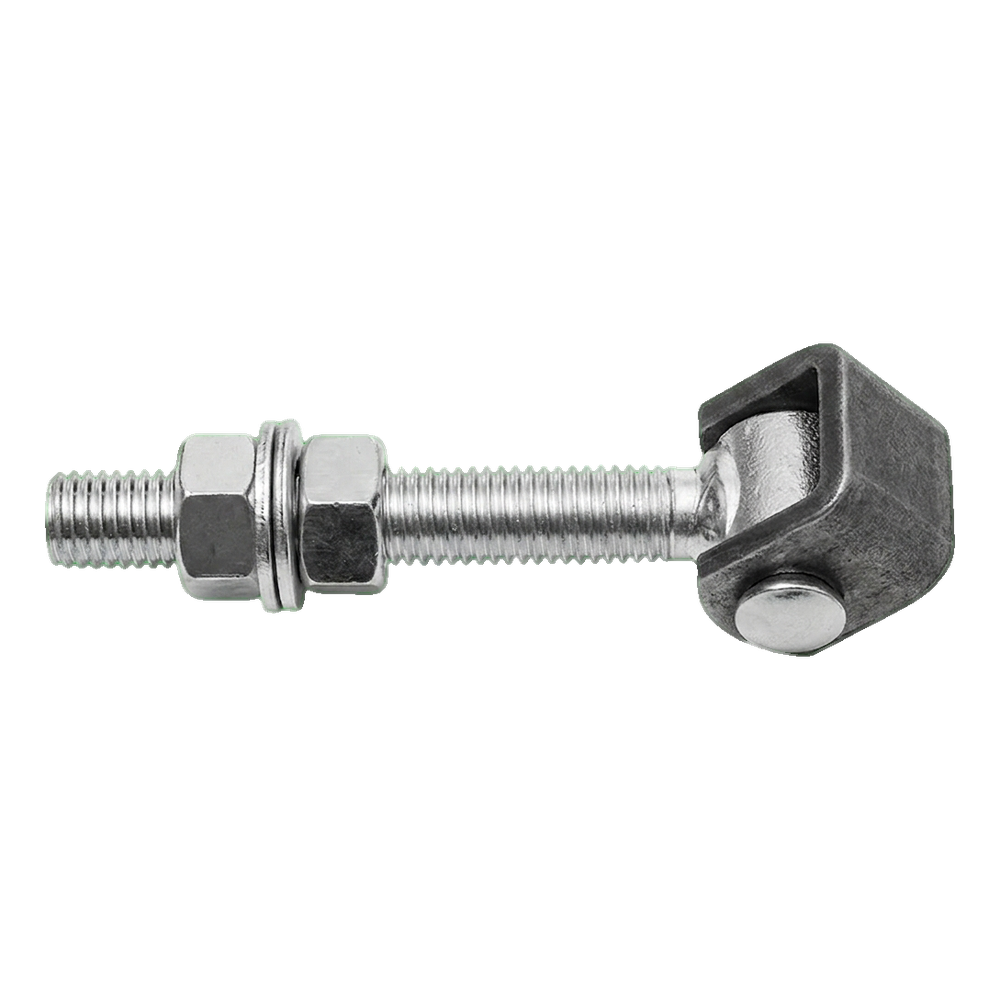

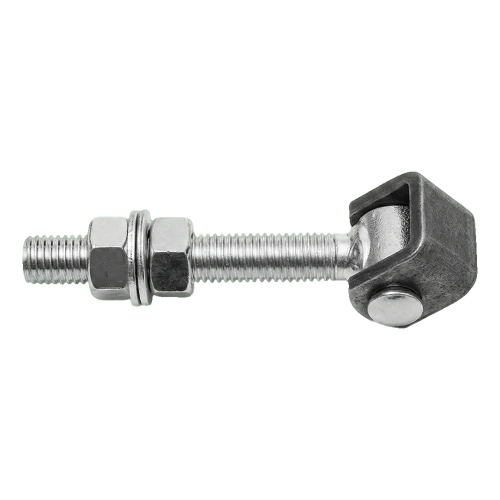

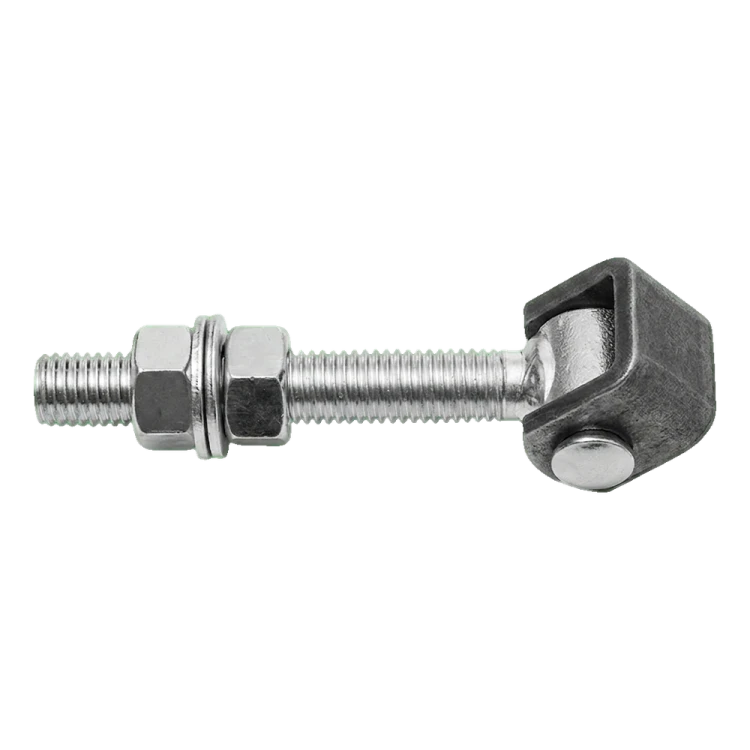

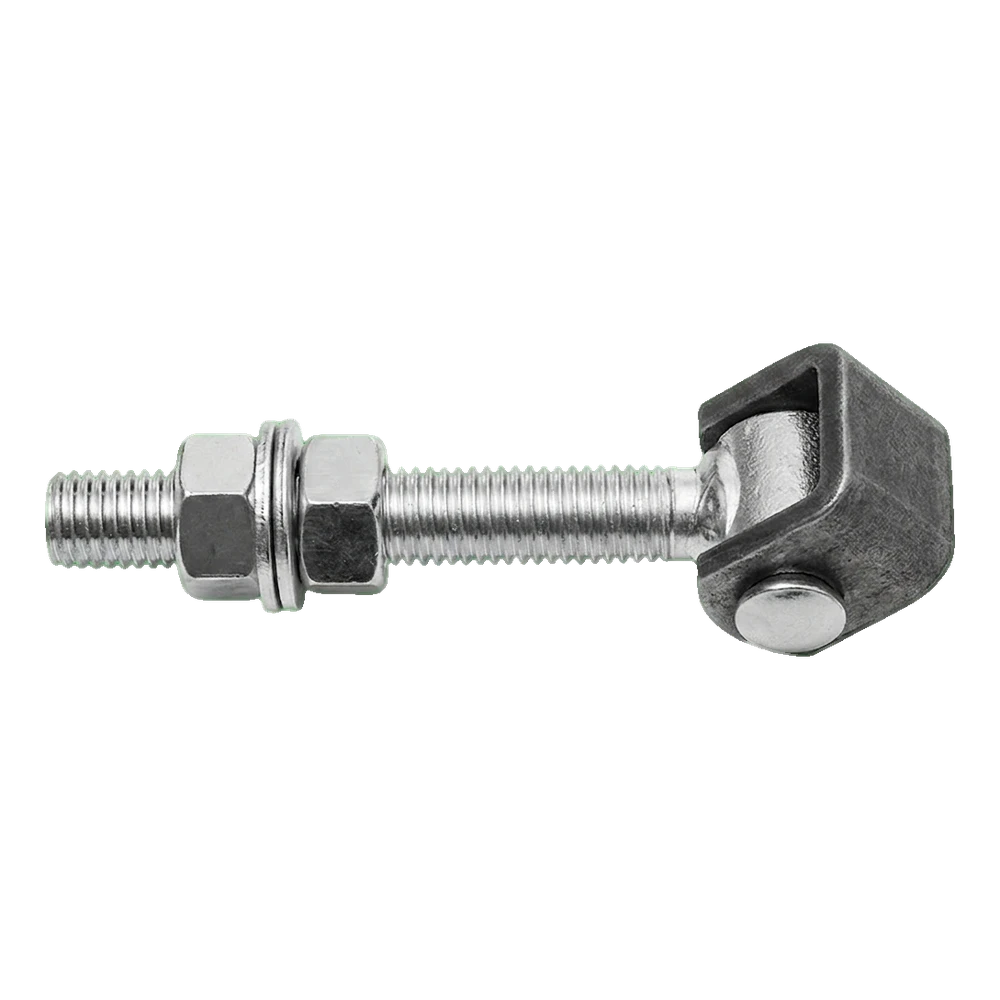

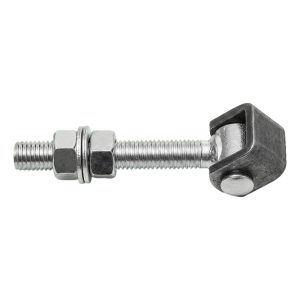

Adjustable long hinge M16 galvanised steel with black eye. Total length 175 mm, threaded part 130 mm, shaft diameter 16 mm. Eye width 36 mm, weight 0.42 kg. For wickets and gates, load capacity 65 kg per pair.
Product code: 001-345
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable long hinge M16 galvanised steel for gates and wickets
Adjustable long hinge M16 is a durable hardware element designed for mounting wickets and light gates. Steel construction with anti-corrosion protection (galvanised) and black eye ensures years of outdoor operation — even in harsh weather conditions. Thanks to the M16 thread and nut system, the hinge can be adjusted at any time after installation completion, allowing correction of wing positioning in case of structural sagging or dimensional changes caused by extreme temperatures.
Installer advantages
- Post-installation adjustment — quick wing position correction with nut, without dismounting
- Galvanised surface with black eye — high corrosion resistance and aesthetic appearance
- High resistance to wear and mechanical damage — long service life
- Permissible load capacity per pair of hinges: 65 kg on a 2 m long wing

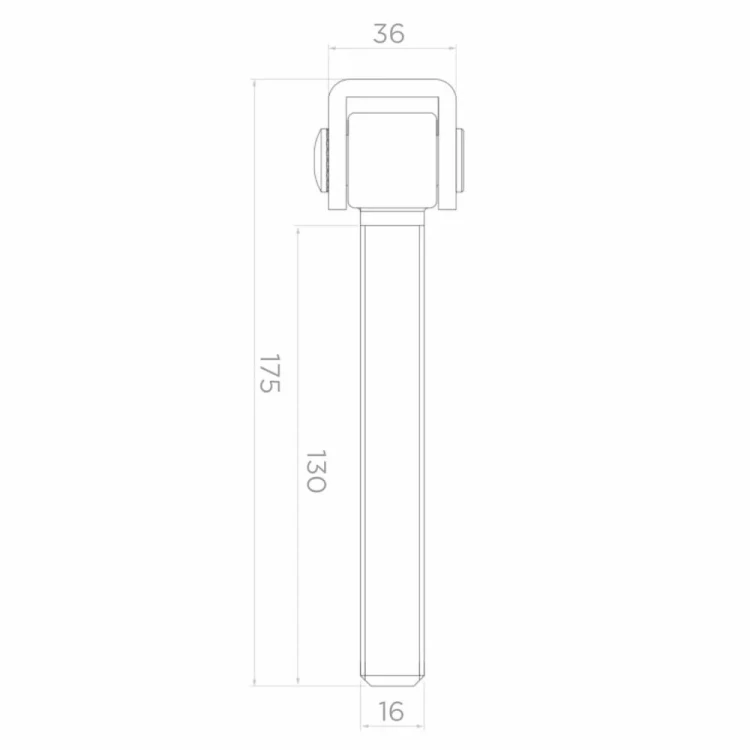

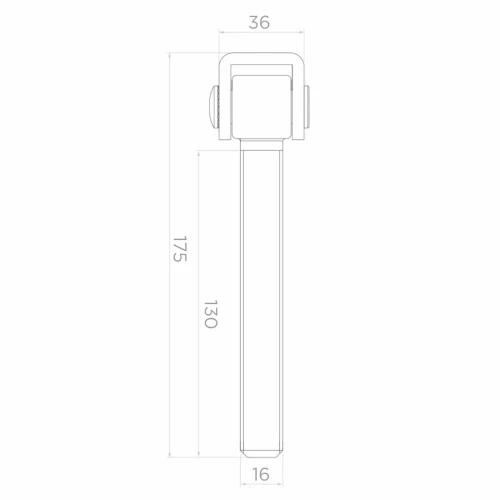

Technical parameters
- Material: steel
- Anti-corrosion protection: galvanised (black eye)
- Thread: M16
- Total length: 175 mm
- Bolt length (threaded part): 130 mm
- Eye width: 36 mm
- Shaft diameter: 16 mm
- Weight: 0.42 kg
- EAN: 99913902
Adjustable long hinge M16 will perform wherever reliable operation of wicket or gate wing is required in outdoor conditions. The ability to adjust during operation eliminates the need for costly installation corrections — simply tighten or loosen the nut to compensate for changes resulting from structural settling or temperature fluctuations.
