PSG adjustable welding gate hinge M16 galvanised
Description

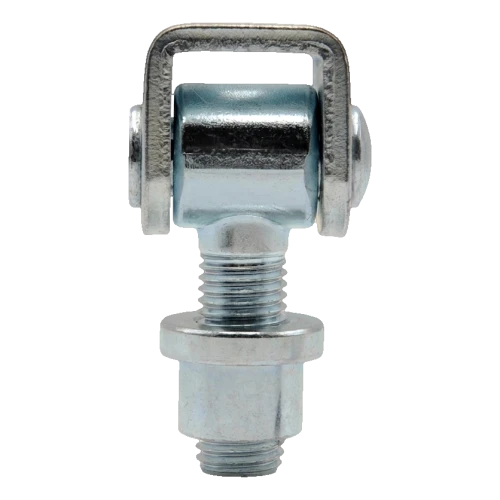

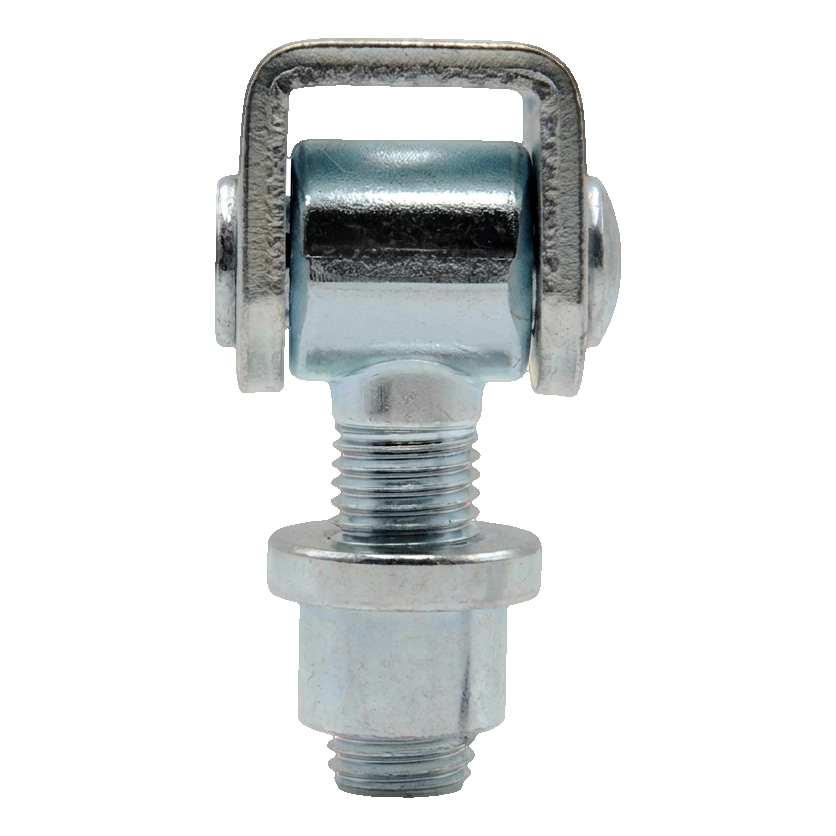

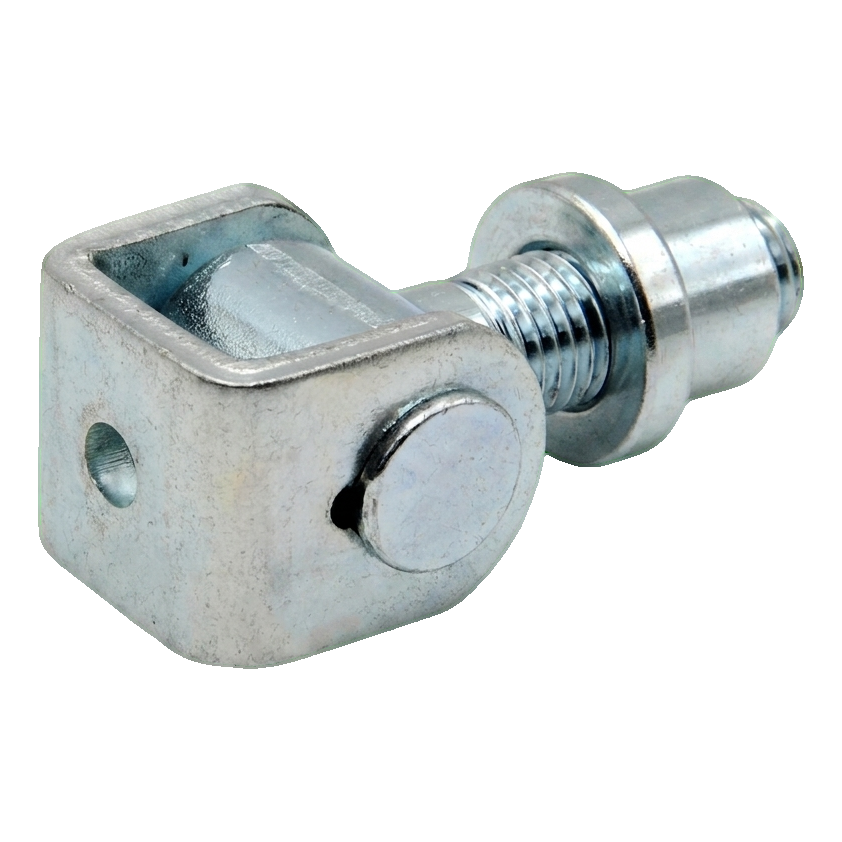

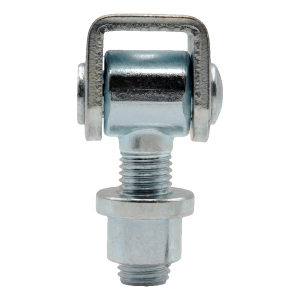

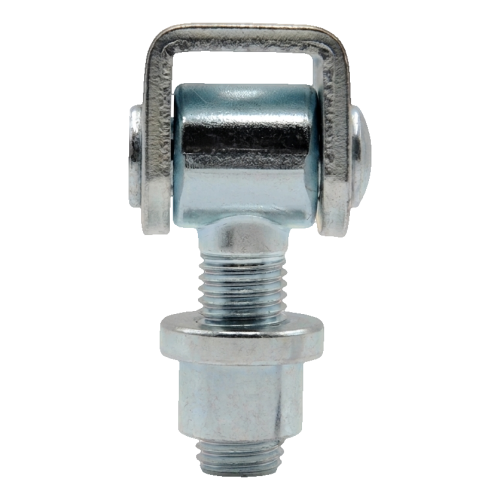

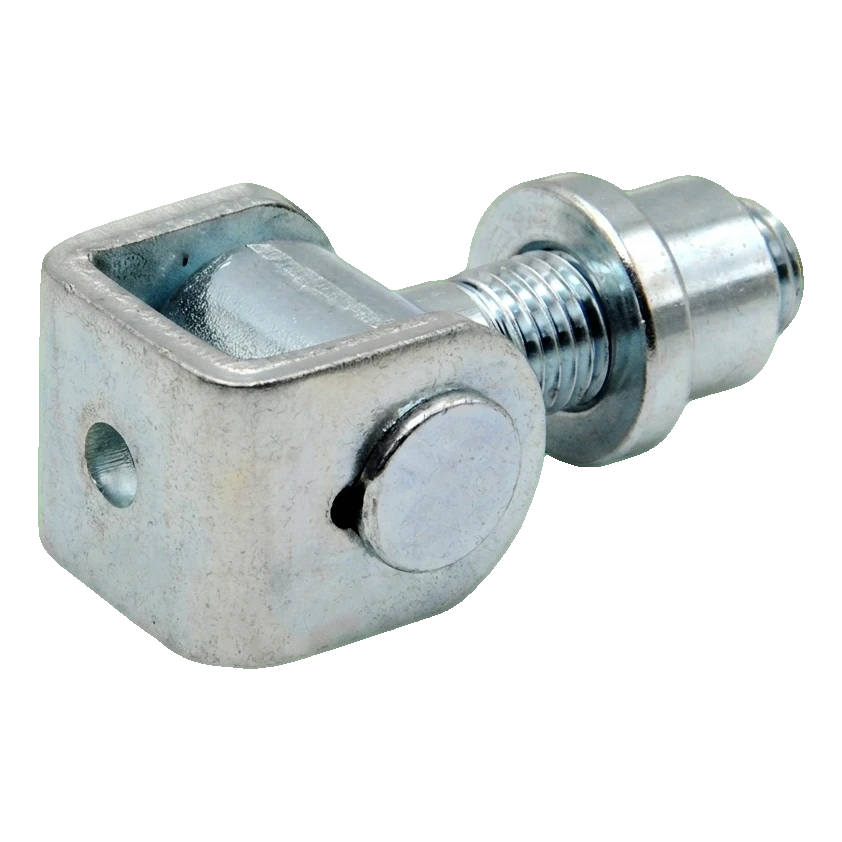

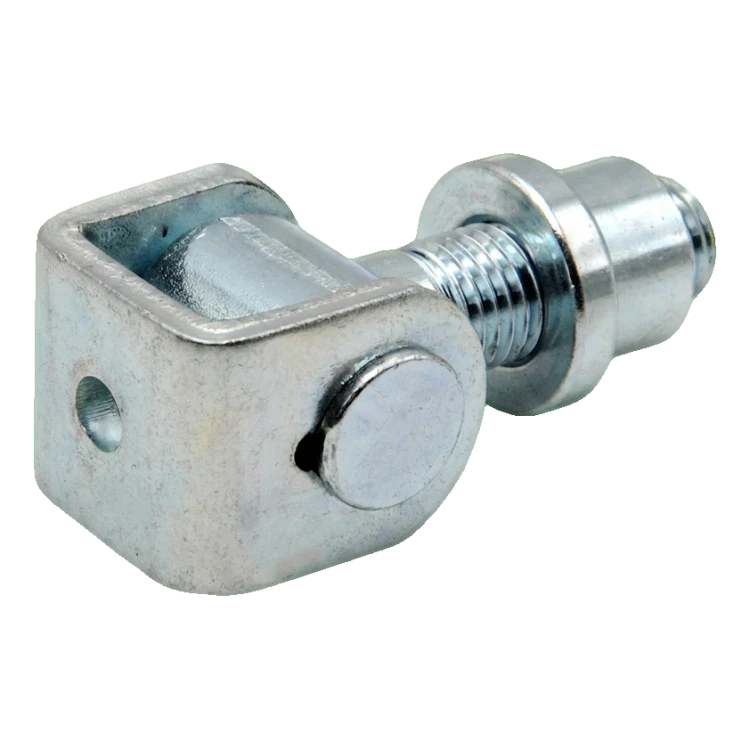

PSG adjustable welding gate hinge M16 galvanised

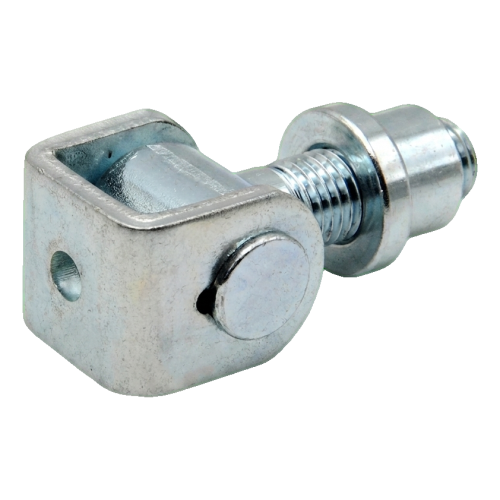

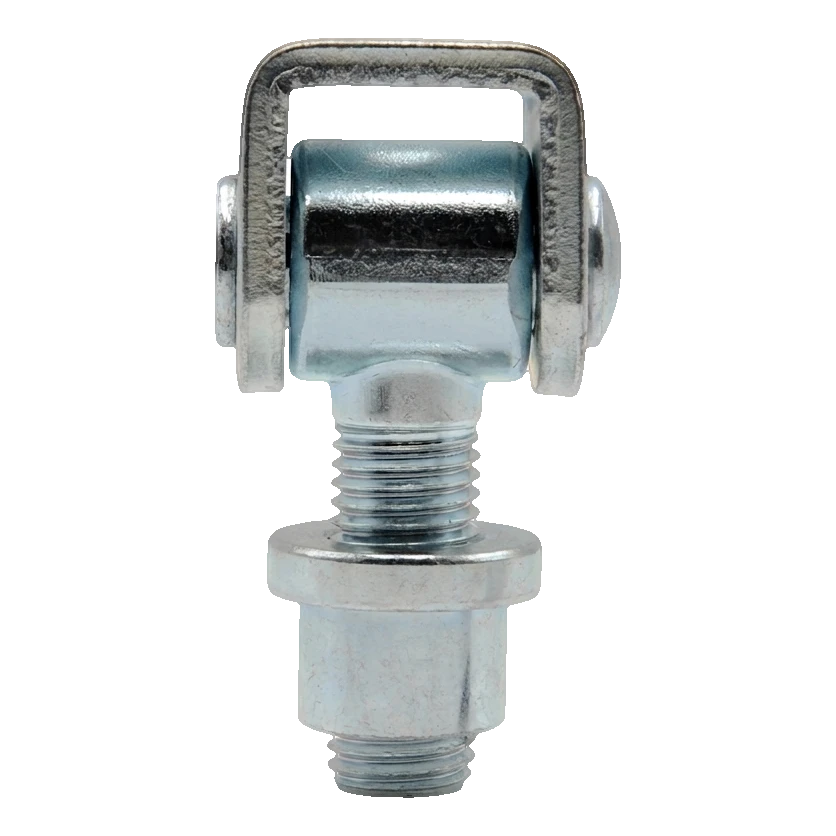

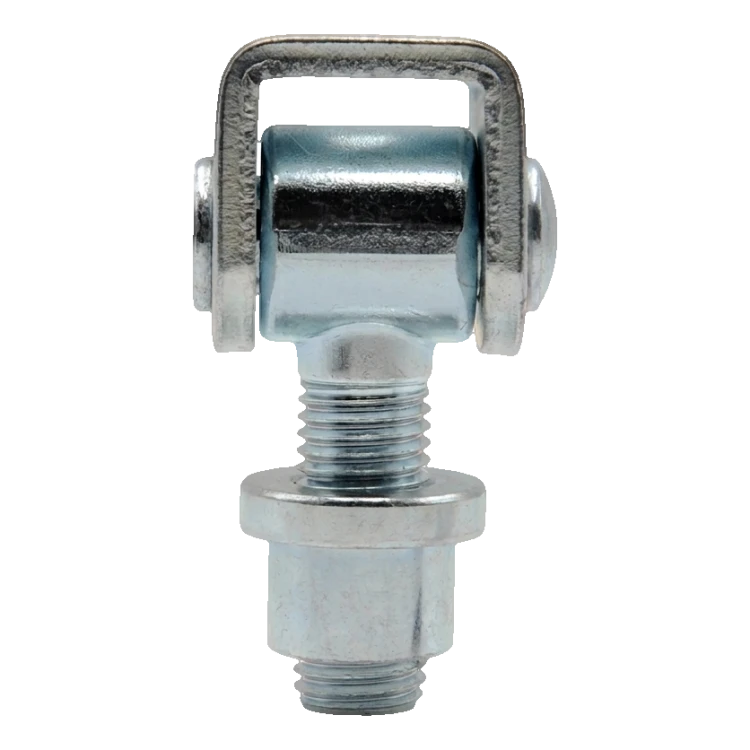

Adjustable welding hinge M16 from PSG is a robust mounting element designed for swing gates. The galvanised steel construction ensures years of corrosion resistance, whilst the built-in adjustment nut allows for precise positioning of the gate leaf — both during installation and throughout operation. A pair of hinges will support a gate leaf up to 2 metres long and weighing up to 65 kg, making it a reliable choice for installing fencing and gates in residential and commercial properties.
Key advantages
- Post-installation adjustment — the adjustment nut enables correction of gate leaf positioning at any time, compensating for gate sagging and thermal deformation of metal in extreme weather conditions
- Galvanisation — complete zinc coating protects the hinge from moisture, temperature variations and external factors, ensuring years of durability without risk of corrosion
- Solid steel construction — robust pin with diameter ø14 mm and M16 thread guarantee stable load transfer even under intensive use
- Welding installation — permanent connection to gate structure, eliminating the need for drilling mounting holes

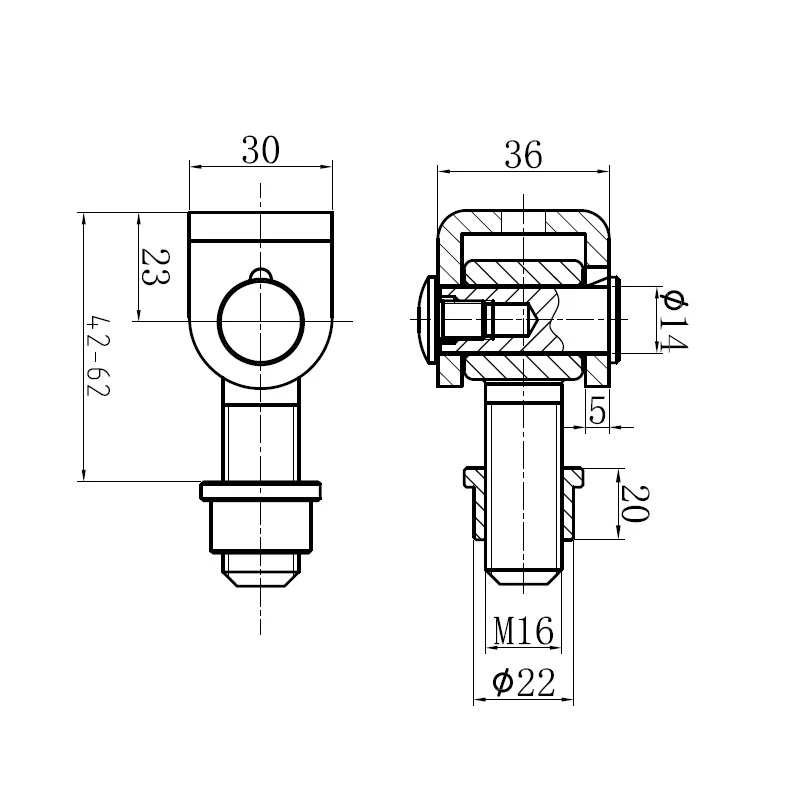

Dimensions and technical parameters
- Material: galvanised steel
- Screw thread: M16
- Screw length: 40 mm
- Lug width (external): 36 mm
- Welding element width: 30 mm
- Pin diameter: ø14 mm
- Nut flange diameter: ø22 mm
- Lug plate thickness: 5 mm
- Adjustment nut height: 20 mm
- Height adjustment range: 42–62 mm
- Pin axis distance from lug edge: 23 mm
- Overall length: 78 mm
- Weight: 0.24 kg
- Allowable load for pair of hinges (gate leaf up to 2 m): 65 kg
- EAN: 5903313206501
Adjustment — comfort for years
The adjustment range of 42–62 mm allows for flexible vertical positioning of the gate leaf. In practice, this means that the installer can correct the setting even after several seasons of operation — when the gate begins to sag or the metal deforms under the influence of low winter temperatures. Simply turn the adjustment nut to restore the gate to the proper level — without dismantling the hinge.
PSG hinges are a proven solution valued by professional installers. Aesthetic finish and universal construction allow use with various types of swing gates, ensuring both functionality and visual consistency with the fencing.
Technical data
| Thread type | M16 |
| Mounting Method | Weld-On |
| Material | Steel |
