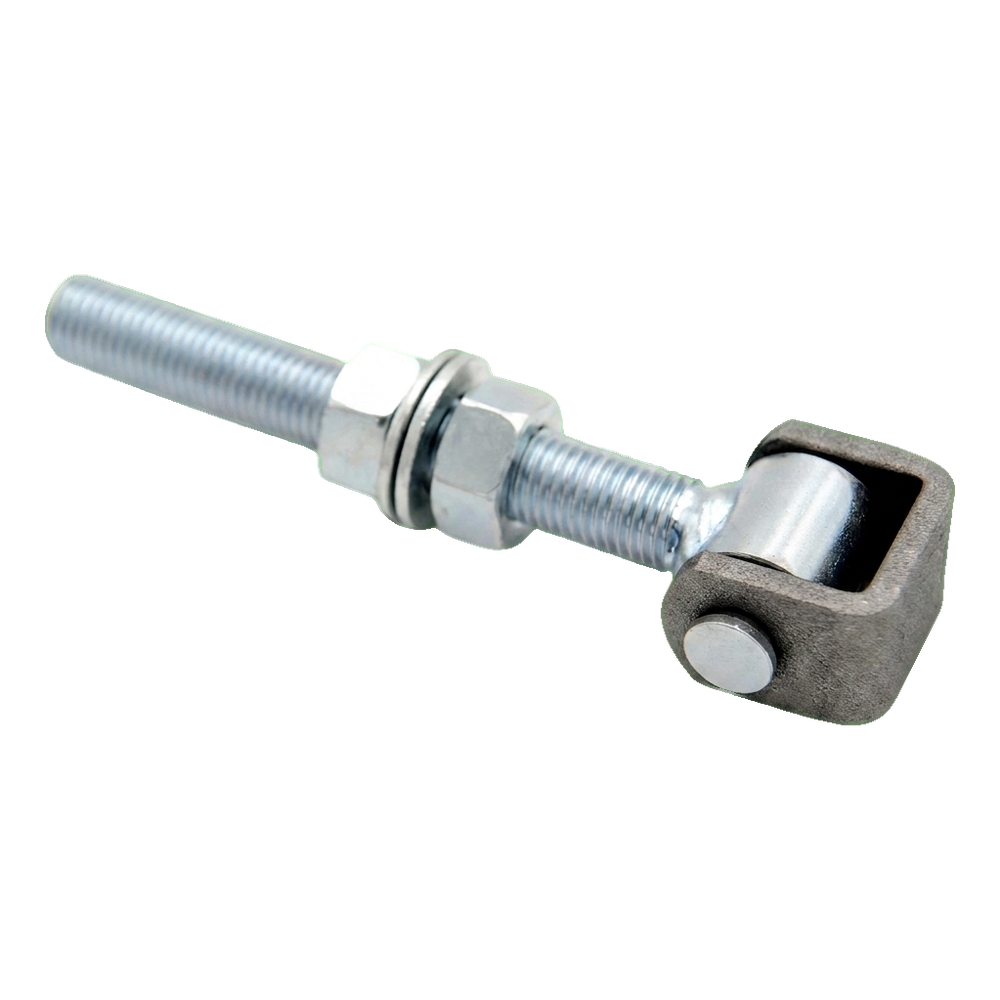

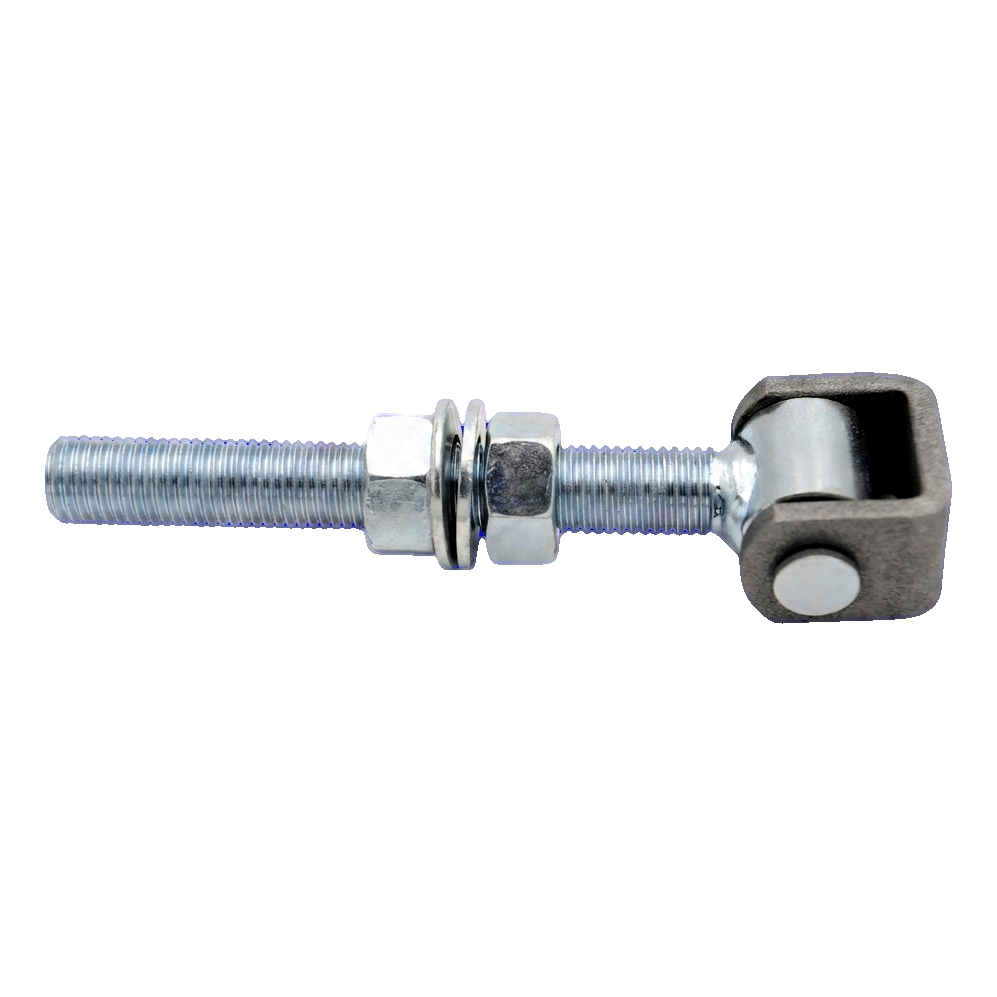

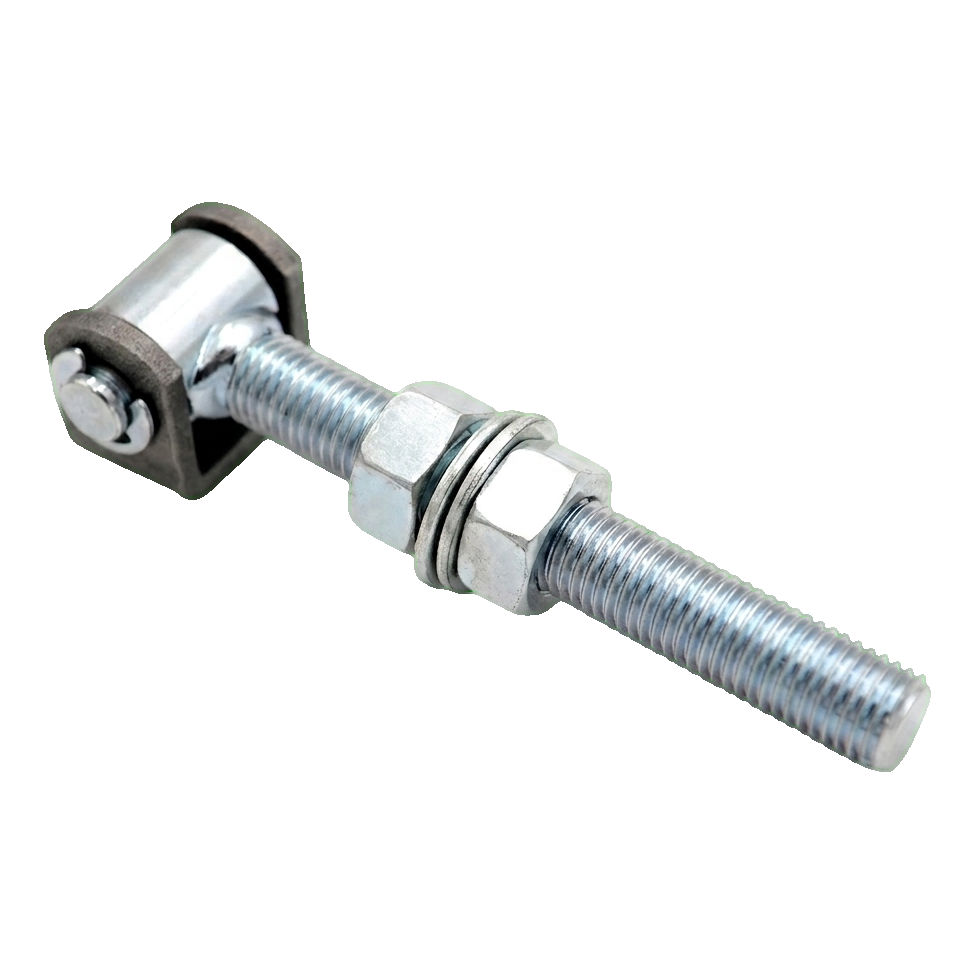

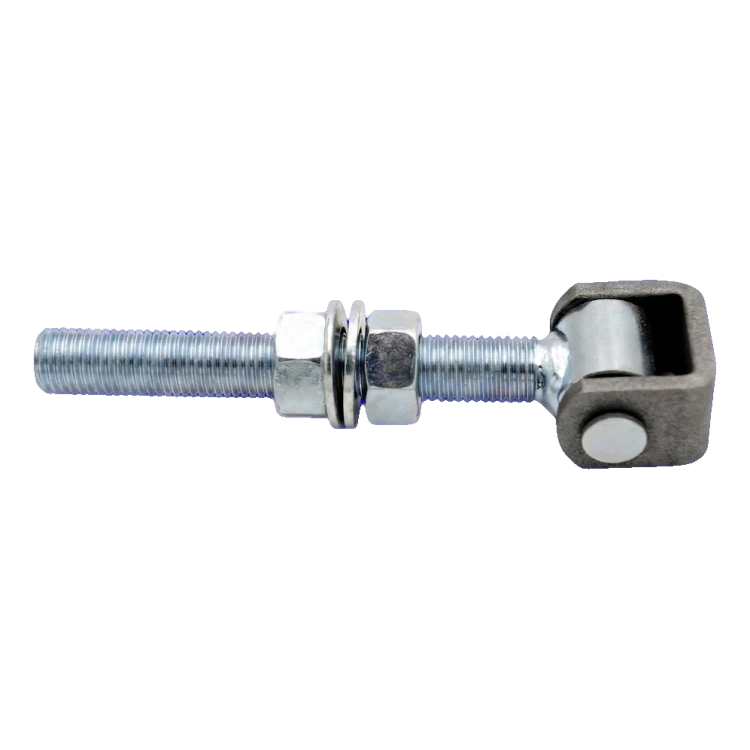

Adjustable Long M16 Hinge for Swing Gates – Galvanised Steel (Circlip)
Leave feedback on the product
Adjustable long M16 hinge with circlip protection made from galvanised steel. Total length 150 mm, ear width 36 mm, M16 thread. Permissible load capacity for a pair: 65 kg on a 2 m gate leaf. For swing gates and garden gates.
Product code: 001-347
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable Long M16 Hinge for Swing Gates – Galvanised Steel (Circlip)
Steel adjustable long M16 hinge with circlip-type protection is a durable suspension element for swing gates and garden gates, designed to operate in outdoor conditions. Thanks to the M16 thread with adjustment nut, it enables precise positioning of the gate leaf both during installation and after completion — without the need to dismantle the entire structure.
The hinge construction is based on galvanised steel, which guarantees effective anti-corrosion protection and multi-year durability even in harsh atmospheric conditions. The hinge ear remains in black (non-galvanised) version. The circlip protection prevents the pin from sliding out of the socket, which increases operational safety and eliminates the risk of spontaneous connection disconnection.
Post-installation adjustment is particularly useful when the gate leaf load changes over time or the post settles — simply loosen the nut and correct the gate position. The permissible load capacity for a pair of hinges on a gate leaf 2 m long is 65 kg.
Key Features
- Adjustment of leaf position after installation — without dismantling the structure
- Anti-corrosion protection — galvanised pin and nuts, long-lasting rust resistance
- Circlip protection — secure retention of pin in hinge ear
- High strength — suitable for heavy swing gates and garden gates
- Wear resistance — maintaining aesthetics and functionality for many years

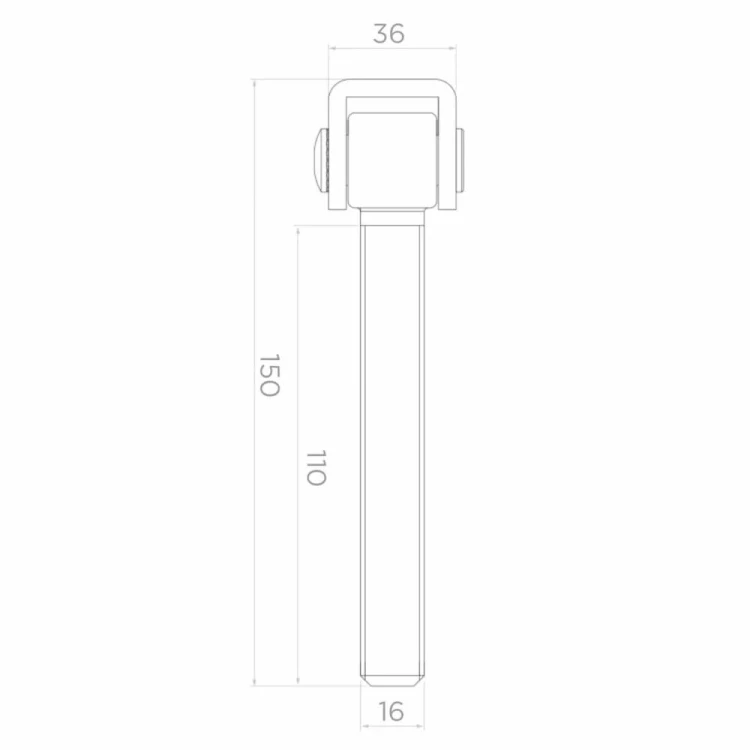

Technical Parameters
- Type: adjustable long hinge (circlip)
- Material: steel
- Anti-corrosion protection: galvanised (ear black)
- Thread: M16
- Total length: 150 mm
- Threaded pin length: 110 mm
- Ear width: 36 mm
- Pin diameter: 16 mm
- Permissible load capacity for pair (2 m leaf): 65 kg
- Weight: 0.4 kg
Application
The hinge is designed for installation of swing gates, garden gates and other structures requiring solid and adjustable hinge connections. It works well in both private fencing and commercial installations. The galvanised surface allows outdoor use without additional painting.
