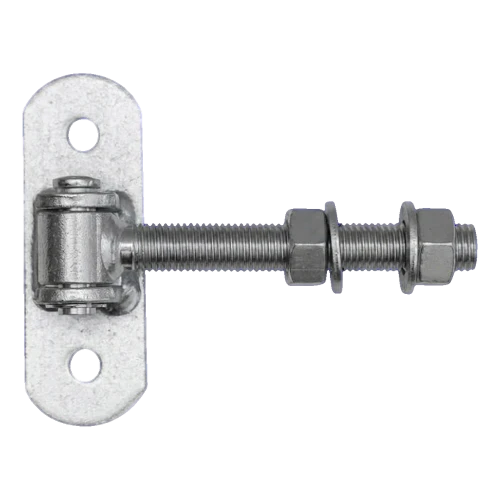

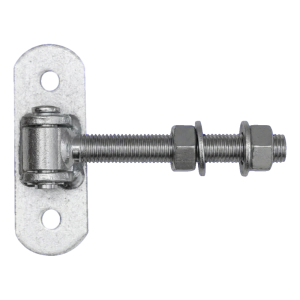

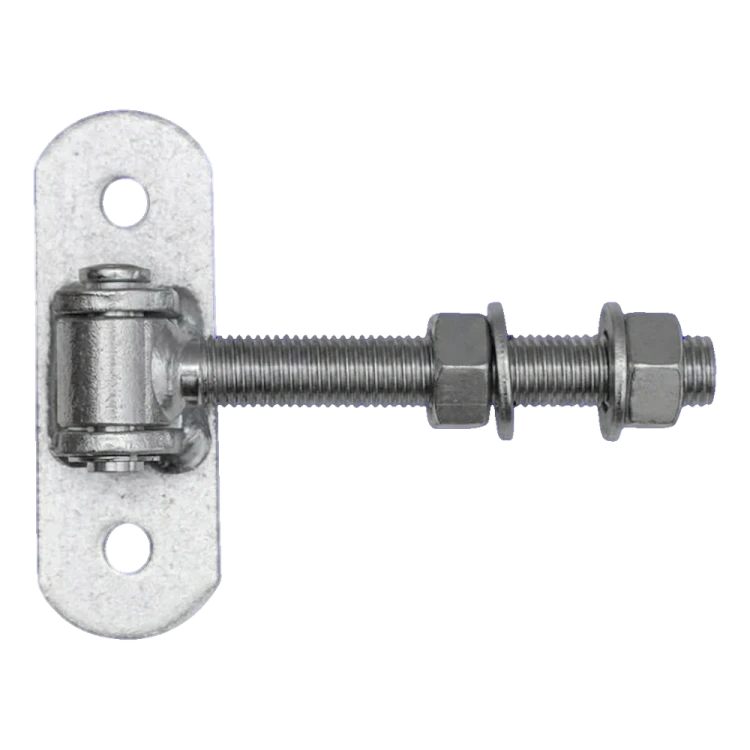

Adjustable gate hinge M16 with plate 115×40 mm – galvanised
Leave feedback on the product
Adjustable gate hinge M16 with plate, galvanised. Galvanised steel, plate 115×40×5 mm, M16 thread, length 130 mm. Load capacity of pair 80 kg with leaf length 1.4 m. For gates and wickets.
Product code: 001-405
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method With Plate
- Material Steel
Description
Adjustable gate hinge M16 with plate 115×40 mm – galvanised
Adjustable hinge M16 with plate is a durable hardware element designed for mounting swing gates and wickets. Thanks to the threaded spindle M16, it enables precise adjustment of the leaf position at any time after installation completion — both in case of structural sagging and dimensional changes caused by extreme temperatures.
Made from galvanised steel, it provides high corrosion resistance for many years of outdoor use. The mounting plate with dimensions 115 × 40 mm with two mounting holes guarantees quick and secure installation to a post or wall. The permissible load of a pair of hinges on a leaf with length 1.4 m is 80 kg.
Advantages for the installer
- Adjustment after installation — nuts on the M16 thread allow correction of leaf position at any time
- Hot-dip galvanising — durable anti-corrosion protection for outdoor applications
- Simple, quick installation — plate with two fixing holes, ready to bolt
- High load capacity — pair of hinges will support leaf up to 80 kg with length 1.4 m
- Solid construction resistant to mechanical damage and dynamic loads

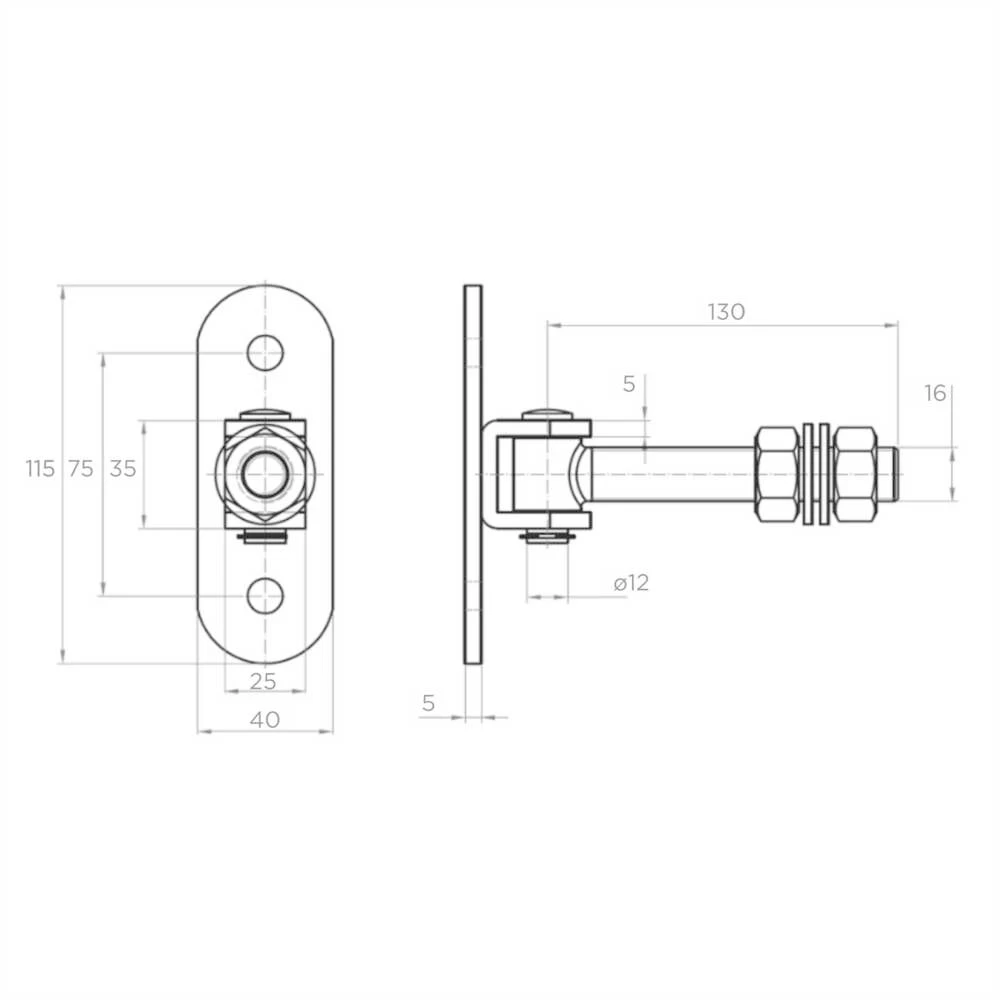

Dimensions and technical data
- Thread: M16
- Screw length (working part): 130 mm
- Total length: 200 mm
- Plate dimensions: 115 × 40 mm
- Plate thickness: 5 mm
- Mounting hole centres: 75 mm
- Pin diameter: ø12 mm
- Bracket (channel) dimensions: 35 × 25 mm
- Bracket plate thickness: 5 mm
- Material: steel
- Anti-corrosion protection: galvanised
- Weight: 0.54 kg
