Adjustable Gate Hinge M20 with 140×50 mm Plate – Galvanised
Leave feedback on the product
Adjustable gate hinge M20 made from galvanised steel. Plate 140×50×6 mm with ø13 mm holes, 90 mm spacing. Bolt 130 mm, pin ø15 mm. Load capacity per pair up to 105 kg on 2 m leaf. Weight 0.96 kg.
Product code: 001-406
Product features
[PIM] zawiasy #113
- Thread type M20
- Mounting Method With Plate
- Material Steel
Description

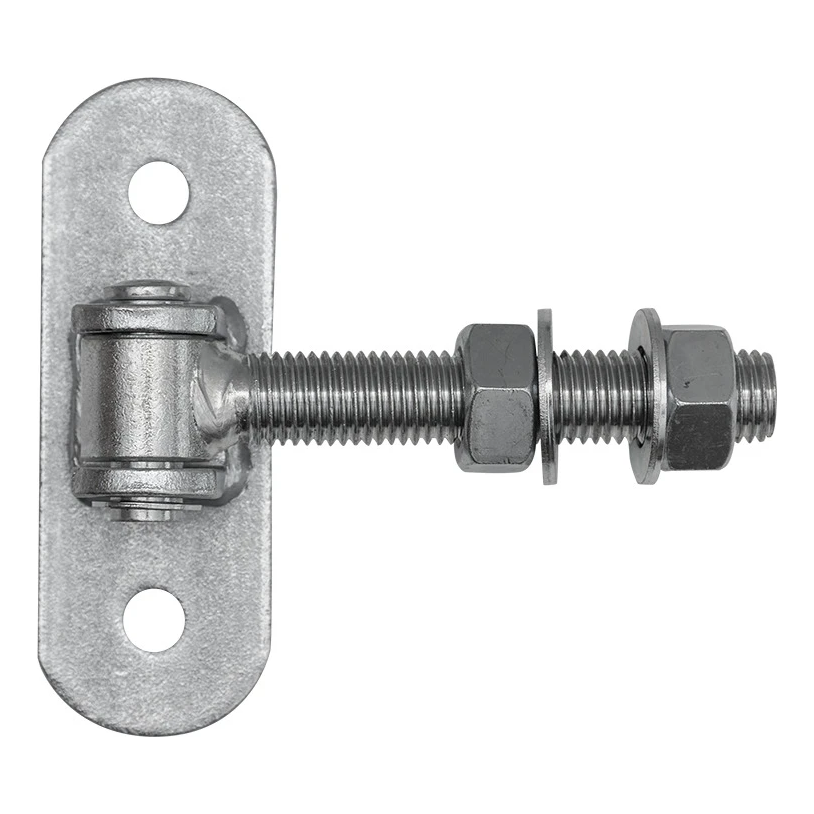

Adjustable Gate Hinge M20 with 140×50 mm Plate – Galvanised
Adjustable hinge M20 with 140×50 mm plate is a robust hardware element designed for mounting swing gates and wickets. The construction with M20 thread enables precise adjustment of the leaf suspension at any time — both after installation completion and during operation, e.g. in case of structure sagging or thermal deformation of metal at extreme temperatures.
The plate equipped with two mounting holes ø13 mm ensures quick and secure bolting to the post. The entire unit is galvanised, which guarantees long-term anti-corrosion protection and allows outdoor use without additional protection.
Benefits for the installer
- Post-installation adjustment — ability to tighten or loosen with nut without dismounting the leaf
- Galvanised coating — high corrosion resistance, product ready for outdoor use
- Quick installation — two holes in the plate enable rapid fixing to the post
- High load capacity — permissible load of hinge pair on 2 m long leaf: 105 kg

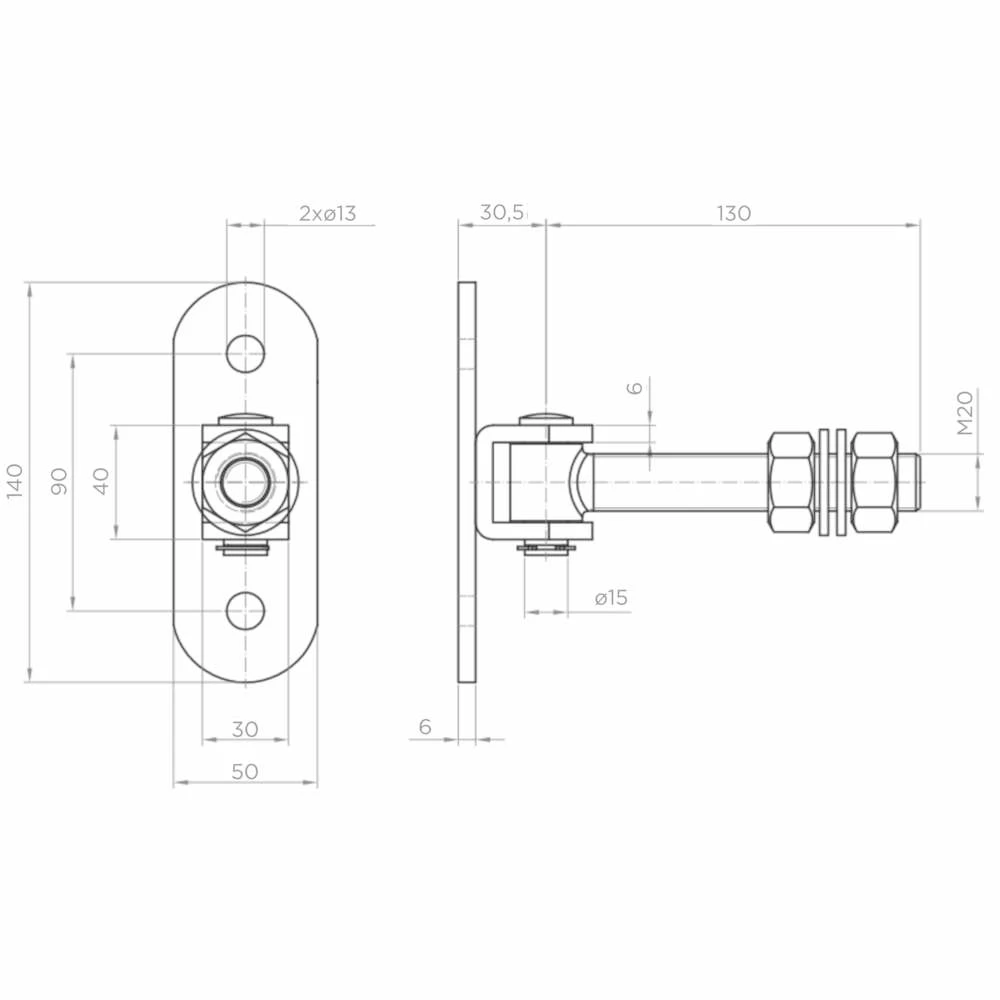

Dimensions and technical data
- Thread: M20
- Material: galvanised steel
- Plate dimensions (height × width): 140 × 50 mm
- Plate thickness: 6 mm
- Mounting hole spacing: 90 mm
- Mounting hole diameter: 2 × ø13 mm
- Bolt length (from pin axis): 130 mm
- Pin diameter: ø15 mm
- Distance from plate to pin axis: 30.5 mm
- Bracket plate thickness: 6 mm
- Permissible load per pair (2 m leaf): 105 kg
- Weight: 0.96 kg
