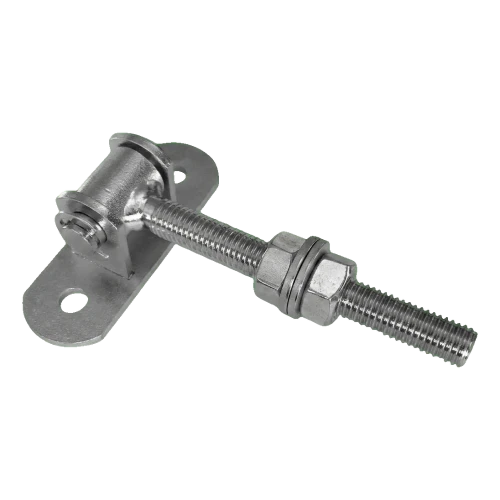

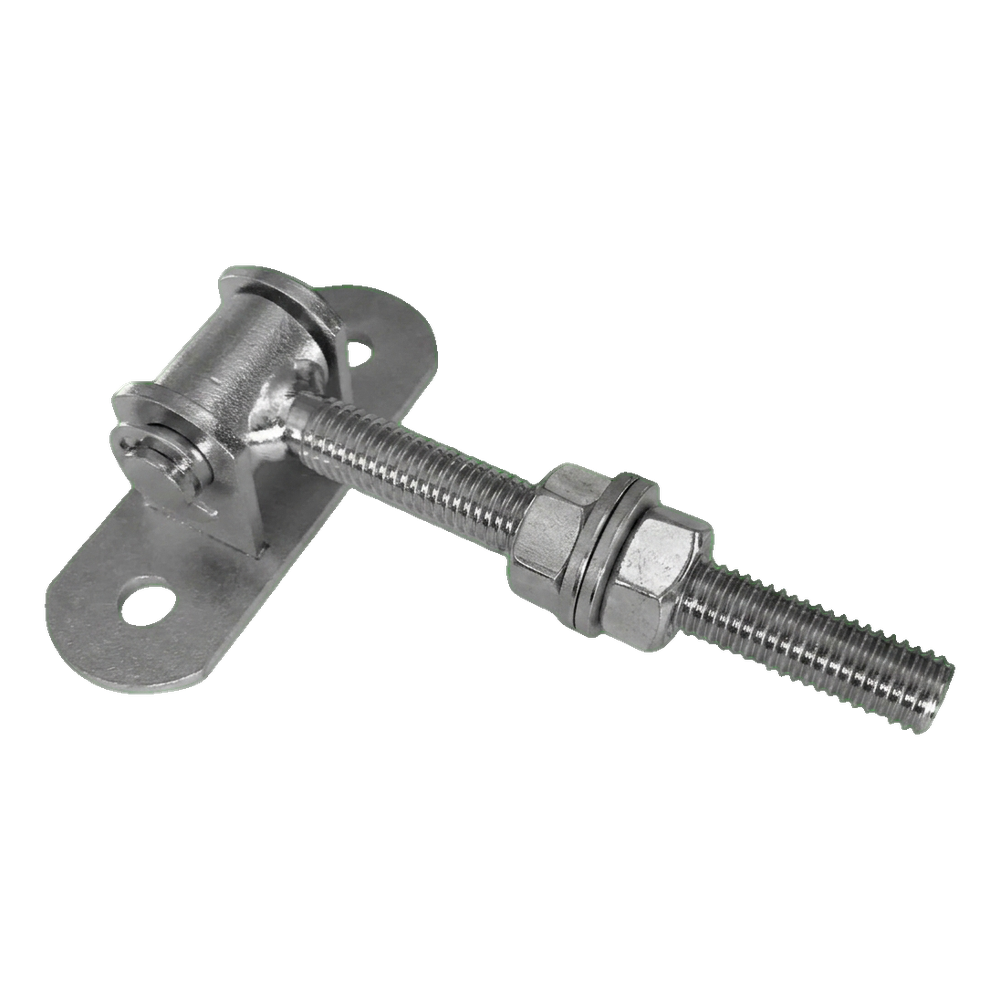

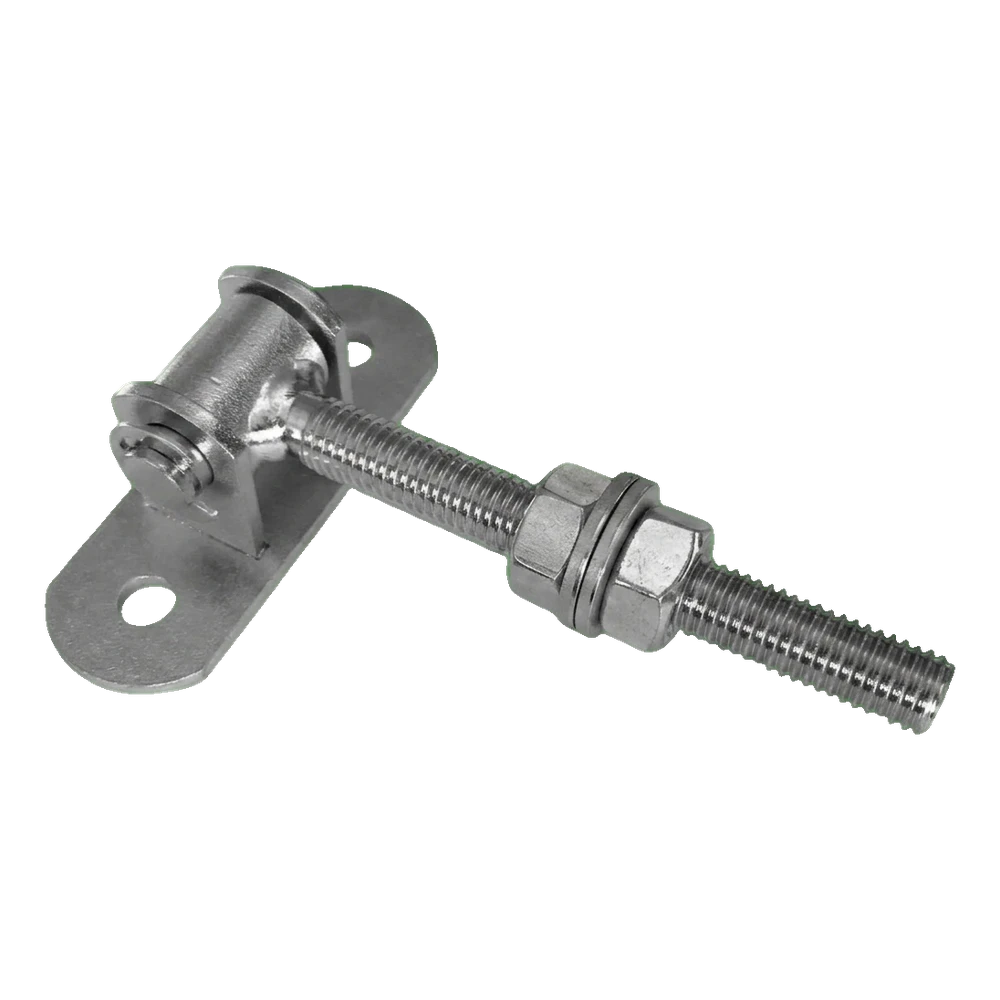

Adjustable M12 steel hinge L-115 mm with 90×30 mm base for gates and wickets
Leave feedback on the product
Adjustable M12 steel hinge with 115 mm threaded pin. Mounting base 90×30 mm with Ø9 mm holes at 60 mm centres. Ø12 mm pin, pair load capacity 60 kg. For swing gates and wickets, external use. Weight 0.26 kg.
Product code: 001-422
Product features
[PIM] zawiasy #113
- Thread type M12
- Mounting Method Wall-Embedded
- Material Steel
Description
Adjustable M12 steel hinge L-115 mm with 90×30 mm base for gates and wickets
Adjustable M12 steel hinge designed for mounting swing gates and wickets. The threaded pin with a length of 115 mm enables precise adjustment of the leaf position both during installation and during subsequent operation — significantly reducing the time required for gate alignment on site.
The mounting base with two Ø9 mm holes at 60 mm centres allows secure fixing of the hinge to the fence post. The construction with a steel pin of Ø12 mm diameter ensures high load capacity — the permissible weight of the gate or wicket leaf for a pair of hinges is 60 kg at a maximum leaf width of 1.2 m. The product is designed for external use.

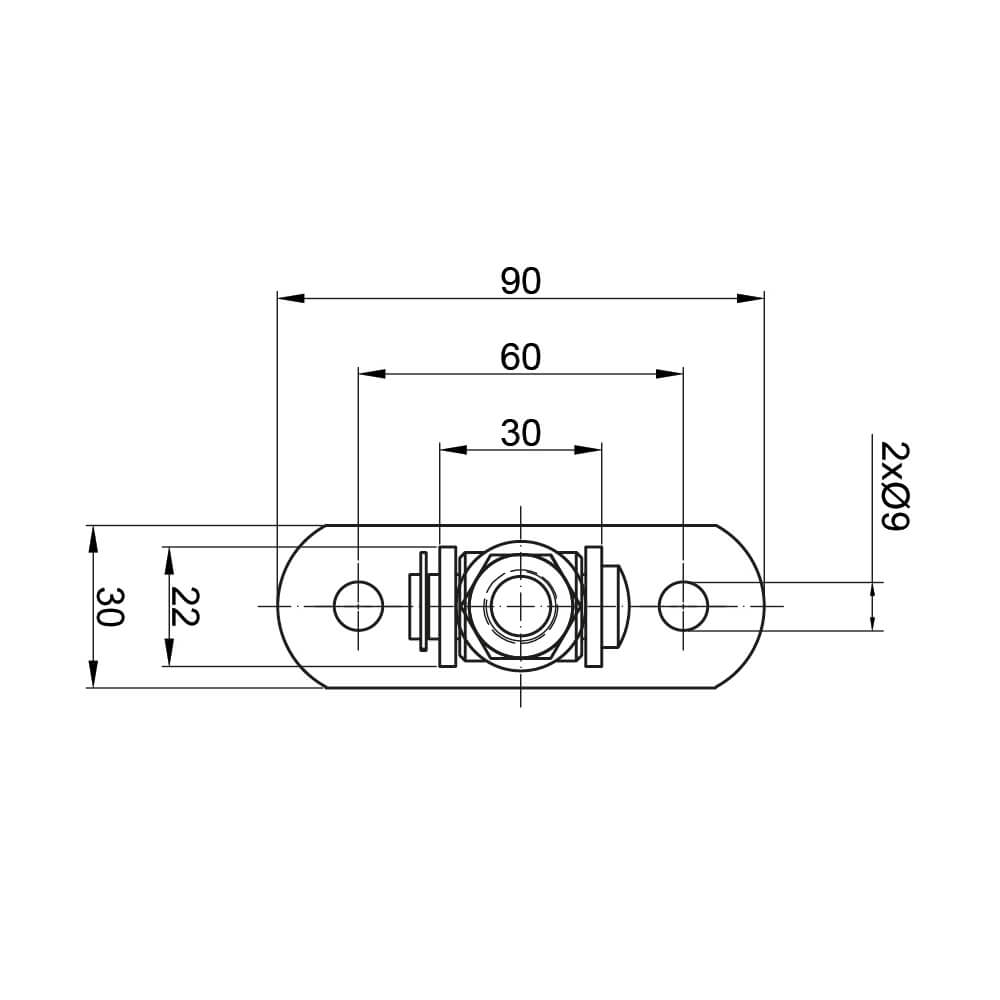

Mounting base dimensions
- Base length: 90 mm
- Base width: 30 mm
- Base plate thickness: 3 mm
- Mounting hole centres: 60 mm
- Mounting hole diameter: 2× Ø9 mm
- Pin holder width (clearance): 22 mm

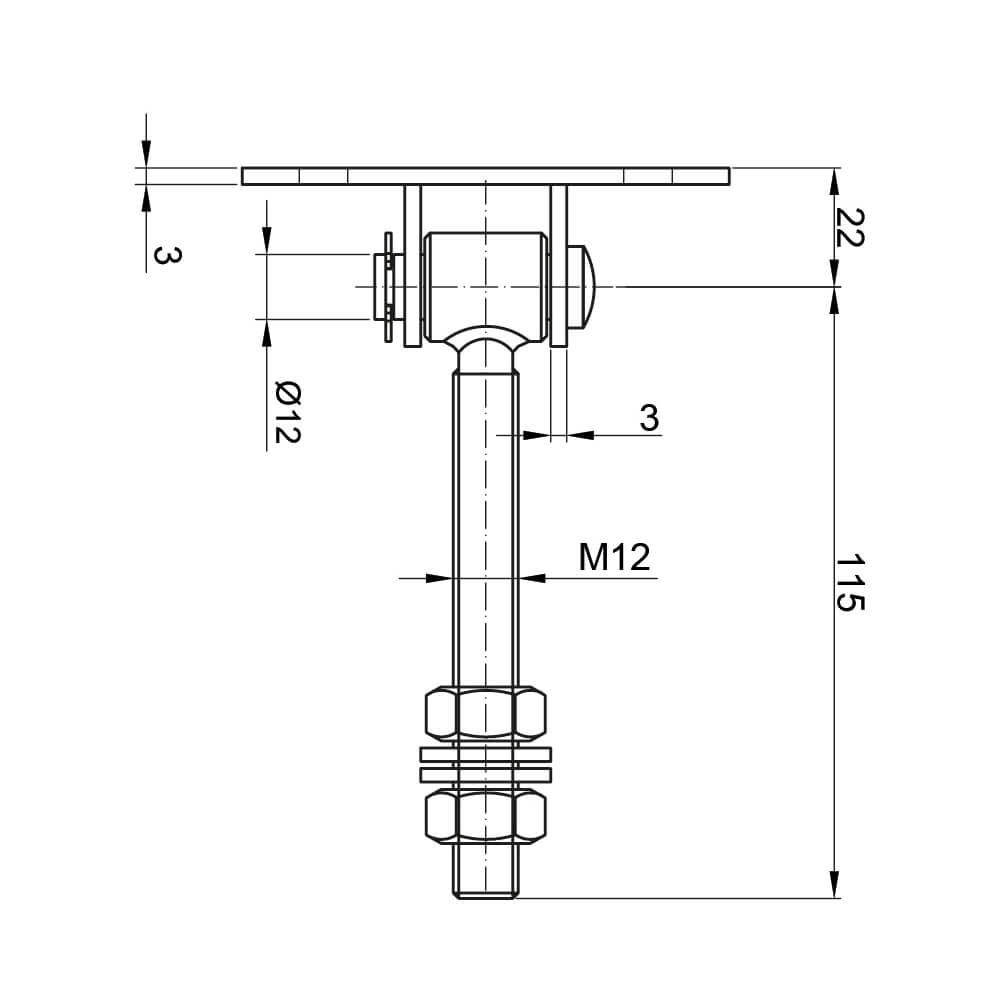

Pin and pivot dimensions
- Pin thread: M12
- Threaded pin length: 115 mm
- Pin diameter: Ø12 mm
- Pin holder plate thickness: 3 mm
- Distance from base to pin axis: 22 mm
Additional data
- Material: steel
- Application: swing gates, wickets
- Use: external use
- Pair load capacity: 60 kg (for leaf width up to 1.2 m)
- Unit weight: 0.26 kg
