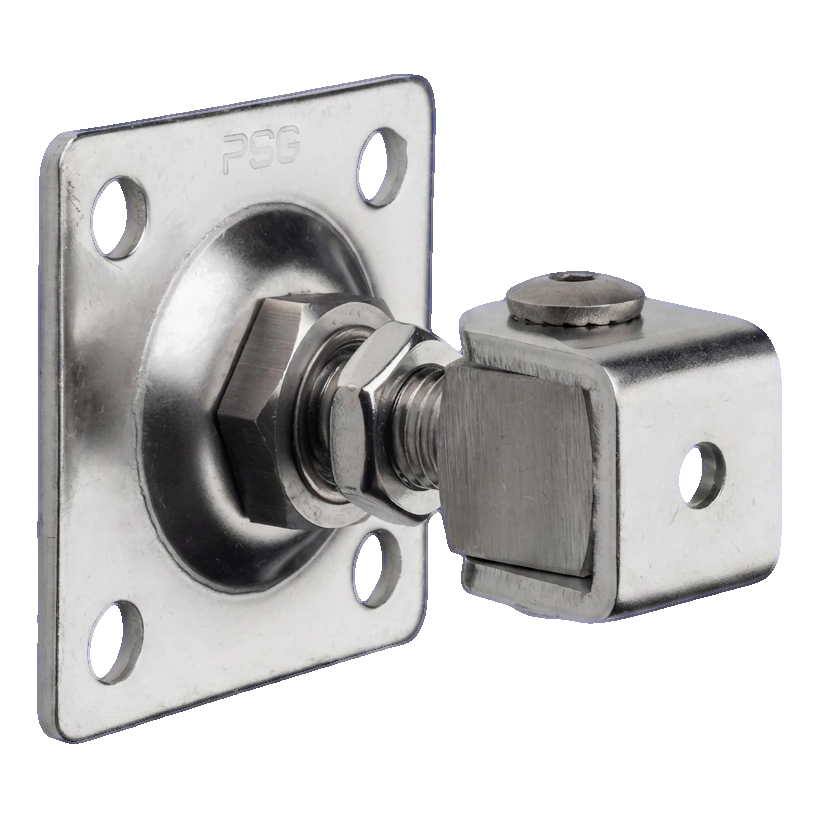

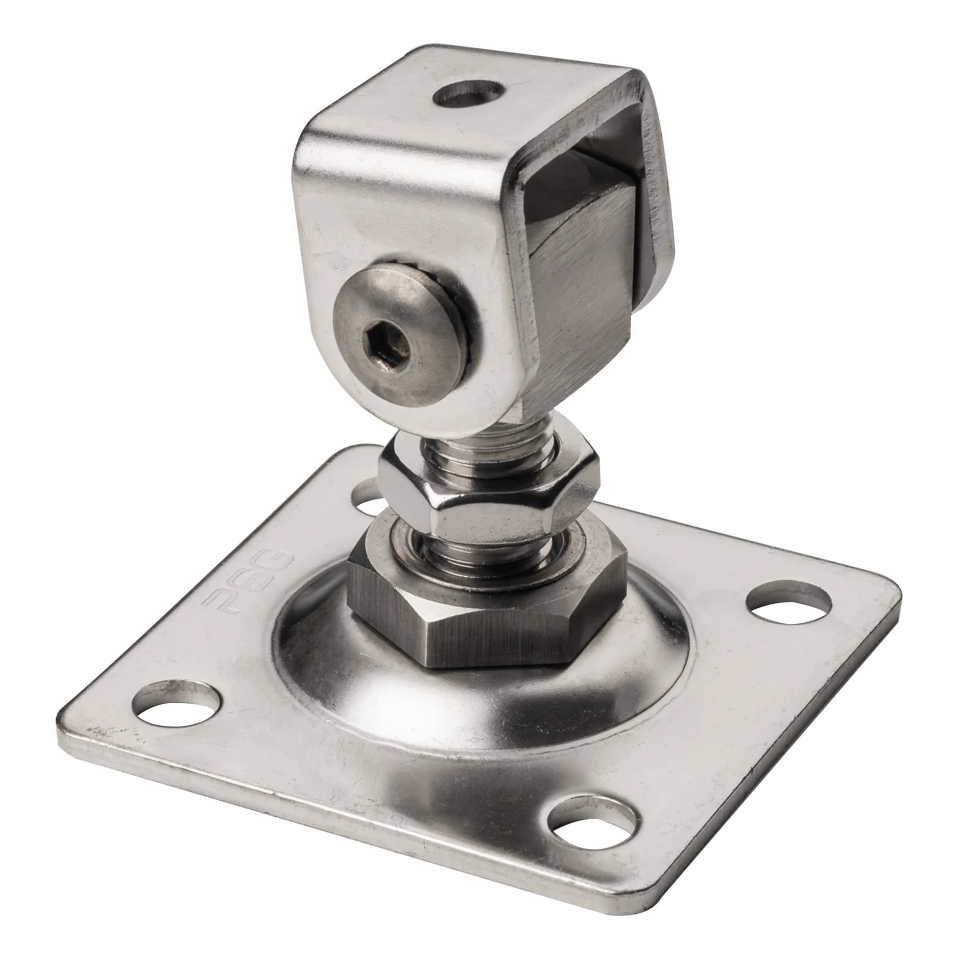

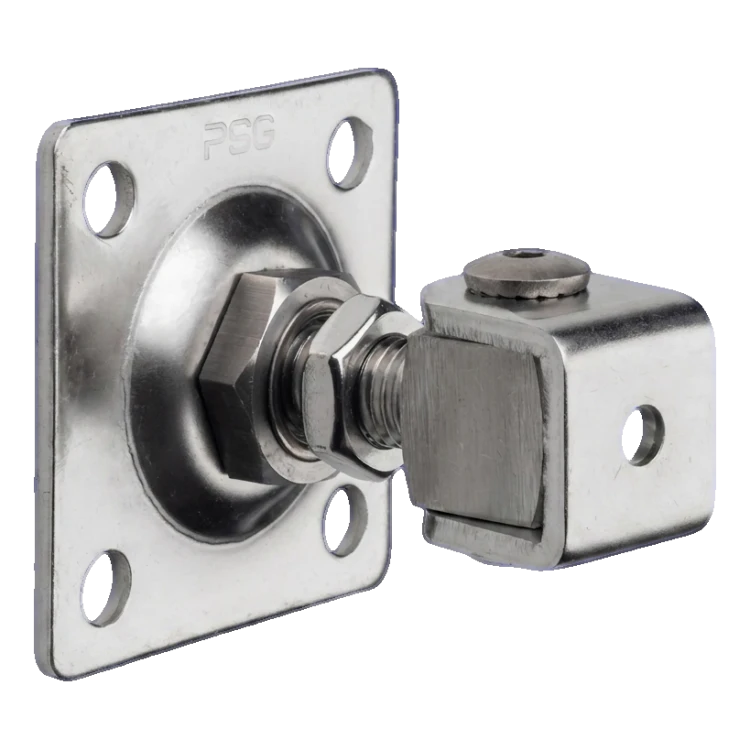

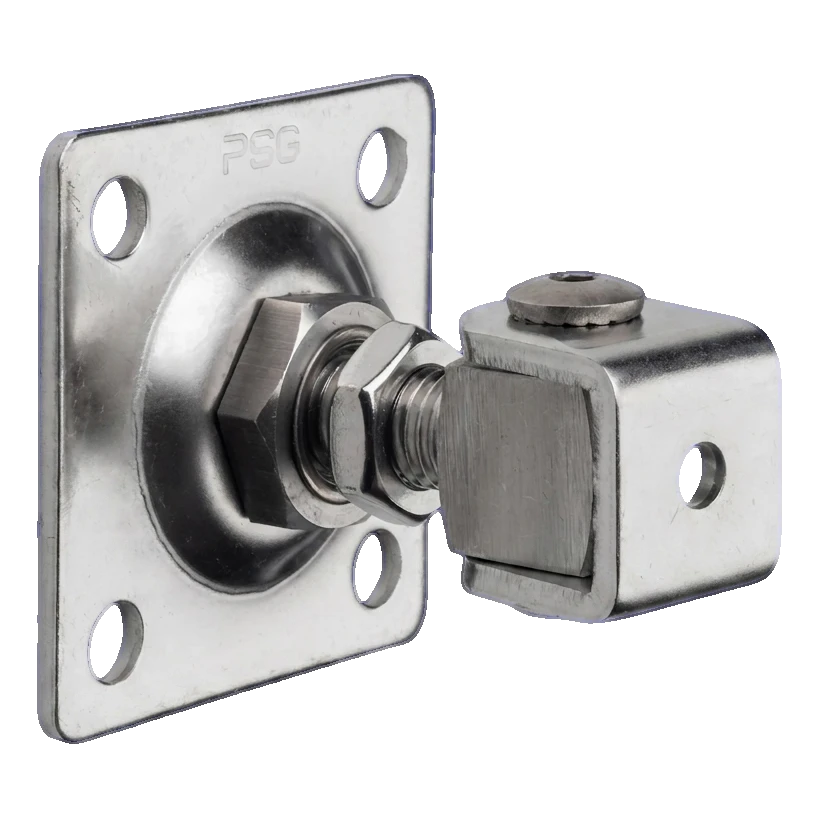

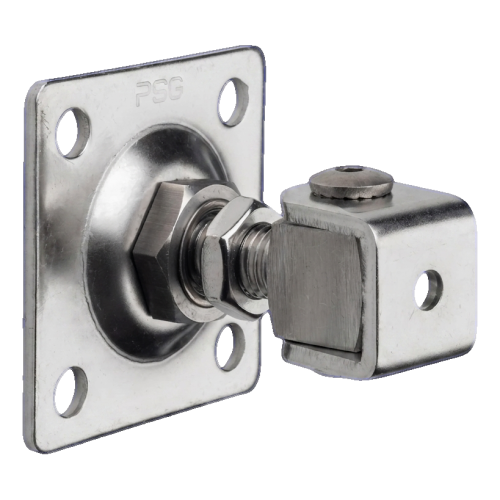

PSG adjustable gate hinge M16 AISI304 with 80×80 mm plate – raw finish
Description
PSG adjustable gate hinge M16 AISI304 with 80×80 mm plate – raw finish
PSG adjustable hinge M16 made from AISI 304 stainless steel is robust hardware designed for professional installation of swing gates. The heavy-duty construction with M16 thread performs excellently in heavier gate leaves where load capacity and suspension stability are crucial. The use of stainless steel guarantees complete corrosion resistance — the hinge requires no maintenance even after years of exposure to rain, snow and road salt.

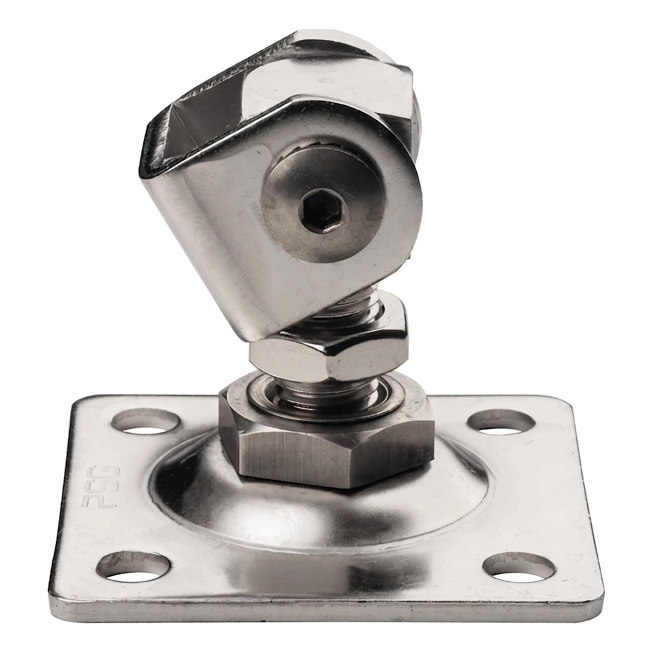

The key advantage is the adjustment capability using the adjustment nut. When the gate leaf settles over time under its own weight, simply correct the hinge setting — without dismantling and without welding. The adjustment range is 42–60 mm, allowing precise gate levelling and ensuring smooth opening and closing throughout the service life, even in extreme winter temperatures.
Main features
- Material: AISI 304 stainless steel — excellent corrosion resistance
- Thread: M16 — for heavier gate constructions
- Surface: raw finish — allows further processing or painting
- Gate leaf position adjustment using nut — range 42–60 mm
- Mounting plate with 4 holes for easy installation
- Weight: 0.5 kg

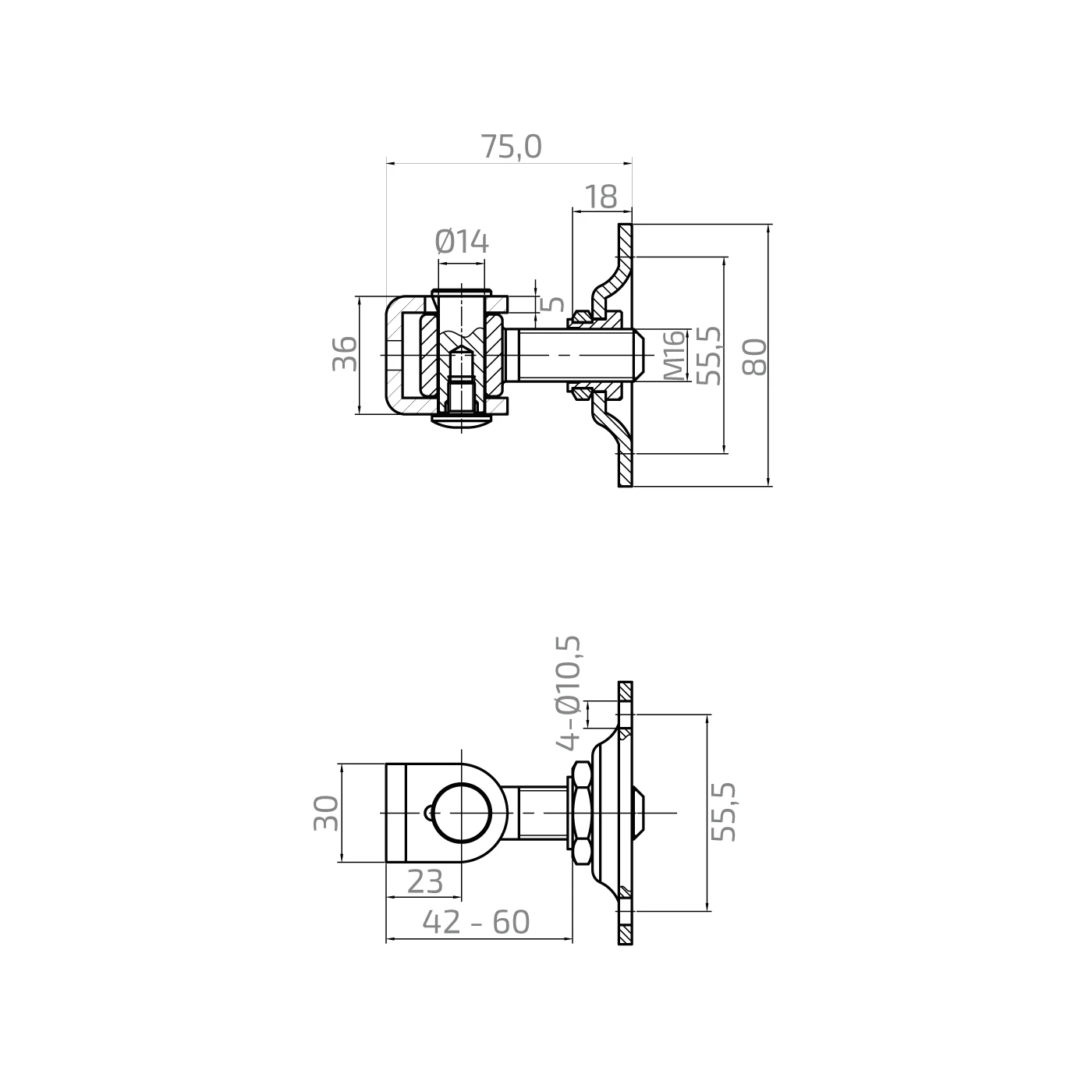

Dimensions and mounting data
- Plate dimensions: 80 × 80 × 4 mm
- Mounting hole spacing: 55.5 × 55.5 mm
- Mounting hole diameter: Ø10.5 mm
- Overall length (assembled): 75 mm
- Pin diameter: Ø14 mm
- U-bracket height: 36 mm
- U-bracket width: 30 mm
- Bracket material thickness: 5 mm
- Pin axis distance from bracket edge: 23 mm
- Adjustment range (pin axis – mounting plane): 42–60 mm
- EAN: 5903313205788
The PSG M16 hinge is a proven solution for installation companies mounting swing gates — solid stainless steel construction, easy adjustment and precise manufacture reduce installation time and eliminate warranty claims.
Technical data
| Material | AISI 304 |
| Finish | Raw |
