Adjustable hinge with escutcheon M16 80x80x3 mm, galvanised eye
Description

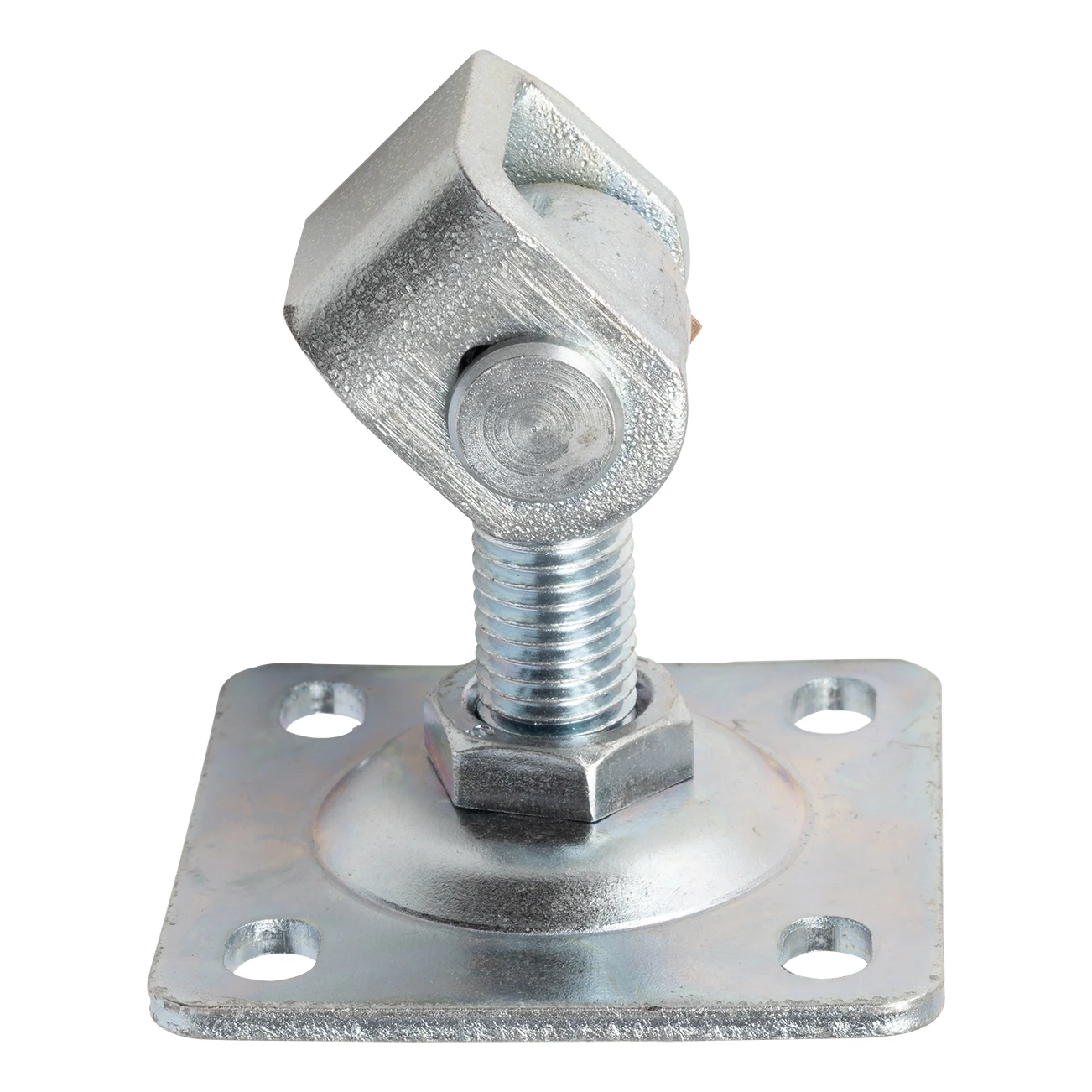

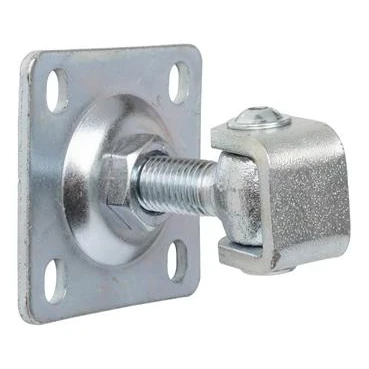

Adjustable Hinge with M16 Plate 80×80 mm – Galvanised
The M16 adjustable hinge with plate is a robust mounting component designed for the professional installation of gates and fence wickets. Thanks to its threaded adjustment, it allows precise positioning of the gate leaf relative to the post – both during installation and throughout subsequent use.
The 80 × 80 mm plate with four mounting holes enables quick and secure fixing to the fence post. A plate thickness of 3 mm ensures adequate rigidity and durability of the connection. The rotating collar design provides smooth operation of the gate leaf, while the zinc anti-corrosion coating protects the component against the effects of weathering for many years.
The permissible load for a pair of hinges on a gate leaf of 2 m in length is 65 kg, making this product suitable for both lightweight wicket gates and standard fence gates.
Key advantages
- Zinc coating – high corrosion resistance in outdoor conditions
- Post-installation adjustment – precise positioning of the gate leaf without disassembly
- High mechanical strength and abrasion resistance
- Plate with 4 holes – quick and secure fixing to the post
- Attractive, neutral finish compatible with a wide range of fence types
Technical specifications
- Type: adjustable hinge with plate
- Thread: M16
- Plate dimensions: 80 × 80 mm
- Plate thickness: 3 mm
- Material: galvanised steel
- Anti-corrosion protection: zinc
- Load capacity per pair (2 m leaf): 65 kg
- Weight: 0.4 kg

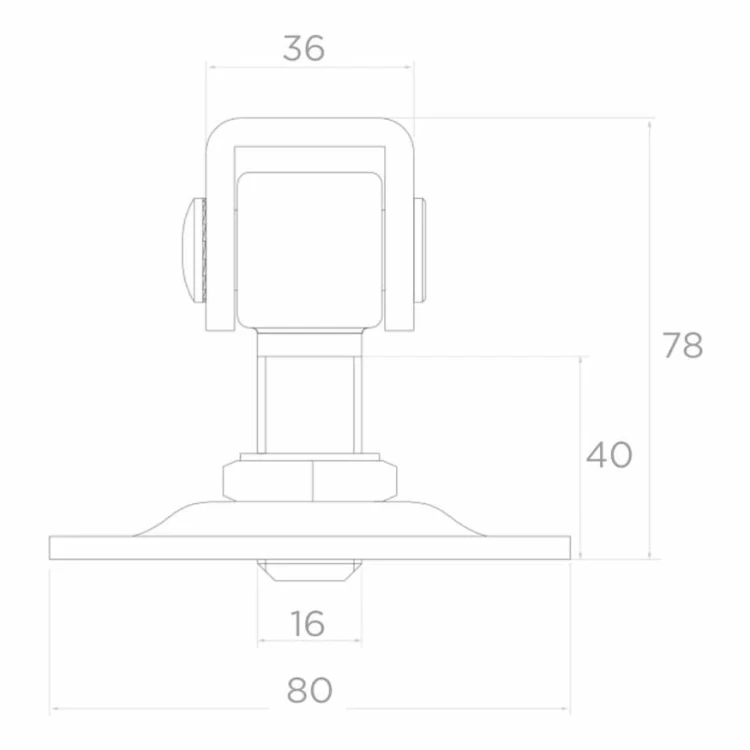

Dimensions from technical drawing
- Eye width: 36 mm
- Overall height: 78 mm
- Threaded pin height: 40 mm
- Thread diameter: M16
- Base dimensions (plate): 80 × 80 mm
The adjustable hinge with M16 plate is a reliable mounting solution that simplifies fence installation and ensures years of trouble-free operation. An ideal addition to the product range for teams carrying out fencing projects.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Adjustment | Yes |
| Thread type | M16 |
| Diameter | 12 |
| Mounting Method | With Plate |
| Material | Steel |
