Adjustable weld-on hinge M16
Leave feedback on the product
Steel weld-on hinge with M16 thread and adjusting nut, length 78 mm, pair load capacity 65 kg. Bolt and plate zinc-plated, eye in black steel.
Product code: 000-234
Product features
[PIM] zawiasy #113
- Adjustment Yes
- Thread type M16
- Diameter 12
- Mounting Method Weld-On
- Material Steel
Description

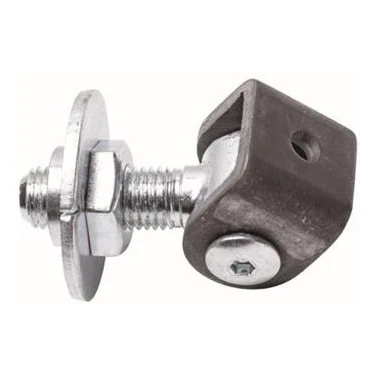

Adjustable Weld-On Hinge M16 – Steel, Zinc-Plated, L78 mm
The adjustable weld-on hinge M16 is a robust hardware component designed for the installation of swing gates and wicket gates. Thanks to the M16 threaded bolt with an adjusting nut, it allows precise alignment of the gate leaf both during installation and throughout its service life — particularly useful for compensating gate sag or thermal deformation of metal in extreme weather conditions.
The design combines a zinc-plated bolt with backplate and a black steel eye intended to be welded directly into the gate frame or post. This solution provides a durable and neat connection whilst allowing adjustment of the leaf height and tension at any time — simply tighten or loosen the nut.
The permissible load for a pair of hinges on a gate leaf up to 2 m in length is 65 kg, making it suitable for the majority of standard gates and wicket gates used in residential and light industrial construction.
Advantages for the installer:
- Post-installation adjustment — compensates for gate sag and thermal deformation without disassembly
- Zinc-plated bolt and backplate — high corrosion resistance for outdoor use
- Weld-on eye — secure, permanent fixing in steel structures
- High resistance to wear and mechanical damage
- Attractive appearance — black eye combined with a light-coloured backplate

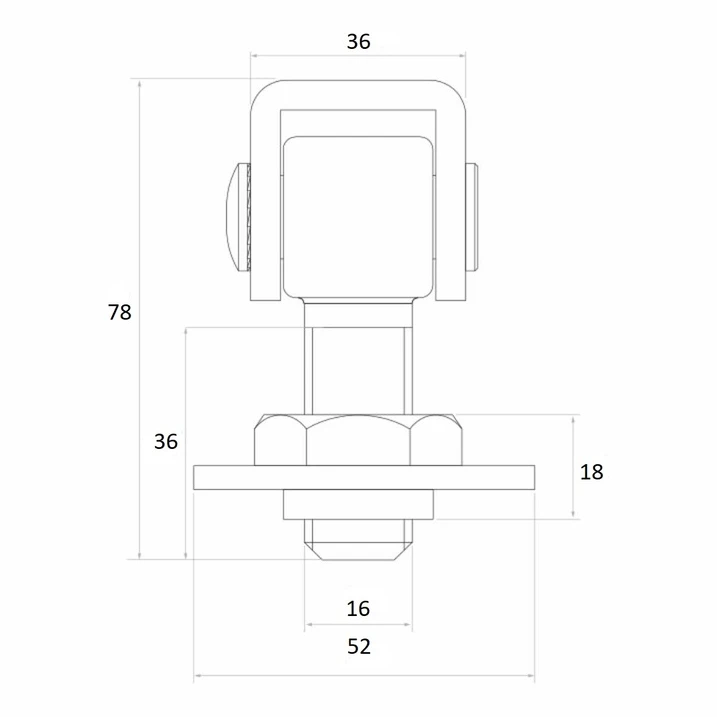

Technical specifications:
- Thread: M16
- Overall length: 78 mm
- Bolt length: 36 mm
- Eye width: 36 mm
- Backplate width: 52 mm
- Backplate thickness: 18 mm
- Material: steel
- Corrosion protection: zinc-plated (bolt + backplate), eye — black steel
- Weight: 0.32 kg
- Permissible load per pair (2 m leaf): 65 kg
