Comunello gate hinge set for welding onto 40×40 mm post – left-hand, for ascending slopes
Leave feedback on the product
Comunello left-hand gate hinge set for welding onto 40×40 mm post. Electrolytically galvanised steel. Length 220 mm, weight 5 kg. Maximum leaf length 3 m, weight 120 kg. Lifting angle 10°. For areas with ascending slopes.
Product code: 001-527
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material Steel
Description

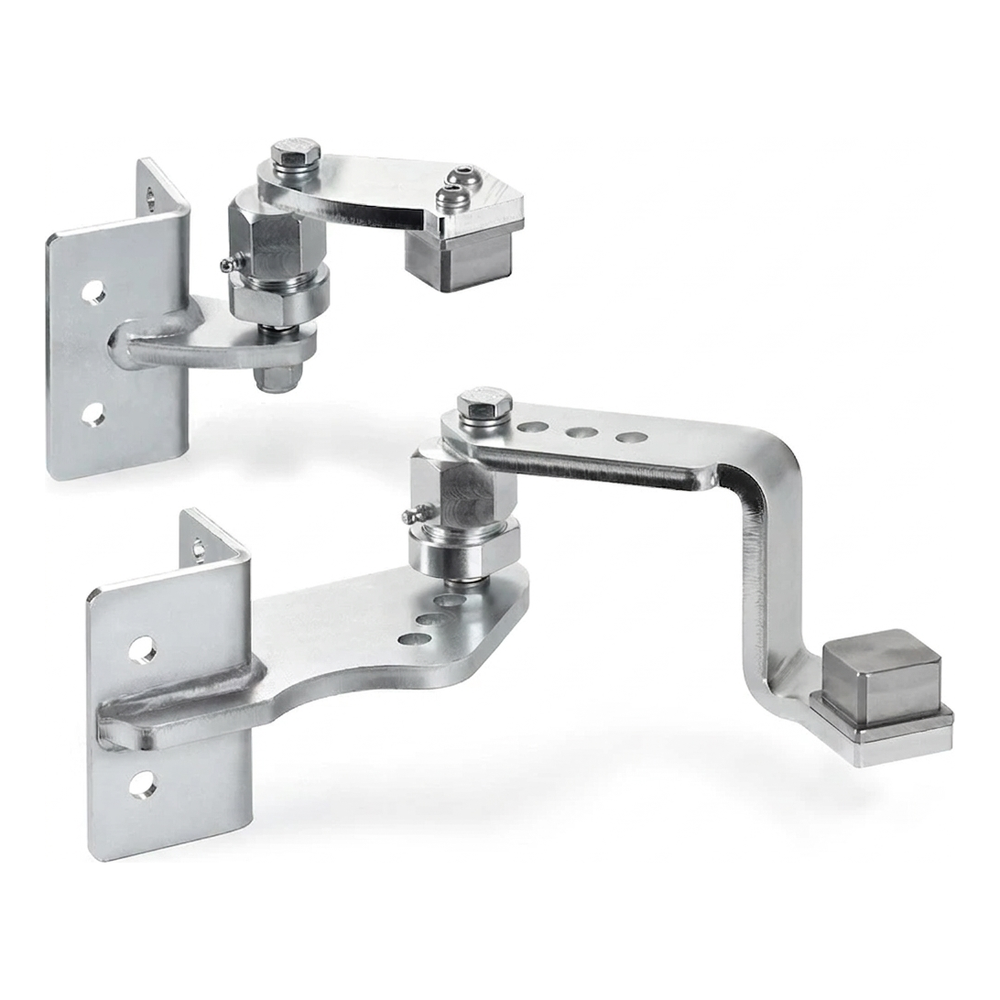

Comunello gate hinge set for welding onto 40×40 mm post – left-hand, for rising slopes
Comunello – left-hand hinge set for welding designed for mounting swing gates on areas with rising slopes. The kit consists of two hinges (upper and lower) suitable for 40×40 mm posts, both steel and concrete. Thanks to the connection of the wing bracket with the joint using an eccentric screw, the installer can precisely adjust the wing position – set it horizontally and align it with the post even on sloped ground.
Key advantages for installers
- Adjustable wing inclination – eccentric screw allows compensation for ground irregularities and precise gate positioning
- Maximum wing lifting angle: 10° (~20%) – ideal for vehicles on ascending and descending slopes
- Joints equipped with grease nipples – easy lubrication without the need to dismantle the hinge
- Brackets with 4 mounting holes – secure and stable attachment to the post
- Installation on steel and concrete posts – universal application
Technical parameters
- Version: left-hand
- Brand: Comunello
- Material: electrolytically galvanised steel
- Intended for: 40×40 mm post
- Maximum wing length: 3 m
- Maximum wing weight: 120 kg
- Maximum lifting angle: 10° (~20%)
- Set length (L): 220 mm
- Set weight: 5 kg
- EAN: 8028390517481

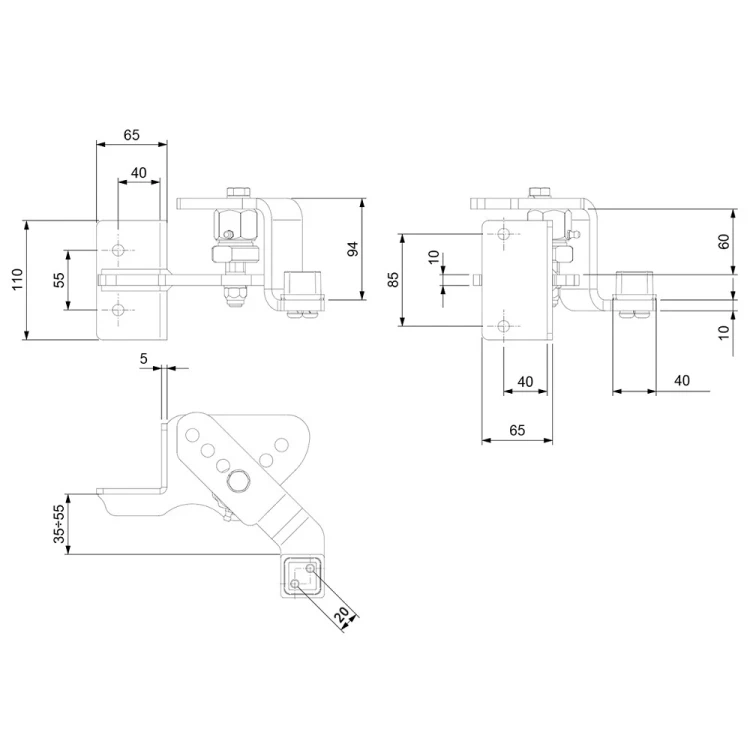

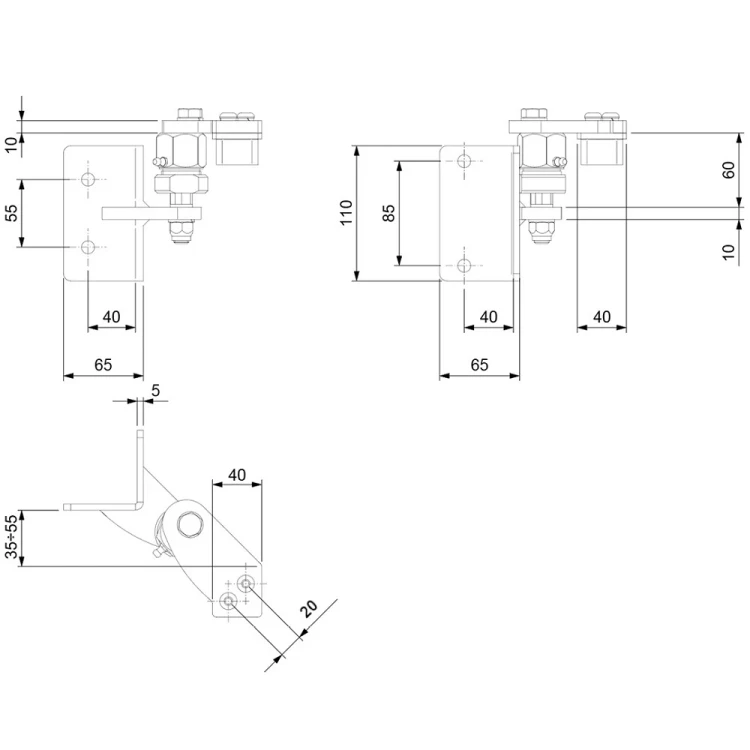

Hinge dimensions (from technical drawing)
- Mounting plate width: 65 mm
- Centre distance of mounting holes (horizontal): 40 mm
- Mounting plate height (upper hinge): 110 mm
- Mounting hole spacing vertically (upper hinge): 55 mm
- Moving element height (upper hinge): 94 mm
- Mounting hole spacing vertically (lower hinge): 85 mm
- Vertical distance between arms (lower hinge): 60 mm
- Gate mounting element width: 40 mm
- Mounting plate thickness: 5 mm
- Adjustable distance from rotation axis to wall: 35–55 mm
- Pin axis offset: 20 mm
The set is designed for welded installation – brackets are mounted directly to the post, and the joint to the gate wing arm. Eccentric adjustment enables correction of wing positioning after installation, which significantly reduces installation time and eliminates the need for dismantling in case of minor adjustments. Grease nipples built into the joints ensure maintenance-free operation – periodic lubrication is sufficient without removing the hinges.
