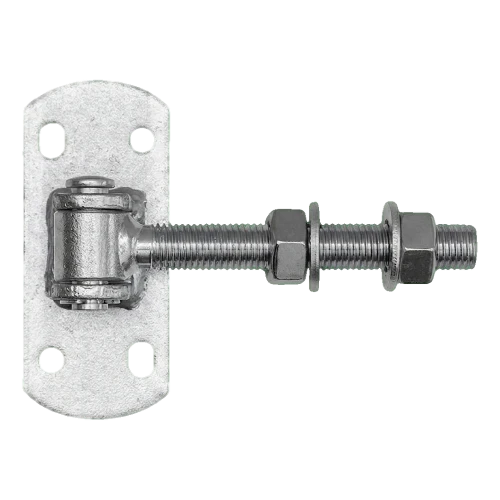

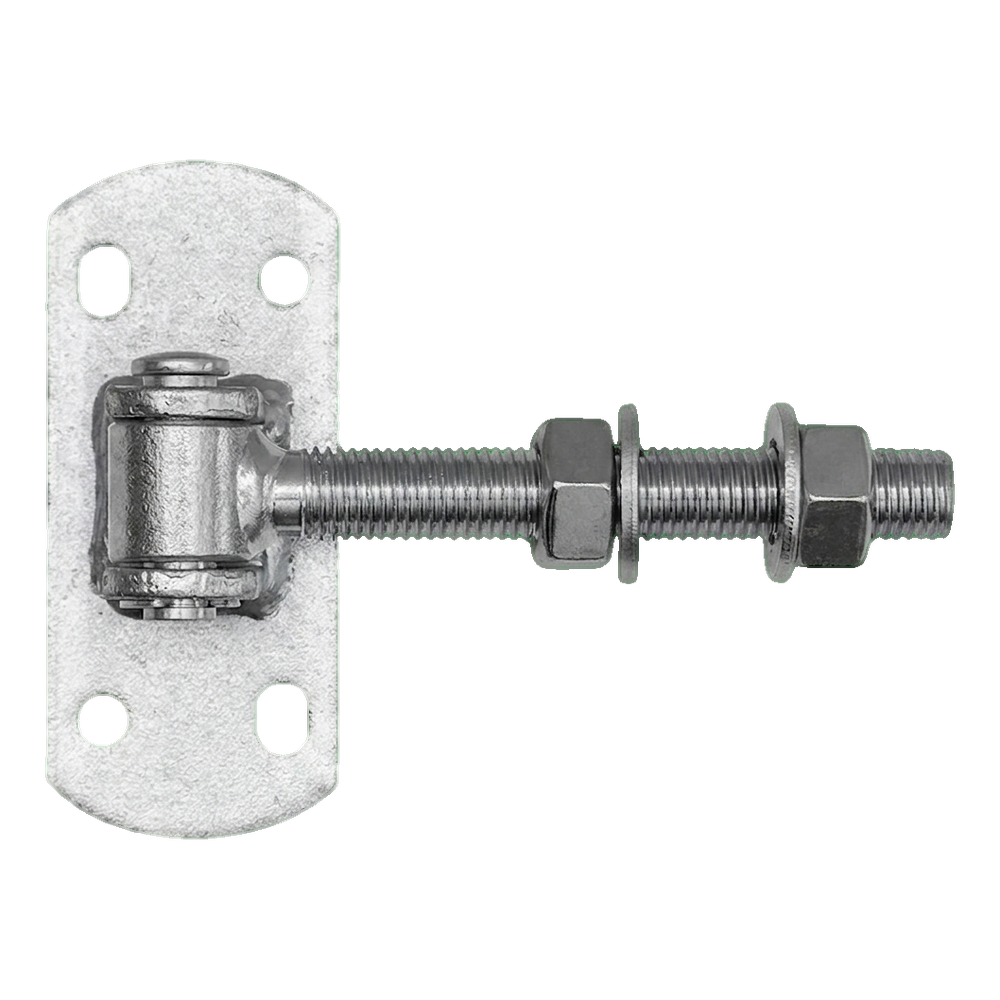

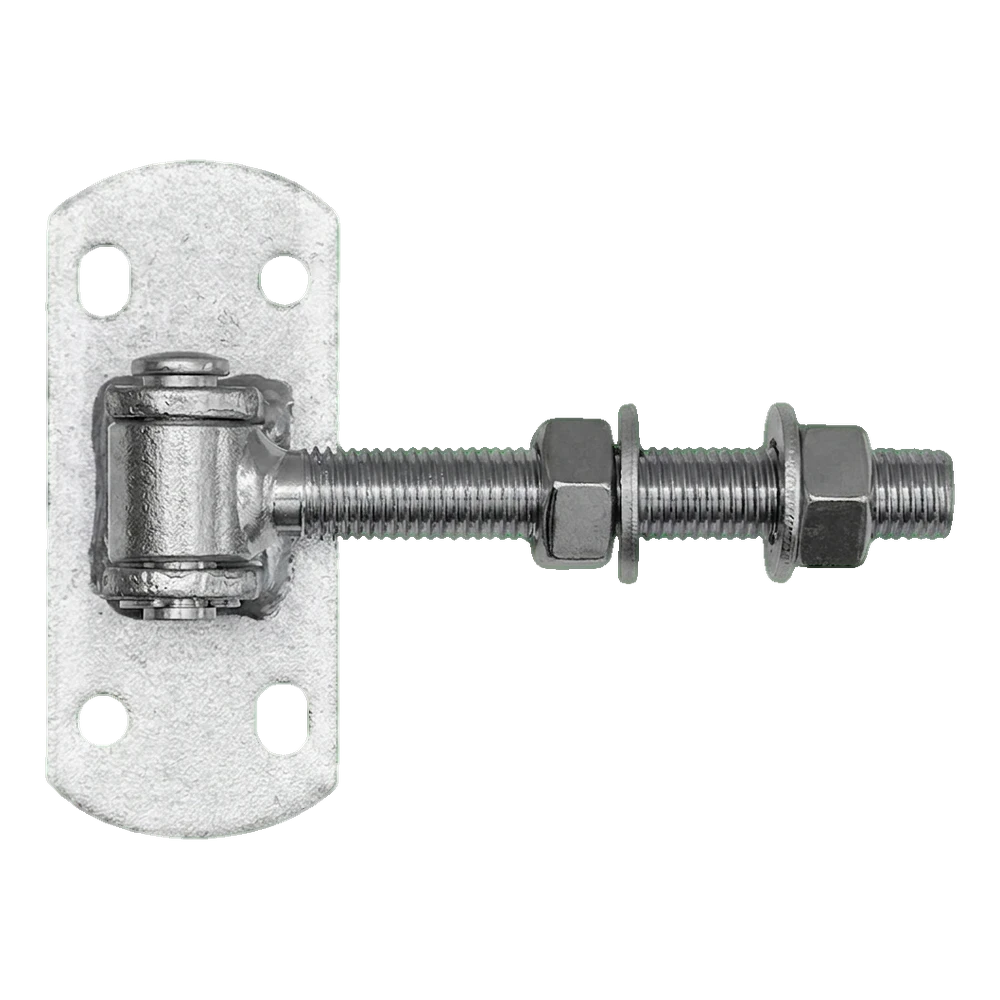

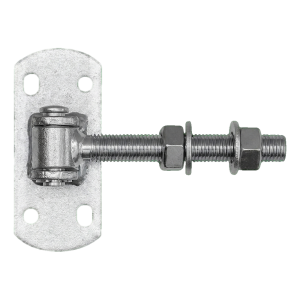

Adjustable gate hinge M16 with plate 115×50 mm – galvanised
Leave feedback on the product
Adjustable gate hinge M16 with galvanised plate, steel. Plate 115×50×5 mm, M16 thread, threaded rod 130 mm. Hole spacing 75.5×30 mm, pin ø12 mm. Permissible load per pair 65 kg on 2 m gate leaf. Weight 0.58 kg.
Product code: 001-415
Product features
[PIM] zawiasy #113
- Thread type M16
- Mounting Method With Plate
- Material Steel
Description
Adjustable gate hinge M16 with plate 115×50 mm – galvanised
Adjustable hinge M16 with plate 115×50 mm is a durable hardware element designed for mounting gate leaves and wicket gates. Thanks to the M16 thread with adjustment nut, it enables precise positioning of the gate leaf both during installation and during subsequent operation — e.g. after construction sagging or under the influence of extreme temperatures.
The plate equipped with four mounting holes (including elongated holes) allows secure fixing to the gate post with the possibility of fine position adjustment. The entire construction is made from galvanised steel, which guarantees high corrosion resistance and many years of trouble-free operation in outdoor conditions.
Permissible load of a pair of hinges on a gate leaf with a length of 2 m is 65 kg.
Advantages for the installer
- Post-installation adjustment — the nut on the M16 thread allows tightening or loosening of the hinge at any time without dismantling the gate leaf
- Galvanising — effective anti-corrosion protection for many years of outdoor use
- Quick installation — plate with four holes enables simple and secure fixing to the post
- Robust construction — steel with high resistance to mechanical loads

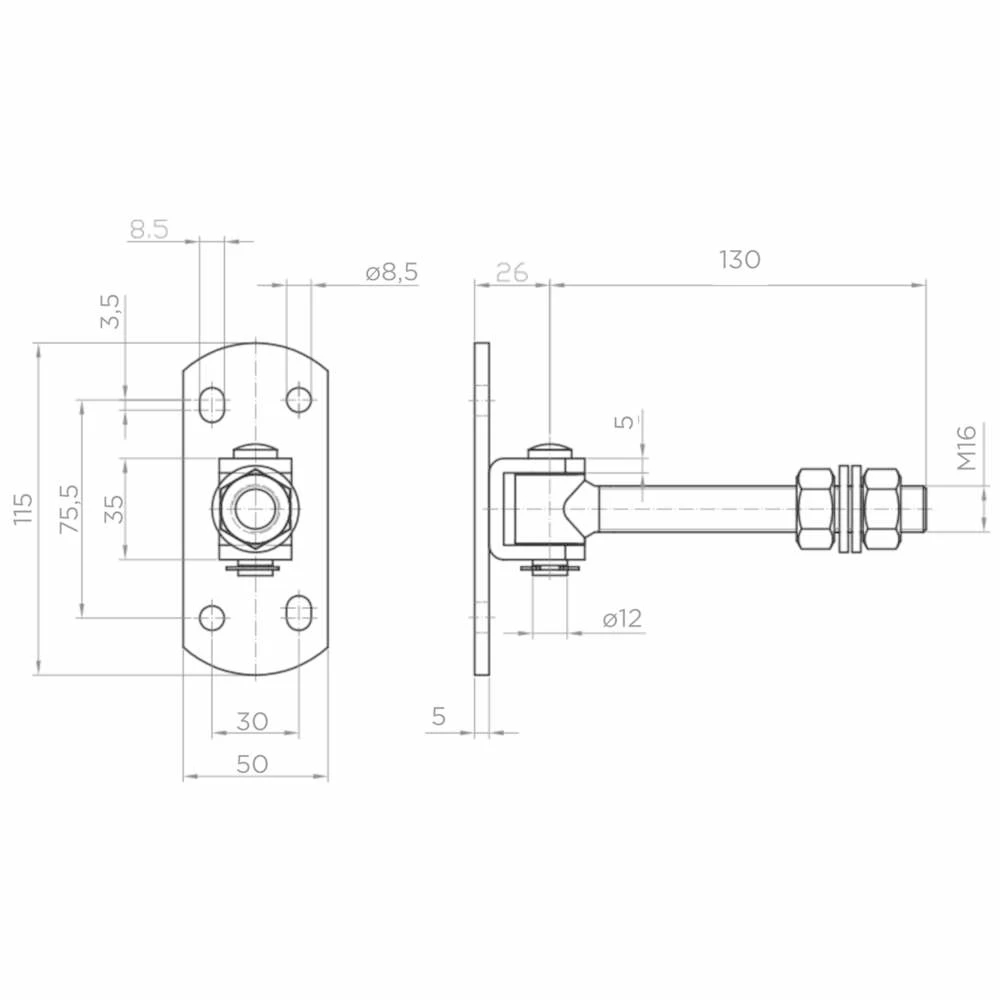

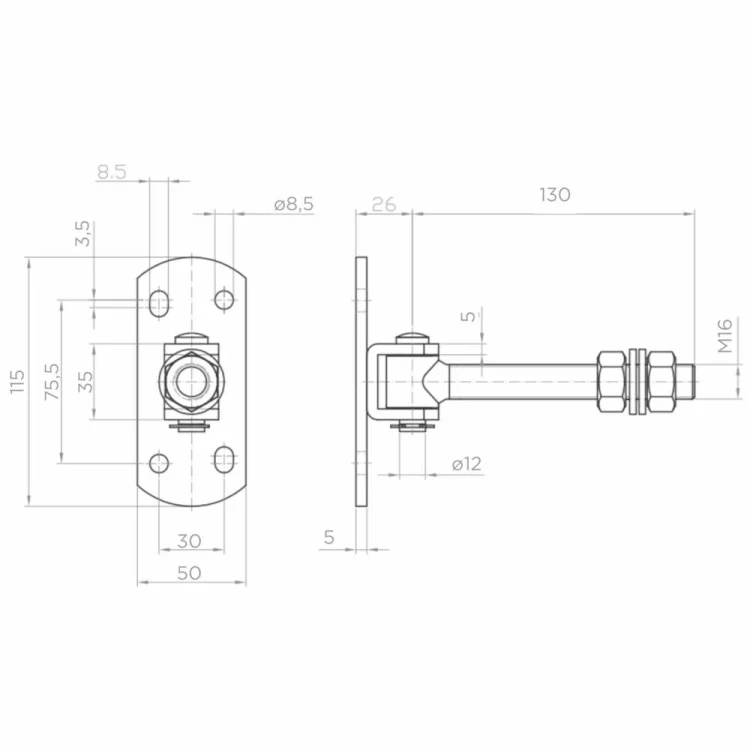

Dimensions and technical parameters
- Material: steel
- Anti-corrosion protection: galvanising
- Thread: M16
- Threaded rod length: 130 mm
- Plate dimensions (height × width): 115 × 50 mm
- Plate thickness: 5 mm
- Mounting hole spacing (vertical): 75.5 mm
- Mounting hole spacing (horizontal): 30 mm
- Mounting hole diameter: ø8.5 mm
- Pin diameter: ø12 mm
- Distance from plate base to pin axis: 26 mm
- Hinge lug plate thickness: 5 mm
- Total length: 170 mm
- Weight: 0.58 kg
- Permissible load per pair of hinges (2 m gate leaf): 65 kg
- EAN: 99915745
