Adjustable hinge with escutcheon M16 80x80x3 (36)
Description

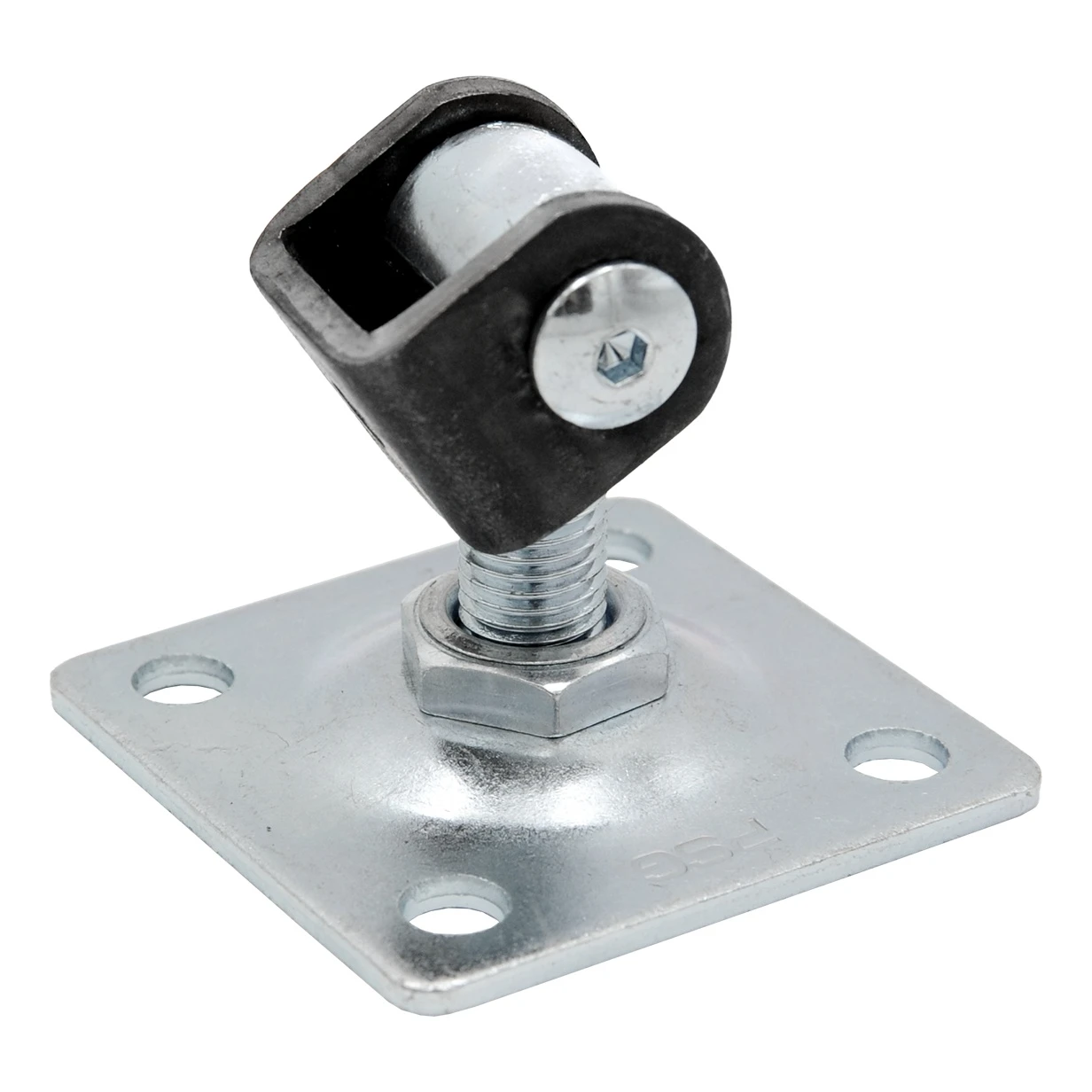

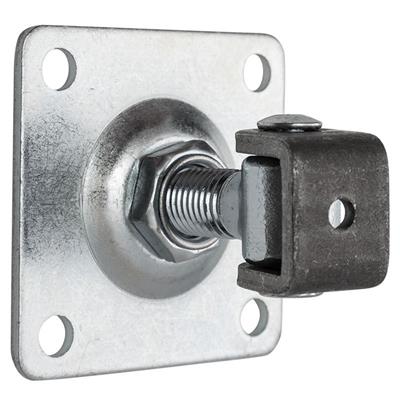

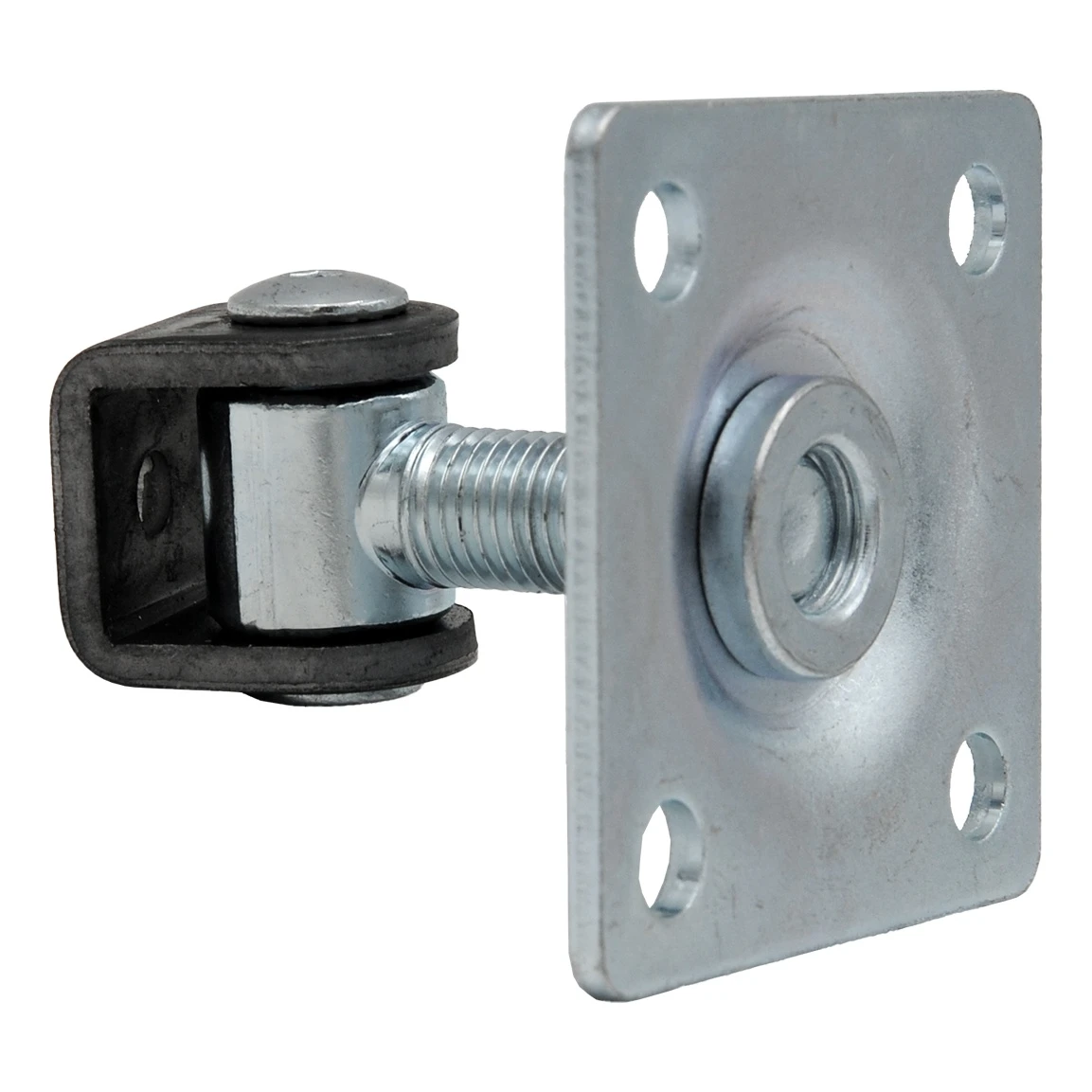

Adjustable Hinge with Backplate M16 Galvanised (with Black Ear)
The M16 adjustable hinge with backplate is a steel gate hardware component designed for fitting swing gates and wicket gates. Its built-in adjusting nut allows precise alignment of the gate leaf both during installation and throughout its service life – without the need to dismantle the entire structure.
The hinge consists of a galvanised 80×80 mm backplate with four fixing holes and a raw ear designed to be welded to the gate leaf frame prior to galvanising. The combination of a galvanised backplate and raw steel ear ensures full corrosion protection after galvanising the complete assembly and an aesthetically clean finish on the completed installation.
Why choose an adjustable hinge? In outdoor conditions, metal is subject to thermal movement – contracting in winter and expanding in summer. Over time, a gate leaf may begin to sag. An adjustable hinge allows you to correct the alignment at any time using the adjusting nut – simply tighten or loosen it to restore the gate to proper operation.

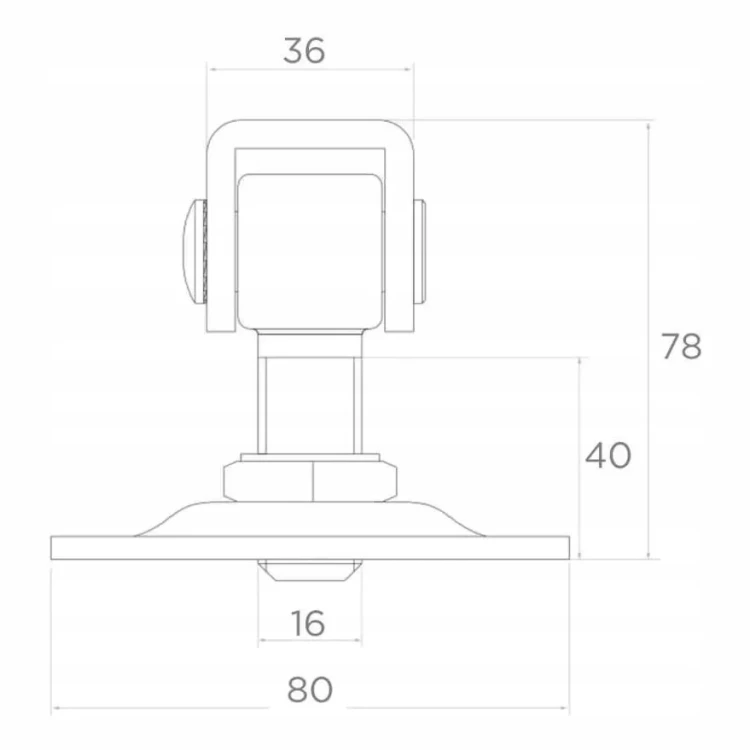

Technical Specifications
- Bolt thread: M16
- Backplate dimensions: 80 × 80 mm
- Ear width: 36 mm
- Overall height: 78 mm
- Height from backplate to axis: 40 mm
- Thread diameter: 16 mm
- Weight: 0.46 kg
- Maximum load capacity per pair of hinges: 65 kg (for a gate leaf up to 2 m in length)
- Brand: PSG
- EAN: 5901289675956
Product Benefits
- Galvanised backplate + raw ear – allows welding and galvanising of the component before installation, ensuring complete protection
- Post-installation adjustment – quick correction of gate leaf alignment using the adjusting nut
- High strength – steel construction resistant to mechanical damage and wear
- Designed for outdoor use – long-term resistance to weathering and atmospheric conditions
- Easy installation – backplate with four holes enables quick fixing to a post or frame
The M16 adjustable hinge with backplate is a reliable solution for installation companies carrying out fencing, driveway gate and wicket gate projects. Adjustment without dismantling means fewer callbacks and faster servicing – whether on new installations or repairs.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Adjustment | Yes |
| Thread type | M16 |
| Diameter | 12 |
| Mounting Method | With Plate |
| Material | Steel |
