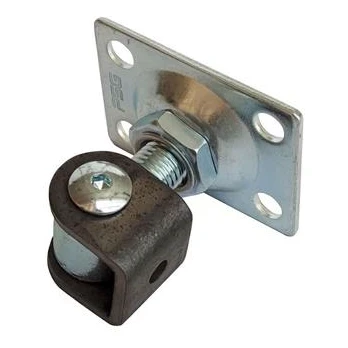

Adjustable hinge with rectangular escutcheon M16 75x55x3 mm
Leave feedback on the product
Steel hinge for wicket gates and swing gates with M16 thread and adjustable nut. Rectangular plate 75×55 mm, thickness 3 mm, four mounting holes ø10.5 mm.
Product code: 000-245
Product features
[PIM] zawiasy #113
- Adjustment Yes
- Thread type M16
- Diameter 12
- Mounting Method With Plate
- Material Steel
Description
Adjustable Hinge M16 with Rectangular Backplate 75×55 mm
The adjustable hinge M16 with rectangular backplate is a robust fitting component designed for mounting pedestrian gates and swing gate leaves. Thanks to its M16 thread with adjusting nut, it allows precise correction of the gate leaf position at any time — both immediately after installation and during use, for example in the event of sagging or thermal deformation.
The steel construction of the hinge provides high resistance to mechanical damage and wear, ensuring a long service life even under intensive outdoor use. The rectangular mounting plate with four holes guarantees stable and secure fixing to a post or frame.
Adjustment is particularly useful during seasonal temperature changes — in winter, metal contracts in the cold, and in summer it expands. Simply tighten or loosen the adjusting nut to restore smooth gate operation without the need for disassembly.

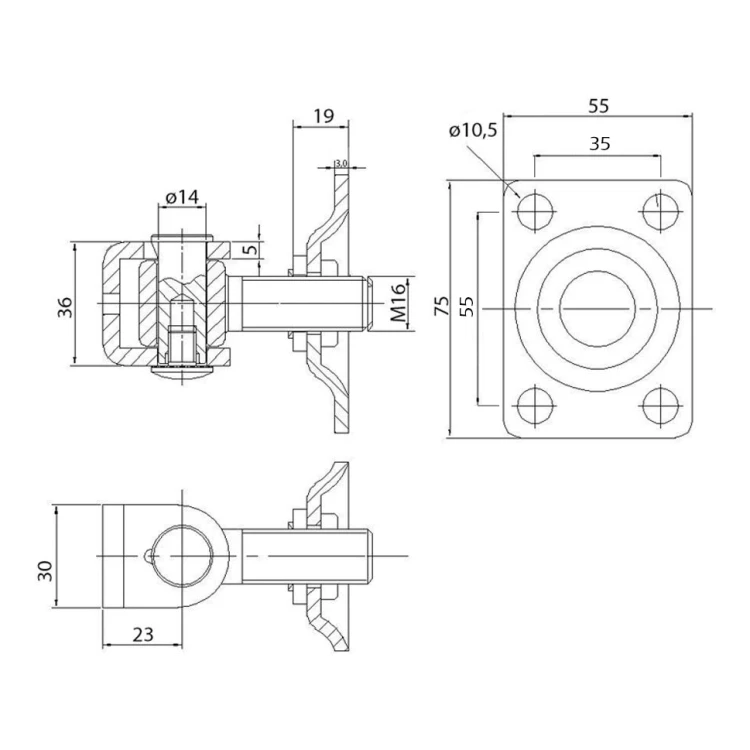

Technical Specifications
- Pin thread: M16
- Backplate dimensions: 75 × 55 mm
- Backplate thickness: 3 mm
- Eye diameter: ø14 mm
- Mounting hole spacing: 55 × 35 mm
- Mounting hole diameter: ø10.5 mm
- Eye dimensions (W × H): 23 × 30 mm
- Height of rotating part: 36 mm
- Backplate width: 19 mm
- Material: steel
- Weight: 0.38 kg
Benefits for the Installer
- Quick adjustment after installation — no need to remove the gate leaf
- Designed for outdoor use
- High mechanical strength and wear resistance
- Four mounting holes ensure stable fixing
- Compact design facilitating installation on various post types
