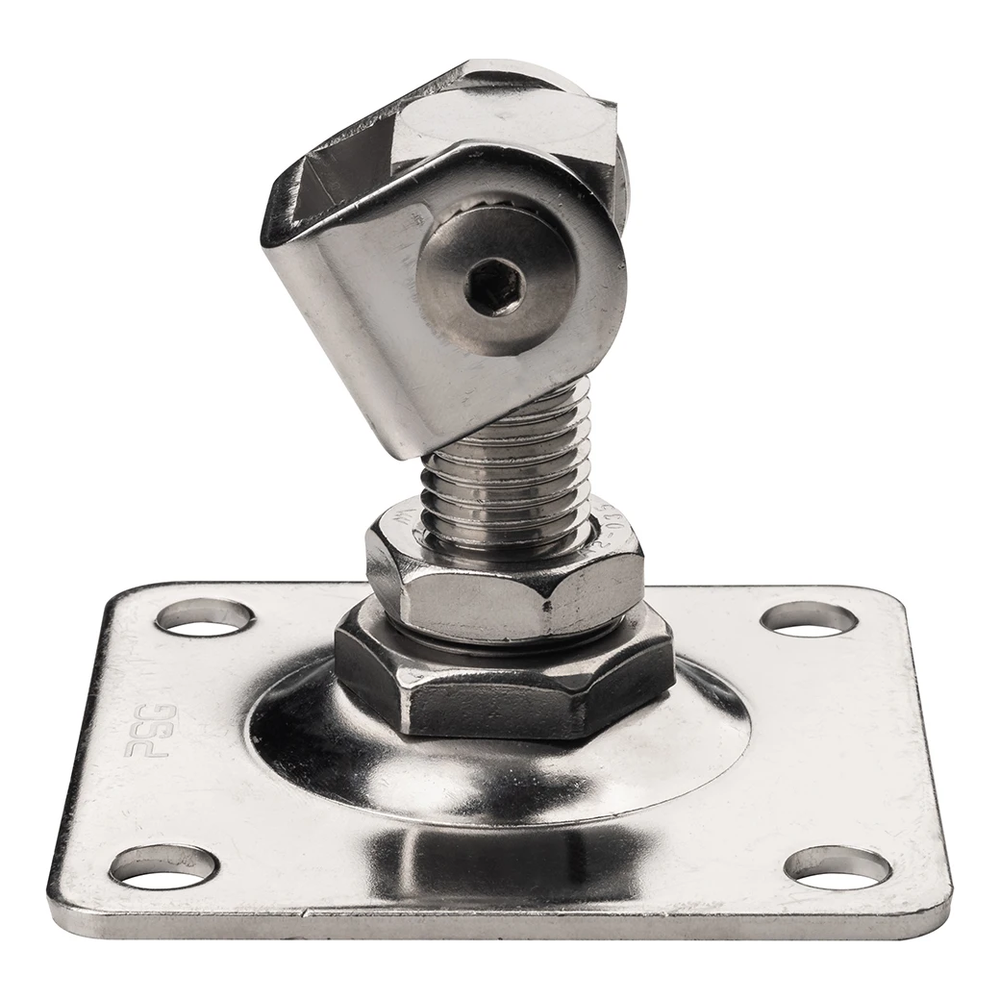

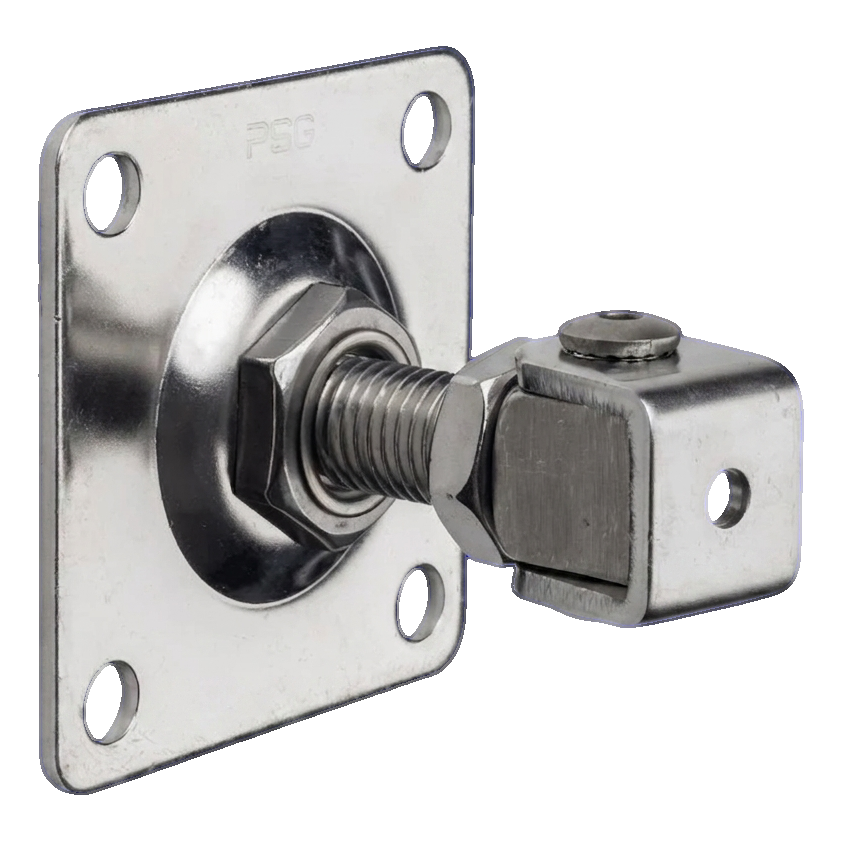

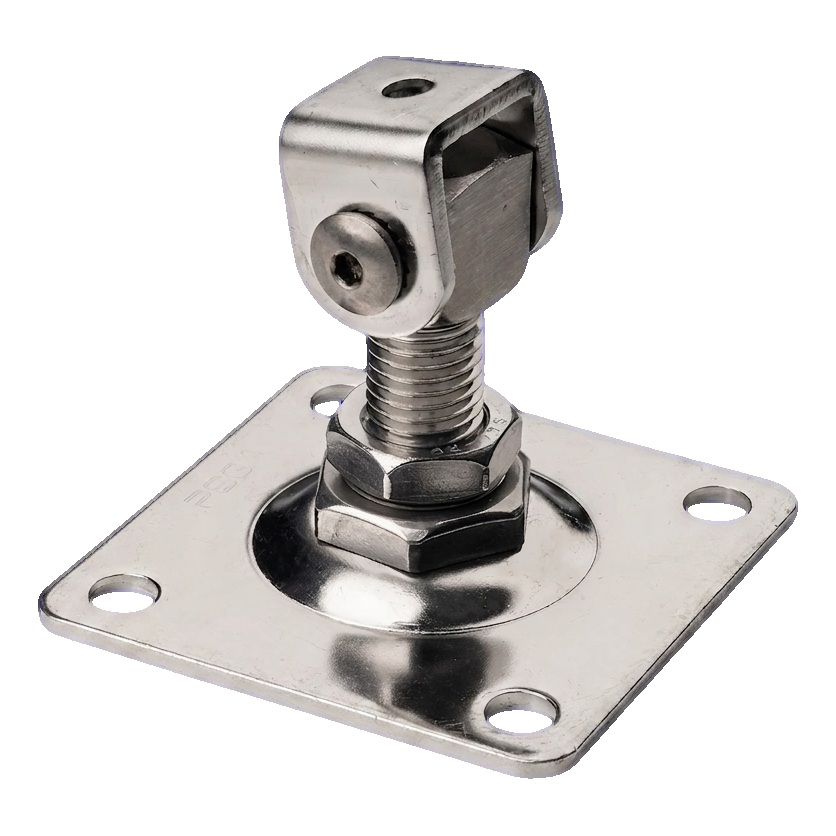

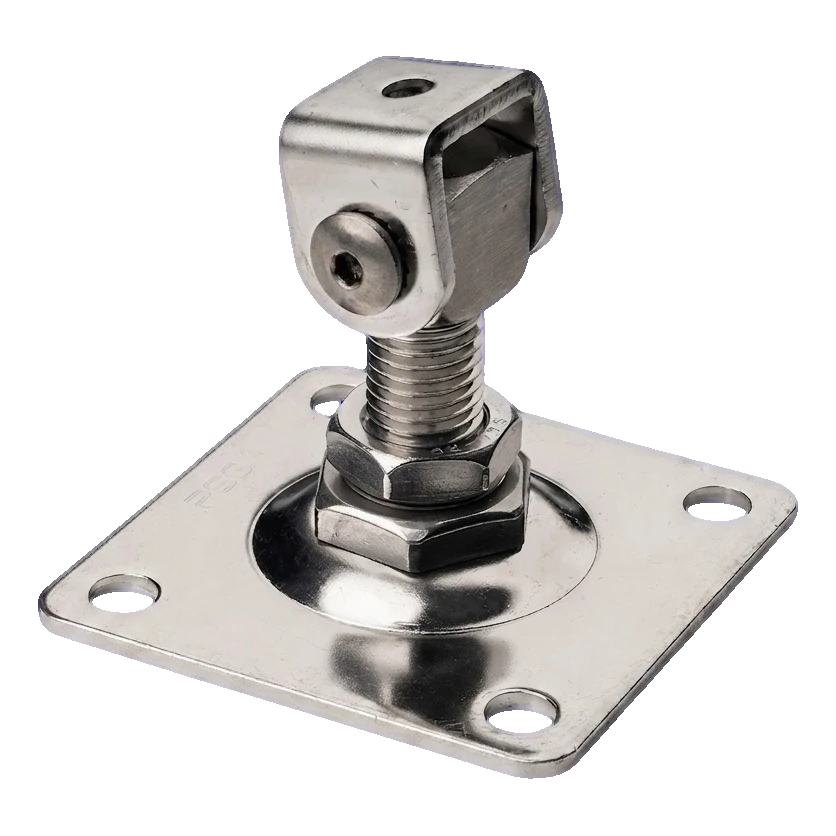

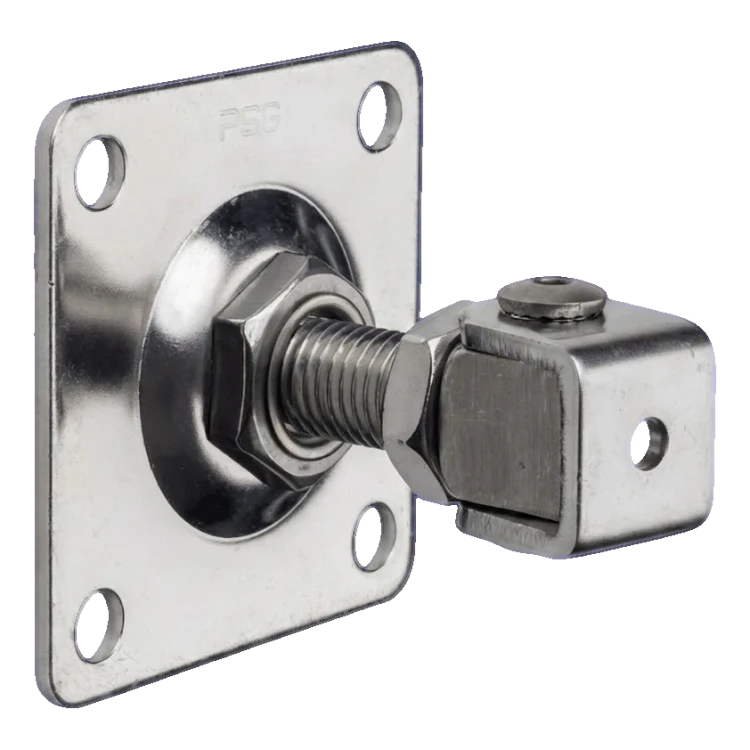

PSG adjustable gate hinge M20 with 100×100 mm plate – AISI 304 stainless steel
Description
PSG adjustable gate hinge M20 with 100×100 mm plate – AISI 304 stainless steel
PSG adjustable hinge M20 with plate is a durable mounting component designed for swing gates — both domestic and industrial. Made entirely from AISI 304 stainless steel, it guarantees high corrosion resistance, making it suitable for outdoor installations exposed to varying weather conditions. The universal design and smooth adjustment capability allow precise gate leaf positioning, significantly reducing installation time and eliminating the need for costly corrections.
The raw surface finish enables further treatment — powder coating or lacquering — allowing the hinge appearance to be matched to the gate and fence colour scheme.
Adjustment and mounting
One of the key advantages of this hinge is the smooth adjustment range from 46 to 68 mm (distance from pin axis to mounting plane). This allows precise adjustment of the gate leaf position after mounting the plate, which is particularly important with uneven posts or when compensating for manufacturing tolerances. The M20 thread ensures solid and secure attachment, whilst four mounting holes of ø11.5 mm diameter with 75 mm spacing enable stable fixing of the plate to post or wall.

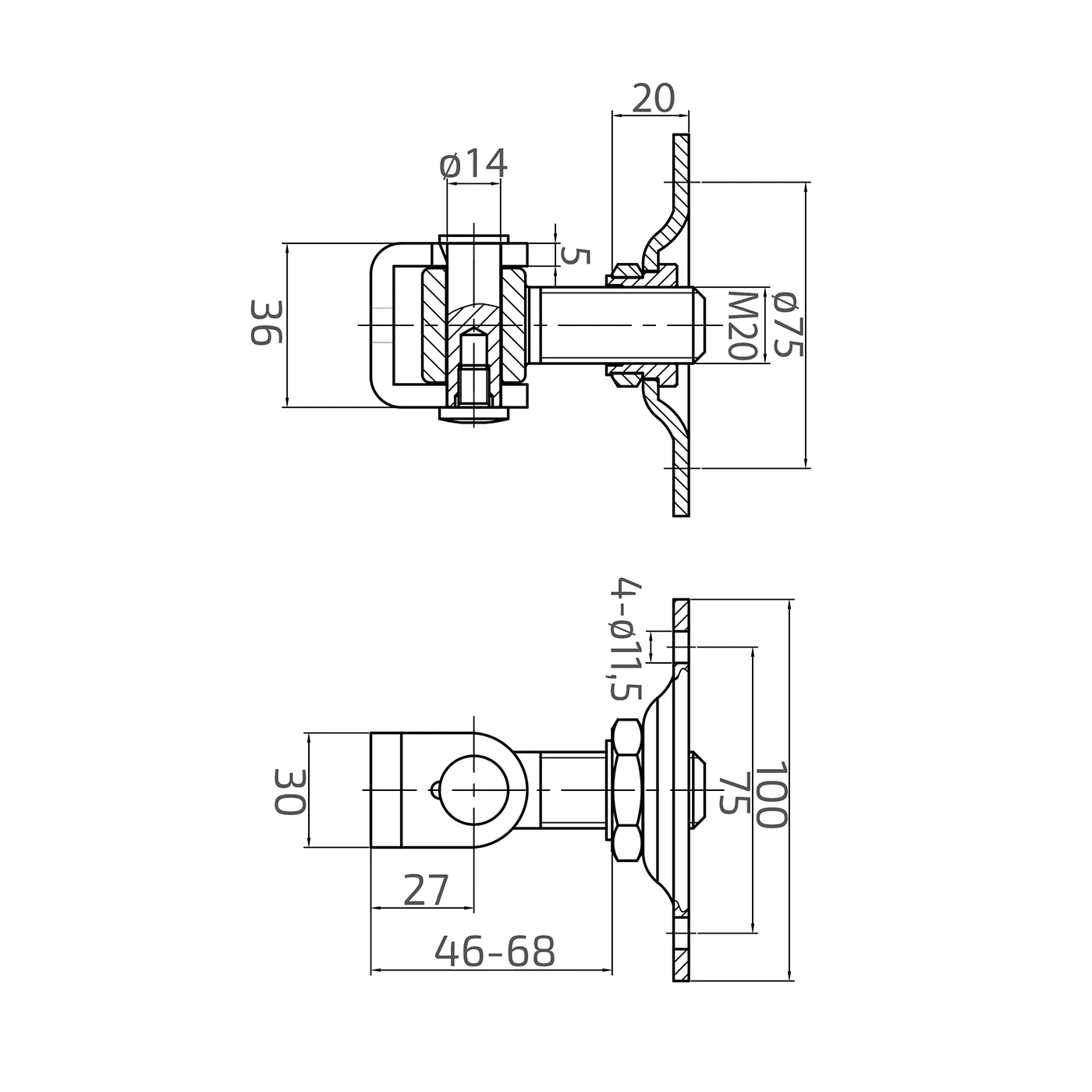

Dimensions and technical specification
- Brand: PSG
- Material: AISI 304 stainless steel
- Finish: raw
- Thread: M20
- Plate dimensions: 100 × 100 × 4 mm
- Plate embossing diameter: ø75 mm
- Mounting holes: 4 × ø11.5 mm, spacing 75 mm
- Bracket height (channel): 36 mm
- Bracket width: 30 mm
- Bracket depth: 27 mm
- Pin diameter: ø14 mm
- Bracket plate thickness: 5 mm
- Adjustment range (pin axis – plate plane): 46–68 mm
- Weight: 0.742 kg
- EAN: 5903313205795
Application
The hinge is designed for mounting swing gates in residential and industrial construction. The universal design enables use in both light pedestrian gates and heavier entrance gates. AISI 304 stainless steel means the product requires no additional anti-corrosion protection, reducing maintenance costs and extending installation lifespan.
Technical data
| Thread type | M20 |
| Mounting Method | With Plate |
| Material | AISI 304 |
