Adjustable gate hinge M12 bent L-115 steel
0
Description

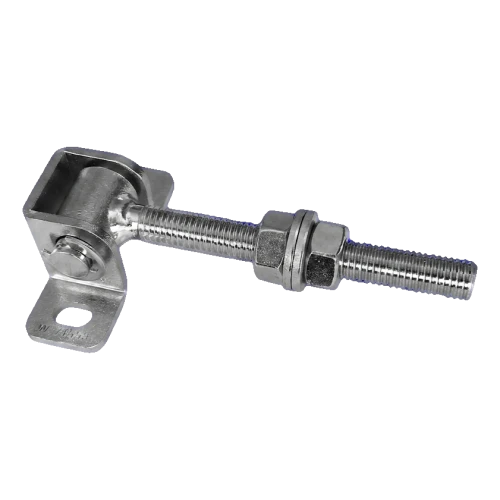

Adjustable gate hinge M12 bent L-115 steel
Adjustable bent M12 hinge is a durable hardware element designed for mounting swing gates and wicket gates. Steel construction with M12 threaded spindle with working length of 115 mm ensures precise adjustment of leaf position after installation completion — without the need to dismantle the hinge. Bent base with two bean-shaped mounting holes enables secure and quick fastening to post or frame.
Product intended for external use, dedicated to professional gate and fencing installation teams. A pair of hinges supports leaf load up to 60 kg at maximum width of 1.2 m, making it an optimal choice for standard wicket gates and light entrance gates.

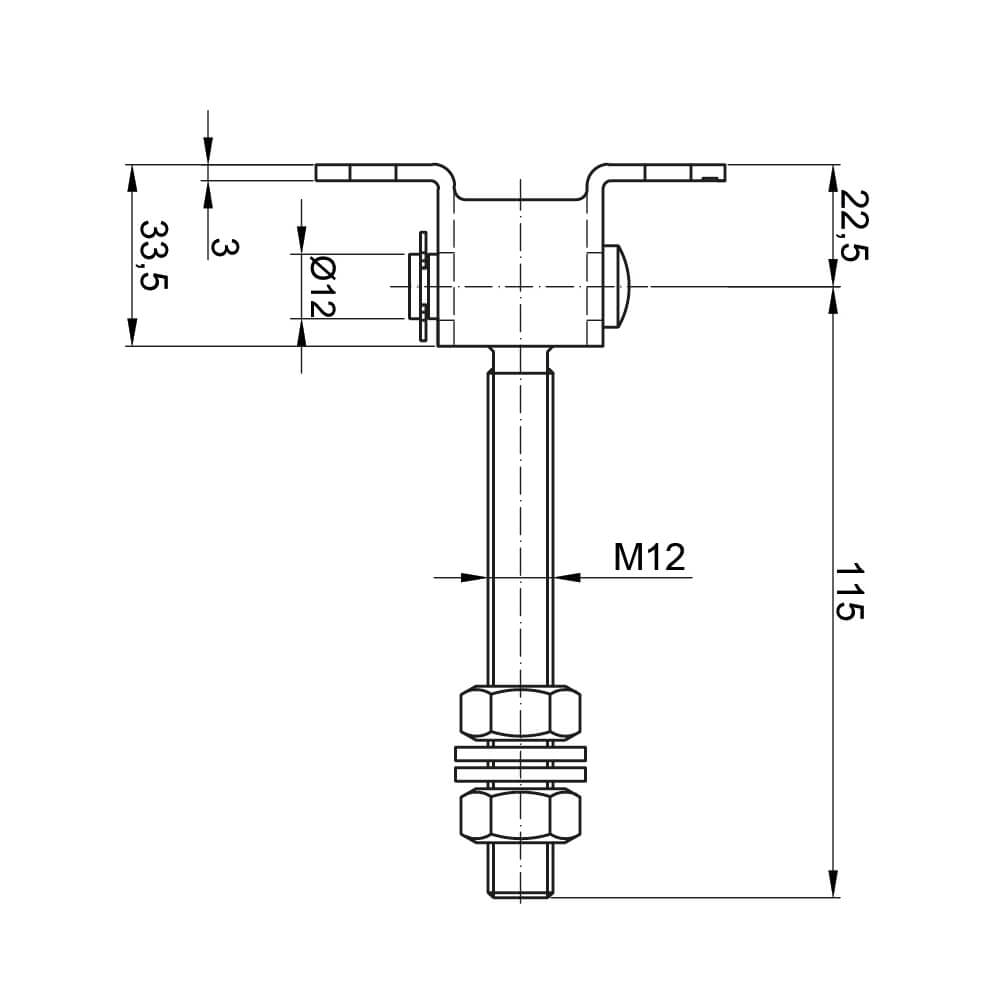

Dimensions and mounting data
- Spindle thread: M12
- Pin diameter: Ø12 mm
- Threaded spindle length (L): 115 mm
- Total length: 137.5 mm
- Base height (H): 25 mm
- Channel depth: 33.5 mm
- Pin axis distance from mounting surface: 22.5 mm
- Channel plate thickness: 3 mm

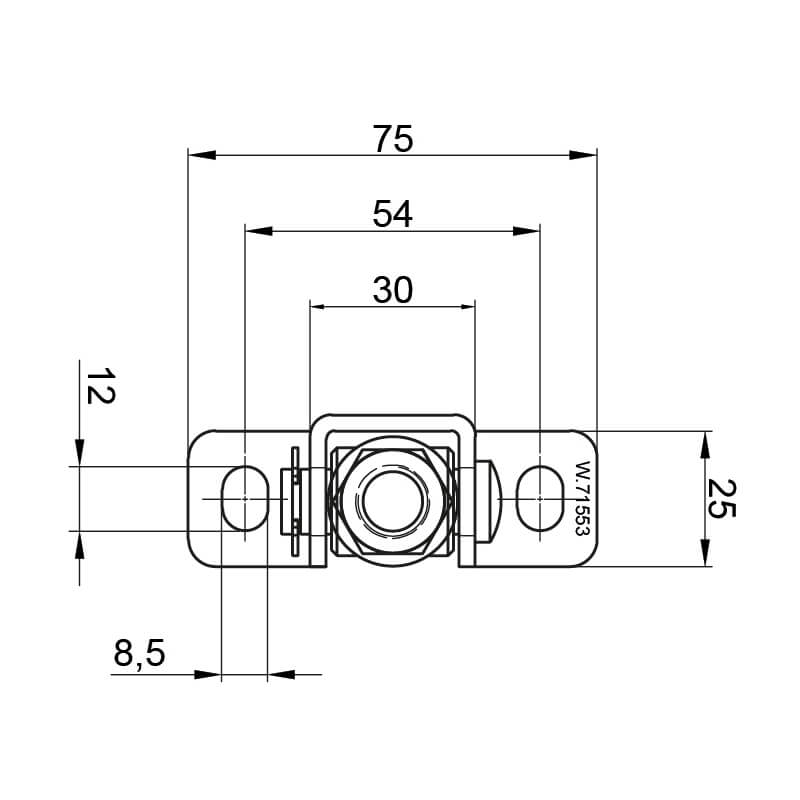

Mounting base dimensions
- Total base height: 75 mm
- Base width: 25 mm
- Mounting hole spacing: 54 mm
- Channel internal clearance: 30 mm
- Mounting holes (beans): 12 × 8.5 mm
Product technical data
- Material: steel
- Type: bent hinge with adjustment
- Weight: 0.26 kg
- Application: swing gates, wicket gates
- Purpose: external mounting
- Permissible leaf weight (pair of hinges): 60 kg at width up to 1.2 m
- EAN: 5901431940932
Possibility of adjusting leaf position using nuts on the threaded spindle allows for precise levelling of the gate or wicket gate even after installation completion — which significantly reduces finishing work time and eliminates the need for hinge remounting in case of minor adjustments.
Technical data
| Thread type | M12 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
