Comunello gate hinge set for welding onto 40×40 mm post – right-hand, for rising slopes
Leave feedback on the product
Comunello gate hinge set for welding onto 40×40 mm post, right-hand, galvanised steel. For swing gates on slopes up to 10°. Maximum wing weight 120 kg, length 3 m. With eccentric joint and grease nipples.
Product code: 001-528
Product features
[PIM] zawiasy #113
- Mounting Method Wall-Embedded
- Material Steel
Description
Comunello gate hinge set for welding onto 40×40 mm post – right-hand, for rising slopes

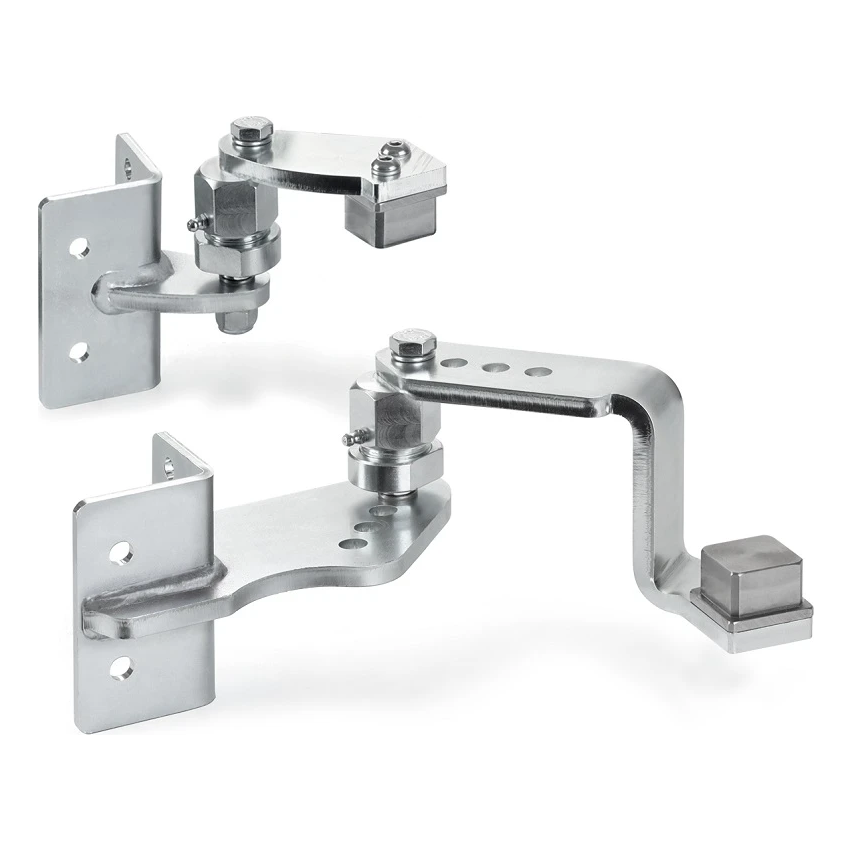

Comunello – complete right-hand hinge set for welding designed for mounting swing gates on sites with sloping ground. Thanks to the built-in joint with eccentric screw, the installer can precisely set the gate wing in a horizontal position and align it relative to the post — even with terrain inclination up to 10° (~20%). This is a ready-made solution that eliminates the need for individually fabricating adjustment elements and significantly shortens installation time.
Key features of the set
- Purpose: swing gates on rising slopes
- Type: right-hand hinge, for welding onto post
- Suitable for posts: 40 × 40 mm — steel and concrete
- Maximum wing length: 3 m
- Maximum wing weight: 120 kg
- Maximum lifting angle: 10° (~20%)
- Adjustable wing inclination — joint with eccentric screw
- Joints equipped with grease nipples — lubrication without disassembly
- Brackets with 4 mounting holes
- Material: electrolytic galvanised steel
- Manufacturer: Comunello
The eccentric mechanism gives full control over the gate wing position. Simply rotate the joint to smoothly adjust the angle, without the need for re-welding or dismantling the structure. Grease nipples in the joints allow for easy lubrication during annual inspections — extending the hinges' lifespan and ensuring quiet, smooth gate operation for years.
Dimensions and technical data

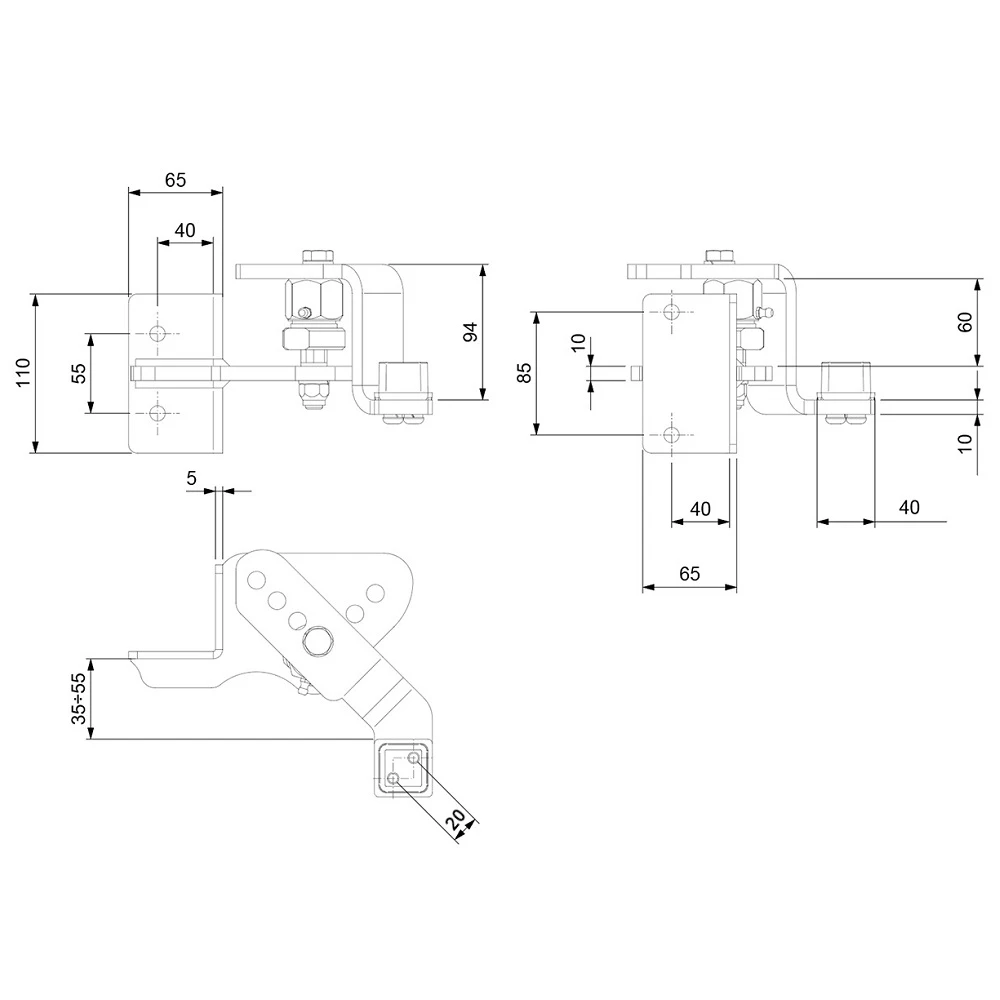

Upper hinge (smaller):
- Mounting plate (height × width): 85 × 65 mm
- Vertical mounting hole spacing: 55 mm
- Distance of hole centres from plate edge: 40 mm
- Joint mechanism height: 94 mm
- Clearance between joint arms: 60 mm
- Mounting plate thickness: 5 mm
- Joint arm thickness: 10 mm
- Width of wing attachment element: 40 mm

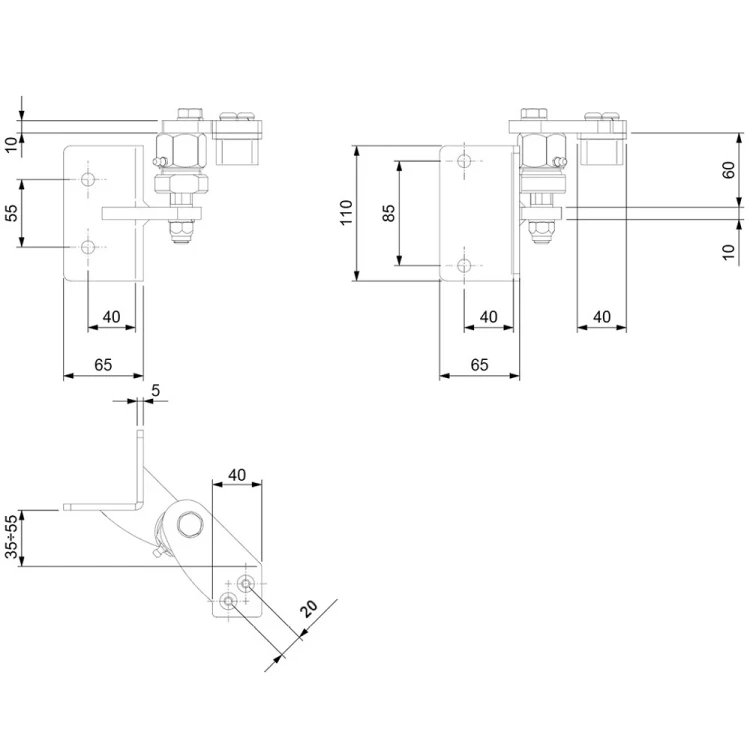

Lower hinge (larger):
- Mounting plate (height × width): 110 × 65 mm
- Vertical mounting hole spacing: 85 mm
- Distance of hole centres from plate edge: 40 mm
- Clearance between joint arms: 60 mm
- Mounting plate thickness: 5 mm
- Joint arm thickness: 10 mm
- Width of wing attachment element: 40 mm
Common dimensions:
- Rotation axis offset from mounting plate (adjustable): 35–55 mm
- Hole axis displacement in attachment element: 20 mm
- Total set length (L): 220 mm
- Set weight: 5 kg
- EAN: 8028390517474
The set is designed for mounting on steel and concrete posts. Galvanised steel construction ensures corrosion resistance and long-term operation in outdoor conditions. Thanks to the adjustable rotation axis offset (35–55 mm), the installer can flexibly adapt the installation to site conditions.
