Adjustable gate hinge M20 long galvanised – 180 mm
0
Description

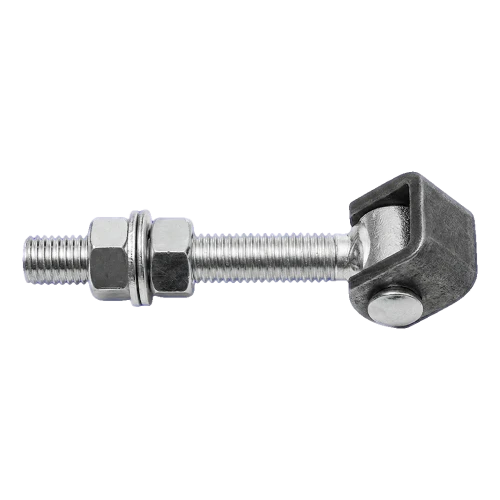

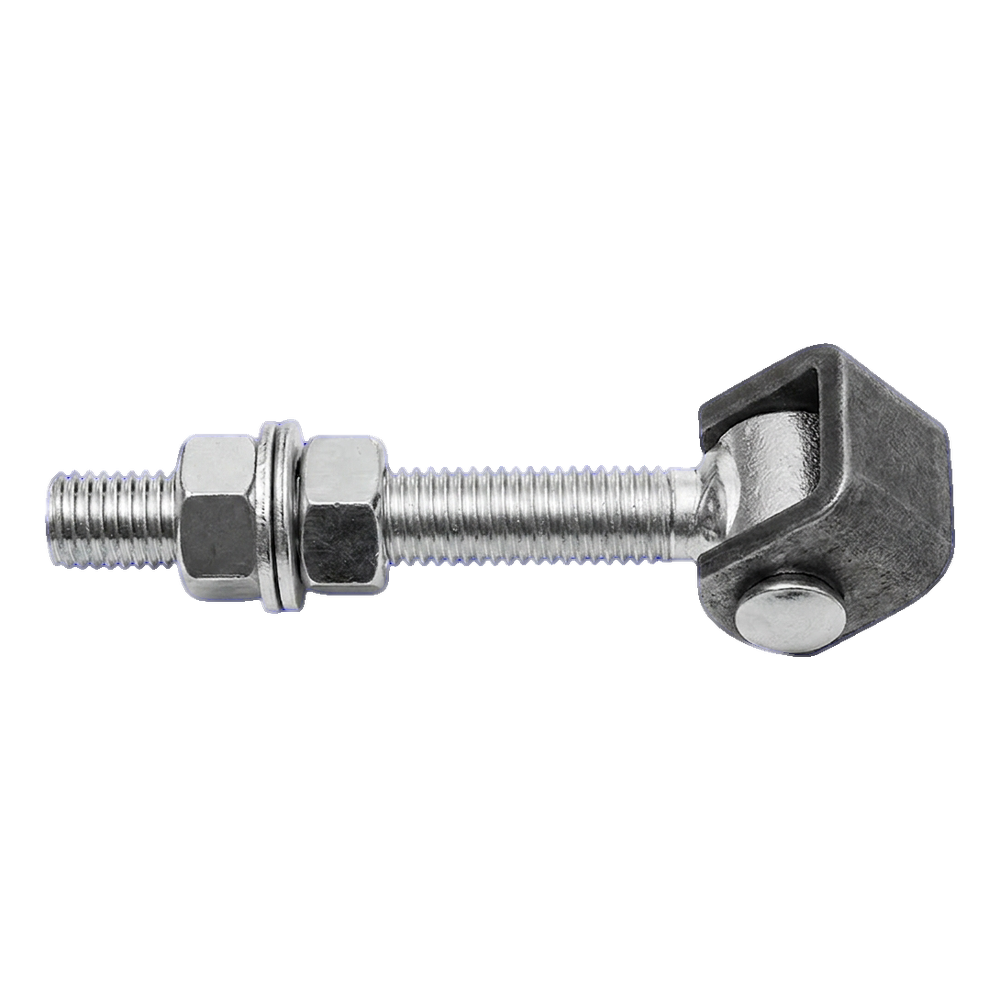

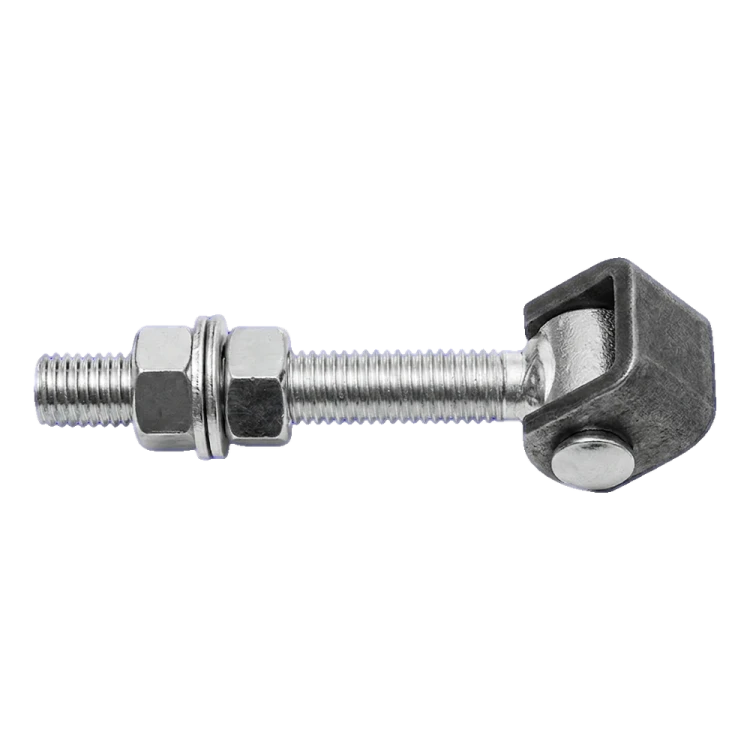

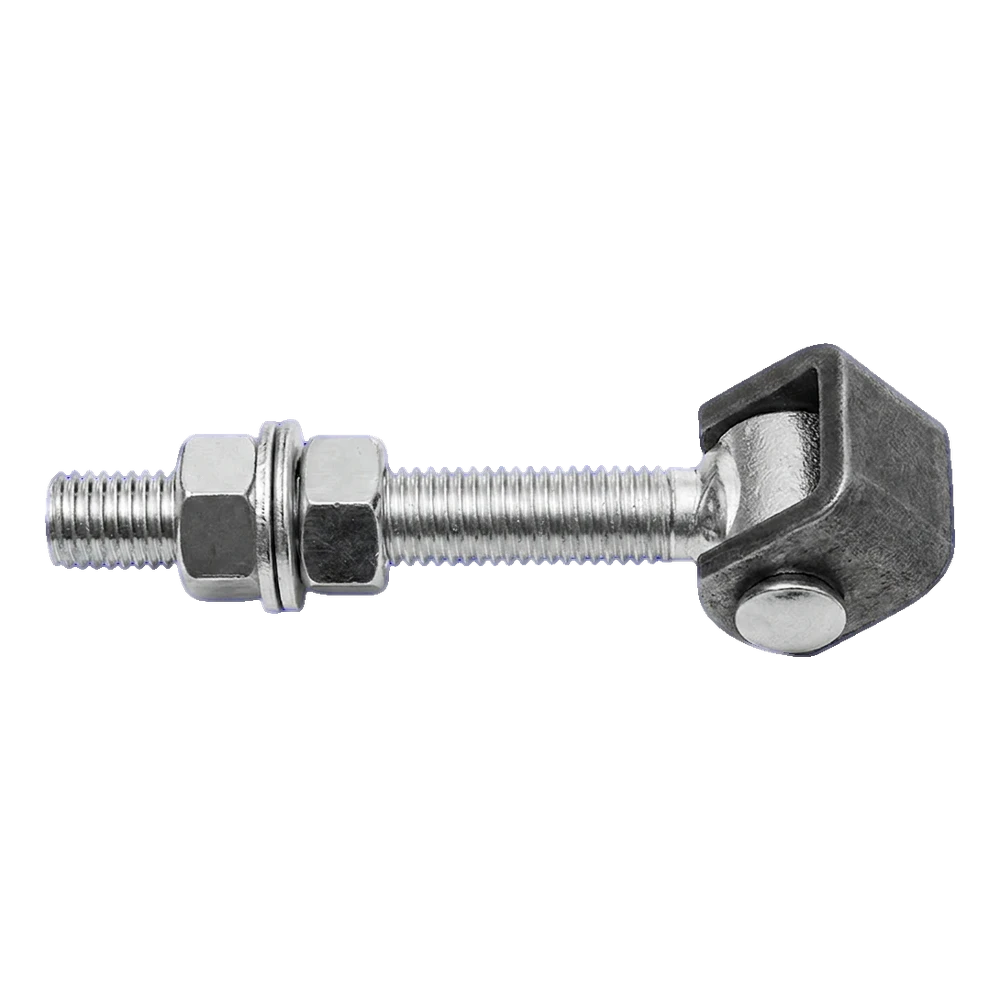

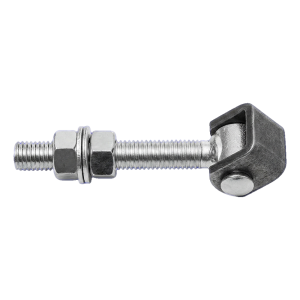

Adjustable gate hinge M20 long galvanised – 180 mm
Adjustable gate hinge M20 in the long version is a durable suspension element for gate leaves, garden gates and heavy external structures. Steel construction with galvanised coating guarantees years of corrosion resistance even in harsh weather conditions, whilst the threaded M20 spindle with adjustment nuts enables precise positioning of the gate leaf at any time after installation.
Easy adjustment in all conditions
Thanks to the nuts mounted on the threaded M20 spindle, the hinge can be adjusted without dismantling the entire structure. This is particularly important in cases of gate leaf sagging due to use or temperature changes — in winter metal contracts, which can cause the structure to jam. Adjustment is limited to tightening or loosening the nuts, which takes literally moments and requires no specialist tools.
Advantages of the adjustable M20 hinge
- Galvanised surface — designed for external use, years of protection against corrosion
- High strength — steel construction resistant to mechanical damage and wear
- Post-installation adjustment — ability to correct gate leaf positioning at any time
- Aesthetic appearance — neat finish, black-coloured ear

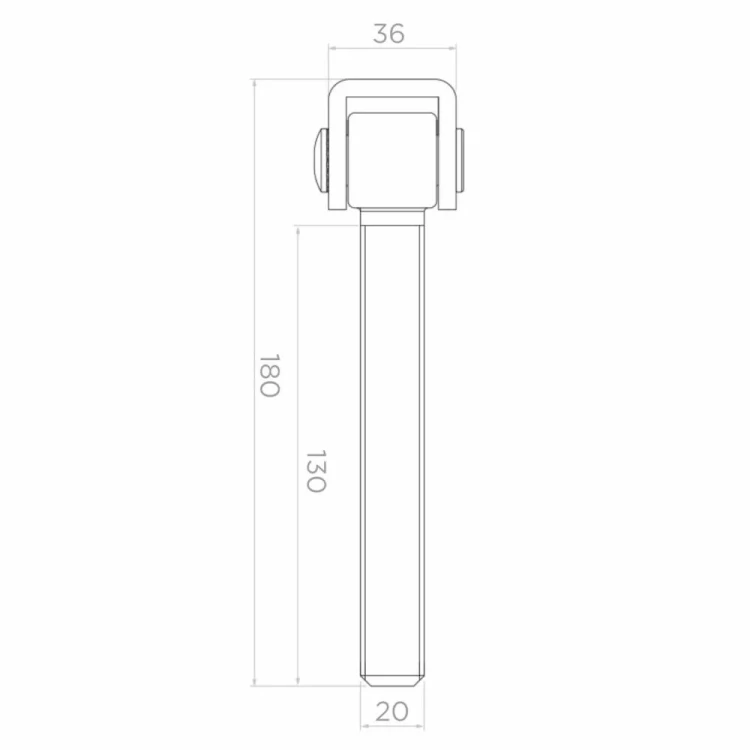

Dimensions and technical parameters
- Total length: 180 mm
- Screw length (threaded spindle): 130 mm
- Ear width: 36 mm
- Thread: M20
- Material: steel
- Anti-corrosion protection: zinc (black ear)
- Weight: 0.6 kg
- EAN: 5901289675819
Permissible load
A pair of hinges mounted on a gate leaf 2 m long carries a load of up to 105 kg. This value allows for safe suspension of standard entrance gate leaves, garden gates and utility doors.
Technical data
| Thread type | M20 |
| Mounting Method | Wall-Embedded |
| Material | Steel |
