Synerga Balus 1 – PV mounting kit for balcony balustrade
Leave feedback on the product
Synerga Balus 1 mounting kit for installing PV panels on a balcony balustrade. Stainless steel H17 and 6060 aluminium. Max panel height 1052 mm, tilt angle 10°. Mounting profiles 40×40×1040 mm, EPDM gasket 80 cm. Package weight 6.75 kg, dimensions 114×36×7 cm.
Choose a variant:
Individual variants may differ in price
Packaging options
Product code:
Description
Synerga Balus 1 – PV mounting kit for balcony balustrade
Synerga Balus 1 is a complete mounting kit enabling photovoltaic panels to be fixed to a balcony balustrade, terrace railing or other barrier. Thanks to the use of H17 stainless steel and 6060 aluminium, the construction is lightweight, durable and resistant to weather conditions. The kit is designed for PV modules with a maximum height of 1052 mm and provides a panel tilt angle of 10°.
The modern, minimalist appearance of the bracket means the mounted panel blends harmoniously with the building's façade. An ideal solution for multi-family housing and anywhere it is not possible to install a PV system on the roof or ground.
Technical parameters
- Maximum PV panel size: 1052 mm
- Panel tilt angle: 10°
- Bracket material: stainless steel 1.4016/H17, thickness 5 mm
- 65×65 angle bracket material: stainless steel 1.4016/H17
- Connector and profile material: 6060 aluminium
- Mounting profiles: 40×40×1040 mm
- Gasket: EPDM 80 cm

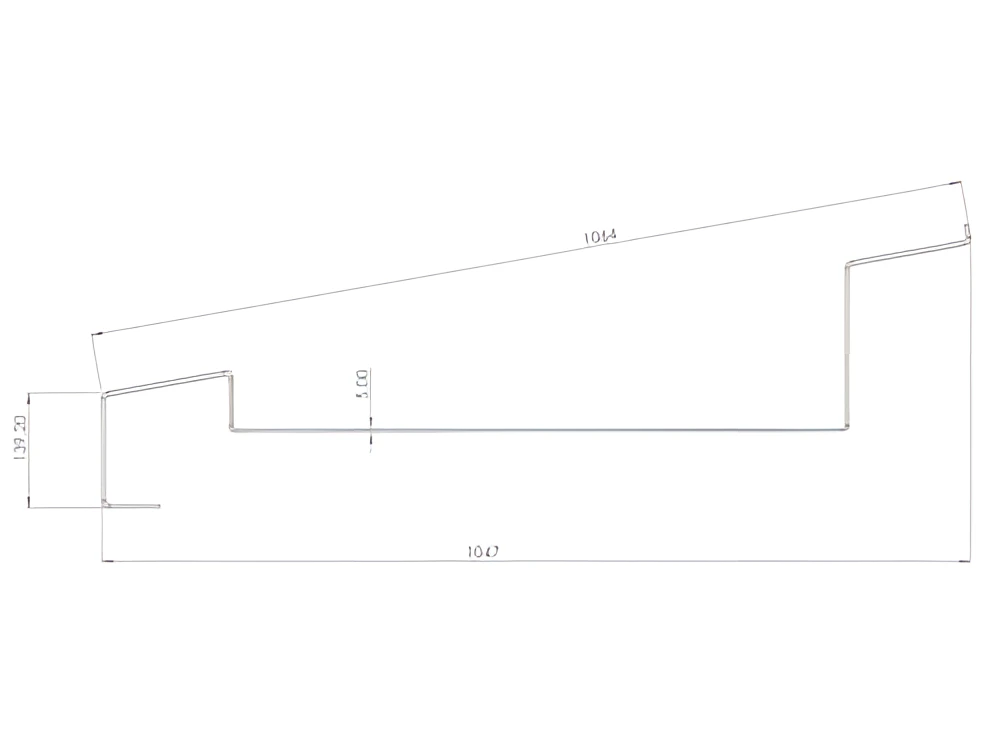

- Carrier bracket dimensions: length 1000 mm, diagonal 1014 mm, depth 139.20 mm, thickness 3 mm
- Package weight: 6.75 kg
- Package dimensions: 114 × 36 × 7 cm

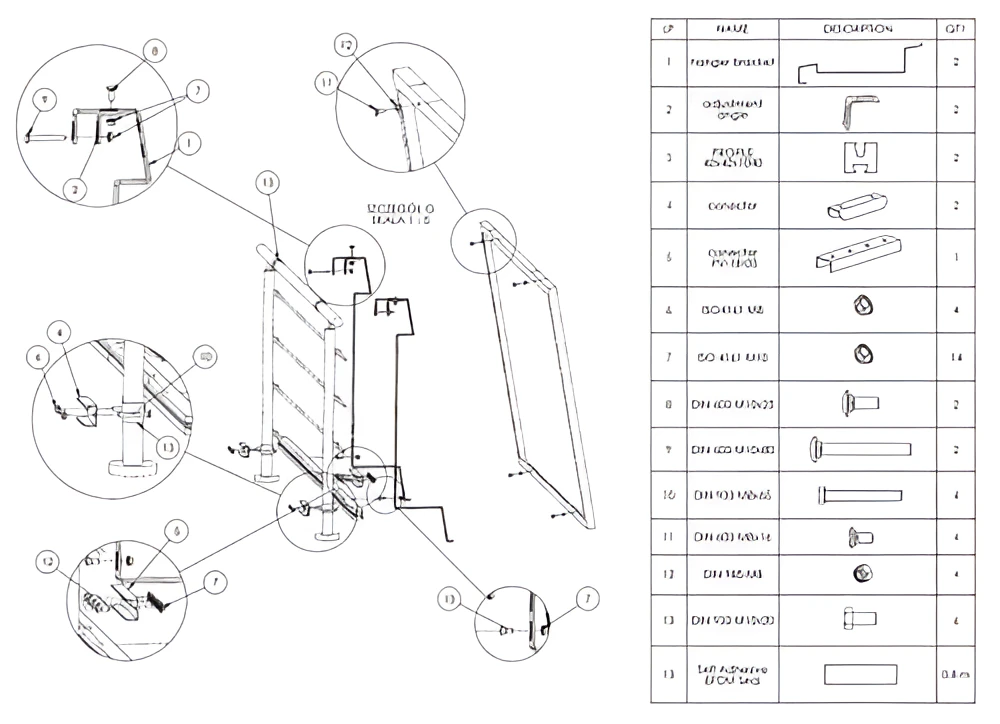

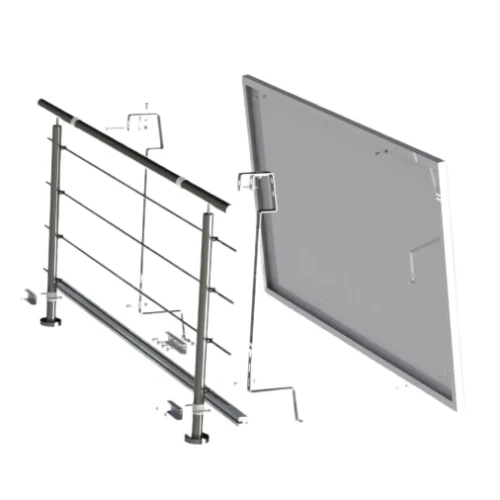

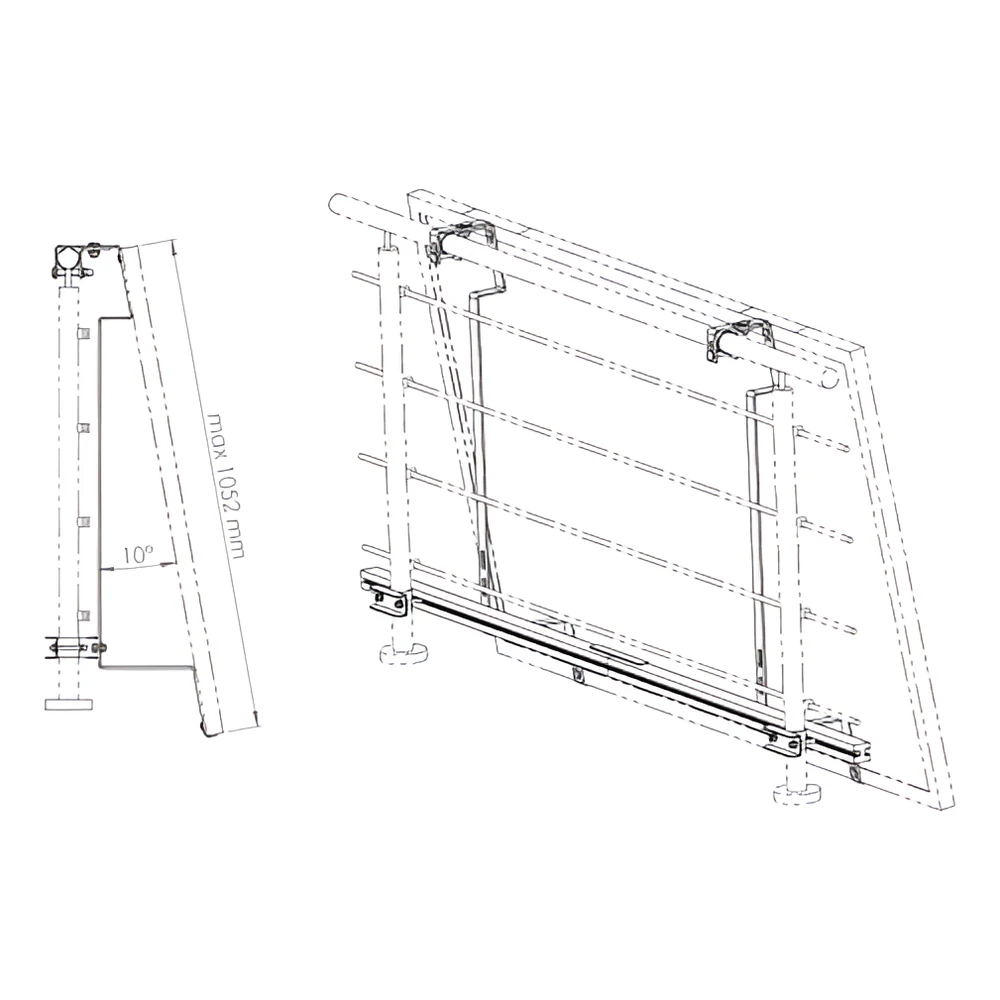

Installation diagram and structure view

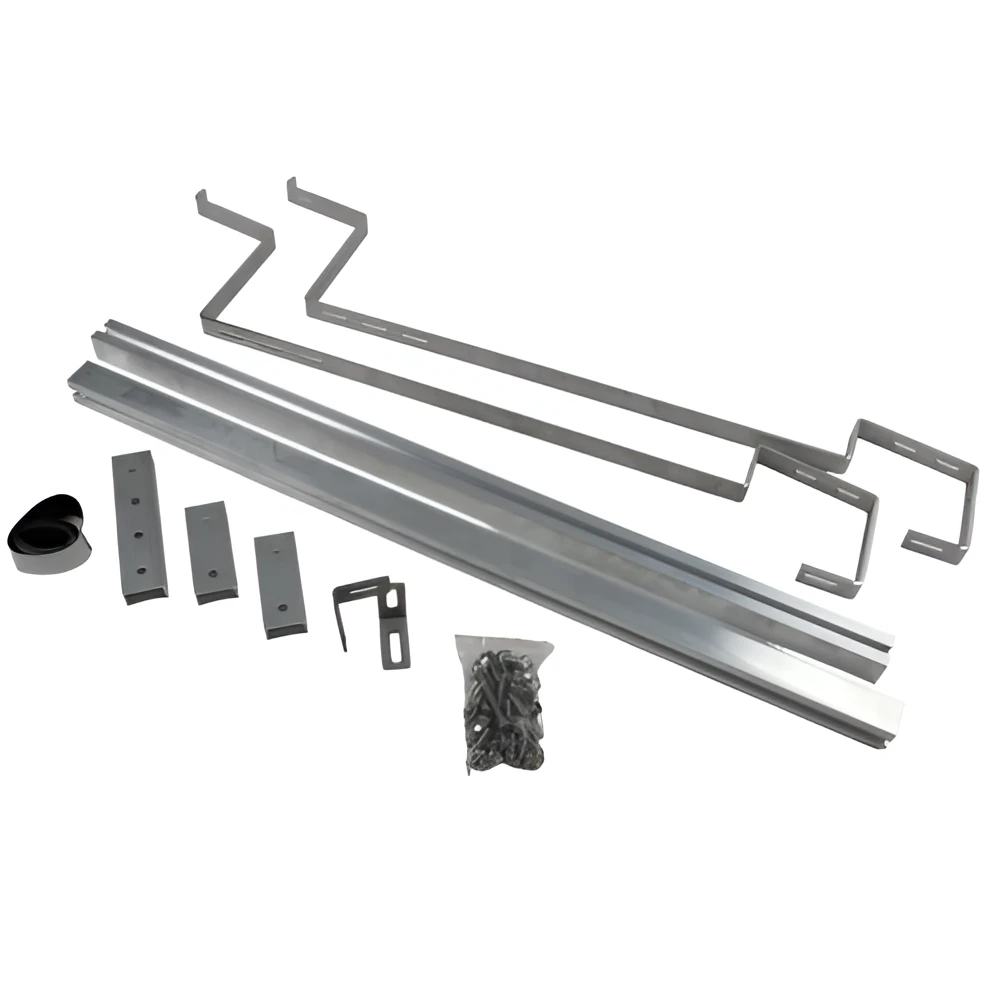

Kit contents
The kit includes two brackets for photovoltaic panels, 40×40×1040 mm mounting profiles, an 0.8 m EPDM gasket, and a complete set of screws, nuts and connectors required to mount the panel on the railing.
Balus 1 kit parts list
| No. | Name | Quantity |
|---|---|---|
| 1 | Frame bracket | 2 |
| 2 | Angle connector | 2 |
| 3 | Plastic insert | 2 |
| 4 | Connector | 2 |
| 5 | Connector bracket | 1 |
| 6 | M6 nut | 4 |
| 7 | M8 nut | 14 |
| 8 | M6×20 bolt | 2 |
| 9 | M8×40 bolt | 2 |
| 10 | 8×40 dowel | 4 |
| 11 | M4×10 screw | 4 |
| 12 | M4 nut | 4 |
| 13 | M8×20 bolt | 6 |
| 14 | Self-adhesive EPDM tape | 0.4 m |
Material specification
Technical specification
| Parameter | Value |
|---|---|
| Maximum PV panel size | 1052 mm |
| Tilt angle | 10° |
| Bracket material | Stainless steel 1.4016/H17 |
| 65×65 angle bracket material | Stainless steel 1.4016/H17 |
| Connector and profile material | 6060 aluminium |
| Mounting profiles | 40×40×1040 mm |
| Brackets – length | 1047 mm |
| Brackets – thickness | 5 mm |
| EPDM gasket | 80 cm |
| Package weight | 6.75 kg |
| Package dimensions | 114 × 36 × 7 cm |
Application
The Balus 1 kit is designed for mounting on balcony railings. It is a dedicated solution for multi-family housing and buildings where installation of a conventional photovoltaic system on the roof or ground is not possible. All components are made from corrosion-resistant materials, guaranteeing long-lasting and secure panel support in outdoor conditions.

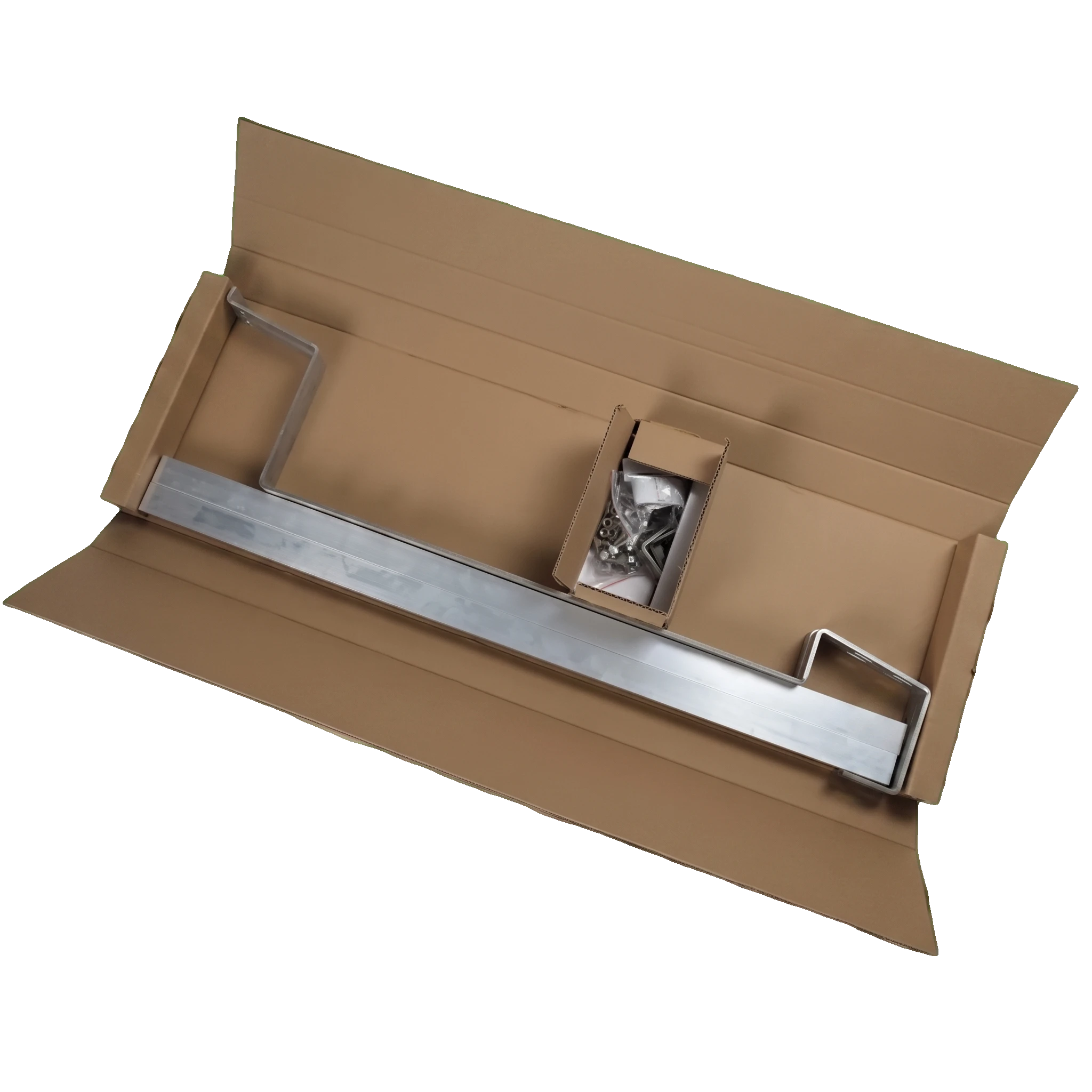

Packaging and logistics
The kit is supplied in a compact cardboard package measuring 114 × 36 × 7 cm and weighing 6.75 kg, making storage and transport easier. All mounting components — brackets, profiles, connectors, bolts and gasket — are carefully packed in a single shipment.
