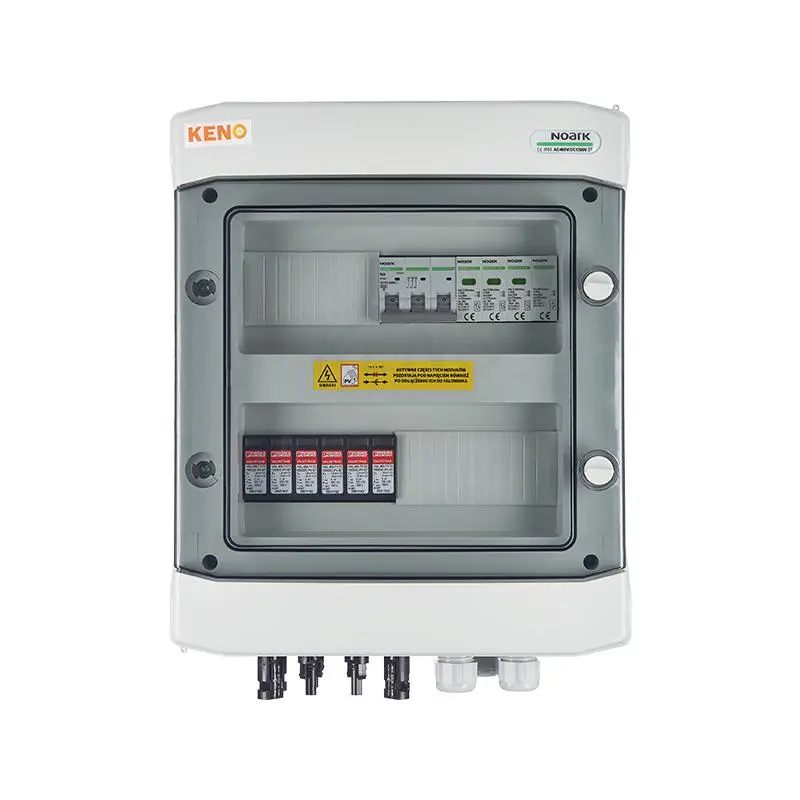

Noark Junction Box with DC+AC Surge Protector 20A 3-Phase SH-91
1000V DC junction box with Type 1+2 surge protection device for 2 PV strings and 2 MPPT. 3-phase 20A overcurrent circuit breaker, B-curve characteristic. IP65 enclosure for indoor and outdoor installation.
€326.12
Price
€326.12
without 23% VAT
The lowest price during 30 days prior to the reduction:
€0.21
€401.13
Price
€401.13
incl. 23% VAT
The lowest price during 30 days prior to the reduction:
€0.25
Temporarily unavailable
Unavailable
Product code: GPV-409-03
Product features
Product features
Compare PV distribution boards / Junction boxes
- PV strings 2
- MCB Circuit breaker [A] 20
- SPD DC type T2
- Max DC voltage [V] 1000
- IP 65
- MCB characteristic (B/C/D) B
- Weight [kg] 4 .2
- RCD [YES/NO] No
- IK IK08
- UV resistance [YES/NO] Yes
Description
Description
Noark Connection Box with DC+AC Surge Protection Device 20A 3-Phase SH-91
Connection box with DC + AC surge arrester, 1000V type 1+2, 2 x PV string, 2 x MPPT // AC surge arrester type 1+2, 20A 3-phase type SH-214 DCAC
- Connection distribution boards are a reliable solution that successfully finds application in both small and medium-sized domestic and industrial installations. Thanks to their wide range of applications, including IP65 protection class, the distribution boards can be installed not only in enclosed spaces but also in outdoor areas.
- Standard, proven enclosure: Ensuring solidity and durability, making the distribution boards ready to meet diverse installation requirements.
- Option to fit a key lock: Provides an additional level of security and restricts access to electrical equipment to authorised personnel only.
- Transparent door: Allows easy access to the interior of the distribution board and quick visual inspection of equipment status without the need to open it.
AC Surge Arrester Used
| Parameter | Value |
|---|---|
| Manufacturer/model | Noark/Ex9UE1+2 12.5 4P 275 |
| Nominal discharge current In (8/20 µs) per phase | 25kA |
| Maximum discharge current Imax (8/20 µs) | 50kA |
DC Surge Arrester Used
| Parameter | Value |
|---|---|
| Manufacturer/model | PHOENIX/VAL-MS 1000DC-PV/2+V |
| Surge protection | Type 2 |
| Connection error-resistant Y-circuit for applications according to | VDE 0100-712 (IEC 60364-7-712) |
| Equipotential bonding in surge protection according to | VDE 0100-443 (IEC 60364-4-44) |
| Current discharge capacity (8/20) per pole | up to 40kA |
| Low voltage protection level DC (Uoc max = 1000V DC) | <= 4.0kV |
| Cartridges | Replaceable, with thermodynamic disconnecting device and optical fault indication |
| Arrester | Enclosed, non-venting zinc oxide varistor-based arrester |
Overcurrent Circuit Breaker
| Parameter | Value |
|---|---|
| Manufacturer/model | Noark/Ex9BN 3P B20 |
| Rated current | 20A; 3-phase |
| Number of poles | 3 |
| Characteristic | B |
| Design compliant with | IEC/EN 60898-1 |
| Rated short-circuit breaking capacity ICN | 6kA |
