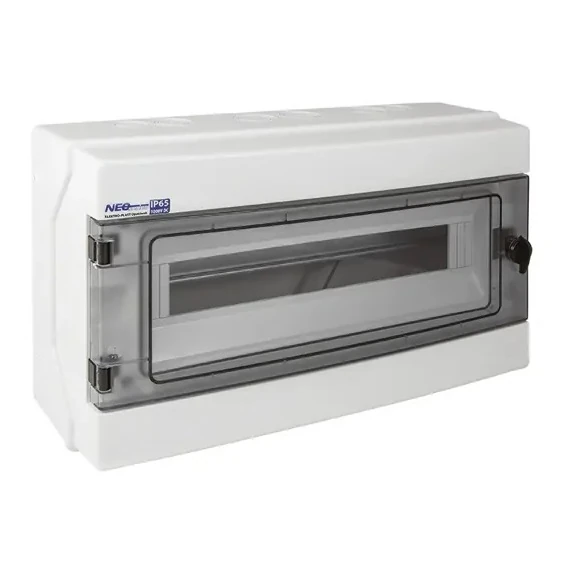

Hermetic Distribution Board RH-18
Hermetic PV distribution board 1000V DC 1x18 surface-mounted IP65 IK07 transparent door RH-18 36.18 ELEKTRO-PLAST
- distribution boards equipped with transparent doors opening to the side (left or right), prepared for key lock installation
- available in white colour
- made of high-quality >ABS< plastic resistant to high temperatures up to 960°C (glowing wire test - applies to terminal strip)
- operational stability from -25°C to +60°C
- impact resistance (IK07)
- possibility of installing devices with depth of 68 and 75 mm
- 12-module and larger models equipped with weakened points in walls for cable glands and installation conduits
- door sealing capability
SPECIFICATION
| Parameter | Value |
|---|---|
| Package weight | 2.28 kg |
| Rated voltage [AC] | 230/400 V AC |
| Rated voltage [DC] | 1000 V DC |
| For photovoltaics | Yes |
| Number of rows | 1 |
| Modules per row | 18 |
| Total number of modules | 18 |
| Material | Plastic |
| Door | Transparent |
| Key lock | No |
| IP protection rating | 65 |
| Mechanical resistance IK | IK07 |
| Mounting method | surface-mounted |

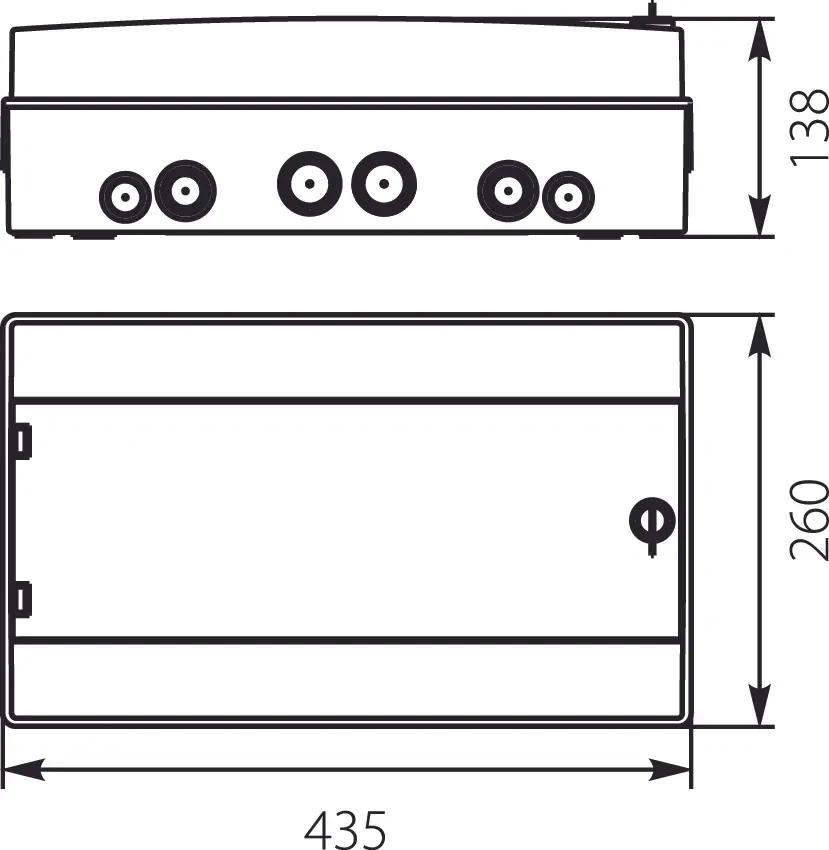

| External dimensions | 435 x 260 x 138 mm |
| 1000 V DC certificate | yes, suitable for use in PV photovoltaic installations |
