Junction Box Noark SH-718 DC+AC Surge Protector 10A 3-Phase IP65
Leave feedback on the product
Junction Box Noark SH-718 DC+AC Surge Protector 10A 3-Phase IP65
DC+AC junction box IP65 with Type 1+2 surge arrester for photovoltaic installations. Equipped with 3-phase 10A circuit breaker and 50kA AC and DC surge protection devices. Hermetic enclosure with transparent door and optional lock.
€248.75
Price
€248.75
without 23% VAT
The lowest price during 30 days prior to the reduction:
€0.21
€305.96
Price
€305.96
incl. 23% VAT
The lowest price during 30 days prior to the reduction:
€0.25
Temporarily unavailable
Unavailable
Product code: GPV-409-01
Product features
Product features
Compare PV distribution boards / Junction boxes
- PV strings 1
- MCB Circuit breaker [A] 10
- SPD DC type T1+T2
- Max DC voltage [V] 1000
- IP 65
- MCB characteristic (B/C/D) B
- Weight [kg] 2 .7
- RCD [YES/NO] No
- IK IK08
- UV resistance [YES/NO] Yes
Description
Description

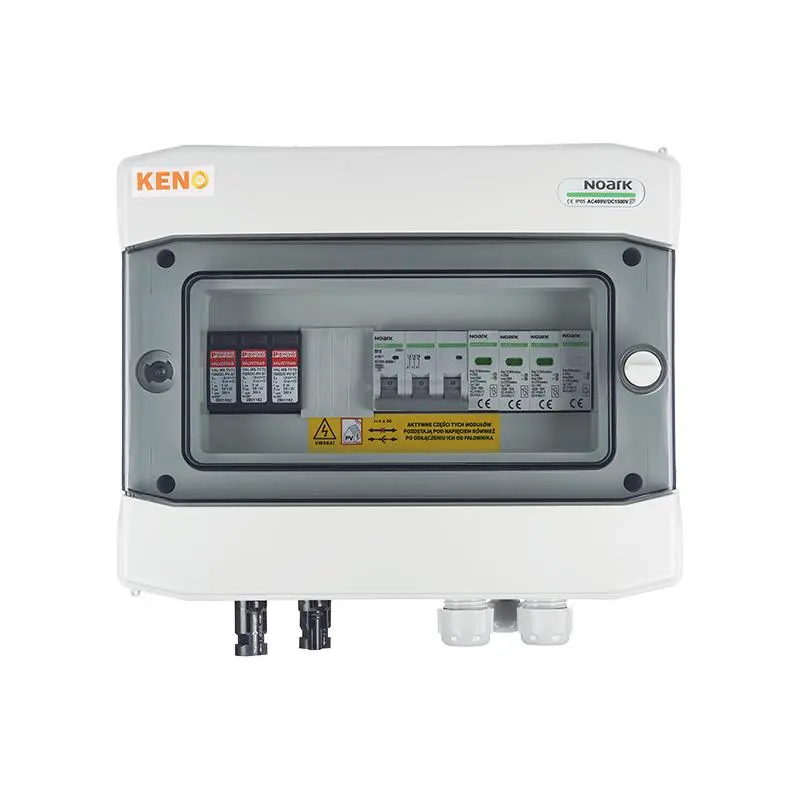

Noark DC+AC Connection Box with Surge Protection Device 10A 3-Phase SH-718
Hermetic DC+AC connection box with 1000V Type 1+2 surge arrester / AC Type 1+2 surge arrester, 10A, 3-phase, SH-78 DCAC
- Connection boxes are a reliable solution that is successfully used in both small and medium-sized domestic and industrial installations. Thanks to their wide range of applications, including IP65 protection class, the boxes can be installed not only in enclosed spaces but also in outdoor areas.
- Standard, proven enclosure: Providing robustness and durability, enabling the boxes to meet diverse installation requirements.
- Key lock option: Provides an additional level of security and restricts access to electrical equipment to authorised personnel only.
- Transparent door: Allows easy access to the interior of the box and quick visual inspection of equipment status without the need to open it.
AC Surge Arrester Used
| Parameter | Value |
|---|---|
| Manufacturer/model | Noark/Ex9UE1+2 12.5 4P 275 |
| Nominal discharge current In (8/20 µs) per phase | 25kA |
| Maximum discharge current Imax (8/20 µs) | 50kA |
DC Surge Arrester Used
| Parameter | Value |
|---|---|
| Manufacturer/model | PHOENIX/VAL-MS-T1/T2 1000DC-PV/2+V |
| Surge protection | Type 1+2 |
| Connection error-proof Y-circuit for applications according to | VDE 0100-712 (IEC 60364-7-712) |
| Equipotential bonding in surge protection according to | VDE 0100-443 (IEC 60364-4-44) |
| Current discharge capacity (8/20) per pole | up to 50kA |
| Low voltage protection level DC (Uoc max = 1000V DC) | <= 2.6kV |
| Cartridges | Replaceable, with thermodynamic disconnecting device and optical fault indication |
| Arrester | Enclosed, non-venting zinc oxide varistor-based arrester |
Overcurrent Circuit Breaker
| Parameter | Value |
|---|---|
| Manufacturer/model | Noark/Ex9BN 3P B10 |
| Rated current | 10A; 3-phase |
| Number of poles | 3 |
| Characteristic | B |
| Design in accordance with | IEC/EN 60898-1 |
| Rated short-circuit breaking capacity ICN | 6kA |
