Equipotential busbar 10x 4-35mm², 1x 30x4mm
Description

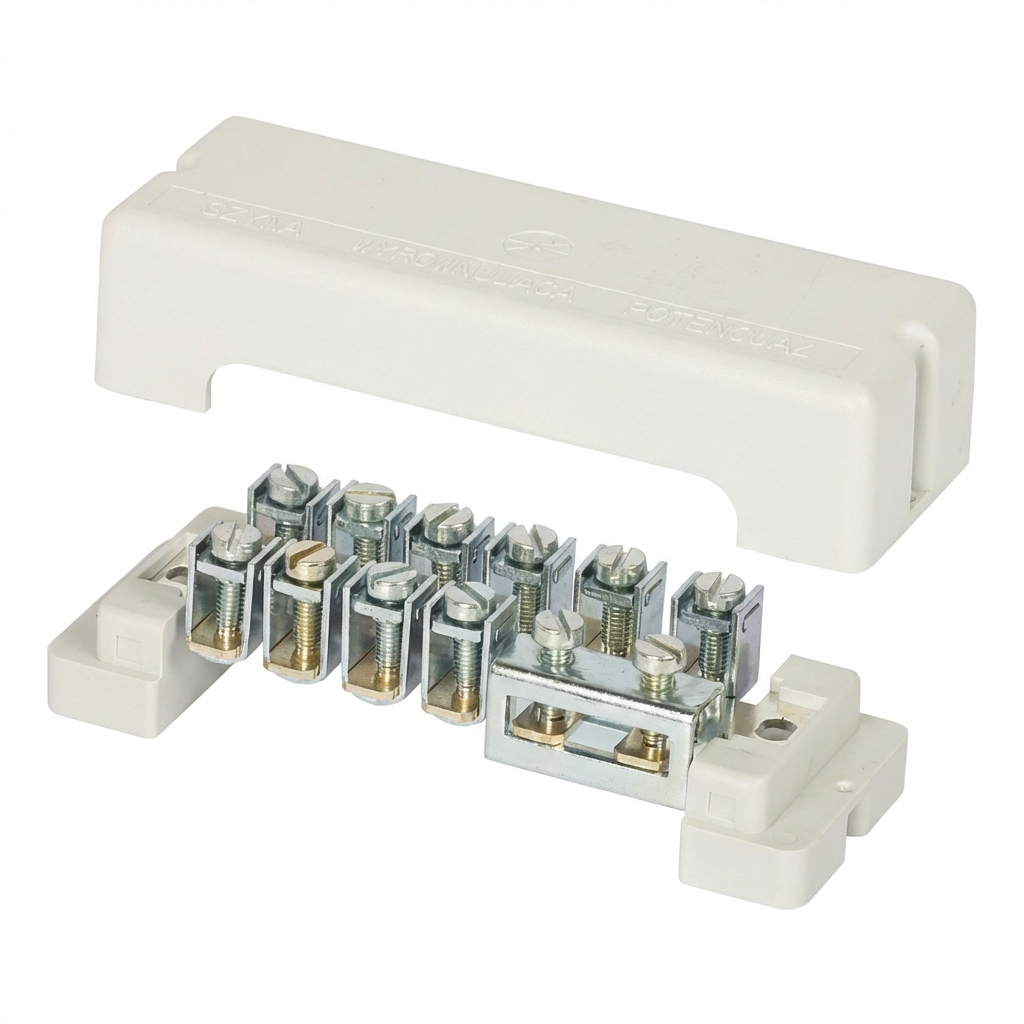

Equipotential Bonding Bar 10x 4-35mm² + 1x 30x4mm
Equipotential bonding bar designed for establishing main bonding connections in lightning protection and earthing installations. The product complies with BS EN 62305, ensuring all safety requirements are met during installation inspections and commissioning.
The bar allows connection of up to 10 conductors with cross-sections of 4–35 mm² and one flat bar connection of 30x4 mm. This configuration enables all required bonding connections to be consolidated at a single point — from protective conductors to copper tape.
Construction and Materials
Terminals manufactured from galvanised steel and brass provide a durable, low-resistance connection for all conductors. The assembly is enclosed in a neat insulated housing that protects the connections and allows surface mounting in plant rooms, boiler rooms, and distribution boards.
Technical Specifications
- Number of conductor terminals: 10 (cross-section 4–35 mm²)
- Flat bar terminal: 1 (size 30x4 mm)
- Terminal material: galvanised steel, brass
- Enclosure: insulated with cover
- Standard: BS EN 62305
Applications
This bonding bar is suitable wherever a main equipotential bonding bar is required — in residential buildings, industrial facilities, and photovoltaic installations. With its high terminal count and flat bar connection capability, it is a versatile solution for professional installers.
