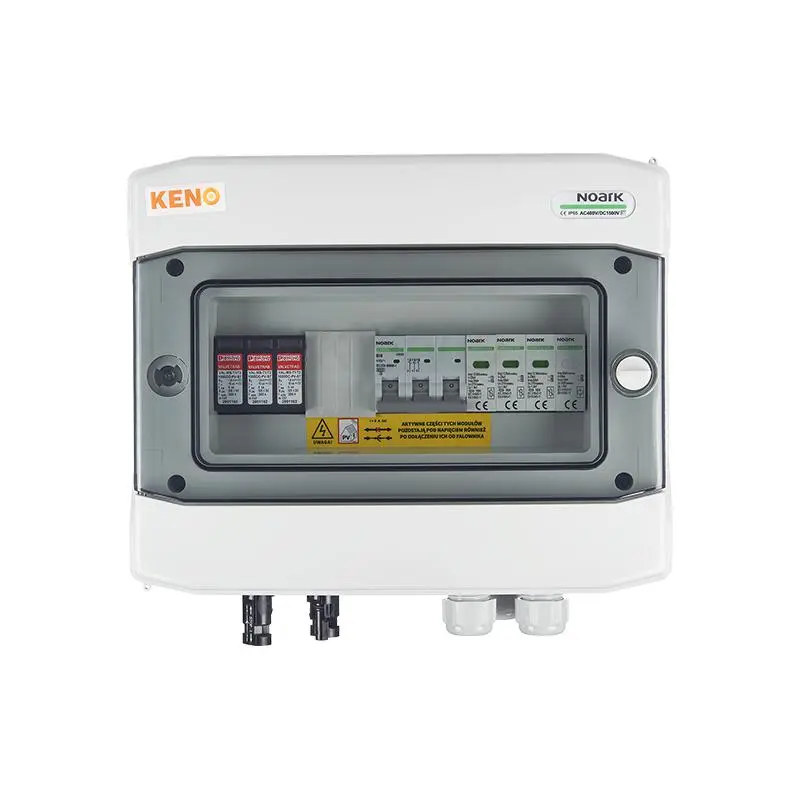

Noark Junction Box with Surge Protector DC+AC 16A 3-Phase SH-90

Go to Product feedback

1000V DC+AC junction box with Type 1+2 surge arrester, 1x PV string, 16A 3-phase. IP65 enclosure with transparent door and optional key lock. Designed for residential and industrial installations, suitable for indoor and outdoor mounting.

Go to full description
with VAT without VAT
Price €299.26
incl. 23% VAT
Availability:
Temporarily unavailable
Unavailable

Product features

Compare PV distribution boards / Junction boxes

  • PV strings 1
  • MCB Circuit breaker [A] 16
  • SPD DC type T1+T2
  • Max DC voltage [V] 1500
  • IP 65
  • MCB characteristic (B/C/D) B
  • Weight [kg] 2 .7
  • RCD [YES/NO] No
  • IK IK08
  • UV resistance [YES/NO] Yes

Description

Noark Connection Box with DC+AC Surge Protection Device 16A 3-Phase SH-90

Connection box with DC + AC surge protection device, 1000V type 1+2, 1x PV string, 1x MPPT // AC surge protection type 1+2, 16A 3-phase type SH‑90 DCAC

  • Connection boxes are a reliable solution that successfully finds application in both small and medium-sized domestic and industrial installations. Thanks to their wide range of applications, including IP65 protection class, the boxes can be mounted not only in enclosed spaces but also in outdoor areas.
  • Standard, proven enclosure: Providing solidity and durability, ensuring the boxes are ready to meet diverse installation requirements.
  • Key lock mounting option: Provides an additional level of security and restricts access to electrical equipment to authorised personnel only.
  • Transparent door: Allows easy access to the interior of the box and quick visual inspection of equipment status without the need to open it.
