Noark 3-Phase DC+AC Surge Protection Junction Box 50A Type 1+2 SH-729
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
4.8 kg
Description

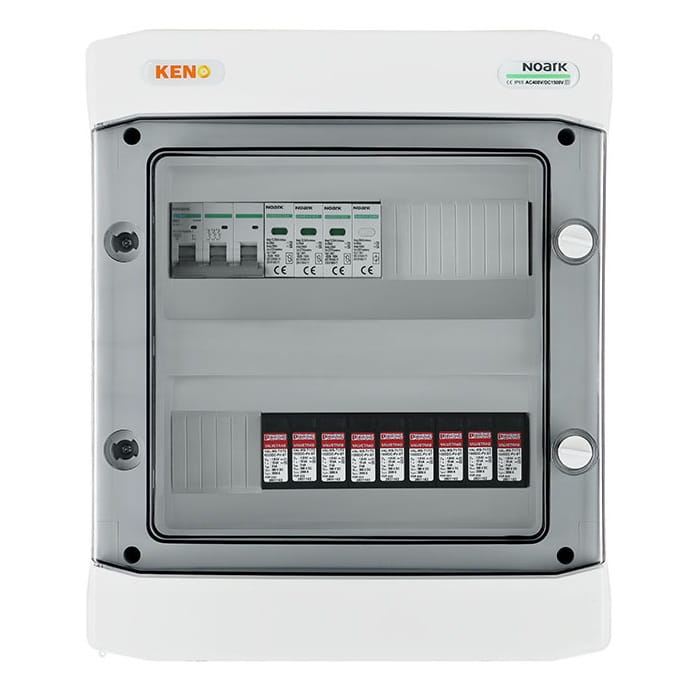

Noark Connection Box with DC+AC Surge Protection Device 50A 3-Phase SH-729
Connection box with DC + AC surge protection device, type 1+2, model SH-729 DCAC
Connection distribution board designed for powering photovoltaic inverters, providing not only protection against short circuits and overloads, but also against indirect and direct discharges on both current sides - alternating and direct current.
It is designed for use in earthed and isolated PV installations, and thanks to its high IP protection rating, outdoor installation is possible. The distribution board structure is adapted for surface mounting and, depending on the equipment, can perform various functions.
- Standard, proven enclosure: Ensuring solidity and durability, making the distribution boards ready to meet diverse installation requirements.
- Option to install a key lock: Provides an additional level of security and restricts access to electrical equipment to authorised persons only.
Basic Parameters DC Side
| Parameter | Value |
|---|---|
| Number of PV string inputs | outputs | 3 | 3 |
| Number | Type of DC surge protection device | Type | 3 | Phoenix | T1/T2 |
| Connection type | Panel-mount MC4 Stäubli |
Basic Parameters AC Side
| Parameter | Value |
|---|---|
| AC surge protection device | Type | Noark | T1/T2 |
| Overcurrent circuit breaker | Noark B50A 3P |
DC Surge Protection Device (SPD) Used
| Parameter | Value |
|---|---|
| Manufacturer / Model | PHOENIX/VAL-MS-T1/T21000DC-PV/2+V |
| Surge protection | T1 / T2 |
| Open circuit voltage UOCSTC | ≤ 975 V DC |
| Maximum discharge current Imax (8/20) μs | 40 kA |
| Response time tA | ≤ 25 ns |
| Lightning impulse current (10/350) μs, charge | 2.5 As |
| Lightning impulse current (10/350) μs, specific energy | 6.25 kJ/Ω |
| Lightning impulse current (10/350) μs, peak value Iimp | 5 kA |
| Total discharge current Itotal (8/20) μs | 40 kA |
| Total discharge current Itotal (10/350) μs | 5 kA |
| Insulation resistance Riso | > 5 GΩ (at 500 V DC) |
| Nominal discharge current In (8/20) μs | 15 kA |
| Rated load current IL | 80 A |
| Continuous operating current ICPV | < 20 μA |
| Maximum continuous operating voltage UCPV | 1170 V DC |
| Short-circuit withstand ISCPV | 2000 A |
| Residual voltage Ures | ≤ 3.5 kV (at In) |
| - | ≤ 2.9 kV (at 5 kA) |
| - | ≤ 3.2 kV (at 10 kA) |
| - | ≤ 3.7 kV (at 20 kA) |
| - | ≤ 4.1 kV (at 30 kA) |
| - | ≤ 4.6 kV (at 40 kA) |
| Protective conductor current IPE | ≤ 20 μA DC |
| - | ≤ 350 μA AC |
| Protection level Up | ≤ 3.5 kV |
| Standby power consumption PC | ≤ 25 mVA |
| Connection configuration | Y configuration |
Overcurrent Circuit Breaker (MCB) Used (1)
| Parameter | Value |
|---|---|
| Manufacturer / Model | Noark / Ex9BN 3P B50 |
| Rated current | 50A; 3-P |
| Rated operational voltage Ue | 230/415 V AC |
| - | 72 V DC per pole (1P, 2P) |
| - | 48 V DC per pole (3P, 4P) |
| Minimum voltage | 12 V AC/DC |
| Rated impulse withstand voltage Uimp according to IEC 60898-1 | 6 kV |
| Rated impulse withstand voltage Uimp according to IEC 60947-2 | 6 kV |
| Rated short-circuit breaking capacity Icn according to IEC 60898-1 | 6 kA |
| Rated short-circuit breaking capacity Icn according to IEC 60947-2 | 10 kA |
| Rated insulation voltage Ui | 690 V AC |
| Number of poles | 3 |
| Frequency | 50/60 Hz |
| Characteristic | B |
| Manufactured in accordance with | IEC/EN 60898-1, IEC/EN 60947-2 |
| Mechanical endurance | 20,000 operations |
| Electrical endurance | 10,000 operations |
| Energy limitation class | 3 |
| Utilisation category | A |
| Supply direction | Either (from top or bottom) |
AC Surge Protection Device (SPD) Used
| Parameter | Value |
|---|---|
| Manufacturer / Model | Noark Ex9UE1+2 12.5 3PN 275 |
| Connection | L-N/PE N-PE |
| Manufactured in accordance with | EN 61643-11 |
| SPD type | Type 1+2 (class I+II, B+C, T1+T2) |
| Cartridge design | MOV (Varistor)GDT (Spark gap) |
| Rated voltage Un | 230 V AC |
| Reference test voltage UREF | 255 V AC |
| Maximum continuous operating voltage Uc | 275 V AC 255 V AC |
| Frequency f | 25 kA per pole 50 kA per pole |
| Specific energy W/R | 156.25 kJ/Ω |
| Maximum impulse current Iimp (10/350 μs) | 12.5 kA per pole 50 kA per pole |
| Maximum discharge current Imax (8/20 μs) | 50 kA per pole |
| Voltage protection level Up for current In | 1.5 kV |
| Voltage protection level Up for current Imax | 1.8 kV 1.5 kV |
| Voltage protection level Up for 5 kA (8/20 μs) | 1 kV |
| N-PE Follow current extinguishing capability Ifi | 100 A |
| 5 s | 335 V |
| 200 ms | 335 V 1200 V |
| Leakage current IPE at UREF | ≤ 1 mA |
| SPD voltage for 1mA current | 387 - 473 V |
| Response time | ≤ 25 ns ≤ 100 ns |
| Maximum back-up fuse protection | 160 A gG |
| Short-circuit current withstand capability | 50kA |
| Short-circuit withstand ISCCR | 10kA |
| Current factor k | 1kA |
| LV system type | TN-S, TT (3+1) |
