Wall-mounted control box 150x150x100mm plastic grey
Leave feedback on the product
150×150×100 mm wall-mounted control box made of plastic, for control terminals of lightning protection systems, compliant with PN-EN 62305.
Product code: 000-173
Description

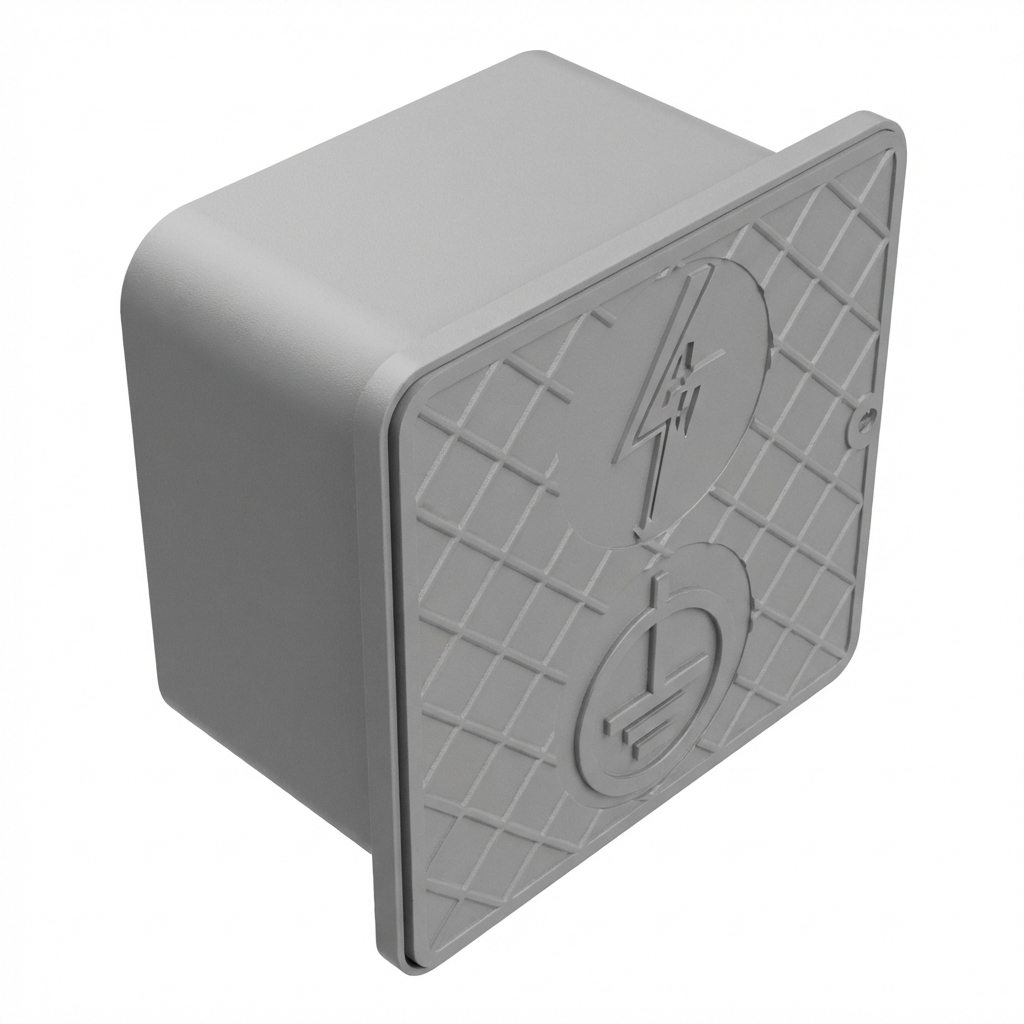

Wall-mounted inspection box 150×150×100 mm – plastic, grey
Wall-mounted inspection box made of grey plastic, designed for mounting on building walls. Enables aesthetic and safe concealment of inspection joints and down conductors of lightning protection systems routed beneath the façade.
Product compliant with BS EN 62305 standard, guaranteeing compliance with requirements for lightning protection of building structures. The box provides easy access to inspection joints during inspections and measurements of the installation, whilst protecting connections from atmospheric conditions.
Dimensions and construction
The box has external dimensions of 150 × 150 × 100 mm (cover dimension 168 mm, internal dimension 145 mm, depth 100 mm). The cover features a distinctive lightning protection symbol for easy identification of the inspection point on the building façade.
Technical parameters
- Material: plastic
- Colour: grey
- Dimensions: 150 × 150 × 100 mm
- Mounting: wall-mounted
- Standard: BS EN 62305
- GTIN: 5907675562923
Application — the box is ideal wherever down conductors of lightning protection systems are routed beneath the façade and require an inspection point accessible for periodic measurements. Thanks to its plastic construction, it is corrosion-resistant and requires no additional maintenance.
