Glass clamp 12-17.52 mm bracket and pin 65x55x37 mm AISI 304 flat system satin
Description
Rectangular Glass Clamp 65×55 mm AISI 304 Satin with Pin
Rectangular glass clamp 65 × 55 × 37 mm with securing pin and bracket — a robust solution for fixing glass panels with a thickness of 12 to 17.52 mm. Manufactured from AISI 304 stainless steel with a satin finish, it combines excellent corrosion resistance with an elegant, understated appearance. The compact design ensures a stable grip on the glass, while the included securing pin effectively minimises the risk of the panel accidentally slipping out.
Construction and Material
The clamp body is cast from AISI 304 stainless steel, which guarantees mechanical durability and resistance to weathering and moisture. The satin surface finish gives the product a modern, minimalist character — it pairs equally well with office glazing and elegant balustrades in residential buildings. The use of Allen screws allows for precise clamping adjustment without the need to disassemble the entire fitting, significantly speeding up installation and simplifying subsequent maintenance.
The clamp is designed for mounting on flat surfaces (flat system). The included bracket and securing pin enhance safety in use — the glass panel is held securely in the clamping slot even under dynamic loads.

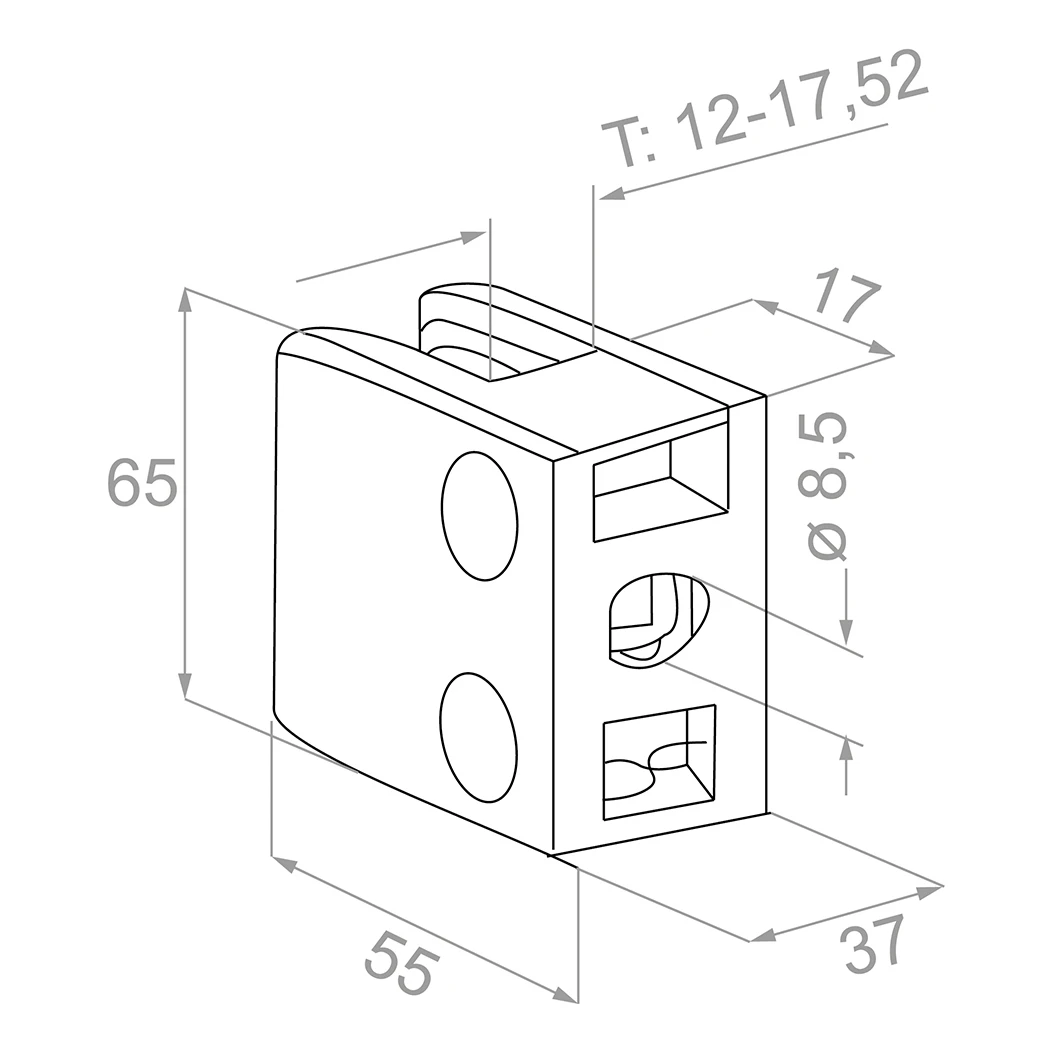

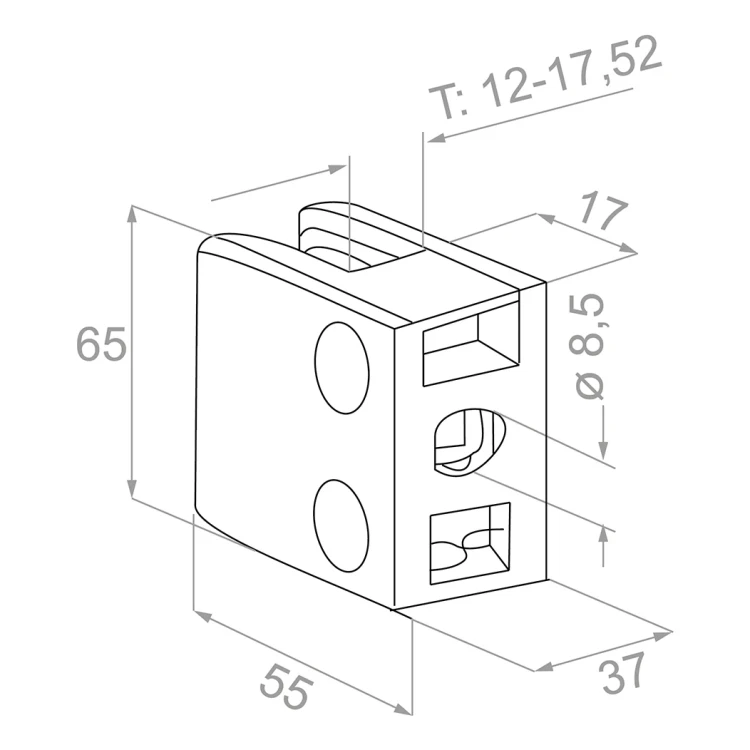

Dimensions and Technical Specifications
- Height (L): 65 mm
- Width (H): 55 mm
- Depth: 37 mm
- Glass thickness: 12–17.52 mm
- Mounting hole diameter: Ø 8.5 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting system: flat (for flat surfaces)
- Weight: 0.4 kg
- EAN: 5901289670722

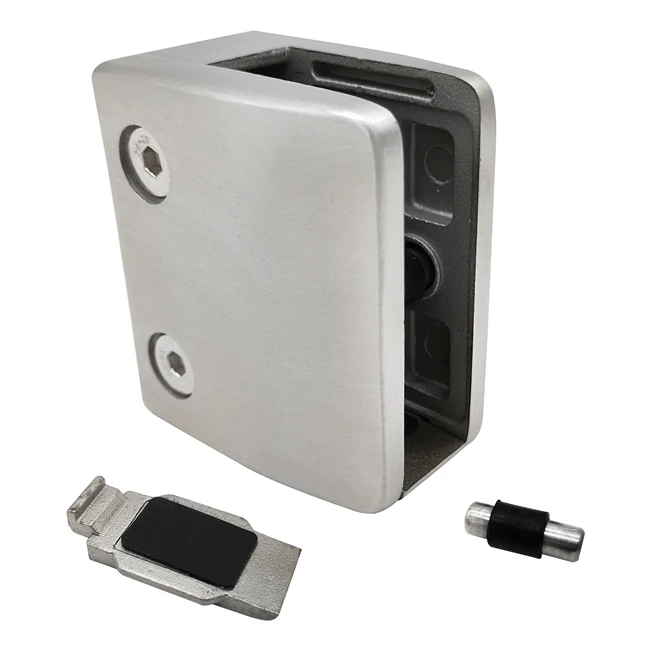

Package Contents
- Glass clamp body
- Mounting bracket
- Securing pin
Important Installation Information
The clamp requires the use of rubber gaskets, which must be selected to match the thickness of the glass being fitted. Gaskets are available as separate accessories, allowing the clamp to be flexibly adapted to different panel thicknesses within the 12–17.52 mm range. The Allen screws enable convenient clamping adjustment directly on site, without the need to remove the clamp.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 12-17,52 |
