End glass clamp 60x50x28 mm glass 8-10 mm, AISI 304 satin flat system
Leave feedback on the product
End glass clamp in AISI 304 stainless steel, satin finish, dimensions 60×50×28 mm, for glass 8–10.38 mm, side fixing, A4-70 screws.
Product code: 6050-000-343
Product features
[PIM] uchwyty-do-szkla #124
- Material AISI 304
- Finish Satin
- Mounting System Flat
- Glass Thickness [mm] 8-10,38
Description
End Glass Clamp 60×50×28 mm – Side Fixing, AISI 304 Stainless Steel, Satin Finish
End glass clamp 60×50×28 mm is a professional mounting component designed for the secure side fixing of toughened glass panels in glass balustrade systems. Dedicated to glass panels with a thickness of 8 to 10.38 mm, it is ideal wherever an aesthetically pleasing and reliable fixing of a glass pane at the end of a balustrade run is required.
Robust stainless steel construction

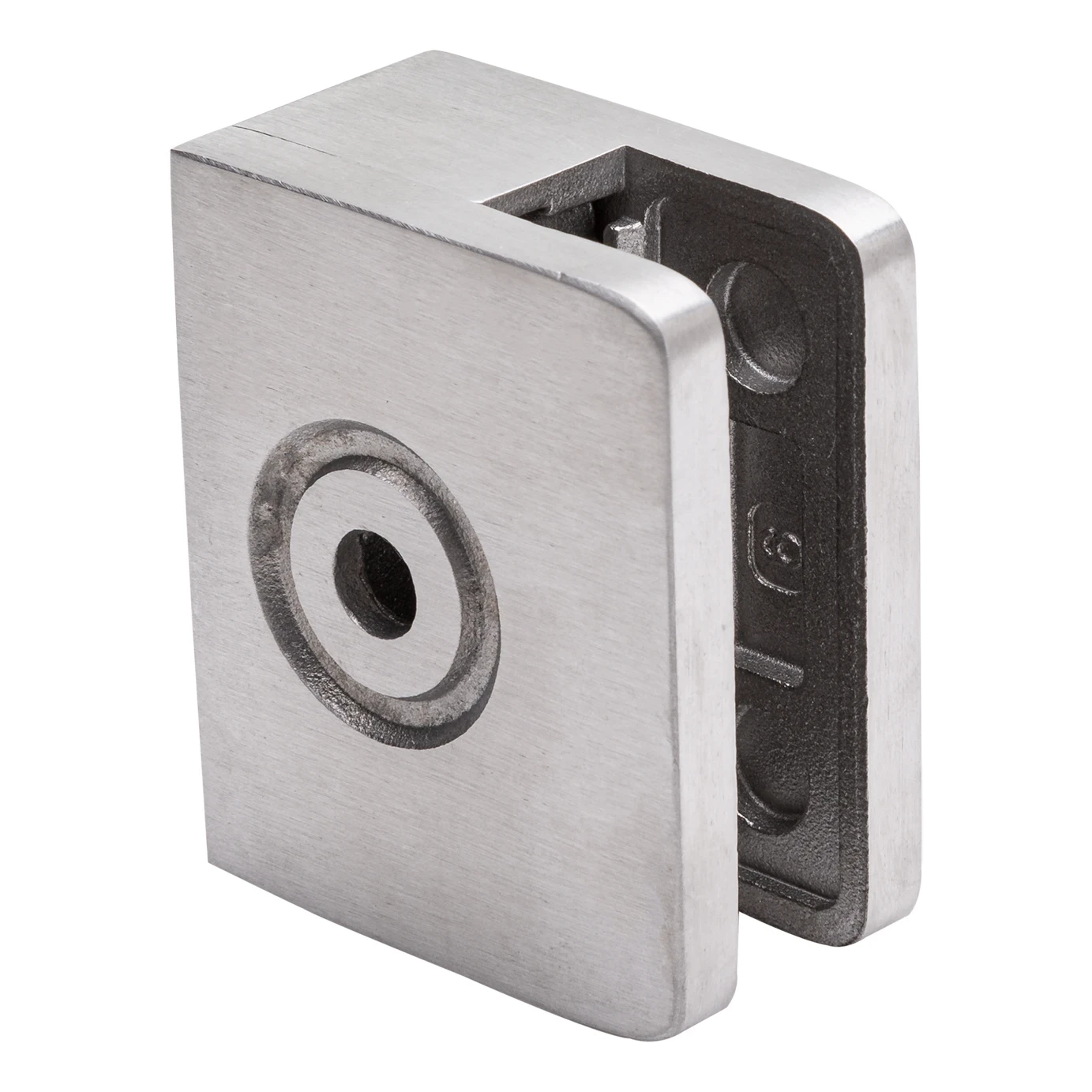

The clamp is manufactured from AISI 304 stainless steel — a corrosion-resistant material suitable for both indoor and outdoor applications. The satin finish provides an elegant, matte appearance that complements modern office, hotel and residential interiors. The compact dimensions of 60×50×28 mm and low self-weight (0.33 kg) make handling and installation straightforward, even where a large number of fixing points is required.
Installation and kit contents

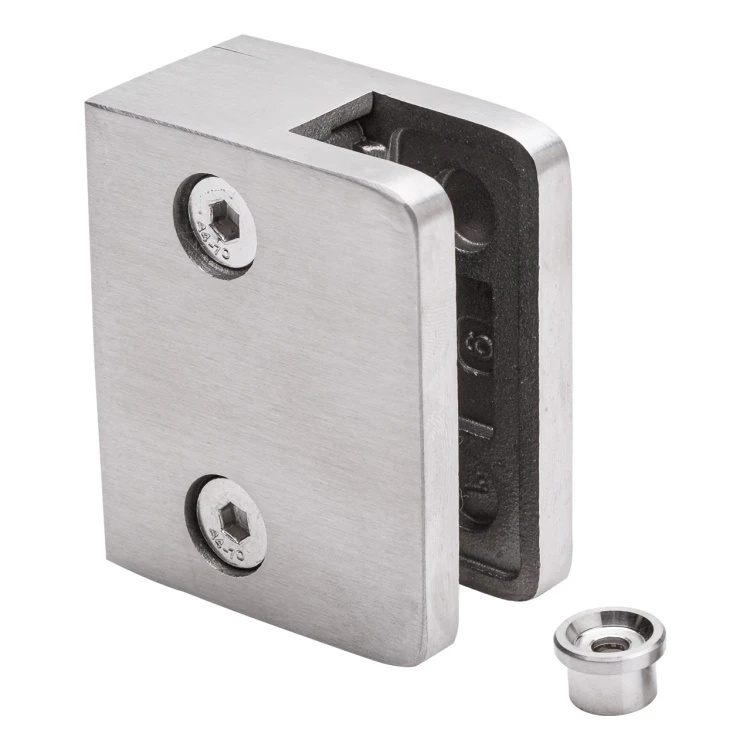

This end-type clamp is side-mounted and is used to secure a glass pane at the end of a balustrade structure. The glass is clamped using A4-70 grade Allen (socket head) screws, ensuring excellent corrosion resistance of the fasteners. The kit also includes a spacer sleeve to ensure correct seating of the glass within the clamp. Side fixing (to a post or wall) is carried out through a central hole with a diameter of o 8.5 mm.

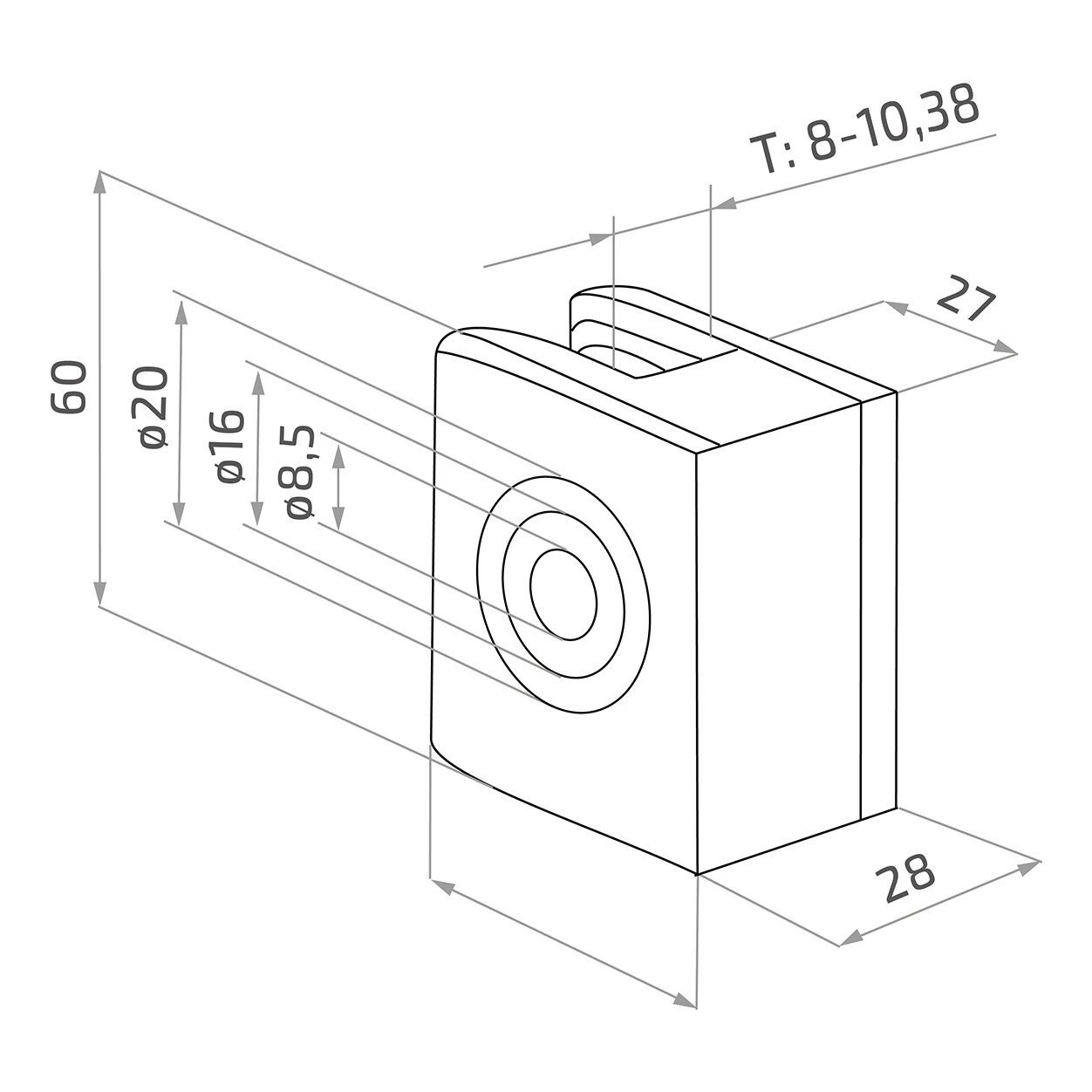

Dimensions and technical specification
- Type: end clamp (terminal)
- Fixing: side
- Material: AISI 304 stainless steel
- Finish: satin
- System: flat
- Height (H): 60 mm
- Length (L): 50 mm
- Width: 28 mm
- Body depth: 27 mm
- Glass thickness (T): 8–10.38 mm
- Fixing hole diameter: o 8.5 mm
- Inner embossing diameter: o 16 mm
- Outer embossing diameter: o 20 mm
- Weight: 0.33 kg
- Volume: 56.7 cm3
- Screws: A4-70 grade (Allen/socket head)
Additional information
- The clamp requires the use of rubber gaskets — select the appropriate gasket thickness to match the thickness of the glass being installed
- Rubber gaskets are available as separate accessories
- The Allen screws allow clamping pressure adjustment without removing the clamp
