Glass clamp 6-12.76 mm 63x45x30 mm pin AISI 304 flat system satin
Description

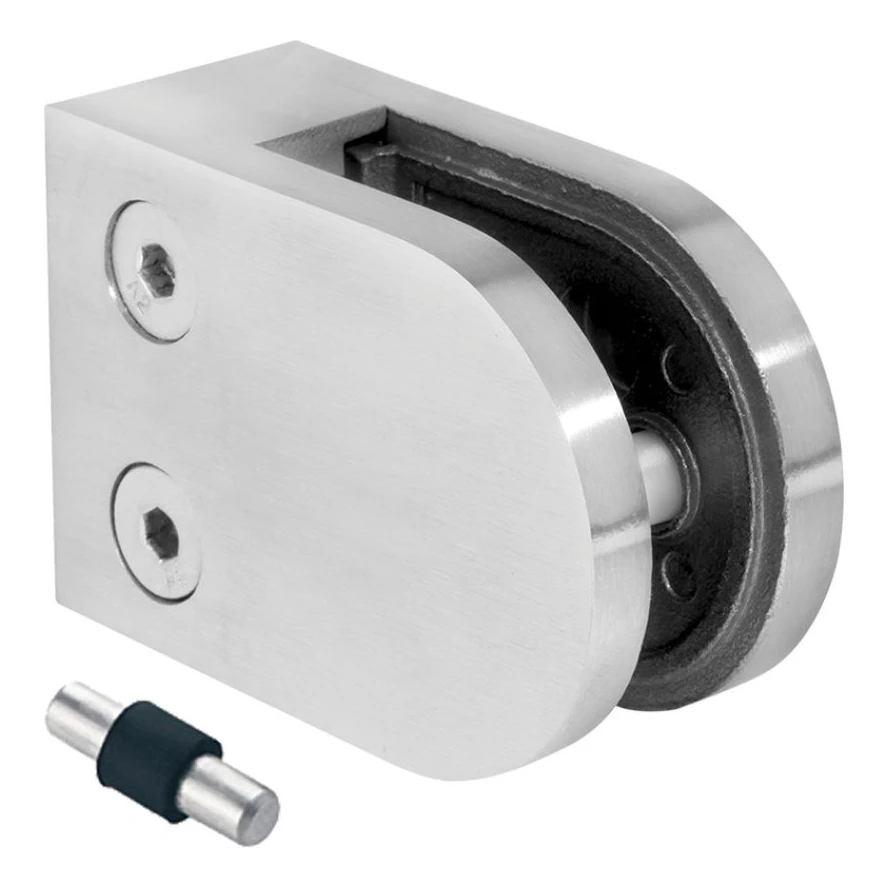

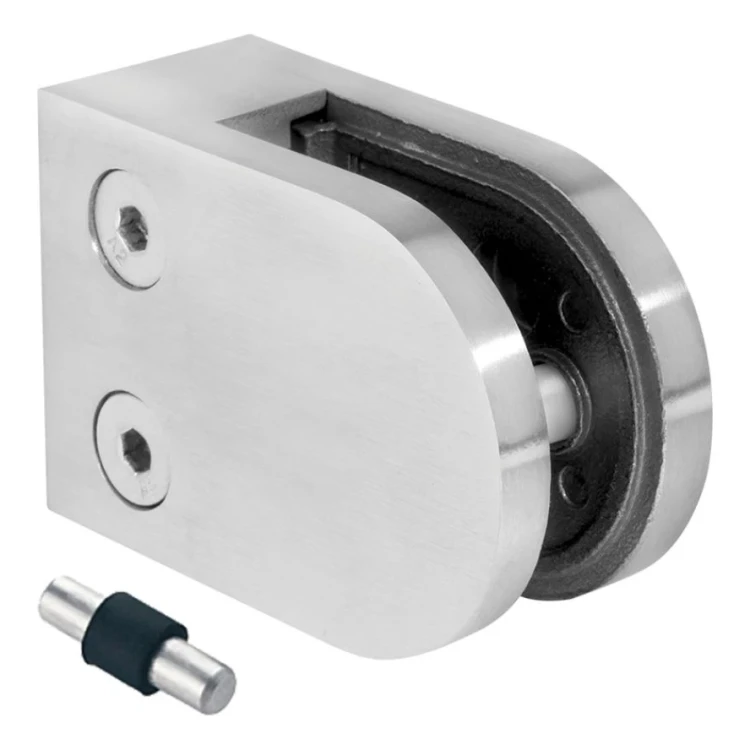

Glass Clamp 63×45×30 mm with Safety Pin – AISI 304 Satin Stainless Steel
A rounded glass clamp designed for use in structural glass balustrade and all-glass balustrade systems. It provides stable fixing for glass panels with a thickness of 6 to 12.76 mm, securing them against accidental displacement thanks to the included safety pin. Manufactured from AISI 304 stainless steel with a satin finish, it offers excellent corrosion resistance and is equally suited for both interior and exterior applications.
Applications and Benefits
This clamp is widely used in modern balustrade structures across shopping centres, hotels, office buildings, and residential properties. Its rounded profile enhances the aesthetic appeal of the overall construction, while the twin Allen screw fixing system allows precise adjustment of the clamping force without the need to remove the clamp entirely. The safety pin effectively prevents the glass panel from accidentally slipping out of the clamp.
The clamp is designed for mounting onto flat structural elements (flat system). Rubber gaskets required for correct installation must be selected separately — their thickness must correspond to the thickness of the glass panel being fitted. Gaskets are available as separate accessories.

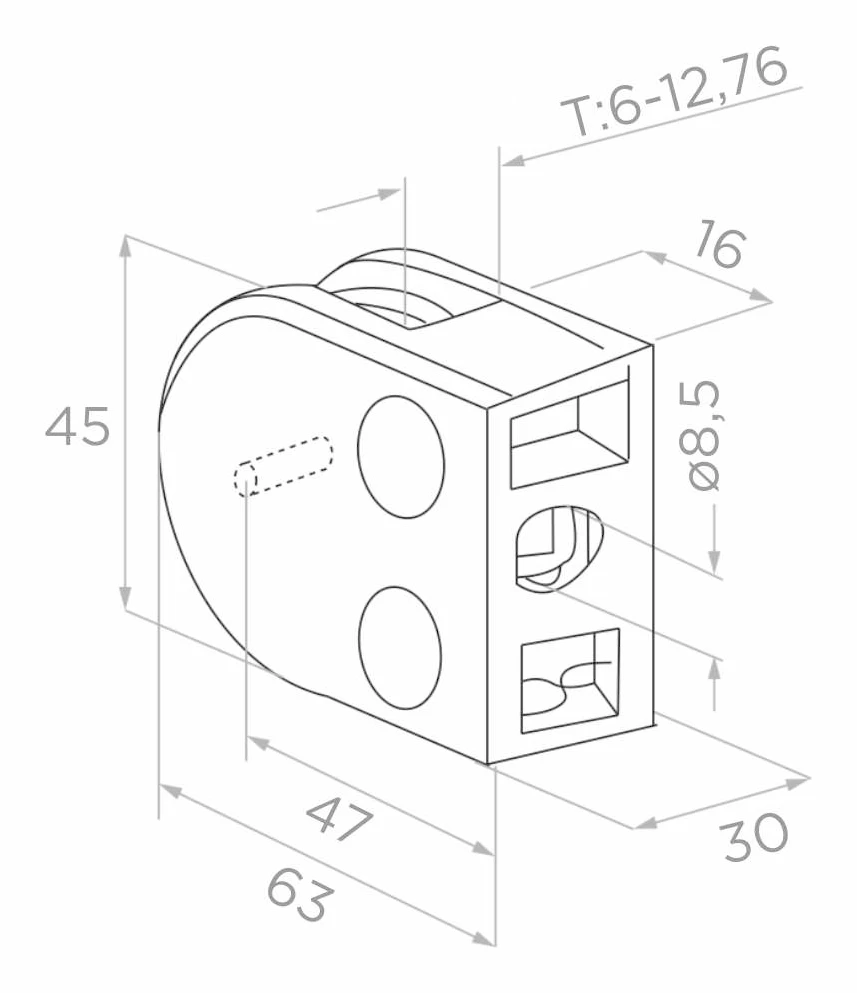

Dimensions and Technical Specifications
- Length (L): 63 mm
- Height (H): 45 mm
- Width: 30 mm
- Distance from base to screw axis: 47 mm
- Mounting hole diameter: ø8.5 mm
- Distance from hole axis to side edge: 16 mm
- Glass thickness range (T): 6–12.76 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Weight: 0.28 kg
- Volume: 85.05 cm³
- EAN: 5901289670999
Package Contents
- AISI 304 stainless steel glass clamp — 1 pc.
- Safety pin — 1 pc.
Important Installation Notes: the clamp requires rubber gaskets, which must be selected to match the thickness of the glass being installed. Gaskets are available as separate accessories. The Allen screws allow convenient adjustment of the clamping force without fully dismantling the clamp.
Technical data
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-12,76 |
| Material | AISI 304 |
