Glass clamp 45x45x26 mm, glass 6-10.76 mm, AISI 304, flat system, satin
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.16 kg
Description

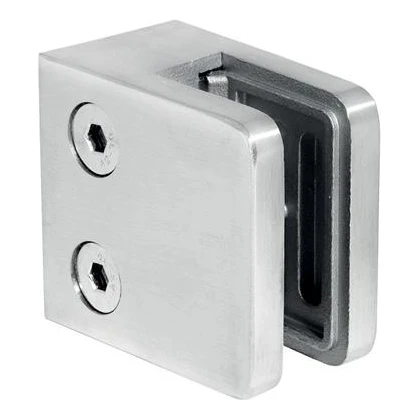

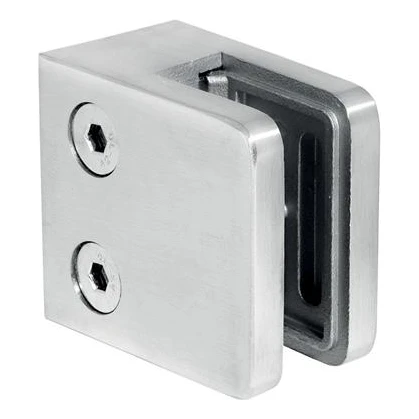

Glass Clamp 45x45x26 mm – Stainless Steel AISI 304, Satin, Flat System

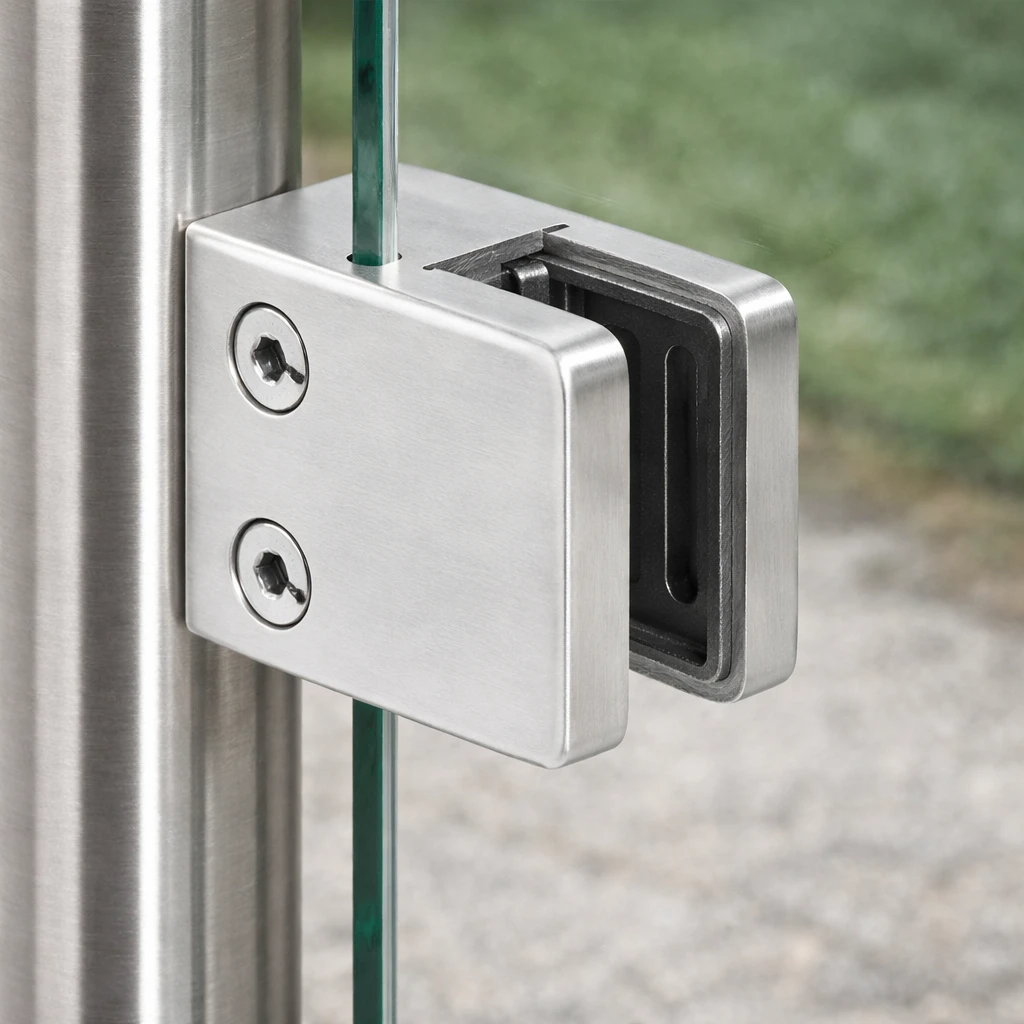

Rectangular glass clamp 45×45×26 mm designed for securing glass panels with a thickness of 6 to 10.76 mm on flat surfaces. Made from AISI 304 stainless steel with a satin finish — ideal for interior glass balustrades, partitions and enclosures where aesthetics and connection durability are paramount.
The clamp is fixed by screwing, ensuring fast and repeatable installation on flat structural elements. A rubber gasket (sold separately) inside the clamp protects the glass from direct contact with metal, eliminating the risk of cracking and providing a stable grip on the panel.
Benefits for the installer
- Screw-fixed mounting — quick installation without welding
- Universal glass thickness range: 6–10.76 mm — compatible with single and laminated glass
- AISI 304 stainless steel — corrosion resistance for interior applications
- Satin finish — elegant, matt appearance suited to modern interiors
- Designed for flat surfaces — mounting on profiles, posts and walls

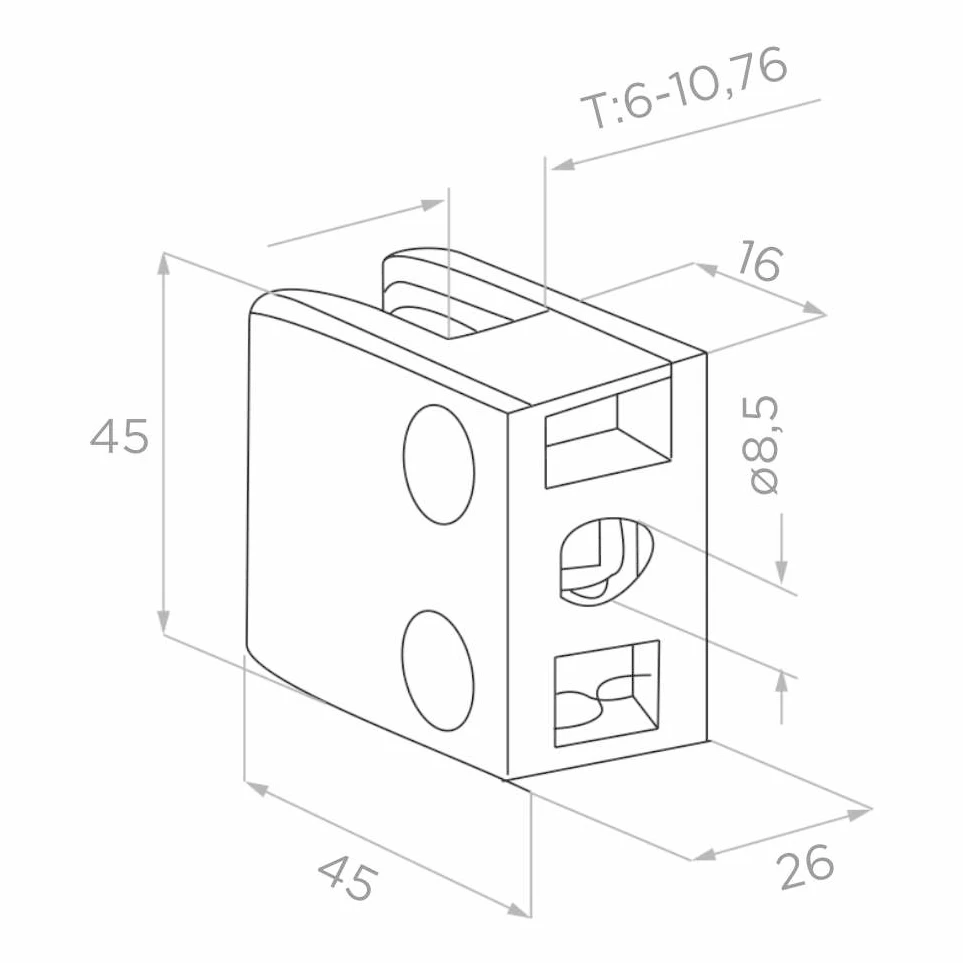

Technical specifications
- Dimensions (L×H×W): 45 × 45 × 26 mm
- Glass thickness: 6–10.76 mm
- Mounting hole diameter: O8.5 mm
- Jaw depth: 16 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Weight: 0.16 kg
Additional information
- The clamp requires the use of rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen-head screws allow clamping pressure adjustment without removing the clamp
Loading...
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
