Glass clamp 6-10.76 mm 63x45x28 mm pin AISI 304 flat system satin
Description

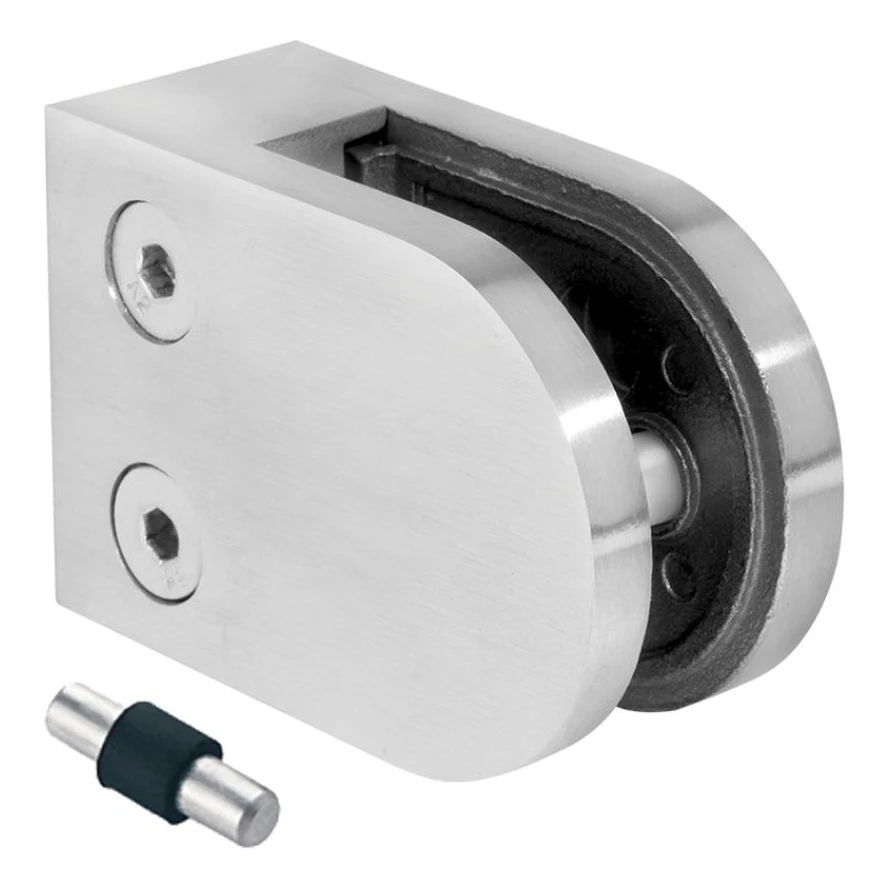

Glass Clamp 63×45×28 mm AISI 304 Satin – Flat System
A rounded glass clamp measuring 63×45×28 mm, designed for mounting glass panels with a thickness of 6 to 10.76 mm on flat surfaces. Made from AISI 304 stainless steel with a satin finish — an ideal choice for elegant glass balustrades, interior enclosures, and partition systems in commercial and residential settings.
Construction and Installation
The clamp is fitted with a securing pin (included in the set), which prevents the glass from accidentally sliding out. Two Allen screws allow precise adjustment of the clamping pressure without the need to fully disassemble the clamp — significantly speeding up installation and simplifying subsequent maintenance. Mounting holes with a diameter of ⌀8.5 mm ensure a secure fixing to the substrate. The product is intended for interior applications in flat-surface systems.

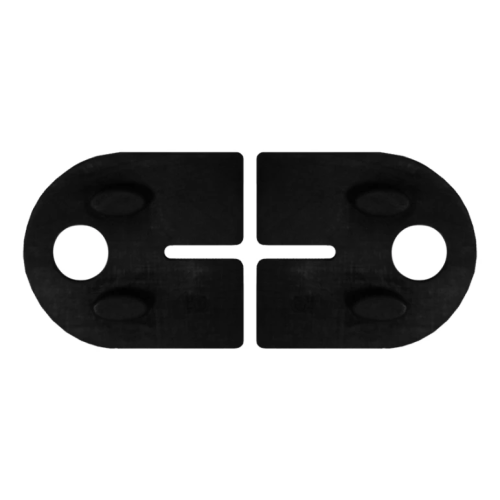

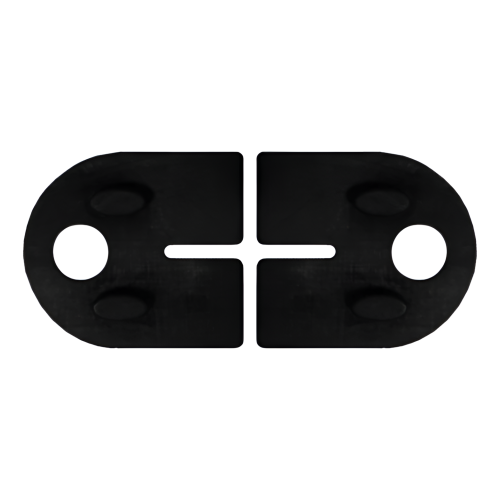

The clamp requires the use of rubber gaskets, which are selected according to the thickness of the glass being installed. Gaskets are sold as separate accessories — allowing precise adaptation of the fitting to each individual project.

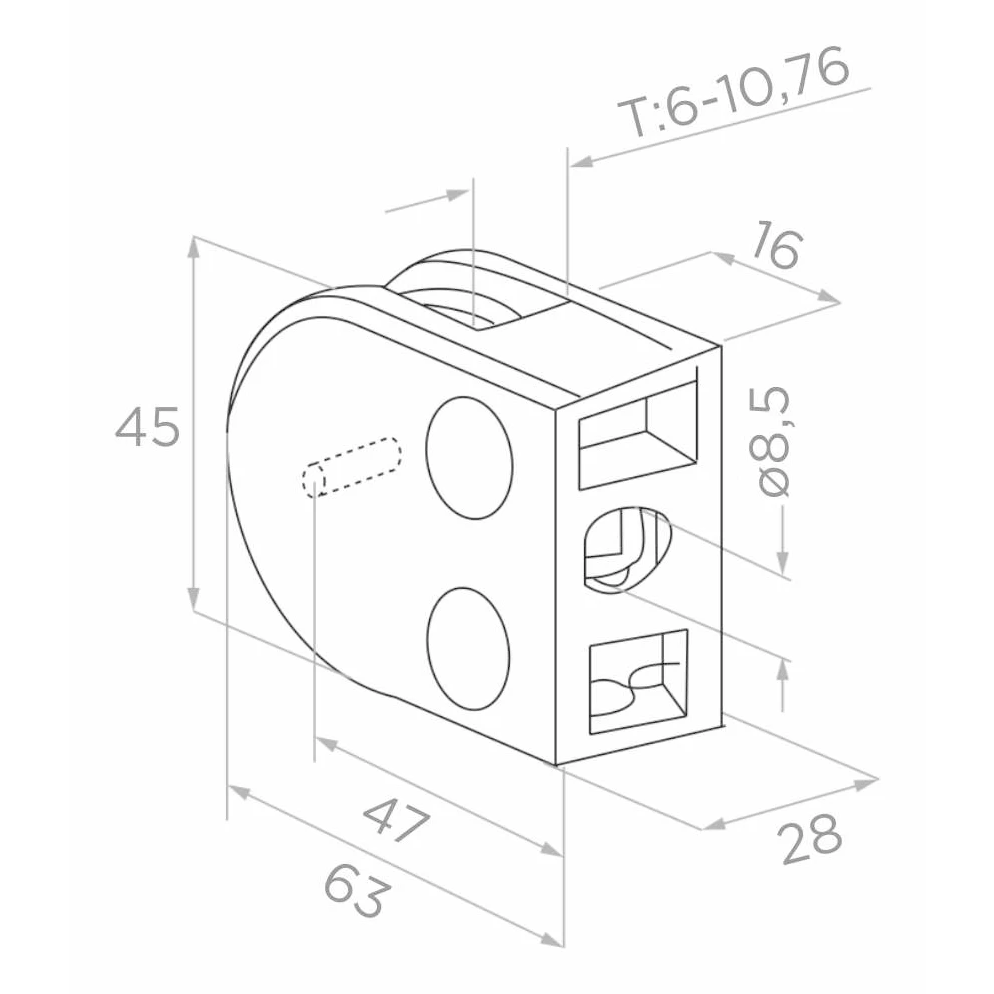

Dimensions and Technical Specifications
- Length (L): 63 mm
- Height (H): 45 mm
- Width: 28 mm
- Distance from mounting surface to fixing axis: 16 mm
- Mounting hole diameter: ⌀8.5 mm
- Glass thickness: 6–10.76 mm
- Material: AISI 304 stainless steel
- Finish: satin
- System: flat surface
- Weight: 0.24 kg
- Volume: 79.38 cm³
- EAN: 5901289670913
Package Contents
- Glass clamp with Allen screws
- Securing pin
- Rubber gaskets — sold separately
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
