Pressure rubber 8mm for 63D1 clamps
Description

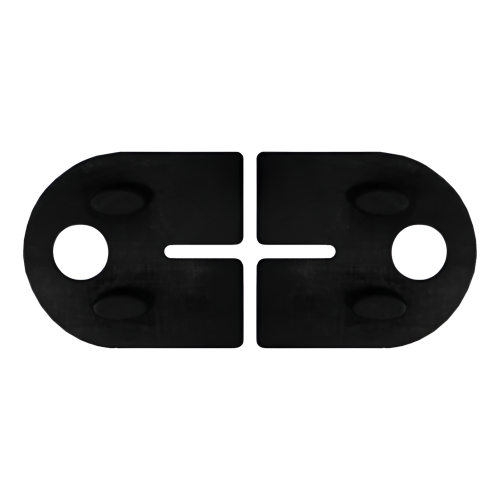

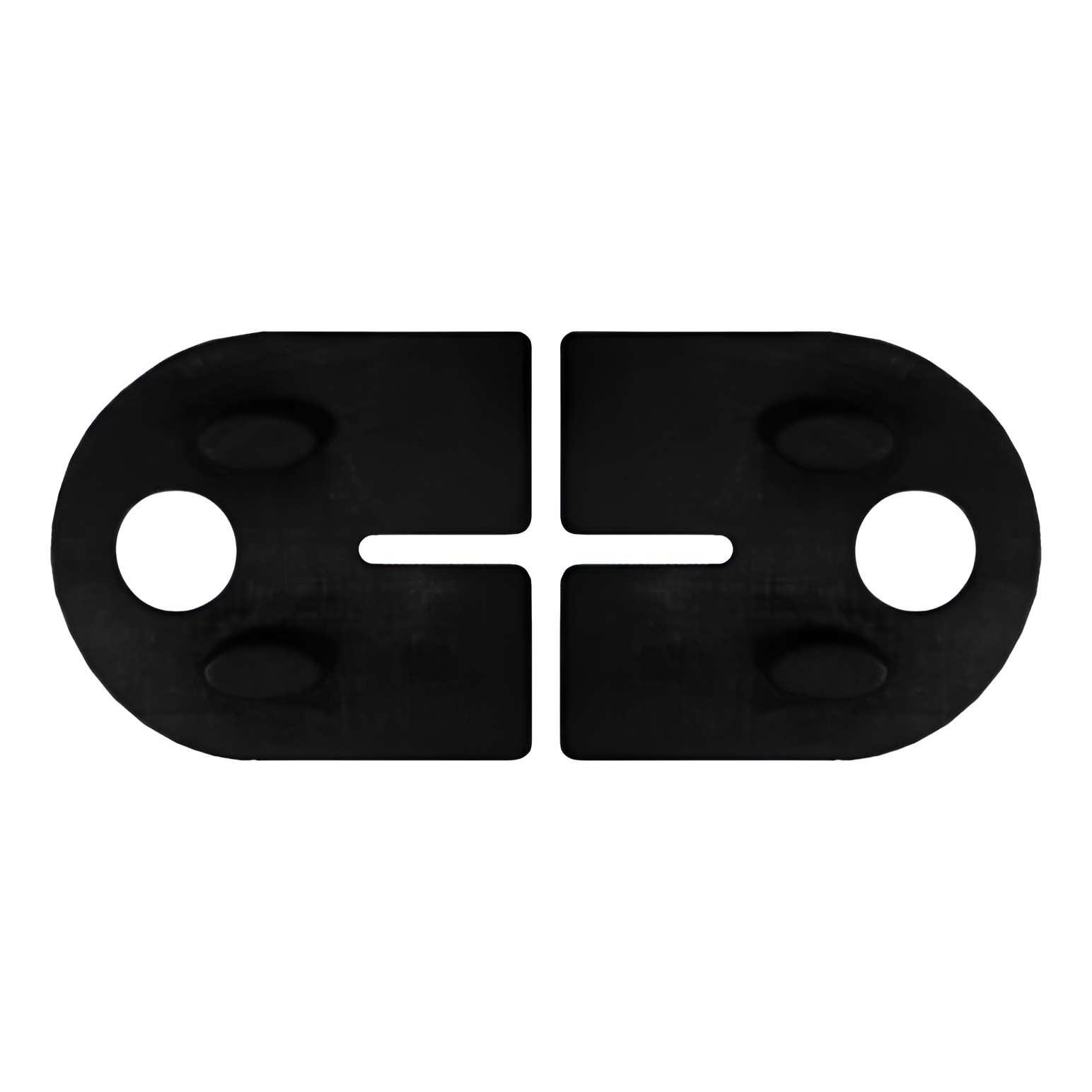

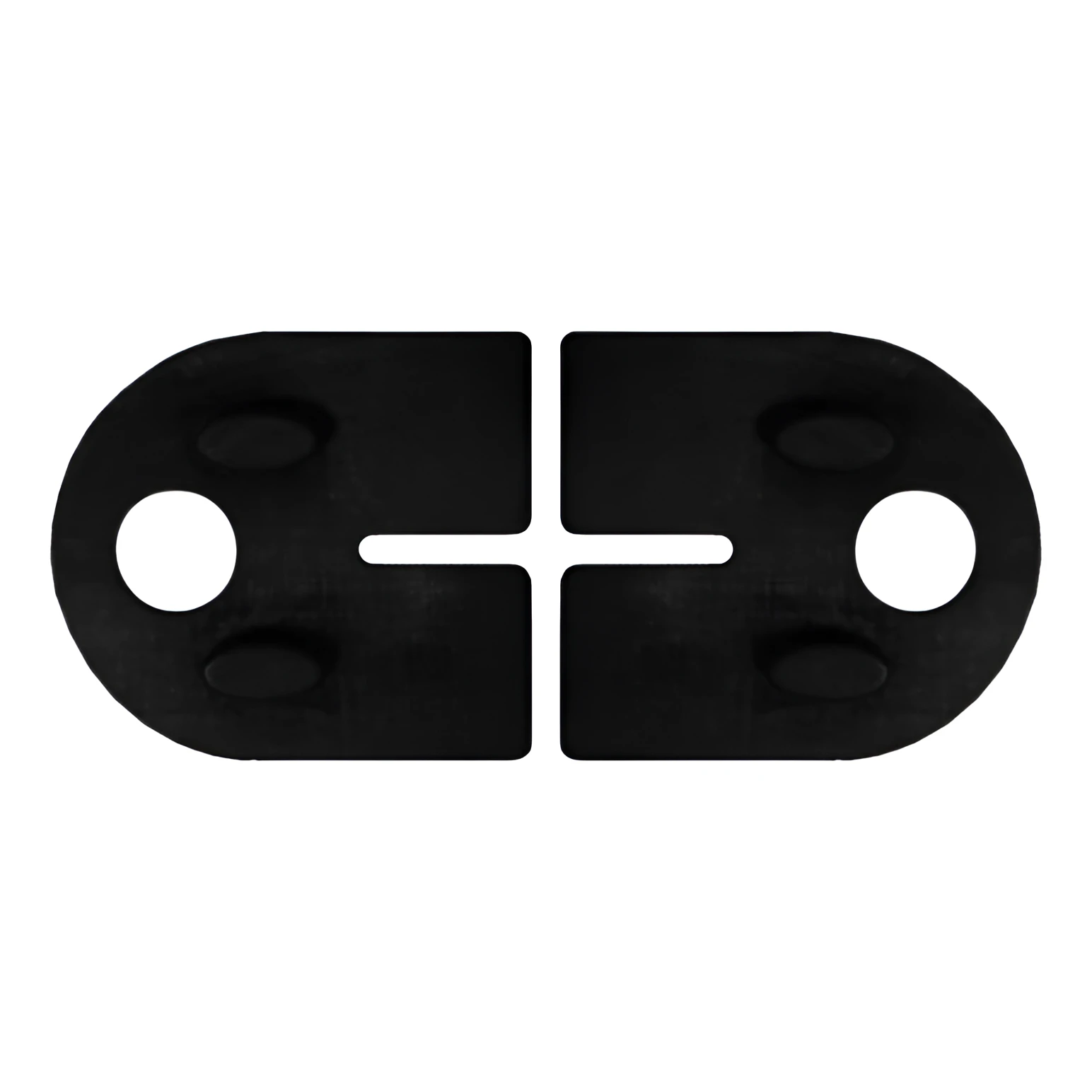

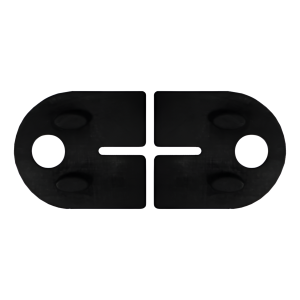

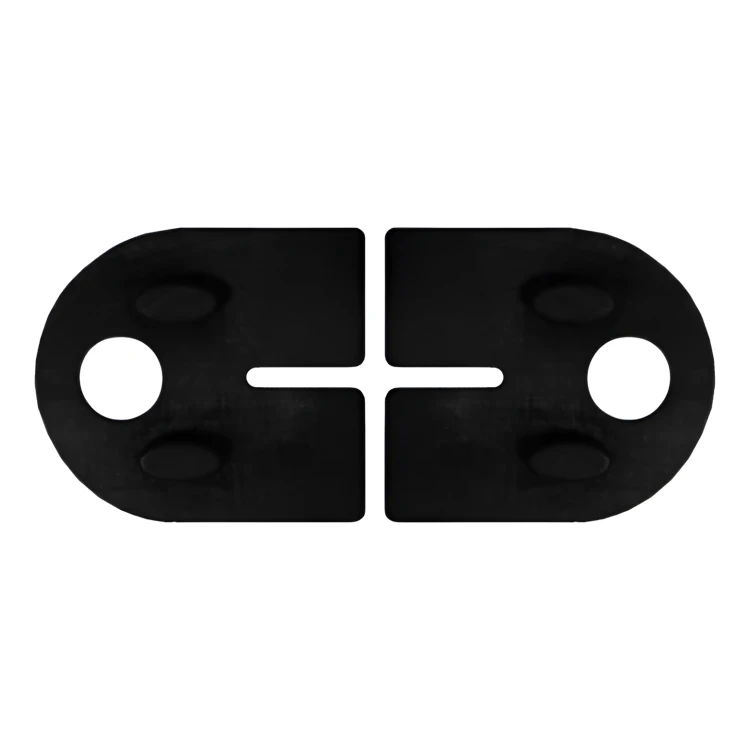

8mm Pressure Rubber for 63D1 Glass Clamps – Set of 2
The 8mm pressure rubber is a flexible gasket designed for the professional installation of glass panels in balustrades. Inserted between the glass panel and the fixing clamp, it effectively secures the pane and protects it against shifting and direct metal-to-glass contact. Specifically designed for use with clamps from the 63D1 series.
The rubbers are sold as a set of 2 pieces — ready to fit a single clamp. This ensures the installer receives a complete set of gaskets straight away, eliminating the risk of shortages on site and speeding up the installation of glass balustrades.
Technical Specifications
- Application: glass pane with a thickness of 8 mm
- Compatibility: clamps from the 63D1 series
- Material: rubber
- Colour: black
- Quantity per set: 2 pcs.
- Set weight: 0.005 kg
- Volume: 32.67 cm³
- EAN: 5901289670937
Application
The pressure rubber is fitted into point-fixing glass clamps used in glass balustrades — both interior and exterior. It serves a cushioning and stabilising function — eliminating panel vibration, preventing mechanical damage to the glass at the fixing point, and ensuring even pressure across the entire contact surface between the clamp and the pane.
Technical data
| Material | Plastic |
