Glass holder 63x45x28 mm pin, glass 6-10.76 mm AISI 304 system 42.4 mm satin
Description

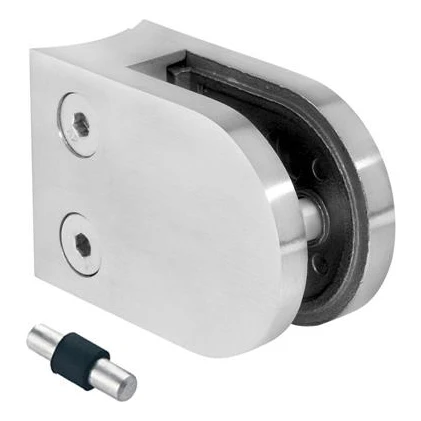

Glass Clamp 63×45×28 mm AISI 304 Satin – Ø42.4 mm System
Rounded glass clamp in AISI 304 stainless steel with a satin finish, designed for mounting glass panels on balustrade posts with a diameter of Ø42.4 mm. The clamp accommodates glass thicknesses from 6 to 10.76 mm, making it suitable for use with both single-pane and laminated glass. The set includes a securing pin to prevent accidental loosening of the glass.
The design features two Allen screws that allow precise adjustment of the clamping pressure without the need to fully disassemble the clamp — a significant advantage during installation and any on-site adjustments. The inner part of the clamp is fitted with a rubber gasket that protects the glass from damage and ensures a stable hold. Rubber gaskets must be selected to match the thickness of the glass being installed and are available as separate accessories.

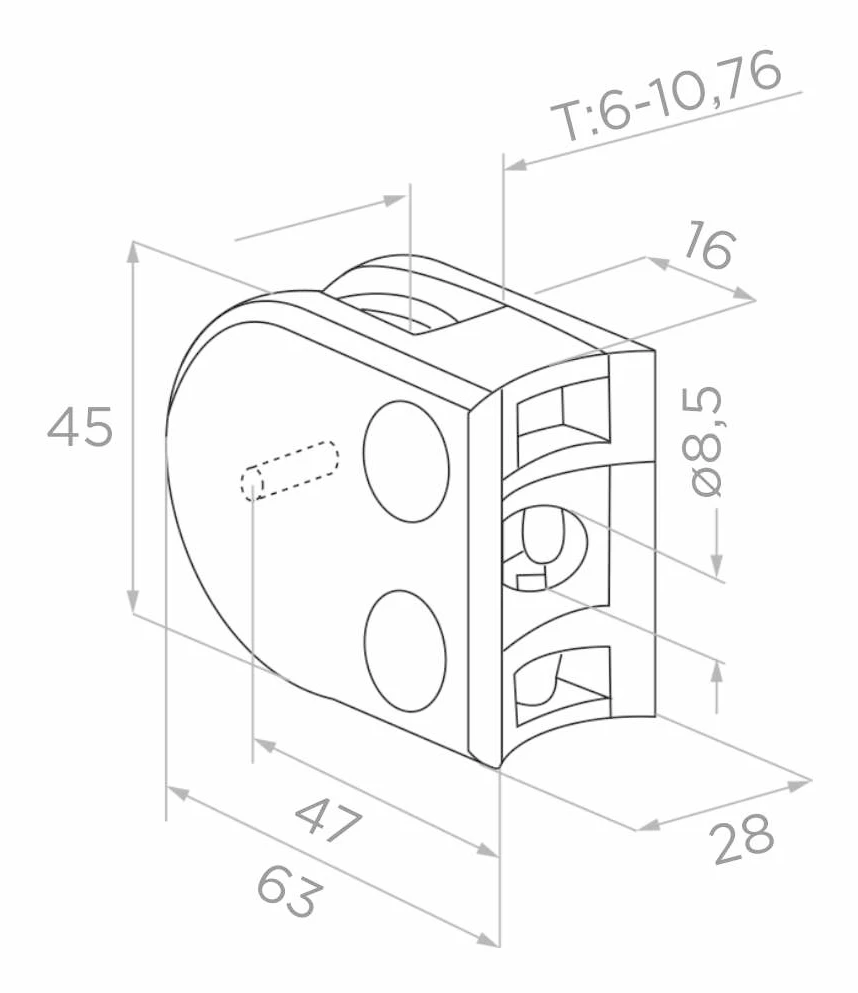

Dimensions and Technical Specifications
- Length (L): 63 mm
- Height (H): 45 mm
- Width (W): 28 mm
- Glass slot width: 16 mm
- Supported glass thickness (T): 6–10.76 mm
- Mounting hole diameter: Ø8.5 mm
- Distance from hole centre to front edge: 47 mm
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Compatibility: Ø42.4 mm tube system
- Weight: 0.24 kg
- Volume: 79.38 cm³
- EAN: 5901289670890
Installation Notes
- The clamp requires rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen screws allow clamping pressure adjustment without disassembling the clamp
- The set includes a securing pin to stabilise the glass panel within the clamp
The clamp is ideally suited for glass balustrade installations on balconies, terraces, staircases, and mezzanines. The satin stainless steel finish provides an elegant, contemporary appearance along with excellent corrosion resistance, ensuring long-lasting performance in both indoor and outdoor environments.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
