Glass holder 6-10.76 mm 63x45x28 mm pin AISI 304 system 42.4 mm polished
Description

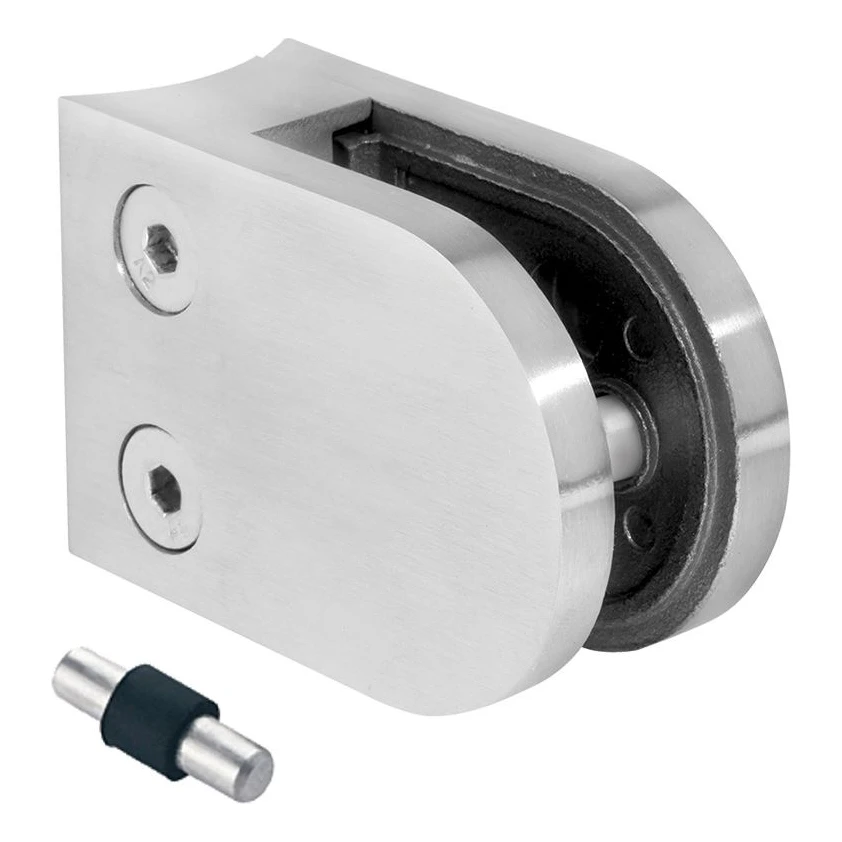

Glass Clamp 63×45×28 mm in AISI 304 Stainless Steel – 42.4 mm System, Polished
A rounded glass clamp designed for use with systemic glass balustrades based on an Ø 42.4 mm tube. It provides stable fixing of glass panels with a thickness of 6 to 10.76 mm, ensuring structural safety and an attractive finish. The set includes a securing pin that prevents the glass pane from accidentally slipping out of the clamp.
Applications and Benefits
The clamp is ideally suited for the installation of glass and all-glass balustrades — a solution increasingly used in shopping centres, hotels, office buildings, and modern residential properties. The rounded form of the clamp enhances the aesthetic appeal of the entire steel structure, while the polished finish lends an elegant, contemporary character.
- Stable fixing of glass panels within the balustrade
- Securing pin included — protection against the panel slipping out
- Allen screws allow clamping force adjustment without the need to disassemble the clamp
- Enhanced aesthetic appeal of the steel structure thanks to the rounded shape and polished finish

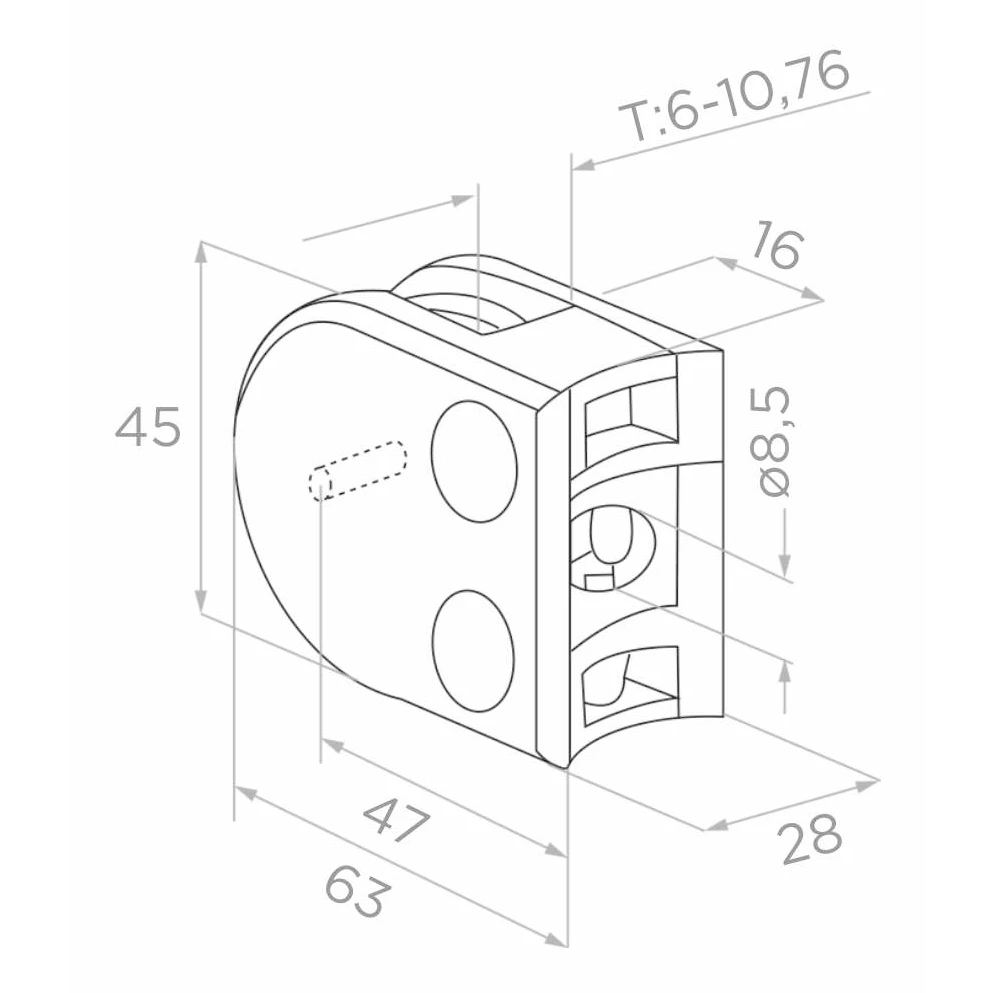

Dimensions and Technical Specifications
- Length (L): 63 mm
- Height (H): 45 mm
- Width: 28 mm
- Depth to hole centre: 47 mm
- Supported glass thickness (T): 6–10.76 mm
- Mounting hole diameter: Ø 8.5 mm
- Material: AISI 304 stainless steel
- Finish: polished
- Tube system: Ø 42.4 mm
- Weight: 0.24 kg
- Volume: 79.38 cm³
- EAN: 5901289670883
Installation Information
The clamp requires the use of rubber gaskets, which must be selected to match the thickness of the glass panel being fitted. Rubber gaskets are available as separate accessories — a wide range is offered, enabling precise matching to various glass thicknesses within the 6–10.76 mm range. The Allen screws built into the clamp allow convenient clamping force adjustment without the need to disassemble the entire component, significantly speeding up the installation process.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
