Glass Clamp 6-10.76 mm 50x40x26 mm with Pin AISI 304 System 48.3 mm Satin
Description
Glass Clamp 50x40 mm AISI 304 Satin – 48.3 mm Tube System
Stainless steel AISI 304 glass clamp in a satin finish, designed for the professional installation of glass panels with a thickness of 6 to 10.76 mm. Dedicated to balustrade systems based on tubes with a diameter of 48.3 mm — secured by screwing directly into the post tube. Includes a locking pin that prevents the clamp from rotating after installation.
The compact design with dimensions of 50 × 40 × 26 mm provides a secure and aesthetically pleasing hold for glass in balcony, terrace, and interior balustrades. Two Allen screws allow precise clamping adjustment without the need to disassemble the clamp, significantly speeding up installation work.

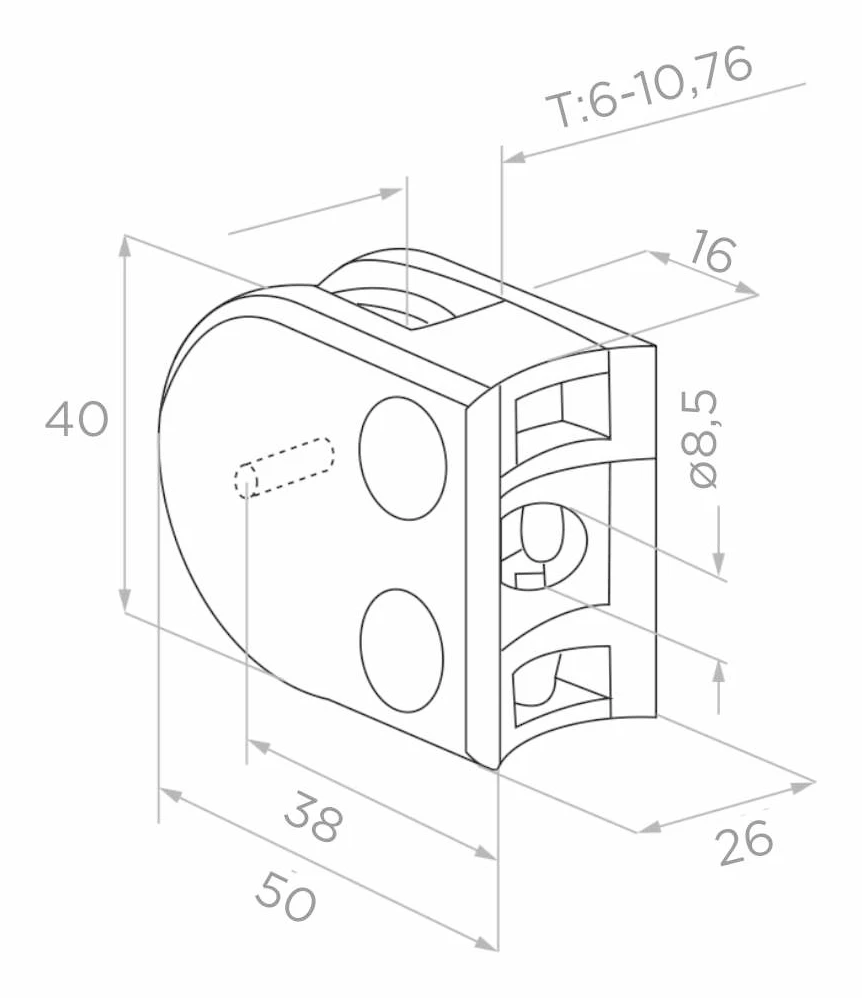

Dimensions and Technical Specifications
- Length (L): 50 mm
- Height (H): 40 mm
- Width (depth): 26 mm
- Front face width: 38 mm
- Accepted glass thickness: 6 – 10.76 mm
- Mounting hole diameter: ⌀8.5 mm
- Axis offset from tube: 16 mm
- Carrier tube diameter: 48.3 mm
- Material: stainless steel AISI 304
- Surface finish: satin
- Fixing method: screw-in to tube
- Weight: 0.17 kg
- Volume: 52 cm³
- EAN: 5901289670470
Application and Installation

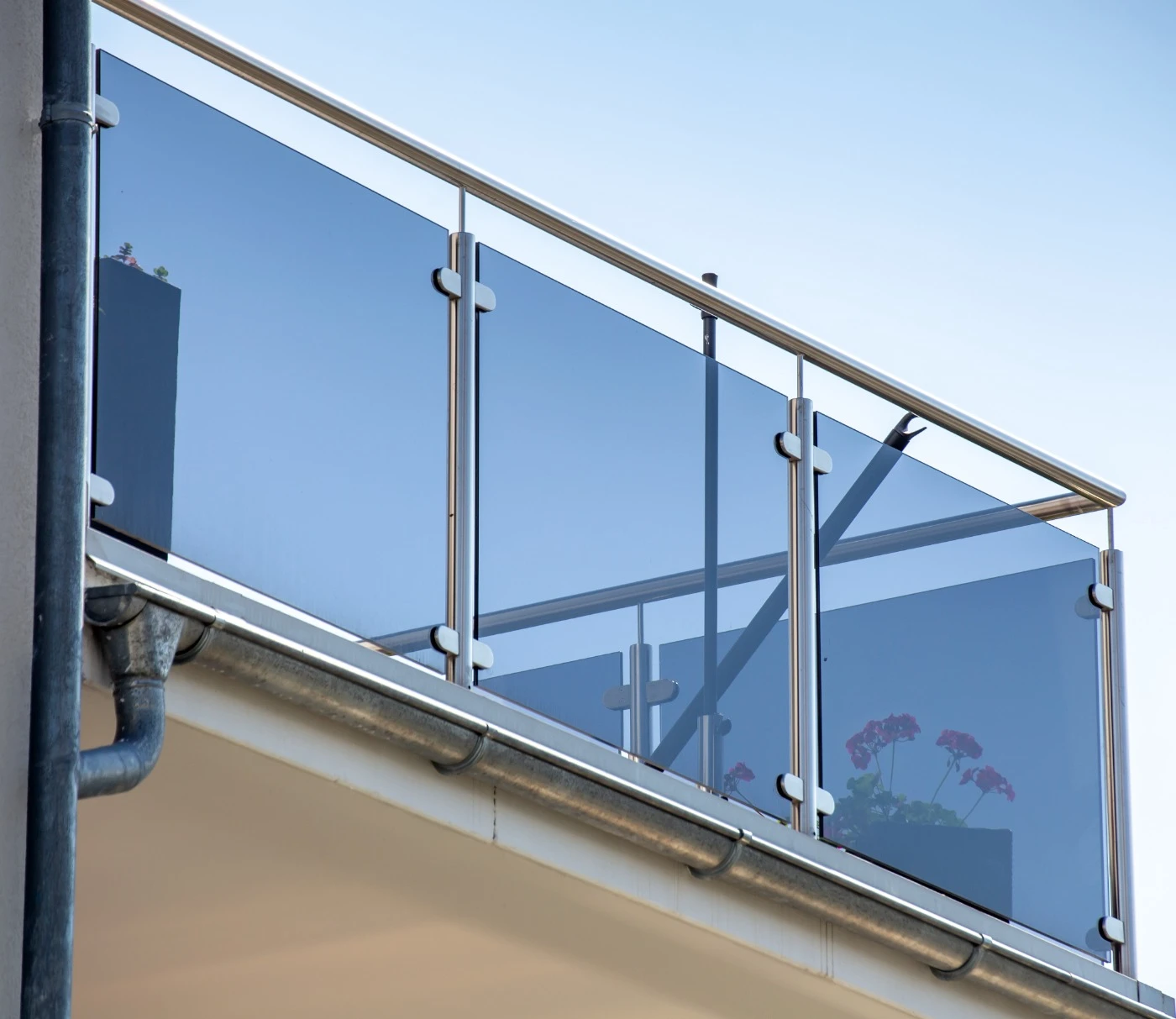

The clamp is suitable for use in glass balustrade systems installed on balconies, terraces, staircases, and mezzanines. The satin finish complements brushed stainless steel elements harmoniously, ensuring a consistent appearance throughout the entire structure.
The clamp requires the use of rubber gaskets — the appropriate gasket thickness must be selected to match the thickness of the glass being installed. Rubber gaskets are available as separate accessories. As a result, a single clamp model accommodates a wide range of glass thicknesses from 6 mm (single-layer toughened glass) to 10.76 mm (VSG laminated glass), reducing the number of stock variants and simplifying ordering.

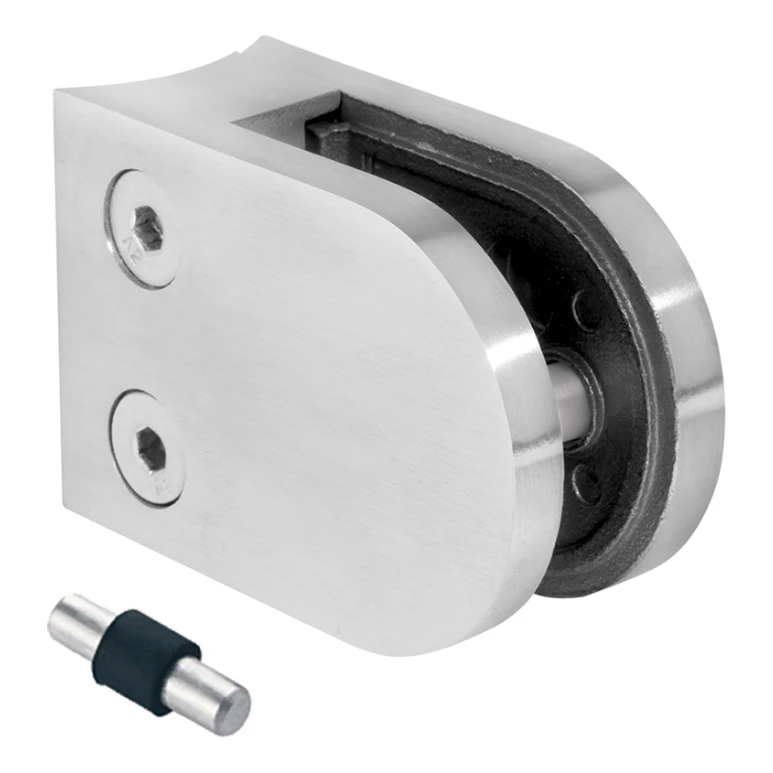

Included in the set: glass clamp and locking pin. Rubber gaskets must be ordered separately.
Technical data
| Finish | Satin |
| Mounting System | 48.3 mm |
| Glass Thickness [mm] | 6-10,76 |
| Material | AISI 304 |
