Glass clamp 6-12.76 mm 180° 106x45x30 mm pin AISI 304 satin
Description

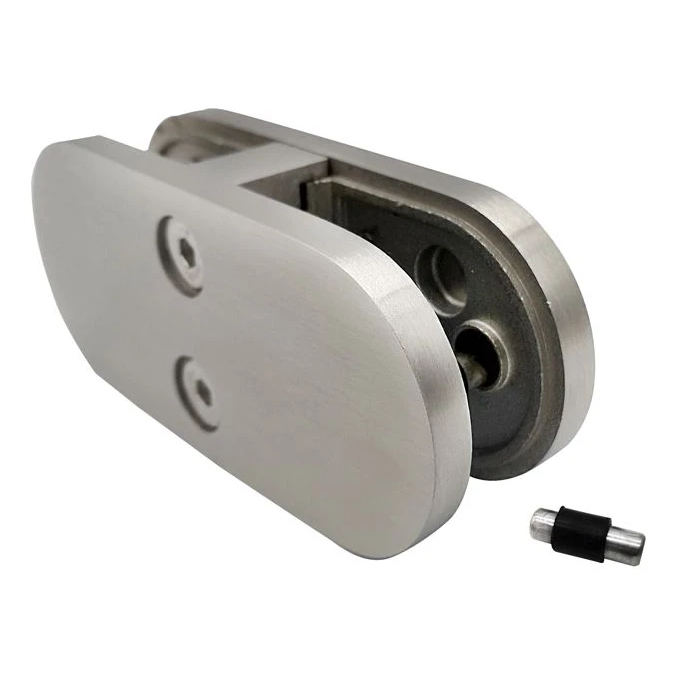

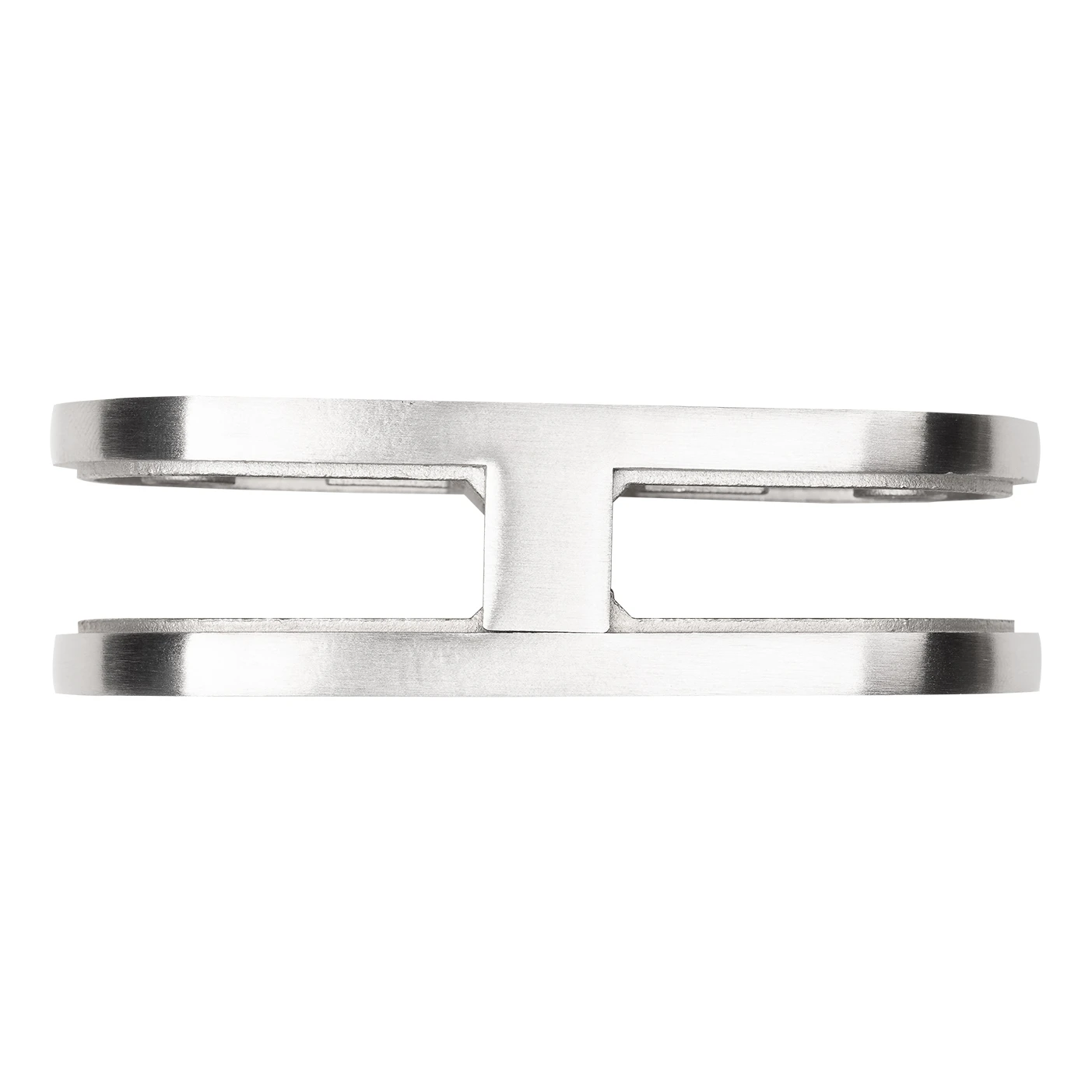

180° Glass Clamp in AISI 304 Stainless Steel – Glass 6–12.76 mm, Satin Finish
The 180° glass clamp is a robust structural component designed to join two panels of toughened or laminated glass in a straight line. Made from AISI 304 stainless steel with a satin finish, the clamp offers excellent corrosion resistance and a sleek, contemporary appearance. It is ideally suited as a connector in frameless glass balustrade systems — for balconies, terraces and interior applications — eliminating the need for intermediate posts.
The clamp is fitted with a safety pin that effectively prevents glass panels from being pulled out of the clamp. The Allen screw clamping system allows precise adjustment of the clamping force without requiring full disassembly of the fitting, significantly speeding up installation on site.
Structural advantages
- Provides structural rigidity — stable connection of two glass panels in a straight line (180°)
- Safety pin prevents glass panels from being pulled out of the clamp
- Allen screws allow clamping force adjustment without disassembly
- Rounded panel profile — aesthetically finished with no sharp edges
- Universal design — suitable for both interior and exterior installation

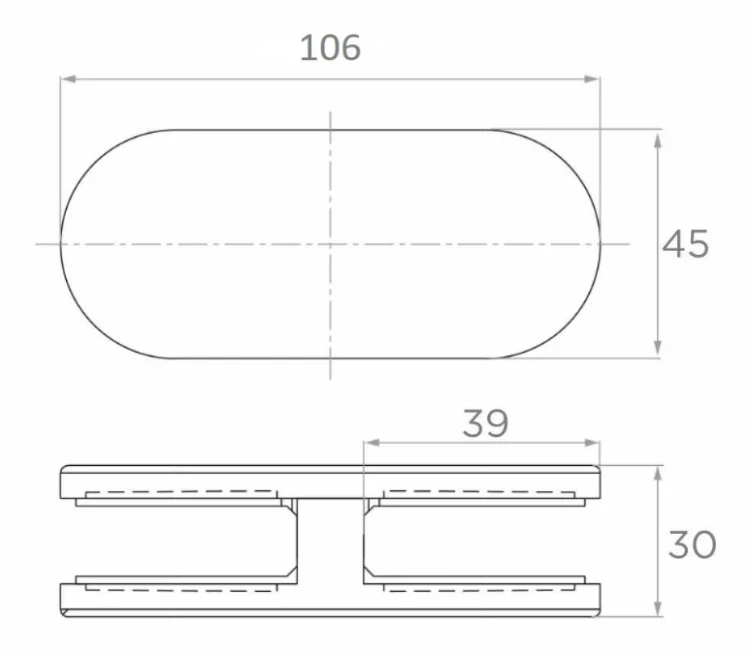

Dimensions and technical specifications
- Length (L): 106 mm
- Height (H): 45 mm
- Width / profile depth: 30 mm
- Fixing hole centres: 39 mm
- Compatible glass thickness: 6–12.76 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Weight: 0.49 kg
- Volume: 144.45 cm³
- Panel connection angle: 180°
- EAN: 5903313205665
Installation information
The clamp requires the use of rubber gaskets — the appropriate gasket thickness must be selected to match the glass being installed. Each clamp requires two sets of gaskets, which are available as separate accessories. Correctly selected gaskets ensure stable clamping of the glass panel and protect the glass edges from mechanical damage.
The 180° glass clamp is one of the key structural components in frameless glass balustrade systems. Its versatile design is compatible with toughened and laminated glass across a wide thickness range of 6 mm to 12.76 mm, allowing flexible design of balustrade systems in both residential and commercial buildings.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-12,76 |
