Glass bracket 45x45x26 mm glass 8-10.76 mm AISI 304 system 48.3 mm satin
Description

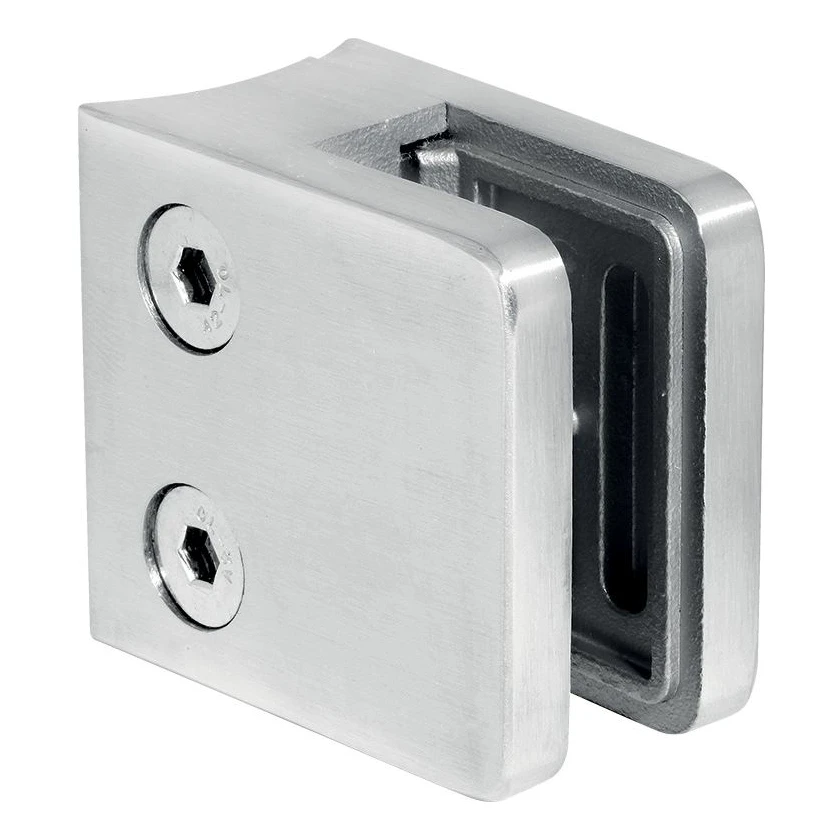

Glass Clamp 45x45x26 mm – AISI 304 Stainless Steel, 48.3 mm Post, Satin
Rectangular glass clamp 45×45×26 mm in AISI 304 stainless steel with a satin finish. Designed for securing glass panels with a thickness of 6–10.76 mm to tubular posts with a diameter of 48.3 mm. Screw-mounted for a stable and aesthetically pleasing fixing of glass panels in balustrades and partitions.
Key Features
- Material: AISI 304 stainless steel — high corrosion resistance
- Surface finish: satin — elegant, matt appearance
- Fixing method: screw-mounted onto a 48.3 mm diameter post
- Glass thickness: 6–10.76 mm — compatible with single and laminated panes
- Two Allen screws provide secure clamping of the glass panel
- Rubber inserts protect the glass from damage at the fixing point

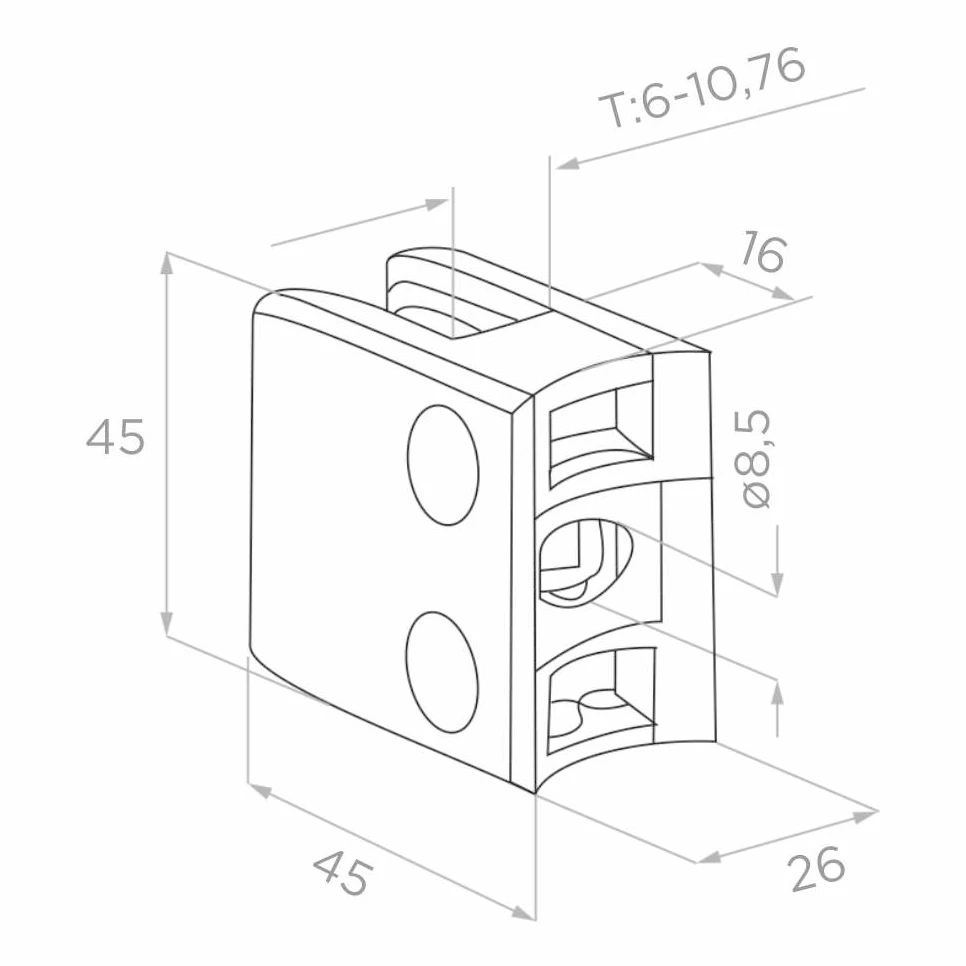

Dimensions and Technical Specifications
- Length (L): 45 mm
- Height (H): 45 mm
- Width: 26 mm
- Glass slot depth: 16 mm
- Mounting hole diameter: O8.5 mm
- Glass thickness range (T): 6–10.76 mm
- Post diameter: 48.3 mm
- Weight: 0.16 kg
- Volume: 56.7 cm3
- EAN: 5901289670142
This clamp is well suited to projects requiring fast and repeatable fixing of glass panels to tubular posts. The compact 45×45 mm body and screw-based fixing allow precise adjustment of clamping pressure, which is particularly important when working with laminated glass of varying thickness within the 6–10.76 mm range. The satin finish complements other balustrade components and stainless steel systems.
Additional Information
- The clamp requires rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen screws allow clamping pressure adjustment without removing the clamp
Technical data
| Finish | Satin |
| Mounting System | 48.3 mm |
| Glass Thickness [mm] | 8-10,76 |
| Material | AISI 304 |
