Glass clamp 6-12.76 mm 63x45x30 mm with pin AISI 304 system 48.3 mm satin
Description

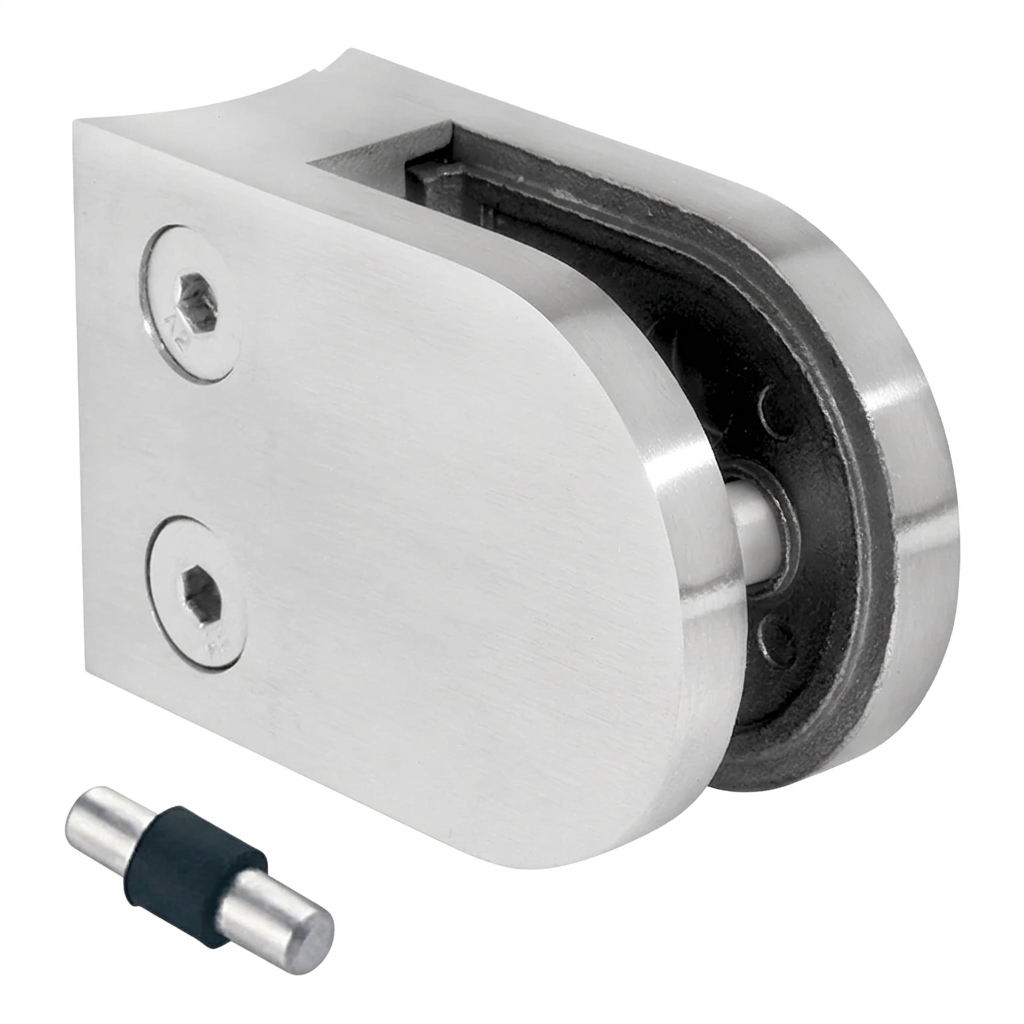

Glass Clamp 63×45 mm – Stainless Steel AISI 304, Ø48.3 mm System
The 63×45×30 mm glass clamp with securing pin is a professional fixing element designed for glass balustrade systems based on posts with a diameter of Ø48.3 mm. The rounded rear profile conforms precisely to the tube, providing a stable and aesthetically pleasing mount for glass panels ranging from 6 to 12.76 mm in thickness.

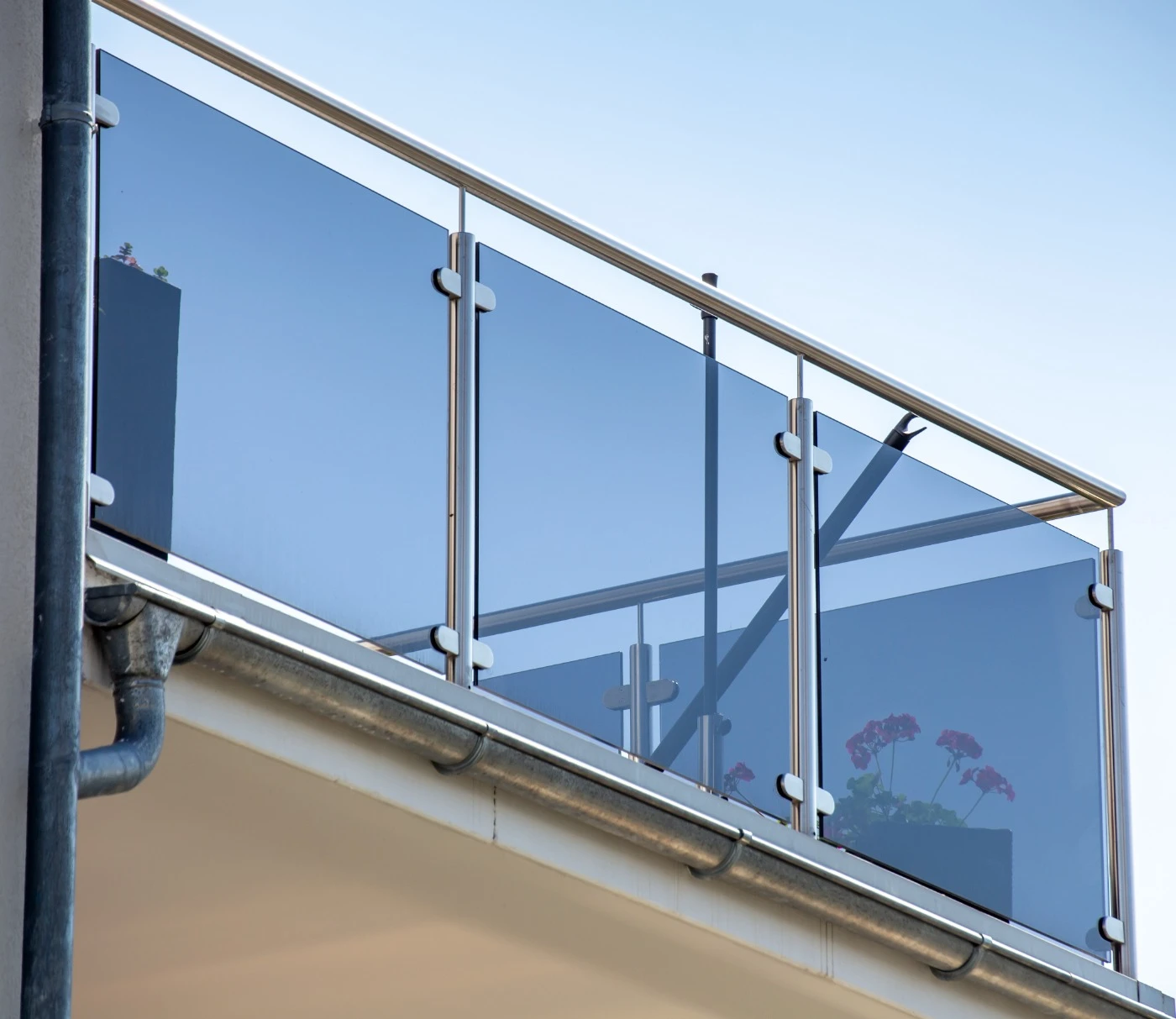

The clamp is suitable for both commercial settings — shopping centres, hotels and office buildings — and residential construction. Manufactured from AISI 304 stainless steel with a satin finish, it combines excellent corrosion resistance with a modern, understated appearance that complements glass balustrades beautifully.
Key features
- Securing pin included — prevents the glass panel from accidentally sliding out of the clamp
- Allen-head screws allow precise clamping adjustment without removing the clamp from the structure
- Rounded rear profile matched to Ø48.3 mm posts — secure fit and clean appearance
- Satin finish — matt, anti-glare surface resistant to fingerprints
- Stabilises the glass panel within the balustrade while enhancing the overall aesthetic of the structure

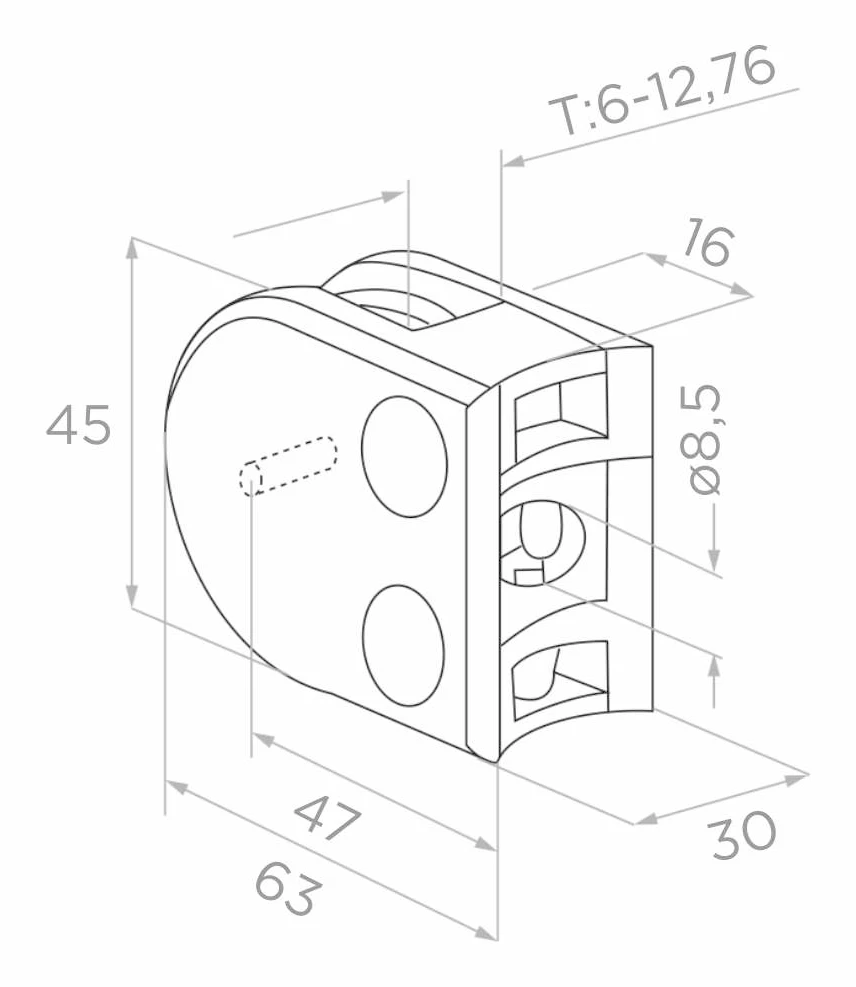

Dimensions and technical specification
- Length (L): 63 mm
- Height (H): 45 mm
- Width (depth): 30 mm
- Glass thickness (T): 6–12.76 mm
- Mounting hole diameter: Ø8.5 mm
- Distance from hole centre to mounting surface: 16 mm
- Material: stainless steel AISI 304
- Finish: satin
- System: Ø48.3 mm posts
- Weight: 0.24 kg
- Volume: 85.05 cm³
- EAN: 5901289670982
Installation information
The clamp requires rubber gaskets, which must be selected to match the thickness of the glass being fitted. Rubber gaskets are available as separate accessories, allowing you to precisely match the clamp to panels of varying thickness within the 6–12.76 mm range. Clamping pressure is adjusted using Allen-head screws, enabling quick correction without removing the clamp from the structure. The included securing pin prevents the glass panel from sliding out, enhancing the safety of the balustrade.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 48.3 mm |
| Glass Thickness [mm] | 6-12,76 |
