Glass clamp 6-10.76 mm 45x45x26 mm brackets and pin zamak system 42.4 mm raw
Description
Glass Clamp 45×45 mm – Raw Zamak, Glass 6–10.76 mm, System 42.4
A square glass clamp 45×45×26 mm designed for use in glass and frameless glass balustrade systems. Made from zamak with a raw surface finish, it provides a stable and aesthetically pleasing fixing for glass panels ranging from 6 to 10.76 mm in thickness. The clamp is compatible with Ø 42.4 mm system tubes and is installed by screwing in, allowing for fast and repeatable on-site assembly.
Application and Function
The clamp is used for stabilising glass panels in glass balustrades — securing panels against displacement whilst enhancing the aesthetic appearance of the overall structure. The set includes a safety pin with a rubber damping element, which prevents accidental loosening of the glass. Two Allen screws allow precise adjustment of the clamping pressure without the need to disassemble the clamp, significantly speeding up installation work.
Glass and frameless glass balustrades are increasingly popular in modern construction — used in shopping centres, hotels, office buildings, and residential properties alike. This clamp is ideally suited to all of these applications.

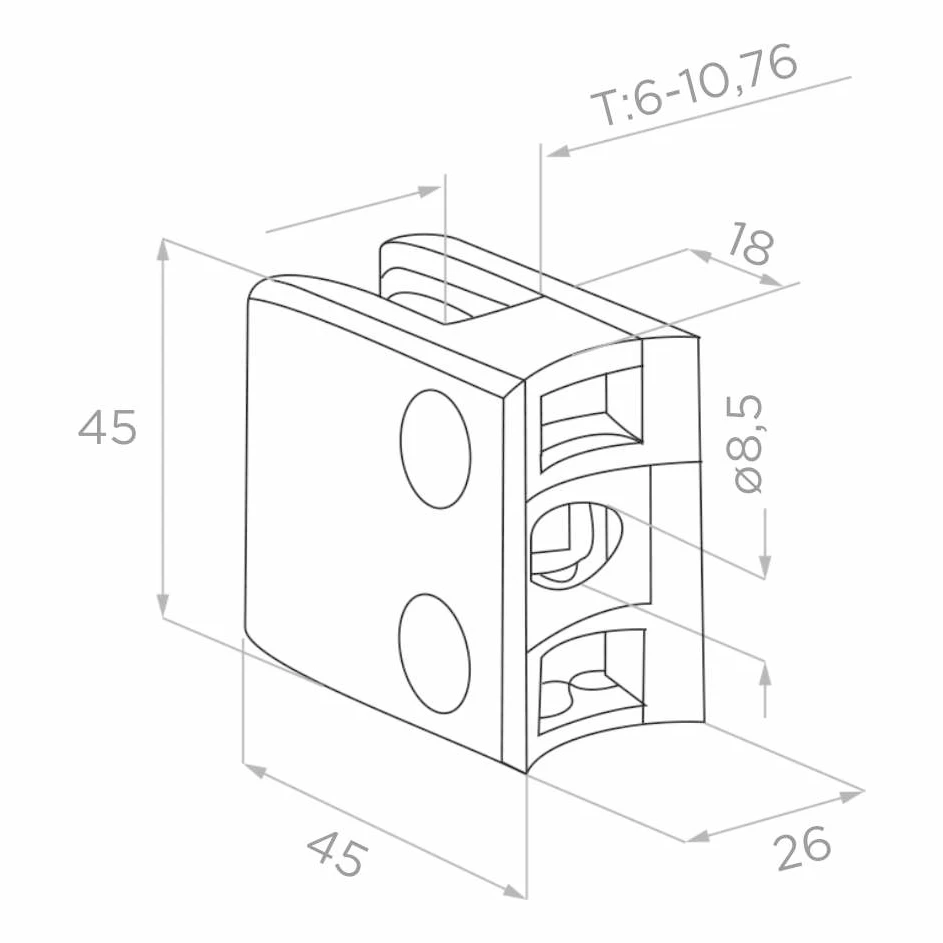

Dimensions and Technical Specifications
- Height (H): 45 mm
- Length (L): 45 mm
- Depth (width): 26 mm
- Glass thickness: 6–10.76 mm
- Glass slot axis distance: 18 mm
- Mounting hole diameter: Ø 8.5 mm
- Compatibility: system tube Ø 42.4 mm
- Material: zamak (zinc alloy)
- Surface finish: raw (unfinished)
- Weight: 0.16 kg
- Volume: 52.65 cm³

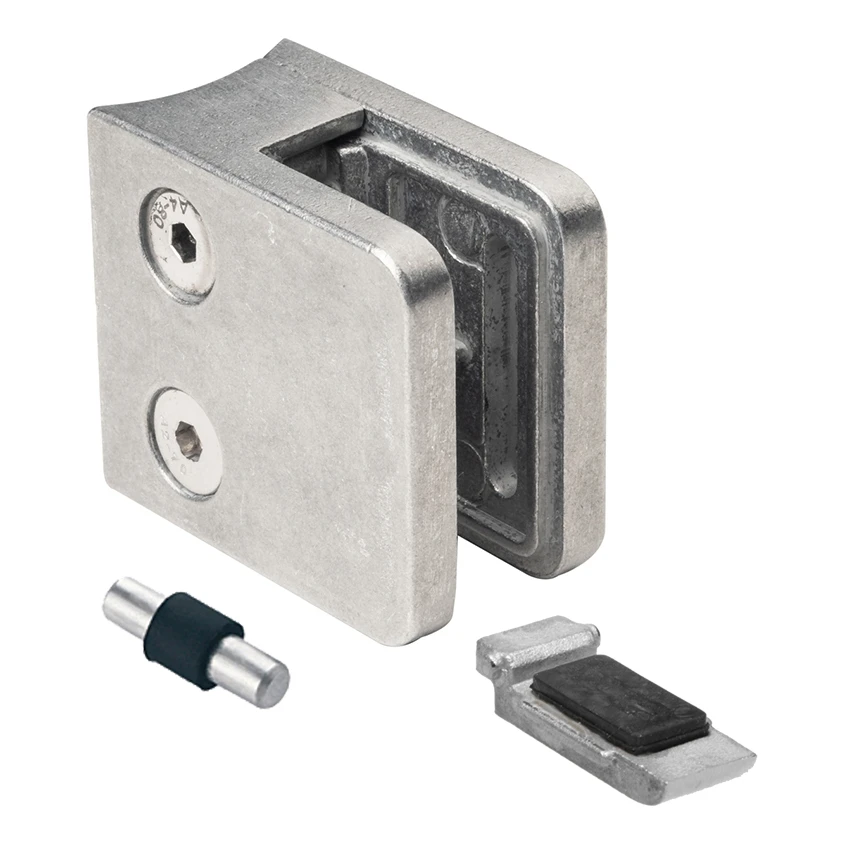

Set Contents and Accessories
- Glass clamp with two Allen screws
- Safety pin with rubber element
- Mounting bracket
Important: the clamp requires the use of rubber gaskets, which must be selected to match the thickness of the glass being installed. Gaskets are available as separate accessories — browse the full range of gaskets in our shop.
Technical data
| Material | Zamak |
| Finish | Raw |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
