Glass bracket 45x45x26 mm glass 6-10.76 mm AISI 304 system 42.4 mm satin
Description

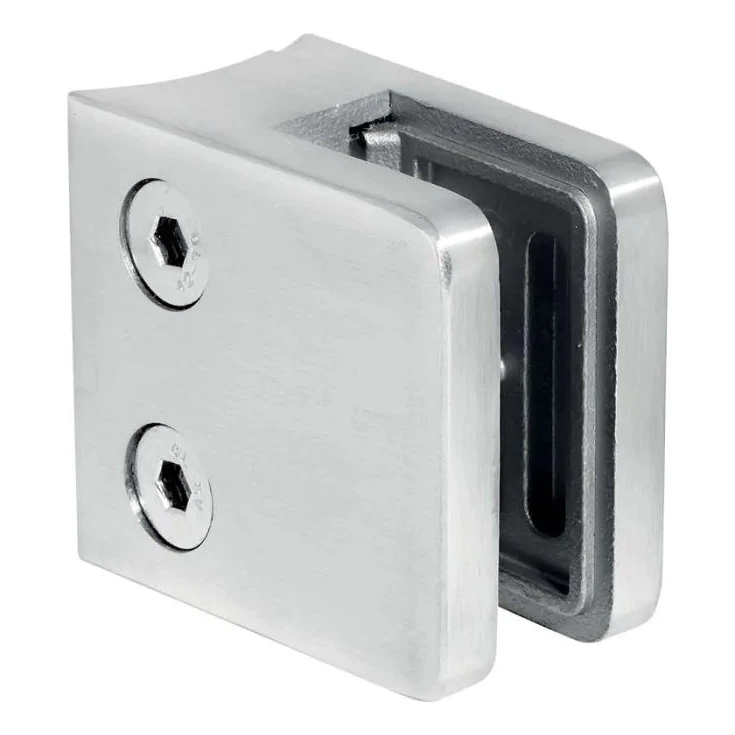

Glass Clamp 45x45 mm for 42.4 mm Post – AISI 304 Stainless Steel, Satin Finish
A rectangular glass clamp designed for securing glass panels with a thickness of 6 to 10.76 mm onto tubular posts with a diameter of 42.4 mm. Manufactured from AISI 304 stainless steel with a satin finish — an elegant and durable component for glass balustrades and partitions.
Features and Applications
The clamp is fitted by screwing onto a tube with a diameter of 42.4 mm, providing a stable and secure connection to the balustrade post. Rubber inserts inside the clamp protect the glass surface from scratching and absorb stress, enabling safe fixing of glass within a thickness range of 6–10.76 mm. The satin finish of the stainless steel gives the fitting a modern, understated appearance that complements popular glass balustrade systems perfectly.
Technical Specifications

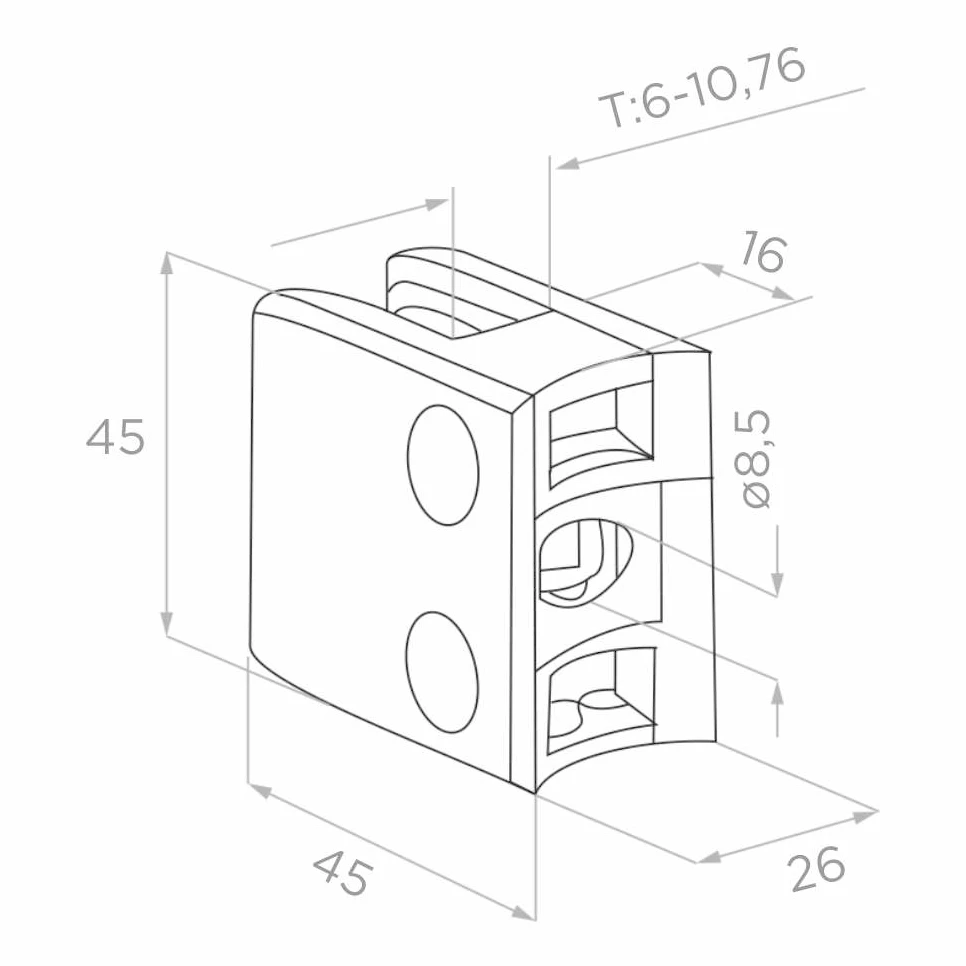

- Dimensions (L × H × W): 45 × 45 × 26 mm
- Glass thickness (clamping range): 6–10.76 mm
- Mounting tube diameter: 42.4 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Fixing method: screw-on to tube
- Mounting hole diameter: O 8.5 mm
- Clamp jaw depth: 16 mm
- Weight: 0.16 kg
- Volume: 56.7 cm3
- EAN: 5901289670135
Additional Information
- The clamp requires the use of rubber gaskets — select the appropriate gasket thickness to match the glass being installed
- Rubber gaskets are available as separate accessories
- Allen-head screws allow clamping pressure adjustment without removing the clamp
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
| Glass Thickness [mm] | 6-10,76 |
