Glass clamp 45x45x26 mm for flat surface with bracket anthracite
Description

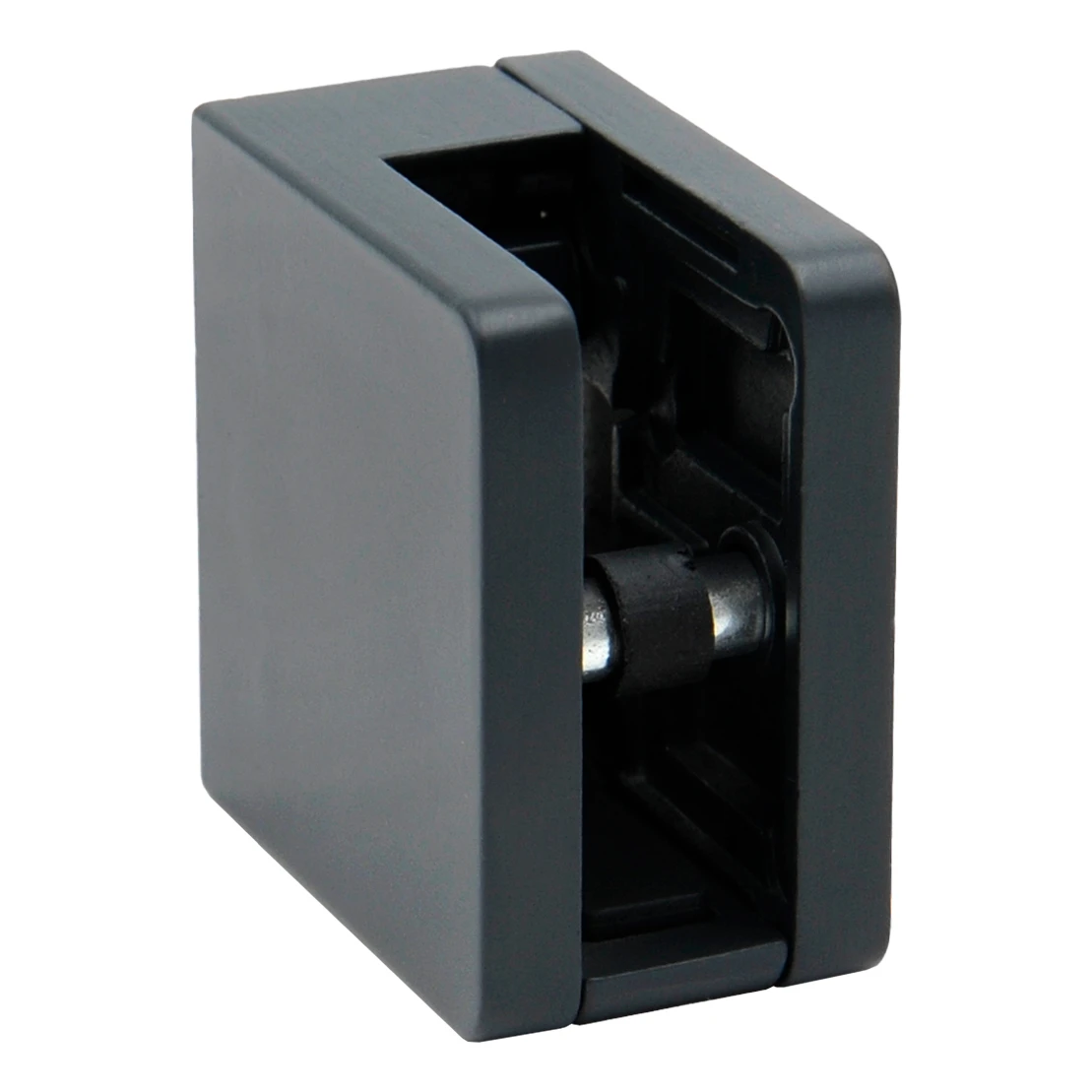

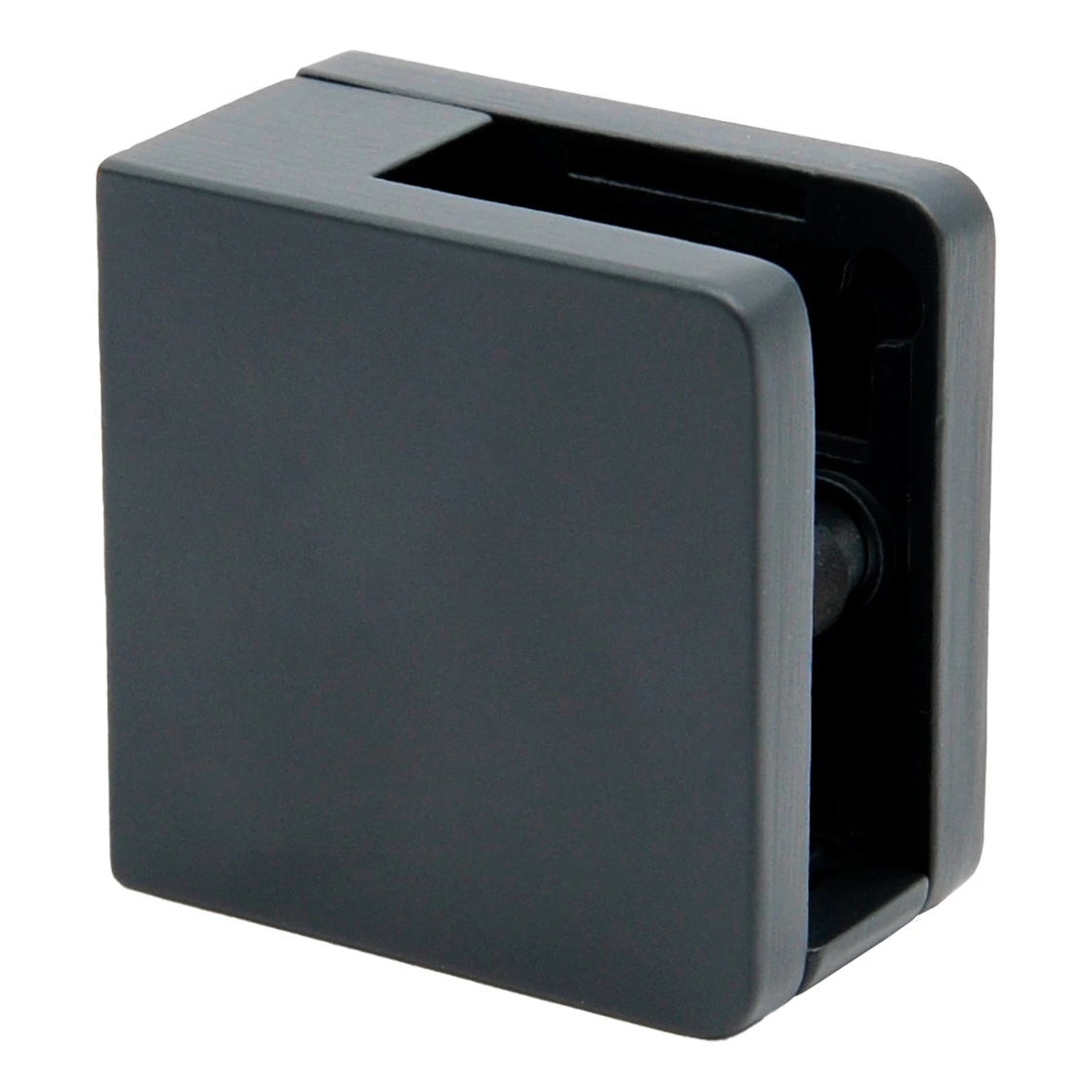

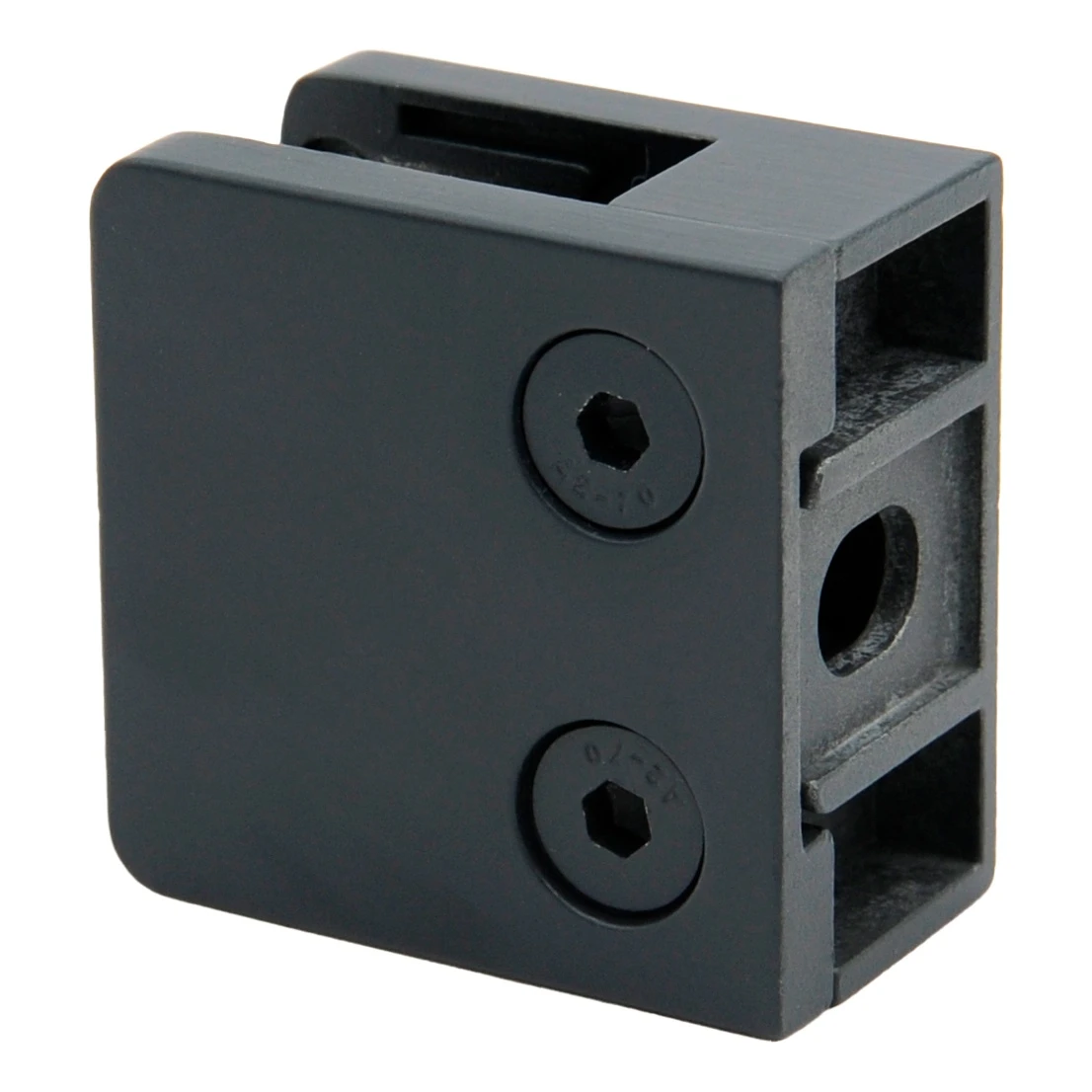

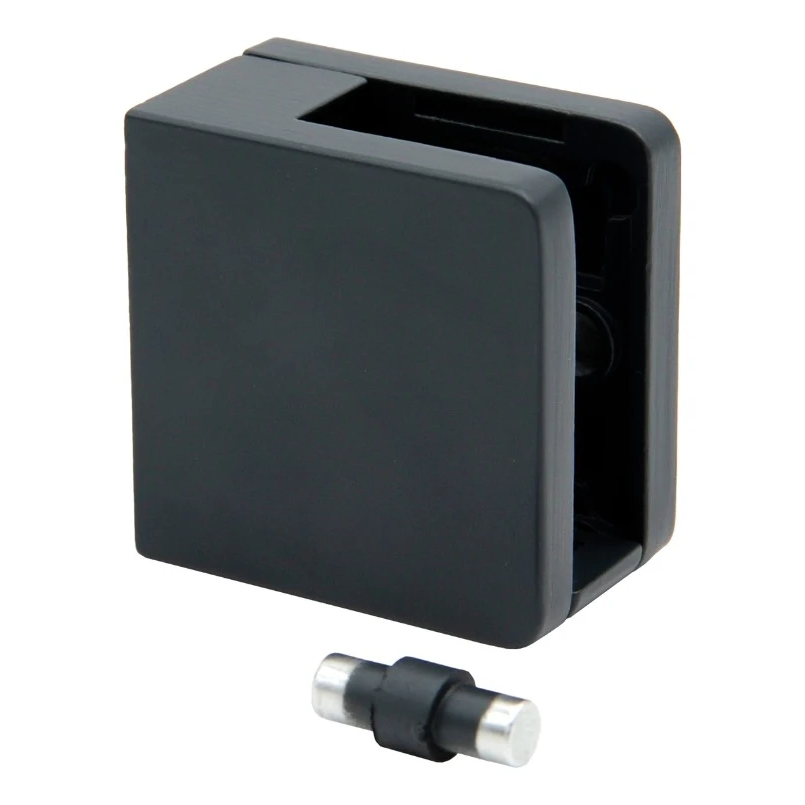

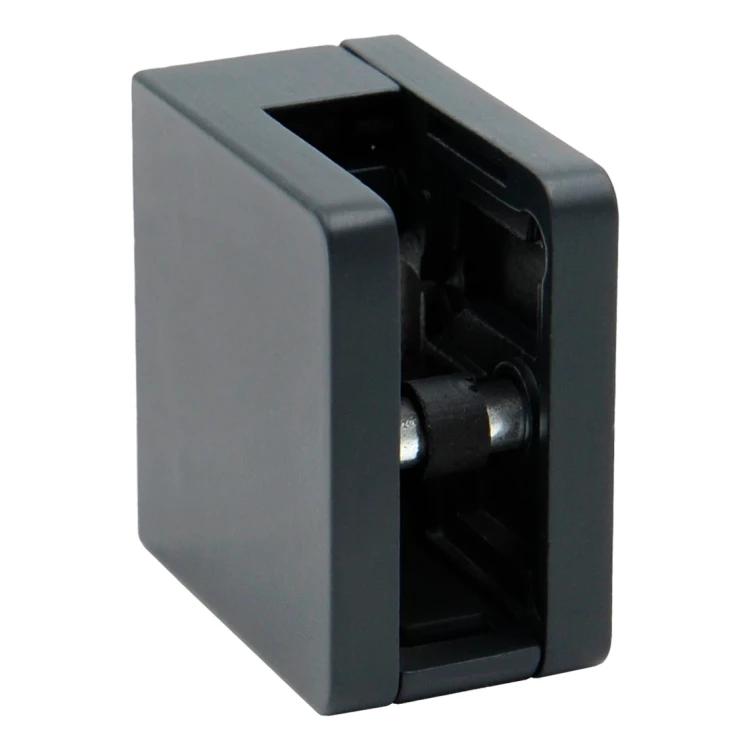

Rectangular Glass Clamp 45×45×26 mm – Zamak, Anthracite
Rectangular glass clamp in anthracite finish, designed for mounting on flat surfaces with a bracket. Used for the secure fixing of glass panels with a thickness of 6 to 10.76 mm in glass balustrade systems. Made from zamak and finished with powder coating, it offers excellent durability and a sleek, modern aesthetic.
Applications and Benefits
This clamp is designed for use in glass balustrade systems, where it provides stabilisation of the glass panel and prevents it from sliding out. Thanks to the use of zamak — a material with high mechanical resistance and excellent anti-friction properties — the clamp maintains its durability and reliability throughout its entire service life. The anthracite powder coating gives it an elegant, contemporary character that fits perfectly with current architectural trends.
- Stabilisation of glass panels within the balustrade structure
- Prevention of glass panel displacement
- Enhanced aesthetic appeal of the construction
- Slotted mounting hole for easy position adjustment
- Screw-in installation – quick and secure
Technical Specifications
- Length: 45 mm
- Height: 45 mm
- Width: 26 mm
- Material: zamak (zinc alloy)
- Finish: powder coating – anthracite
- Glass thickness: 6–10.76 mm
- Mounting type: for flat surfaces with bracket
- Mounting hole: slotted
- Screws: Allen (hex socket) – allow clamping pressure adjustment without disassembly
- Weight: 0.155 kg
- Colour: anthracite
- EAN: 5903313204514
Gaskets and Accessories
This clamp requires the use of rubber gaskets, which must be selected according to the thickness of the glass being installed. Compatible rubber pads for this model are identified by the additional designation D. Rubber gaskets are available as separate accessories — correct selection ensures a secure and safe hold of the glass panel within the clamp. The Allen screws allow convenient clamping pressure adjustment without the need to disassemble the clamp, significantly speeding up both installation and maintenance work.
Technical data
| Material | Zamak |
| Finish | Powder-coated anthracite |
| Mounting System | Flat |
| Glass Thickness [mm] | 6-10,76 |
