Glass clamp 6-12.76 mm 63x45x30 mm bracket and pin AISI 304 flat system satin
Description
Glass Clamp 63x45 mm with Bracket – AISI 304 Satin Stainless Steel
Glass clamp with mounting bracket and safety pin designed for use in structural glass balustrade systems. Provides stable fixing of glass panels with a thickness of 6 to 12.76 mm. The rounded profile of the clamp enhances the aesthetic appeal of the construction, while the robust AISI 304 stainless steel body with a satin finish ensures durability and corrosion resistance.
Application and Function
This clamp is designed for installation in structural and all-glass balustrade systems — solutions increasingly used in shopping centres, hotels, office buildings and residential properties. The design provides stabilisation of the glass panel within the balustrade, prevention of panel displacement thanks to the safety pin, and enhanced aesthetic quality of the overall steel structure. The clamp is mounted on a flat surface (flat system) using the included bracket.

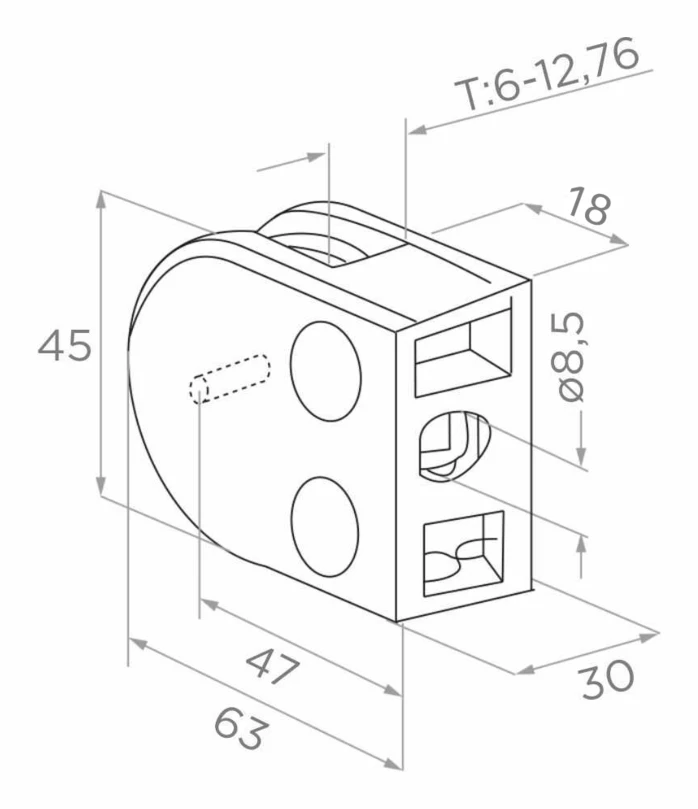

Dimensions and Technical Specifications
- Length (L): 63 mm
- Height (H): 45 mm
- Width: 30 mm
- Distance from bolt axis to base: 47 mm
- Base depth (to glass slot): 18 mm
- Mounting hole diameter: Ø8.5 mm
- Compatible glass thickness: 6–12.76 mm
- Material: AISI 304 stainless steel
- Surface finish: satin
- Mounting system: flat
- Weight: 0.28 kg
- Volume: 85.05 cm³
- EAN: 5901289671095

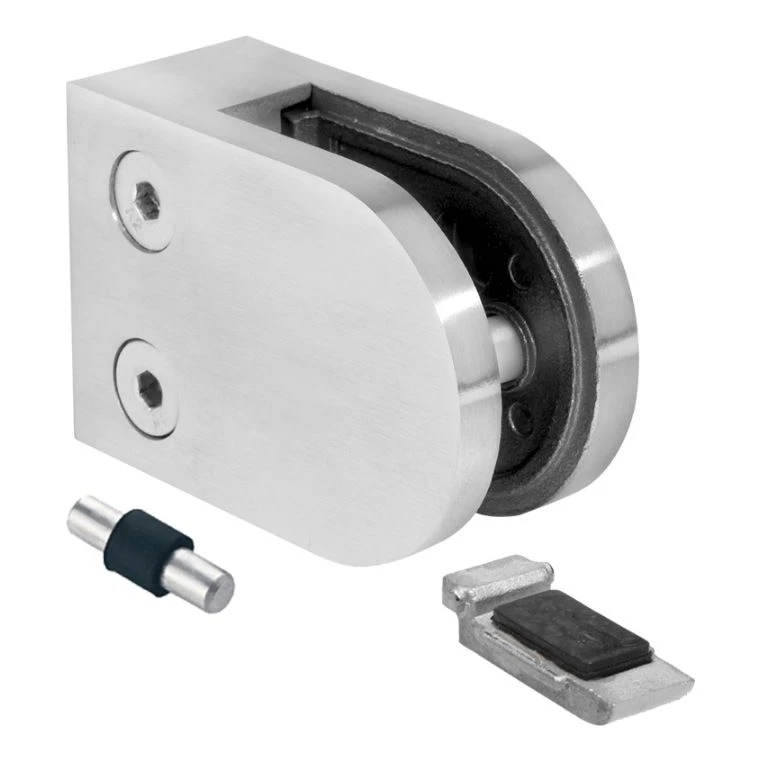

Package Contents
The set includes a glass clamp, mounting bracket and safety pin. The Allen screws allow clamping pressure adjustment without disassembly, speeding up installation and any subsequent repositioning of the glass panel.
Rubber Gaskets – Sold Separately
The clamp requires rubber gaskets, which must be selected to match the thickness of the glass being fitted. Gaskets are available as separate accessories — this allows you to precisely match the gasket thickness to the specific panel, ensuring a secure and stable fixing.
Technical data
| Glass Thickness [mm] | 6-12,76 |
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | Flat |
