Pressure rubber 8mm for 63D3 clamps
Description

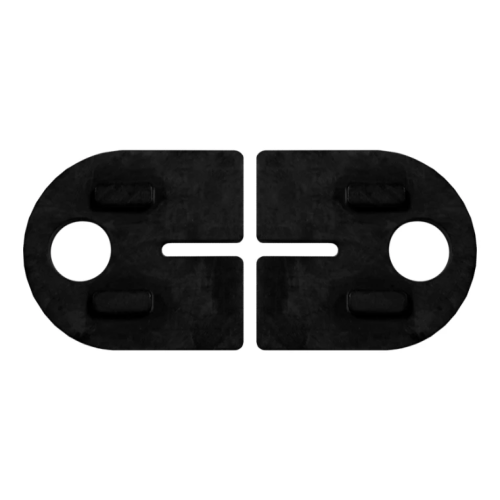

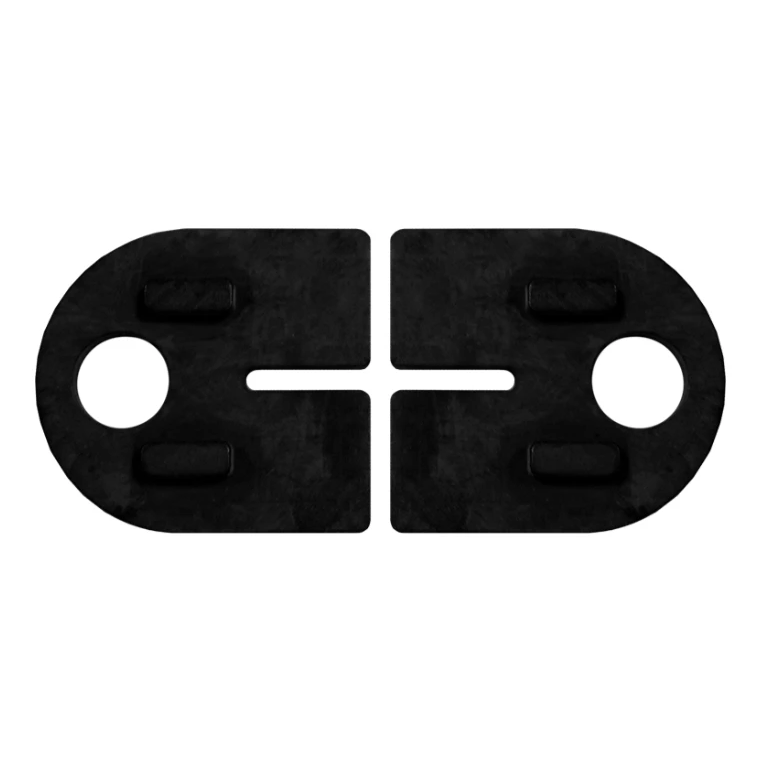

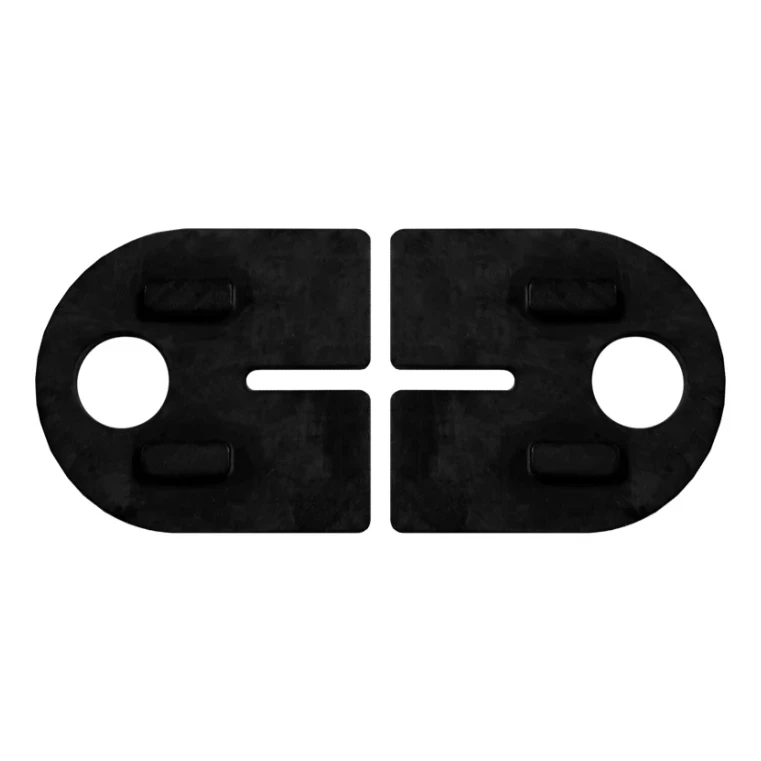

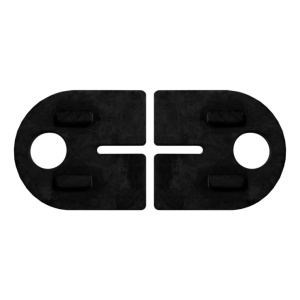

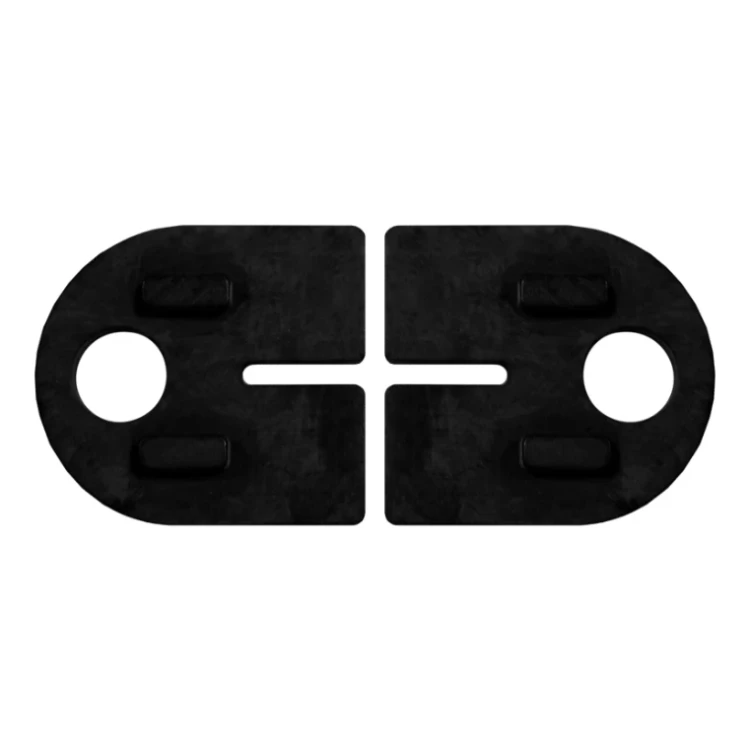

8mm Pressure Rubber for Glass – Set of 2 for 63D3 Clamps
The 8mm pressure rubber for glass is a rubber gasket designed to secure glass panels fitted in glass balustrades. The element is inserted between the glass panel and the mounting clamp, providing a firm and stable seating for the glass panel without risk of surface damage. Dedicated for use with clamps from the 63D3 group.
The flexible rubber structure effectively dampens vibrations and compensates for minor irregularities, resulting in a durable and secure glass fixing. Thanks to the precise fit, installation is quick and requires no additional tools — simply insert the rubber between the glass and the clamp.
Technical Specifications
- Application: glass with a thickness of 8 mm

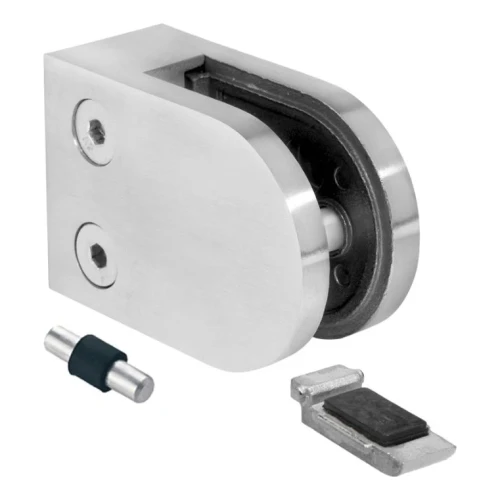

- Compatibility: clamps from the 63D3 group
- Material: rubber
- Colour: black
- Quantity per set: 2 pcs.
- Set weight: 0.005 kg
- Volume: 23.2 cm³
- EAN: 5901289671101
Applications
Pressure rubbers are used wherever a glass panel is secured in point-fixing clamps — primarily in interior and exterior glass balustrades. They are an essential installation component, protecting the glass from direct contact with the metal clamp and preventing the formation of point stress concentrations.
Technical data
| Material | Plastic |
